Guide to 2007-2012 Dodge Caliber Door Hinge Replacement
Fix your sagging, popping, or hard-to-close Caliber door with a new aftermarket hinge.
- A sagging door that is hard to close is the most common sign of a failed hinge on a Dodge Caliber.
- Replacing the entire hinge assembly is the recommended repair, not just the pins.
- Aftermarket hinges are a cost-effective alternative to more expensive OEM parts.
- This is a DIY-friendly repair, but you must support the door's weight and carefully align it after installation.
Is Your Dodge Caliber's Door Sagging or Popping?
If you have to lift your Dodge Caliber's door to get it to latch shut, or if you hear a loud pop or clicking sound when you open it, you likely have a worn-out door hinge. This is a common issue on these vehicles, especially for the driver's side door which is used most often. The problem usually comes from the hinge pins and bushings wearing down over time. In some cases, the roller mechanism on the lower hinge that holds the door open can fail, causing noise and improper movement.
Symptoms of a Failing Door Hinge
- Sagging Door: The most obvious sign is a door that has dropped and no longer aligns with the body. You'll have to lift it to close it correctly.

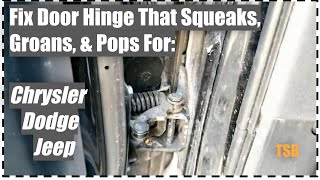

- Popping or Grinding Noises: A loud pop, click, or grinding sound when opening or closing the door points to a worn hinge pin or detent roller. 🎬 Watch: How to lubricate hinges to stop popping sounds
- Difficult to Open or Close: The door may feel stiff or get stuck as the misaligned hinge binds up.
- Visible Damage: In some cases, you might see the hinge itself has bent or "sprung," which can prevent the door from closing at all.
- Body Damage: A sagging door can scrape against the door sill or fender, chipping paint and causing rust.
Choosing an Aftermarket Replacement Hinge
When replacing a door hinge on your Caliber, you have two main choices: OEM from the dealer or an aftermarket part. For a vehicle of this age, an aftermarket hinge is often the most practical and affordable choice.
- OEM Mopar: An original equipment manufacturer (OEM) part from Mopar will be a direct match to what was installed at the factory. However, it is also the most expensive option, often costing nearly double the price of an aftermarket part.
- Aftermarket (Replacement Brand): Aftermarket brands like Replacement offer a cost-effective solution. These parts are designed to fit and function like the original but at a lower price point. While they are a great value, some aftermarket parts may not have the same level of corrosion resistance as the original, so applying a coat of paint or a rust-preventative spray before installation is a good pro-tip.
Pro Tip: Check the Rear Doors
One Caliber owner noted that the rear door hinges are identical to the front ones but are used far less often. If you are on a tight budget, you may be able to find a used rear door hinge from a salvage yard in excellent condition to use on your front door.
Cost of Replacing a Dodge Caliber Door Hinge (2007-2012)
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Hinge | $50 - $57 |
| New OEM (Mopar) Hinge | $96 - $100 |
| Shop Labor | $95 - $190 |
Note: Costs are estimates and may vary based on your location and specific vehicle condition. The price shown is for a single hinge.
Frequently Asked Questions
Can I replace just the hinge pin and not the whole hinge?
While some vehicles have replaceable hinge pin and bushing kits, for the Dodge Caliber, it is more common and often easier to replace the entire hinge assembly. 🎬 See this walkthrough on how to replace a door hinge This ensures all components, including the detent mechanism on the lower hinge, are new.
Is this a difficult job to do myself?
Replacing a door hinge is a manageable DIY job for someone with basic mechanical skills. The key challenges are supporting the heavy door and aligning it correctly after the new hinge is installed. Having a helper and a floor jack with a padded block of wood makes the job much easier and safer.
Do I need to paint the new aftermarket hinge?
Most aftermarket hinges come with a black protective coating. While you don't have to paint it, adding a layer of automotive paint that matches your vehicle's color can provide extra protection against rust and give a cleaner, factory look.
How do I align the door after installing the new hinge?
Before you remove the old hinge, use a marker to trace its outline on the door and the vehicle body. When you install the new hinge, use these marks as a starting point. You may need to slightly loosen the bolts and adjust the door up/down or forward/backward to get a perfect fit before fully tightening everything.
🎬 Watch: Pro tips for adjusting a sagging car doorAre there any recalls for Dodge Caliber door hinges?
No, there are no recalls from Dodge or NHTSA specifically for the door hinges on the 2007-2012 Caliber. There were recalls related to door latches and locks, but these are separate parts from the hinges.
Helpful Videos
Technical Specifications
Vehicle-specific fit for 2007-2012 Dodge Caliber. Available for upper/lower and left/right positions. Typically constructed from steel with a protective coating.
