Ford Taurus Engine Oil Pressure Switch Guide (2007-2012)
Understanding the signs of a failing oil pressure switch and how to choose the right replacement for your Taurus.
- A flickering oil light is the number one sign of a bad oil pressure switch; check your oil level first.
- This is an easy and inexpensive DIY replacement that is a common first step for diagnosing oil pressure warnings.
- Ignoring the warning light can be catastrophic; even if it's likely the switch, the risk of actual low oil pressure is too high to ignore.
- No specific recalls or TSBs exist for this part, but it is a widely acknowledged common failure item.
Is Your Taurus Oil Light Flickering?
A flickering or constantly lit oil pressure light on your dashboard is the most common sign that your engine oil pressure switch is failing. This is a frequent issue for Ford Taurus owners. Often, the problem is the switch itself rather than a serious lack of oil pressure. You might notice the light flickers only at idle or after the engine has warmed up. 🎬 Watch: Fixing a flickering oil light on the 3.0L engine Another clear symptom is an oil leak from the body of the old switch. In some cases, a faulty sensor can also trigger the Check Engine Light.
Choosing the Right Aftermarket Oil Pressure Switch
When replacing the oil pressure switch on your 2007-2012 Taurus, you have several options. Since a faulty switch can give the same warning as a severe engine problem, it's wise to use a quality part. However, for a simple component like this, a reliable aftermarket brand often provides the best value.
Aftermarket Brand Tiers
| Tier | Brands | Quality & Notes |
|---|---|---|
| OEM / Premium Aftermarket | Motorcraft, Standard Ignition, Walker Products | Motorcraft is the original Ford part, offering guaranteed fit and function. Standard Ignition and Walker Products are well-regarded aftermarket manufacturers that design their parts to meet or exceed OE specifications, often using durable materials like polyimide film diaphragms for longevity. |
| Standard Aftermarket | Facet, Global Parts, True Tech, Rostra Powertrain | These brands offer a cost-effective solution that meets basic requirements. They are a good option for budget-conscious repairs and are widely available. For a part like an oil pressure switch, these are generally reliable choices. |
A Note on Low Oil Pressure Warnings
Never ignore an oil pressure warning light. While it's often just a faulty switch, it can also indicate a genuinely low oil level or a failing oil pump, which can destroy your engine in minutes. Always check your oil level first. If the level is correct, replacing the switch is an inexpensive first step in diagnosis.
🎬 See how to verify actual oil pressure with a manual gaugeKnown Issues, Recalls, or TSBs
There are no specific recalls or Technical Service Bulletins (TSBs) from Ford for the engine oil pressure switch on the 2007-2012 Taurus. However, forum discussions and mechanic reports show that a flickering oil light due to a faulty sending unit is a common complaint across many Taurus generations. The issue is almost always resolved by replacing the switch.
Frequently Asked Questions
Why is my oil light flickering but my oil level is fine?
This is the classic symptom of a failing oil pressure switch. The internal diaphragm or electrical contacts wear out, causing it to send false signals to the dashboard light, especially when the engine is warm and oil is thinner. It's the most likely culprit if your oil level is correct.
Is it hard to replace the oil pressure switch on a 2007-2012 Taurus?
No, it is considered an easy DIY job. For the 3.5L engine, it is located near the oil filter housing, behind the alternator. For the 3.0L engine, it is typically found near the oil dipstick tube. It usually requires only basic hand tools, including a deep socket (often 13/16" or 21mm). The job can typically be done in under an hour.

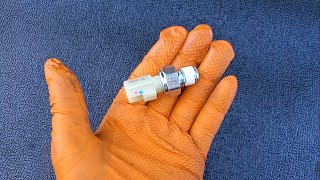

🎬 Watch this step-by-step replacement guide for the 3.5L Taurus engineWhat is the difference between an oil pressure switch and an oil pressure sensor?
The terms are often used interchangeably. A simple "switch" just turns the warning light on or off at a preset pressure. A "sensor" or "sending unit" can provide a variable reading to a pressure gauge on the dashboard. For most 2007-2012 Taurus models which only have a warning light, the part functions as a simple switch.
Can a bad oil pressure switch cause engine problems?
The switch itself won't cause damage, but it can fail in two dangerous ways. If it fails to warn you of a real low-pressure situation, your engine could be severely damaged. Conversely, if it gives false low-pressure warnings, it can cause some modern engine computers to put the car into a reduced-power "limp mode."
Helpful Videos
Technical Specifications
OEM Part Numbers: SW6379
Connector: 1-pin blade style. Thread sealant is often pre-applied on new aftermarket parts.
