A Home Mechanic's Guide to the 2007-2013 Chevrolet Avalanche Door Lock Actuator
If your Avalanche doors won't lock or unlock reliably, the actuator is the likely culprit, and this guide will walk you through the fix.
- Failure is common on these trucks; symptoms include buzzing noises, erratic operation, or total failure.
- The part is an integrated latch and actuator assembly; you must replace the entire unit.
- The job is DIY-friendly, requiring basic tools and about 1-2 hours per door.
- Before replacing, check for broken wires in the door jamb, as this can mimic actuator failure.
Is Your Avalanche Door Lock Actuator Failing?
A failing door lock actuator on the 2007-2013 Avalanche is a common problem. The symptoms usually start small and get worse over time. If you notice any of these signs, it's probably time for a replacement.
- Strange Noises: A buzzing, clicking, or grinding sound from inside the door when you lock or unlock is a classic sign of a dying actuator motor. Normal operation is a quiet whir, so any new, loud noise is a red flag.
- Erratic Behavior: Do your locks work sometimes but not others? Maybe they lock and then immediately unlock on their own, or one door stops responding while the others work fine. This points to an internal failure in the actuator.
- Slow Response: If there's a noticeable delay between pressing the button and the door actually locking or unlocking, the actuator motor is likely getting weak.
- Complete Failure: The most obvious symptom is when a door's power lock stops working completely. You'll have to lock or unlock it manually with the key or the inside lock tab.
Known Issues & Recalls
While door lock actuator failure is a very common issue for these trucks, there are no specific recalls for the door lock actuators themselves. However, a recall was issued for some 2013 models for a faulty steering column lock actuator gear, which could prevent the vehicle from staying in 'Park', but this is unrelated to the door locks. There are no official Technical Service Bulletins (TSBs) from GM specifically for this part on the Avalanche, but the failure is widely acknowledged by mechanics and owners.
Choosing the Right Aftermarket Actuator
For the 2007-2013 Avalanche, the door lock actuator is integrated with the latch assembly. You will be replacing the entire unit. 🎬 See how to replace the front door lock actuator assembly. While an OEM part from a dealer is an option, quality aftermarket parts can offer similar performance for less money. Here's a look at the available brands.
Brand Quality Tiers
- Premium Aftermarket (Standard Ignition): Standard Motor Products (SMP), or Standard Ignition, is a well-respected brand known for making parts that meet or exceed original specifications. They focus on durability and reliable performance, making them a top choice if you want a long-lasting repair.
- Mid-Grade Aftermarket (Replacement): The 'Replacement' brand offers a direct-fit, budget-friendly alternative. These parts are designed to restore original function at a lower cost. While they are a good value, their long-term durability might not match that of a premium brand.
- Value-Oriented (URO Parts): URO Parts is primarily known for European car parts but offers components for other vehicles. They aim to provide an affordable alternative to OEM parts. Reviews can be mixed depending on the specific part, so they are best considered when the budget is the primary concern.
| Brand Tier | Estimated Part Cost |
|---|---|
| Premium (e.g., Standard Ignition) | $150 - $285 |
| Mid-Grade / Value (e.g., Replacement, URO Parts) | $47 - $150 |
Pro-Tip: Check Your Wiring
Before you blame the actuator, especially if a replacement part doesn't work, check the wiring. The wires that run between the door and the truck's body can break from repeated opening and closing, causing the same symptoms as a failed actuator. A quick check with a multimeter can save you from buying a part you don't need.
Frequently Asked Questions
Can I replace just one door lock actuator?
Yes. The actuators fail individually, and you only need to replace the one that has failed. However, they are a common failure item, so if one has failed, the others may not be far behind.
Is this a difficult repair to do myself?
For a home mechanic, this is a manageable job. It involves 🎬 Follow this video tutorial to replace the integrated latch assembly. removing the door panel, peeling back the vapor barrier, and working in a somewhat tight space to unbolt the old actuator and install the new one. It requires basic tools like a socket set, trim removal tools, and a Torx bit. Plan for about one to two hours per door.

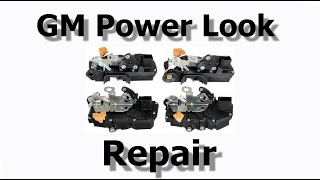

🎬 Watch this step-by-step guide to replacing your door lock actuators.Will a new actuator fix my key fob problems?
If the key fob works for other doors but not the one with the issue, then yes, replacing the actuator will likely solve the problem. If the fob doesn't work for any of the doors, you might have a different issue, like the fob's battery or the vehicle's receiver.
Do I need to get the part programmed?
No. Door lock actuators for the 2007-2013 Avalanche are direct-replacement parts and do not require any programming. They are plug-and-play once installed correctly.
Helpful Videos
Technical Specifications
OEM Part Numbers: 20783848 25873490 25945738 20783859 931-303 15880052

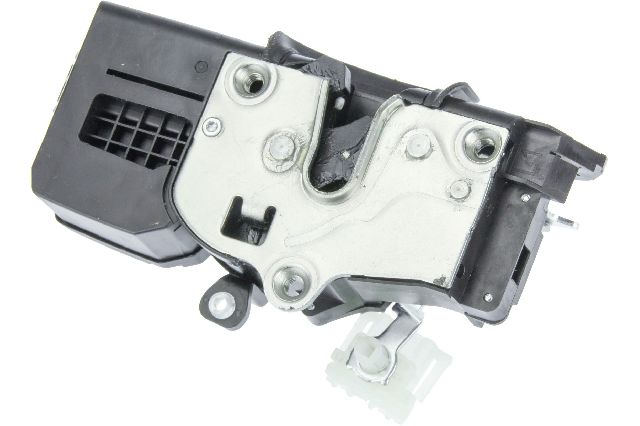

Integrated latch and actuator assembly with electrical connector. Attaches with three T30 Torx bolts.
