Fixing Door Sag and Pop on Your 2007-2014 Chevrolet Silverado 1500
Stop lifting your sagging door to close it and get rid of that annoying popping noise with the right replacement hinge.
- Door sag is fixed by replacing the hinge pins and bushings; a popping noise requires replacing the entire lower hinge assembly.
- This is a common failure on these trucks, but it is a manageable DIY repair with the right tools and a helper.
- You must support the heavy door with a floor jack or hoist before unbolting the hinge.
- Aftermarket brands like Dorman, ACDelco, and others offer reliable and affordable solutions compared to dealer parts.
Is Your Silverado's Door Hinge Failing?
Door hinge problems are extremely common on 2007-2014 Silverado 1500 trucks. The issues usually come from two main sources: worn-out pins and bushings causing the door to sag, or a failed roller in the lower hinge causing a loud noise. Knowing which problem you have is key to buying the right parts.
Symptoms of a Bad Door Hinge
- Sagging Door: This is the most common sign. To check, open your door partway, grab the bottom, and try to lift it. If you feel a lot of up-and-down movement or hear a clunk, your hinge pins and bushings are worn. A sagging door is hard to close and can damage your door latch over time.
- Loud Popping or Grinding Noise: A sharp, metallic "pop" when you open or close the door is almost always caused by a seized roller on the lower door hinge. Rust and dirt stop the roller from spinning, so it scrapes against the metal instead of rolling smoothly.
- Door is Hard to Move: If the door feels stuck when it's fully open, this is another sign of a bad lower hinge roller.
Don't Ignore a Sagging Door
Continuing to slam a sagging door can cause extra wear on the door latch and striker. This can make the door even harder to close and could eventually lead to it not latching securely. Addressing the worn hinge is the only permanent fix.
Choosing the Right Aftermarket Door Hinge
For the 2007-2014 Silverado, you have two main repair options: replacing just the worn-out pins and bushings, or replacing the entire hinge assembly. Your choice depends on your symptoms.

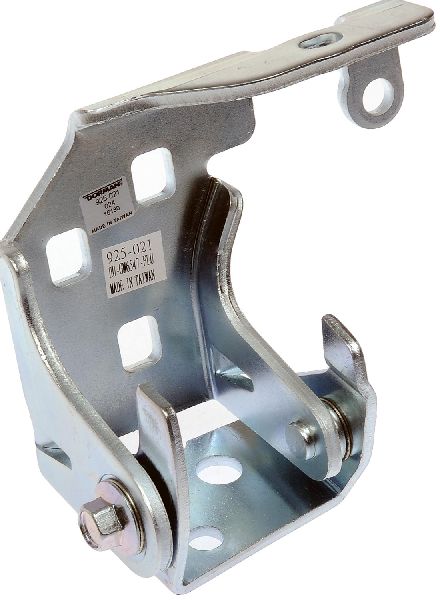

- For a SAGGING door: A Door Hinge Pin & Bushing Kit is an affordable solution. This requires you to remove the door, cut or grind off the old pins, and install the new parts.

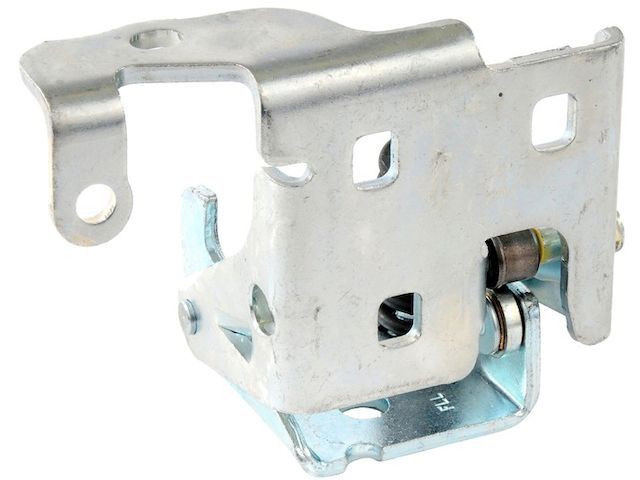

- For a POPPING noise: You must replace the entire Lower Door Hinge Assembly. The noisy roller mechanism is part of the hinge body and cannot be replaced separately.
Aftermarket Brand Tiers
When shopping for new aftermarket parts, you'll find several brands available.
- ACDelco: As GM's official parts brand, ACDelco offers different quality tiers. Their "Professional" or "Gold" line is considered a premium aftermarket option, while their "Advantage" line is more budget-focused. For a part like a hinge, choosing their higher-tier option is a safe bet for quality and fit.
- Dorman: Dorman is a very popular aftermarket brand that offers both complete hinge assemblies and pin/bushing kits. They are known for providing affordable solutions to common failures. For this specific repair, Dorman kits are widely used by DIYers.
- Replacement / OPR / SKP: These brands are often sold as direct-fit, budget-friendly alternatives. They are designed to match the original part's fit and function and can be a good value, especially if the original part had a known design flaw that the aftermarket has addressed.
Pro Tip: Many aftermarket pin and bushing kits, like those from Dorman, use a nut to secure the new pin instead of being pressed in like the factory original. This can make future replacements much easier. Some owners also prefer kits that have a grease fitting, allowing you to lubricate the hinge to extend its life.
Cost of Replacing a 2007-2014 Silverado Door Hinge
| Part Type | Estimated Cost |
|---|---|
| New Aftermarket Hinge Assembly | $38.99 - $167.34 |
| New Aftermarket Pin & Bushing Kit | $15 - $40 |
| Shop Labor | $150 - $450 |
Cost estimates are for a single hinge and do not include taxes or shipping. Labor costs vary by location and shop.
Frequently Asked Questions (FAQ)
Can I just replace the pins and bushings to fix the popping noise?
No. The popping noise is caused by the roller mechanism inside the lower hinge assembly. The only way to fix it is to replace the entire lower hinge. A pin and bushing kit will only fix a sagging door.
Is replacing the door hinge a difficult job?
It is moderately difficult. The truck door is very heavy and must be supported correctly with a floor jack or an engine hoist to avoid injury or damage. You will also need to disconnect the door's wiring harness. Having a helper is highly recommended, especially for aligning the door during reinstallation.
Do I need to paint the new hinge?
Most aftermarket hinges come with a protective zinc coating or e-coating that prevents rust. You do not have to paint them, but you can have them painted to match your truck's body color for a factory look.
Are there any recalls for the door hinges?
No, there are no specific safety recalls for the door hinges on the 2007-2014 Chevrolet Silverado 1500. However, GM did issue a Technical Service Bulletin (TSB PI1221) for the 2014 model year related to wind noise, which involves door alignment and suggests using special bolts for more adjustment range if needed.
Helpful Videos
Technical Specifications
The front door hinges are the same for Regular, Extended, and Crew Cab models within the 2007-2014 generation. The repair typically involves replacing either the upper and lower hinge pins and bushings for one door, or replacing a complete hinge assembly (upper or lower).
