A/C Receiver Drier Guide for the 2007-2017 Jeep Wrangler (JK)
If your Jeep's A/C is blowing warm, the problem might be a small but critical part you've never heard of.
- The A/C receiver drier must be replaced anytime the A/C system is opened for another repair.
- Professional installation is highly recommended due to the need for specialized refrigerant handling equipment.
- Symptoms of failure include poor cooling, musty smells, and rattling noises from the engine bay.
- Quality aftermarket brands like Denso and Crown offer reliable performance at a much lower cost than OEM.
Is Your Jeep's A/C Failing? Signs of a Bad Receiver Drier
A failing A/C receiver drier can cause more than just discomfort on a hot day; it can lead to expensive damage to your entire A/C system. Because it's designed to trap moisture and debris, it can become clogged or saturated over time. Here are the common symptoms to watch for in your 2007-2017 Wrangler JK.
- Poor or Inconsistent Cooling: This is the most frequent sign. 🎬 Watch this video to see a Wrangler A/C diagnosis in action. A clogged drier restricts the flow of refrigerant, so your vents blow air that's barely cool or cycles between cool and warm.
- Musty or Moldy Smell: When the drier's desiccant material is saturated, it can't absorb any more water. This excess moisture can lead to mold growth in the evaporator, causing a foul smell from your vents when the A/C is on.
- Rattling Noises: If you hear a rattling sound from the engine bay with the A/C running, it could mean the desiccant bag inside the drier has ruptured and is breaking apart.
- Frost on A/C Parts: Seeing frost or ice on the receiver drier itself is a clear sign of a major blockage inside, which causes a rapid drop in temperature as refrigerant tries to pass through.
A Critical Rule of A/C Repair
The A/C receiver drier must be replaced every time the A/C system is opened for any repair, such as replacing a compressor, condenser, or hose. Once exposed to the atmosphere, the desiccant material inside becomes instantly saturated with moisture and is no longer effective. Skipping this step will cause your new parts to fail prematurely.
Choosing the Right Aftermarket Drier for Your Wrangler
For a part like the receiver drier, you don't necessarily need to pay the premium for an OEM part. The most important factor is that the part is new and from a trusted manufacturer. Aftermarket brands offer significant savings and are a practical choice for this component.
Here’s a breakdown of the available brands:

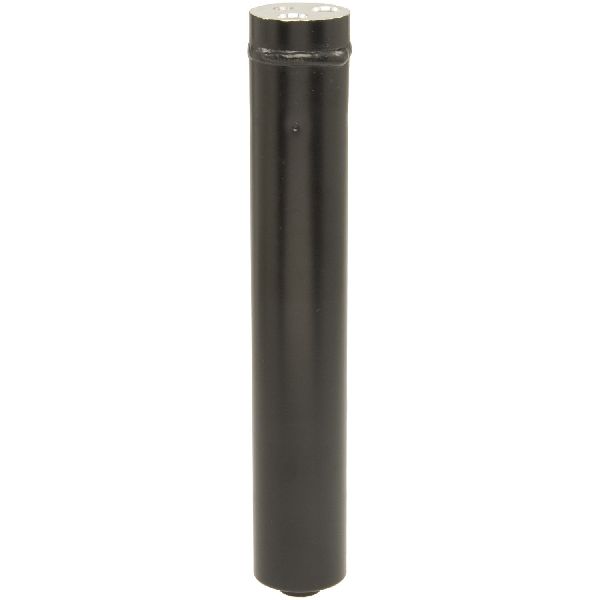

- Top Tier (OEM Quality): Denso is a well-respected OEM supplier for many car brands and is highly recommended by mechanics for A/C components. If you want the highest quality and peace of mind, Denso is a safe bet.
- Jeep Specialist (Good Quality): Crown Automotive specializes in parts for Jeeps. They are known for making quality, OEM-style replacement parts that fit well, making them a strong choice for any Wrangler owner.
- Standard Aftermarket (Value-Oriented): Brands like Four Seasons and Global Parts Distributors (GPD) are major players in the aftermarket A/C world. They offer a balance of affordable price and reliable function, making them a popular choice for budget-conscious repairs. While some professionals have mixed opinions on Four Seasons, they are generally considered a standard replacement option.
| Part Type | Estimated Cost | Notes |
|---|---|---|
| New OEM (Mopar) | $130 - $194 | Highest cost, direct from the manufacturer. |
| New Aftermarket | $24 - $59 | Excellent value from reputable brands. |
| Shop Labor | $70 - $110 | Includes system evacuation and recharge. |
| Total Professional Job (Aftermarket Part) | $94 - $169 | This is the most common and cost-effective scenario. |
Professional Installation is Key
Replacing the receiver drier is not a simple DIY job. The A/C system is under high pressure and contains refrigerant that is hazardous to the environment. The job requires specialized equipment to safely evacuate the old refrigerant, pull a vacuum to remove moisture, and precisely recharge the system. Attempting this without the right tools can lead to system damage or personal injury.
🎬 See a professional walkthrough of the desiccant and condenser replacement process.Frequently Asked Questions
Can I just recharge my A/C if it's not cooling?
If the receiver drier is clogged, recharging the system won't fix the problem. The refrigerant still won't be able to circulate properly. A professional should diagnose the system to find the root cause before adding more refrigerant.
Are there any recalls for the A/C drier on my Wrangler?
No, there are no known recalls or widespread Technical Service Bulletins (TSBs) for the A/C receiver drier on the 2007-2017 Jeep Wrangler JK. Failures are typically due to age or contamination from another failing A/C component.
What is the difference between a receiver/drier and an accumulator?
They perform the same basic function of removing moisture but are located in different parts of the A/C system. Your Wrangler uses a receiver drier, which is located on the high-pressure side of the system.
🎬 Watch a quick demonstration of how a desiccant element is replaced.Why is replacing the drier so important when changing a compressor?
When a compressor fails, it often sends tiny metal shavings and debris throughout the A/C system. The new drier will filter this out, but more importantly, the old drier is already saturated with moisture from being exposed to air during the repair. Not replacing it is the #1 cause of repeat compressor failure. Most warranties for new compressors are void if the drier is not replaced at the same time.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68003495AA
This is a pad-mount drier that attaches to the A/C condenser and is compatible with R134a refrigerant.
We Have This Part in Stock
