Understanding the Disc Brake Pad Wear Sensor for the 2008-2014 BMW M3
Learn why this small sensor is critical for your M3's braking system and how to choose the right replacement.
- Always replace both brake pad wear sensors (front and rear) when you replace your brake pads.
- A red brake warning light cannot be reset without installing a new, functioning sensor.
- High-quality aftermarket brands like Pagid or Brembo offer OEM performance for less money.
- After installation, you must perform a manual reset procedure using the instrument cluster buttons to clear the warning light.
When to Replace Your M3's Brake Pad Wear Sensor
The rule for these sensors is simple: they are a one-time-use part and must be replaced every time you change your brake pads. Even if the brake warning light hasn't come on, the sensor becomes brittle from heat and brake dust and will likely break if you try to move it to new pads. Attempting to reuse an old sensor can lead to false warnings or prevent the service light from being reset. If your red brake warning light is on, you cannot reset it without first installing a new, functioning sensor.
Don't Ignore the Red Brake Light
A red brake light on your dash means the sensor has been tripped and your pads have reached their minimum thickness. You typically have a window of a few hundred to a thousand miles to get them replaced before the pads wear down to the metal backing plate, which can cause expensive damage to your brake rotors.
Choosing the Right Aftermarket Sensor
For a simple component like a wear sensor, you don't necessarily need to buy the Genuine BMW part. Many aftermarket brands offer reliable quality at a better price. However, quality can vary, so it's important to choose a reputable brand.
Brand Quality Tiers

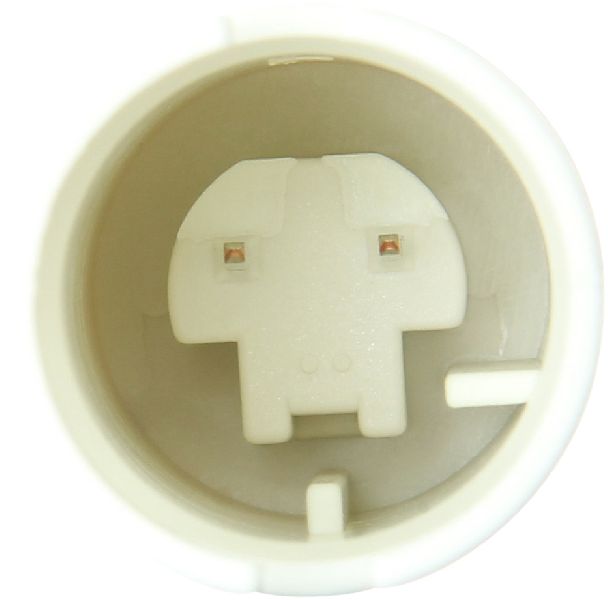

- OEM-Equivalent Brands (High Quality): Brands like Pagid and Brembo are often original equipment manufacturers for BMW and other German automakers. Choosing one of these ensures a perfect fit and reliable operation, just like the original part.

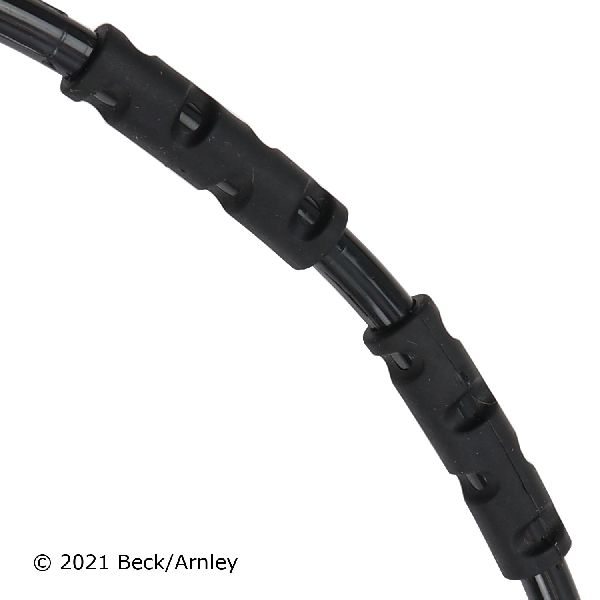

- Trusted Aftermarket Brands (Good Quality): Brands such as Centric, Beck Arnley, and Dorman have a solid reputation for producing quality replacement parts that meet or exceed OEM specifications. They offer a great balance of price and performance.

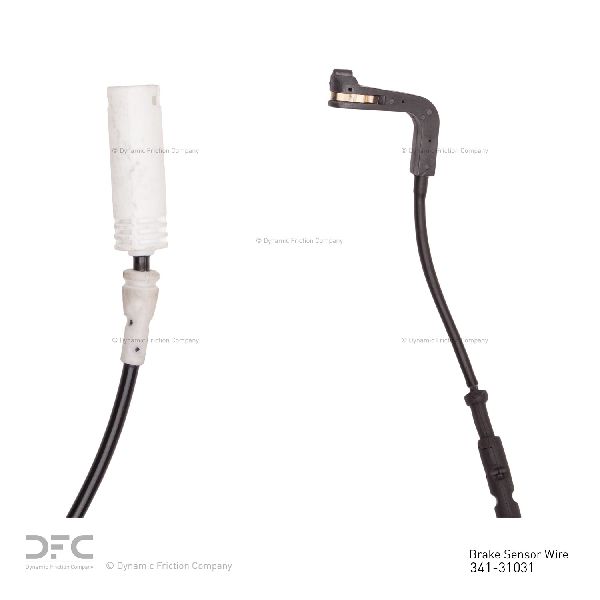

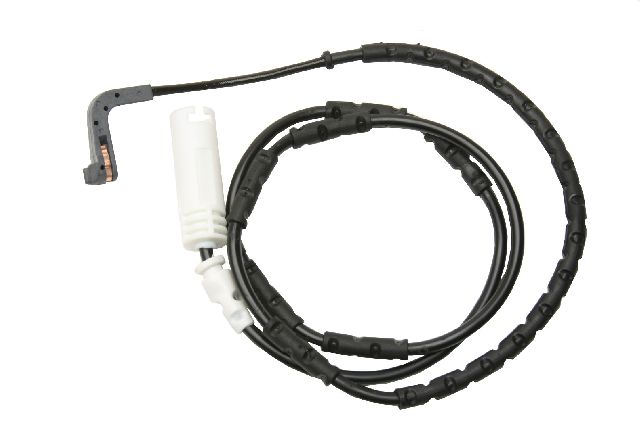

- Value-Oriented Brands (Standard Quality): Brands like URO Parts or Dynamic Friction offer a more budget-friendly option. While they can be a good value, some owners have reported issues with fitment, such as misaligned connector pins, which can cause installation problems. 🎬 Watch this guide on fixing common BMW brake sensor codes. While often perfectly fine for a simple sensor, be aware of the potential for minor quality control issues.
Pro Tip: Resetting the Service Light
After replacing your pads and sensors, you must reset the brake service light in your M3's iDrive or instrument cluster. This can be done through a sequence of button presses on the trip-reset stalk; you do not need special tools. 🎬 See how to reset your brake light without scan tools. If the light won't reset, it almost always means the new sensor is not installed correctly or is faulty.
Known Issues, Recalls, and Service Bulletins
There are no specific recalls or Technical Service Bulletins (TSBs) from the NHTSA for the disc brake pad wear sensors on the 2008-2014 BMW M3. Most "problems" are related to incorrect installation, failure to replace the sensor during a brake job, or using track-focused brake pads that don't have a slot for the sensor. In some cases, a very cheap aftermarket sensor may have poorly made connector pins, making it difficult to plug in.
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket | $16.38 - $52.20 |
| New OEM (Genuine BMW) | $28.00 - $80.00 |
Frequently Asked Questions (FAQ)
How many brake pad wear sensors does a 2008-2014 M3 have?
Your M3 is equipped with two sensors: one for the front axle (on the driver's side) and one for the rear axle (on the passenger's side).
Can I reuse my old brake pad sensor?
No. The sensor is a single-use item. It becomes brittle with heat and will likely break upon removal. You must replace it with a new one every time you replace your brake pads to ensure the warning system works correctly.
Why is my brake warning light still on after replacing the pads and sensor?
The most common reason is that the Condition Based Service (CBS) system needs to be reset. 🎬 Follow these steps to reset the brake light on your E92. This can be done through the instrument cluster. If the reset is unsuccessful, double-check that the sensor is plugged in securely and that the sensor itself is not faulty.
Do I need a sensor if I use my M3 for track days?
Many high-performance or track-specific brake pads do not have a slot for the wear sensor. In this case, owners often bypass the sensor by cutting the wires and connecting them to complete the circuit, or they simply zip-tie the new, unused sensor out of the way. This prevents the warning light but requires you to visually inspect your pad thickness regularly.
Helpful Videos
![BMW Front Brake Wear Sensor Fix | Code 480A11 [Vertical Video]](https://img.youtube.com/vi/CnwN0q3xdpM/mqdefault.jpg)
Technical Specifications
OEM Part Numbers: 34352283335 34356789445
The system uses two sensors: one front (driver side) and one rear (passenger side). They are two-stage sensors that work by creating an open circuit when worn down by the brake rotor.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
