A Guide to the 2008-2014 Dodge Challenger Fuel Injection Throttle Body
Experiencing a red lightning bolt on your dash or sudden power loss? Your throttle body might be the culprit.
- The most common sign of failure is the red 'lightning bolt' ETC light and the car entering 'limp mode'.
- Aftermarket parts are a good option; choose a standard replacement for a stock car or a performance brand like BBK for modified engines.
- A 'throttle relearn' procedure is required after installation and is a simple, no-tools process you can do yourself.
- Before buying, double-check your engine size (V6 vs. V8) as the parts are not interchangeable.
Is Your Challenger's Throttle Body Failing?

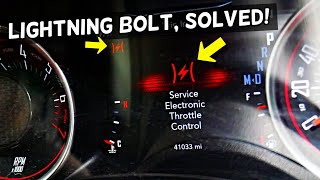

For the 2008-2014 Dodge Challenger, especially those with HEMI engines, throttle body failure often isn't subtle. The most common and alarming symptom is the vehicle suddenly entering 'limp mode.' This is a safety feature that severely restricts engine power to prevent damage. You'll know you're in limp mode if you experience a drastic loss of acceleration and the Electronic Throttle Control (ETC) warning light, which looks like a red lightning bolt between two parentheses, illuminates on your dashboard.
🎬 Watch: See what the red lightning bolt warning light looks like.Key Failure Symptoms:
- Limp Mode with Red Lightning Bolt Light: This is the most definitive sign. The car will have very little power, making it difficult to accelerate to highway speeds.
- Unstable or Rough Idle: Your engine might idle erratically, surge up and down, or even stall when you come to a stop.
- Hesitation on Acceleration: You might notice a delay or stumble when you press the gas pedal before the car responds.
- Check Engine Light: A failing throttle body will almost always trigger the check engine light, storing diagnostic trouble codes (DTCs) in the computer's memory. Common codes include P2112 (Throttle Actuator Stuck Closed), P0122, and P0123 (Throttle Position Sensor Circuit).
Known Issue: Check for Software Updates First
For 2014 Dodge Challengers with the 6.4L HEMI engine, Dodge issued Technical Service Bulletin (TSB) #18-094-16. This TSB involves a software update for the Powertrain Control Module (PCM) to fix issues that could incorrectly trigger throttle position sensor fault codes. Before replacing the part on a 2014 6.4L model, check with a dealer to see if this software update has been performed.
Choosing the Right Aftermarket Throttle Body
When shopping for a new throttle body, it's crucial to match the part to your Challenger's engine (V6 or V8) and your performance goals. Aftermarket parts fall into two main categories:
1. Standard OE-Style Replacements
Brands like: Dorman, Cardone, Standard Ignition, Hitachi, Global Parts
These parts are designed to be direct, factory-style replacements. They are built to original equipment (OE) specifications for fit and function. For a stock Challenger that just needs a reliable repair, these brands offer a cost-effective solution without the higher price of a dealer part. They restore original performance and are a smart choice for daily drivers.
2. Performance Upgrades
Brands like: BBK Performance, FAST, Granatelli
These are engineered to increase airflow and horsepower. For example, many HEMI engines come with a stock 80mm throttle body. BBK offers larger 85mm and 90mm versions that allow more air into the engine, which can result in horsepower gains of 10-15 HP.
🎬 Watch: See a performance BBK throttle body review and installation.Cost of a New Throttle Body for a 2008-2014 Dodge Challenger
| Part Type | Estimated Price Range |
|---|---|
| New Aftermarket (Standard) | $131 - $350 |
| New Aftermarket (Performance) | $450 - $650 |
| Shop Labor for Installation | $100 - $200 |
(Prices are estimates and can vary based on brand, location, and your vehicle's specific engine.)
Frequently Asked Questions
Do I need a tune after installing a new throttle body?
For a standard, OE-style replacement, no tune is required. For larger, performance-oriented throttle bodies like those from BBK, a tune is not always required but is highly recommended to get the maximum performance benefit from the increased airflow.
Is replacing a throttle body a DIY job?
Yes, for someone with basic mechanical skills and tools, this is a very feasible DIY job. It typically involves removing the air intake tube, disconnecting one electrical connector, and removing four bolts. The entire process can usually be done in under an hour.
What is a 'throttle relearn' and is it necessary?
A throttle relearn (or calibration) is a mandatory step after installing a new throttle body. It's a simple procedure that teaches the car's computer the new throttle plate's fully closed and fully open positions. Failing to do this can result in a rough idle, poor performance, or stalling. The procedure is simple: turn the key to the 'ON' position (don't start the engine), wait for the dash lights to cycle, slowly press the gas pedal to the floor, slowly release it, then turn the key 'OFF'.
🎬 Watch: Follow this step-by-step Hemi throttle position calibration guide.What are common mistakes when ordering or installing?
The biggest ordering mistake is not matching the part to your specific engine (e.g., 3.5L/3.6L V6 vs 5.7L/6.1L/6.4L V8). During installation, the most common error is over-tightening the mounting bolts, which can crack the plastic intake manifold. Also, be careful not to drop any tools, bolts, or debris into the open intake manifold.
Helpful Videos
Technical Specifications
OEM Part Numbers: 53034251AD 4861661AB 4861661AA 04891735AC

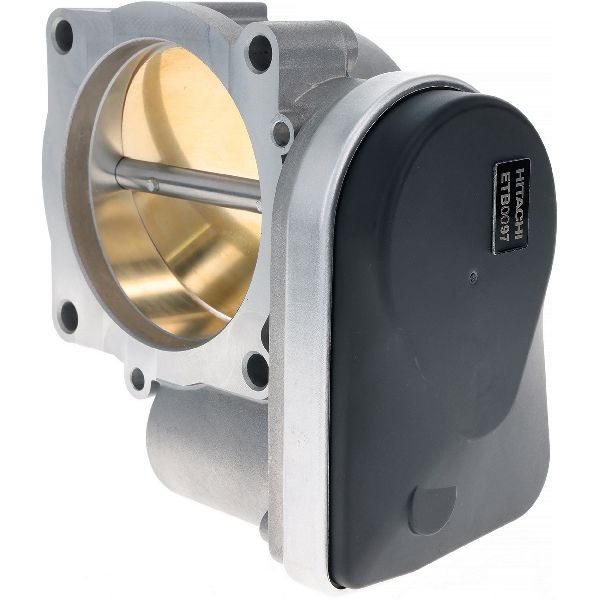

The throttle body for the 2008-2014 Dodge Challenger is an electronically controlled unit. It uses a 6-pin electrical connector. The stock bore size on HEMI V8 models (5.7L, 6.1L, 6.4L) is typically 80mm. Aftermarket performance options are available in larger sizes like 85mm and 90mm.
