Audi R8 A/C Receiver Drier Replacement Guide (2008-2015)
Everything a first-generation R8 owner needs to know about this small but critical A/C part.
- The A/C receiver drier MUST be replaced any time the A/C system is opened for repair, especially during a compressor replacement.
- A/C compressor failure is a very common problem on the 2008-2015 Audi R8; the drier is a low-cost insurance part to protect the new compressor.
- The part is located behind the driver's side rear wheel well liner, but replacement requires professional A/C service equipment.
- Never install a used receiver drier, as it will be saturated with moisture and useless.
Is Your R8's A/C Blowing Warm?
A failing A/C receiver drier is rarely the initial cause of a problem, but it's a critical part to replace during any A/C repair. The most common A/C issue on the 2008-2015 Audi R8 is compressor failure. When the compressor is replaced, the receiver drier must also be replaced. Failure to do so will contaminate your new compressor and lead to another expensive failure.
Symptoms of a Saturated or Failed Receiver Drier
- Weak or No A/C Cooling: A clogged drier can restrict refrigerant flow, leading to poor cooling performance.
- Foggy Windows: If the drier can't remove moisture, your defroster will struggle to clear the windshield.
- Musty Smell: Excess moisture in the system can lead to mold growth in the evaporator, causing bad odors.
- Visible Frost: In cases of a severe blockage, frost or ice may form on the drier canister or its connected lines.
Mandatory Replacement Part
The desiccant material inside the receiver drier absorbs moisture from the air. The moment the A/C system is opened for any repair, the drier is exposed to humidity and becomes saturated within hours. It is no longer effective after this. Never install a used receiver drier, and always install a new one when replacing a compressor, condenser, or hose.
Choosing the Right Aftermarket Drier for Your R8
For the 2008-2015 R8, the A/C receiver drier is a relatively simple part. While an OEM part from Audi is available, quality aftermarket options provide excellent performance for a fraction of the price. The most important factor is that the part is new and sealed upon arrival.
Brand Quality Tiers

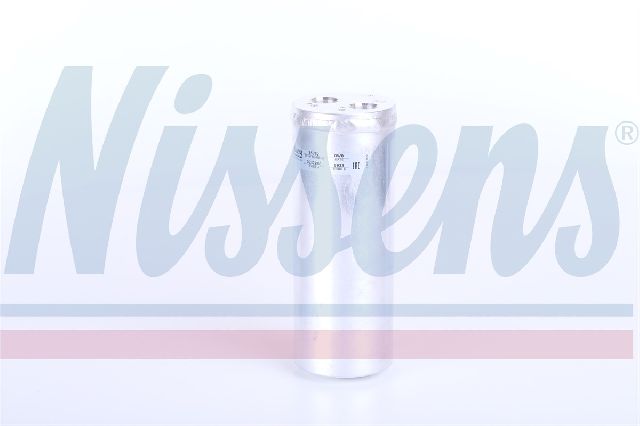

- Nissens: A well-regarded brand for European vehicle climate control parts. They are known for manufacturing to OE standards and are a trusted choice for mechanics. For a high-performance vehicle like the R8, this brand offers a reliable balance of quality and value.
- Global Parts: This brand is typically positioned as a standard, budget-friendly replacement. While functional, for a vehicle where A/C repairs are labor-intensive and expensive, investing in a brand with a stronger reputation like Nissens is often recommended.
Pro Tip: The Part is Cheap, The Labor is Not
The cost of a new aftermarket receiver drier is very low, often under $60. The labor to properly evacuate and recharge the A/C system is where the real cost lies. Do not try to save money on this part; cutting corners here can risk a multi-thousand dollar A/C compressor replacement.
Replacement Cost Comparison
| Part Type | Part Cost | Shop Labor Cost | Total Estimated Cost |
|---|---|---|---|
| New Aftermarket | $39 - $52 | $300 - $600 | $339 - $652 |
| New OEM | $100 - $150 | $300 - $600 | $400 - $750 |
Costs are estimates and can vary based on location and shop rates. Labor cost includes professional evacuation and recharge of the A/C system.
Frequently Asked Questions (FAQ)
Where is the A/C receiver drier located on a 2008-2015 R8?
It is located behind the rear wheel well liner on the driver's side (left-hand side) of the vehicle.
Do I have to replace the drier if I'm just getting an A/C recharge?
No. If your system is just low on refrigerant and has no leaks, you do not need to replace the drier. However, if a leak is found and a component needs to be replaced, the drier must also be replaced.
Can I replace the R8 receiver drier myself?
While physical access to the part is not extremely difficult, the job requires specialized equipment to safely recover old refrigerant and then vacuum and recharge the system. This is best left to a professional shop. Improper handling of refrigerant is harmful to the environment and can cause injury.
Are there any recalls for the Audi R8 A/C system?
As of early 2026, there are no specific recalls for the A/C receiver drier or compressor on the 2008-2015 Audi R8. However, A/C compressor failure is a widely known common issue with these cars.
Technical Specifications
OEM Part Numbers: 4F0820191B
Uses R134a refrigerant. Requires PAG 46 oil.
