Guide to the 2010-2014 Chevrolet Silverado 1500 Fuel Level Sensor
Is your Silverado's fuel gauge acting up? Here's what you need to know about fixing it right the first time.
- A bad fuel level sensor is a common issue causing erratic gauge readings on 2010-2014 Silverados.
- Replacement is a major job requiring fuel tank removal or bed lifting, making labor a significant cost.
- Due to the high labor cost, using a top-tier brand like ACDelco or Delphi is strongly recommended for reliability.
- For high-mileage trucks, consider replacing the entire fuel pump module, not just the sensor, to prevent future failures.
Is Your Fuel Gauge Lying?
A common problem on the 2010-2014 Chevrolet Silverado 1500 is a faulty fuel level sensor. You might notice your fuel gauge needle jumping around, dropping to empty right after you fill up, or not moving at all. This can be frustrating and leaves you guessing how many miles you have until you're stranded. The check engine light may also come on, often with codes like P0461, P0462, or P0463.
Why You Shouldn't Ignore It
While the truck will still drive, running out of fuel unexpectedly can be dangerous, especially on a highway. It can also damage your fuel pump, which relies on gasoline for cooling.
Choosing the Right Aftermarket Sensor
Replacing the fuel level sensor is a labor-intensive job because it's inside the fuel tank. This means either lifting the truck bed or dropping 🎬 Watch: How to access the tank using the bed tilt method the entire fuel tank to get to it. Because the labor is the most expensive part of this repair, choosing a high-quality, reliable part is critical to avoid doing the job twice.
Brand Quality Tiers

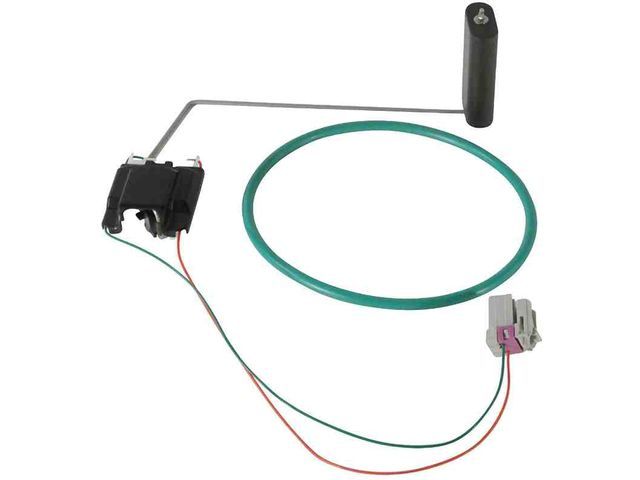

- Top Tier (OEM-Equivalent): ACDelco is General Motors' own parts brand and is considered the original equipment (OE) manufacturer. Choosing an ACDelco Genuine or Professional-grade part is the closest you can get to the original factory part's quality and is highly recommended for fit and longevity.
- Mid-Tier (Quality Aftermarket): Brands like Delphi and Standard Ignition (SMP) are reputable aftermarket manufacturers. Delphi is often cited as an excellent alternative to OEM for GM fuel systems. They provide a good balance of quality and price.

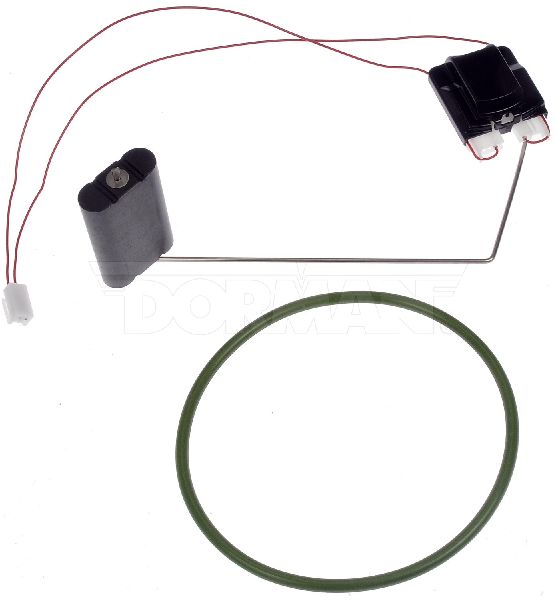

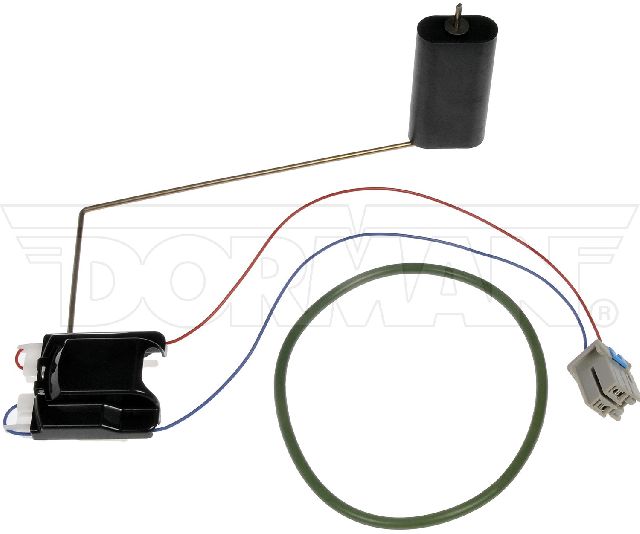

- Economy Tier (Value-Focused): Dorman is a popular aftermarket brand, but reviews can be mixed. While some of their parts are well-regarded, for a labor-intensive job like this, many professional technicians and experienced owners recommend sticking with ACDelco or Delphi to ensure reliability.
Pro Tip: Replace the Whole Module?
The fuel level sensor is part of the larger fuel pump module. For high-mileage vehicles, it is often recommended to replace the entire fuel pump module 🎬 See this step-by-step walkthrough for replacing the fuel pump (which includes the pump, sensor, and filter) at the same time. This prevents you from having to drop the tank again in the near future if the original fuel pump fails.
Known Issues for 2010-2014 Silverado
While there are no widespread safety recalls specifically for the fuel level sensor on the 1500 model in this year range, GM has issued Technical Service Bulletins (TSBs) for related issues. For example, TSB 17-NA-204 addresses inaccurate fuel gauge readings on some GM trucks, which can be caused by the level sender. Another bulletin, 20-NA-042, mentions erratic gauge readings and DTC P0462. Recalls for this generation often involved dual-tank heavy-duty models or other fuel system components like the fuel pump control module, but the symptoms can sometimes overlap.
Cost to Replace the Fuel Level Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Sensor | $78 - $189 |
| New OEM Sensor/Module | $250 - $450+ |
| Shop Labor | $400 - $800+ |
| Total Professional Job | $478 - $1000+ |
Costs are estimates and can vary by location and which parts are replaced (sensor only vs. full module). Labor costs are high due to the need to remove the fuel tank or truck bed.
Frequently Asked Questions
Can I replace just the sensor or do I need the whole fuel pump assembly?
You can often buy and replace just the fuel level sensor. However, since the labor is the same, and the fuel pump has a limited lifespan, most mechanics recommend replacing the entire fuel pump module, especially if your truck has over 100,000 miles.
Is this a DIY job?
This is an advanced DIY job. It requires either lifting the truck bed or safely dropping the fuel tank, which can be heavy and dangerous if not empty. You will also be working with fuel lines and electrical connections. If you are not experienced, it is best to leave this to a professional.
Will a bad fuel level sensor cause the truck not to start?
Typically, a bad fuel level sensor itself will not prevent the truck from starting. However, if the gauge is wrong and you run out of gas, the truck won't start. In some related failures, like a bad fuel pump control module or a failing fuel pump (which is part of the same assembly), you could experience a no-start condition.
What does Diagnostic Trouble Code P0463 mean?
DTC P0463 stands for 🎬 Watch: How to test your fuel sending unit for code P0463 "Fuel Level Sensor 'A' Circuit High Input." This is one of the most common codes indicating a problem with the fuel level sensor or its wiring. It means the Engine Control Module (ECM) is seeing a voltage signal from the sensor that is higher than expected, which usually points to a faulty sensor or an open circuit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 13506693 13509668 20877116 20964305
The fuel level sensor is a variable resistor (potentiometer) integrated into the fuel pump module. Its resistance changes as the float arm moves with the fuel level. The typical resistance range varies but is what the vehicle's computer reads to display the fuel level.
