Ford Mustang Ignition Coil Boot Kit Guide for 2010-2014 Models
Fix your Mustang's misfires and rough idle by understanding this simple but crucial ignition part.
- Failing coil boots cause misfires, rough idle, and power loss in 2010-2014 Mustangs.
- Always replace coil boots as a full set when changing spark plugs to ensure reliability.
- Use dielectric grease inside new boots to seal out moisture and aid installation.
- For 5.0L V8s, check TSB 13-6-15 for false misfire codes before replacing parts if no drivability issues are present.
Is Your Mustang Running Rough? It Could Be the Coil Boots.
If your 2010-2014 Mustang is experiencing a rough idle, hesitation when you accelerate, or the check engine light is on, failing ignition coil boots could be the culprit. These rubber boots are often overlooked but are critical for proper ignition. Over time, the high heat in the engine bay causes them to become brittle, crack, or shrink. This allows the high-voltage spark to leak out to the cylinder head (a process called 'arcing') instead of reaching the spark plug, leading to a misfire.
Key Failure Signs
- Engine shaking or vibrating, especially at idle.
- Hesitation or loss of power when you step on the gas.
- Worse gas mileage than usual.
- Check Engine Light is on or flashing, with codes like P0300, P0301-P0308.
Choosing the Right Aftermarket Coil Boot Kit
When it's time for a replacement, you don't have to go back to the dealer. Quality aftermarket brands offer an excellent balance of performance and value. The key is choosing a reputable brand to avoid premature failure.
- OEM (Motorcraft): Ford's own brand, Motorcraft, is the original part. It offers a guaranteed fit and quality, but usually at the highest price. If you want a direct, no-questions-asked replacement, OEM is a safe bet.

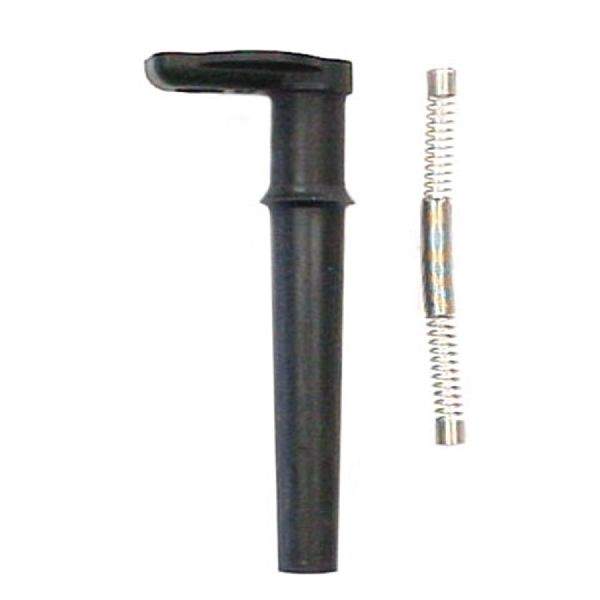

- Premium Aftermarket (Denso): Denso is a massive, well-respected OEM supplier for many car manufacturers and has a strong reputation in the aftermarket. Their parts are known for reliability and are often considered equivalent to or even exceeding OEM quality. A Denso coil boot kit is a solid choice for a long-lasting repair.
- Standard Aftermarket (Standard Wires): Standard Motor Products (SMP), who makes Standard Wires, is a long-standing aftermarket brand. They provide reliable parts that meet or exceed OEM specifications and are a trusted choice for many professional mechanics.
Known Issues, TSBs, and Recalls
While there are no direct recalls for ignition coil boots on the 2010-2014 Mustang, a notable Technical Service Bulletin (TSB) exists. TSB 13-6-15 was issued for some 2011-2014 Mustangs with the 5.0L V8 engine. It addresses false misfire codes (P0300-P0308) that are caused by the crankshaft position sensor, not the coils or boots. The fix involves installing a simple O-ring on the sensor. 🎬 See how to access and remove the crankshaft position sensor. If you have these codes but no actual driving symptoms, this TSB might apply to your vehicle. The major recall for this Mustang generation involves Takata airbags.
| Part Type | Estimated Cost (Full Set) |
|---|---|
| New Aftermarket (Denso, Standard) | $54.31 - $154.85 |
| New OEM (Motorcraft) | $120 - $250 |
| Shop Labor | $75 - $150 |
Frequently Asked Questions (FAQ)
Should I replace just the boots or the entire ignition coil?
If only the boot is damaged (cracked, oily, or has carbon tracking) and the coil itself is working, replacing just the boot kit is a cost-effective repair. The coil itself is a durable electronic component that often lasts a long time. However, if you are replacing a high-mileage original coil, it may be wise to replace the entire assembly to save on future labor.
Should I replace all the coil boots at once?
Yes. It is highly recommended to replace all the boots as a set. The boots are all the same age and have been exposed to the same heat and conditions. If one has failed, the others are likely not far behind. This preventative step can save you from repeated repairs.
Do I need to replace my spark plugs at the same time?
It is a very good idea. In fact, it's best practice to replace the boots whenever you replace the spark plugs. A worn spark plug can put extra strain on the ignition system and cause a new coil or boot to fail prematurely. Since you already have the coils removed to access the plugs, doing both jobs at once saves time and labor.
🎬 Follow this step-by-step guide to changing your Mustang's spark plugs.What's the difference between a coil boot and a spark plug wire?
The 2010-2014 Mustang V8 uses a Coil-On-Plug (COP) system, which does not have traditional spark plug wires. The boot is the short rubber connector between the coil and the plug. The V6 model of this era uses a different system that combines a single coil pack with spark plug wires to deliver spark to the cylinders. This article focuses on the COP boots used on the V8 and other COP systems.
Helpful Videos
Technical Specifications
OEM Part Numbers: 8L3Z12A402A WR6133 WR-6135
This guide covers Coil-On-Plug (COP) boot kits. The 2010-2014 Mustang generation featured the 4.0L V6 (2010), 3.7L V6 (2011-2014), 4.6L V8 (2010), and 5.0L V8 (2011-2014). The V8 engines use a COP system where this part applies directly. The 2010 4.0L V6 uses a coil pack with spark plug wires, which is a different ignition setup. The 2011-2014 3.7L V6 uses a COP system similar to the V8.
