Ford Transit Connect Suspension Strut Bellows Guide (2010-2020)
Protect your van's ride quality by understanding when and how to replace your front strut bellows.
- A torn strut bellow will lead to premature strut failure; inspect them regularly.
- It is critical to buy parts for the correct generation: 2010-2013 or 2014-2020.
- Replacing the entire strut assembly is safer and more time-efficient than replacing just the bellow.
- A wheel alignment is mandatory after replacing front struts to avoid handling issues and tire damage.
Is Your Transit Connect's Ride Getting Rough?
A torn strut bellow is a small problem that quickly becomes a big one. While the boot itself doesn't affect how your van drives, its failure allows dirt and moisture to wear out the strut it protects. Once the strut fails, you'll notice symptoms like a bouncy ride, clunking noises over bumps, and poor handling. 🎬 Watch: 5 symptoms of bad struts you should not ignore. A visual inspection is the easiest way to check. Look behind your front wheels at the strut assembly. If you see a ripped, cracked, or missing rubber boot, it's time for a replacement.
Generation Gaps: 2010-2013 vs. 2014-2020
The Ford Transit Connect had two distinct generations in this period, and their front suspension parts are not interchangeable. It is critical to order parts specifically for your vehicle's year.

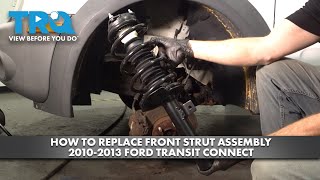

- First Generation (2010-2013): These models have a unique front strut design. Parts are specific to this generation. 🎬 Watch: Step-by-step strut replacement for 2010-2013 models.

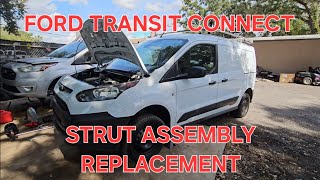

- Second Generation (2014-2020): This generation was a complete redesign and shares suspension components with other Ford vehicles like the Focus and Escape. The replacement process is also more complex, often requiring the removal of the windshield wipers and cowl panel to access the top of the struts. 🎬 See how to remove the cowl and replace 2014+ struts.

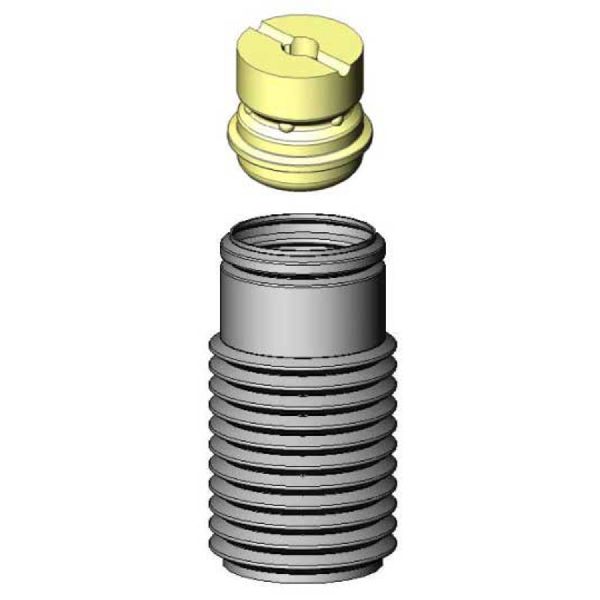

Choosing the Right Aftermarket Bellows
When a strut bellow fails, the strut itself has likely been exposed to damaging debris. Because replacing only the boot requires special tools (like a spring compressor) and significant labor, most mechanics and experienced DIYers choose to replace the entire strut assembly. A new assembly includes the strut, spring, mount, and a new bellow, which saves time and is much safer to install.
Pro Tip: Replace in Pairs
Suspension components should always be replaced in pairs (both front struts or both rear shocks) to ensure even handling and stability. Replacing only one side can cause unpredictable steering and uneven tire wear.
Brand Quality Breakdown
For the Ford Transit Connect, you have several aftermarket options. Here’s an honest look at the available brands:
- KYB: KYB is a massive global manufacturer that supplies original equipment (OEM) parts to many automakers. Their aftermarket parts, like the Excel-G line, are designed to restore the vehicle's original handling characteristics. They are generally considered a high-quality choice, though some users on forums have reported mixed experiences with aftermarket lines compared to true OEM parts.
- Skyward: Skyward is a budget-friendly brand. While they offer a cost-effective solution, there is limited public information and few owner reviews regarding their long-term durability and performance. This brand is best suited for owners looking for the lowest initial cost.
- Other Brands: You may also find bellows and strut assemblies from brands like Monroe and Moog, which are established names in the aftermarket suspension industry.
Cost to Replace Ford Transit Connect Strut Bellows
The following table reflects the estimated cost of replacing the entire front strut assembly, which is the recommended repair when a bellow is found to be torn. Costs can vary based on your location and the parts chosen.
| Part/Service | Estimated Cost (Pair) |
|---|---|
| New Aftermarket Strut Assemblies (Parts Only) | $220 - $400 |
| Shop Labor | $290 - $450 |
| Total Estimated Cost | $510 - $850 |
| Wheel Alignment (Required after replacement) | $80 - $150 |
Don't Forget the Alignment!
Replacing front struts will affect your vehicle's alignment. You must get a professional wheel alignment immediately after the repair to prevent crooked steering, poor handling, and rapid tire wear.
Frequently Asked Questions (FAQ)
Can I just replace the torn boot instead of the whole strut?
While you can buy just the strut bellow, replacing it is labor-intensive and requires a dangerous tool called a spring compressor. If the boot has been torn for a while, the strut is likely already damaged. For safety and to save on labor, replacing the complete strut assembly is the recommended repair.
Are there any recalls for the Transit Connect suspension?
No, there are no active recalls or common Technical Service Bulletins (TSBs) from Ford specifically for the front struts or bellows on the 2010-2020 Ford Transit Connect.
Is this a good DIY job?
For an experienced home mechanic, replacing the complete strut assembly is feasible. However, it can be difficult, especially on 2014-2020 models that require removing the wiper cowl. If you are not comfortable with suspension work or do not have the right tools, it is best left to a professional.
What happens if I don't replace a torn strut bellow?
A torn bellow allows dirt and moisture to get to the strut's piston rod and seal, causing premature failure. This will lead to a bouncy ride, poor braking performance, clunking noises, and uneven tire wear. Ignoring it will eventually mean you have to replace the struts anyway, but you'll have endured poor ride quality and safety in the meantime.
Helpful Videos
Technical Specifications
OEM Part Numbers: CV6Z-18A047-A (Fits 2014-2020 models)
The primary difference is the design between the first generation (2010-2013) and the second generation (2014-2020). The second-generation boot is shared with other Ford platforms like the Focus and Escape.
