Western Star 4900EX (2011-2015) Turbocharger Boost Sensor Guide
Experiencing low power or a check engine light in your 4900EX? Your turbo boost sensor could be the culprit.
- A failing boost sensor is a common cause of power loss and check engine lights on 4900EX models with Cummins or Detroit engines.
- Symptoms include poor fuel economy, black smoke, and a noticeable drop in performance.
- For Cummins ISX engines, this is a known weak point and should be considered for preventative replacement.
- Replacement is simple, inexpensive, and can often be done with basic tools in under an hour.
Is Your 2011-2015 Western Star 4900EX Losing Power?
A faulty turbocharger boost sensor is a common issue on the engines used in the 2011-2015 Western Star 4900EX, including the popular Cummins ISX and Detroit Diesel DD13/DD15/DD16 platforms. This small sensor plays a big role in your truck's performance. When it fails, it can send incorrect signals to the engine's computer, causing symptoms that range from annoying to seriously impacting your truck's pulling power.
Symptoms of a Failing Boost Sensor
If your boost sensor is going bad, you'll likely notice one or more of these signs:
🎬 Watch: Top 8 symptoms of a bad boost pressure sensor- Check Engine Light: This is often the first warning. A fault code related to manifold pressure, like code 0123 on some Cummins engines, may be stored.
- Reduced Engine Power: The ECM may put the engine into a 'limp mode' to prevent damage, causing a significant loss of power and acceleration. This can feel like the truck is struggling to pull a load or get up to speed.
- Poor Fuel Economy: When the ECM can't get an accurate boost reading, it can't manage the air-fuel mixture efficiently, leading to more fuel consumption.
- Black Smoke from Exhaust: Incorrect sensor readings can cause the engine to run rich (too much fuel, not enough air), resulting in black smoke during acceleration.
- Rough Idle: The engine may idle erratically or feel rough because the fuel mixture is unstable.
Known Issue for Cummins ISX Engines
The intake manifold pressure sensor (IMAP) on Cummins ISX engines is a known failure point. Some owner-operators and mechanics recommend replacing it as a preventative maintenance item every 50,000 miles or so to avoid being stranded by a sudden loss of power. 🎬 See this walkthrough for replacing a Cummins ISX IMAP sensor Cleaning the sensor is often only a temporary fix.
Choosing the Right Aftermarket Boost Sensor
For the 2011-2015 Western Star 4900EX, you don't need to go back to the dealer for this part. Aftermarket options provide a cost-effective solution. Here’s a look at the brands available.
Brand Tiers
- Dorman: Dorman is a well-established aftermarket brand that engineers its parts to match the fit and function of the original. They are a common choice for mechanics and DIYers. While many users have good experiences, some express concern about the long-term durability of aftermarket sensors compared to OEM for critical applications. It represents a solid mid-tier choice.
- Replacement: This is a value-oriented brand. These parts are designed as direct-fit, budget-friendly alternatives to the original. While they meet the basic requirements and can get your truck back on the road, they may not have the same level of quality control or longevity as more expensive brands. This is a good option if your primary concern is the initial cost.
Cost of Replacing a Turbo Boost Sensor
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Part | $25 - $94 |
| Shop Labor | $50 - $125 |
| Total Estimated Cost | $75 - $219 |
Cost estimates are for reference only and may vary based on location and shop rates.
Frequently Asked Questions (FAQ)
Is it hard to replace the boost sensor myself?
No, this is generally considered an easy repair. The sensor is typically located on the intake manifold and held in by one or two bolts. You just need to disconnect the electrical connector, unbolt the old sensor, and install the new one. For many engines, the job can be done in under 30 minutes with basic hand tools.
Are there any recalls for this part on my truck?
No, as of early 2026, there are no specific recalls from the NHTSA for the turbocharger boost sensor on the 2011-2015 Western Star 4900EX.
Will a new sensor fix my low boost problem?
If the sensor is faulty, then yes, a replacement will likely solve the problem. However, low boost can also be caused by other issues like a leaking charge air cooler (CAC), a problem with the turbo actuator, or a clogged exhaust filter. If a new sensor doesn't fix the issue, further diagnosis is needed.
🎬 Learn how to check for boost leaks on your truckWhat's the difference between a boost sensor and a MAP sensor?
The terms are often used interchangeably. A MAP (Manifold Absolute Pressure) sensor measures the pressure in the intake manifold. On a turbocharged engine, this pressure is the 'boost' created by the turbo, so it's also called a boost sensor.
Helpful Videos

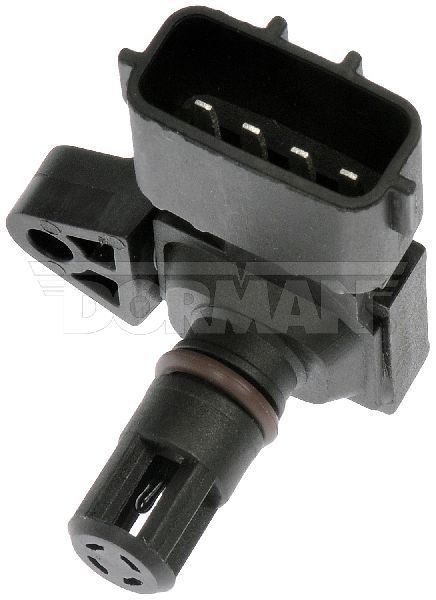

Technical Specifications
OEM Part Numbers: 2872784 4921324 2897334 23522322
Typically a 3 or 4-pin sensor that bolts onto the intake manifold.
