Engine Intake Manifold Gasket Set for the 2011-2016 Toyota Sienna
Address common engine issues by understanding and choosing the right intake manifold gasket set for your Sienna's 3.5L V6 engine.
- A failing intake manifold gasket on the 2011-2016 Sienna typically causes a vacuum leak, leading to a Check Engine Light with codes P0171 and P0174.
- Always replace the intake manifold gaskets when performing other repairs that require its removal, such as replacing spark plugs or valve cover gaskets, as the gaskets are not reusable.
- The job is moderately difficult and takes about 3-5 hours, making it feasible for an experienced DIYer.
- High-quality aftermarket brands like Beck Arnley or Victor Gaskets offer reliability comparable to OEM parts for this specific repair.
Is Your Sienna Running Rough? It Could Be the Intake Manifold Gaskets
If your 2011-2016 Toyota Sienna is experiencing a rough idle, poor acceleration, or a check engine light, a failing intake manifold gasket could be the culprit. These gaskets are made of rubber and plastic and can become hard, brittle, and cracked over time due to constant exposure to engine heat. When they fail, they can cause a variety of noticeable symptoms.
Symptoms of a Failing Intake Manifold Gasket
A bad intake manifold gasket primarily causes a vacuum leak on the Sienna's 3.5L 2GR-FE engine. This means extra, unmetered air gets into the engine, throwing off the sensitive air-fuel ratio. Look out for these signs:
- Check Engine Light: The most common sign. A vacuum leak will often trigger codes like P0171 (System Too Lean Bank 1) and P0174 (System Too Lean Bank 2). 🎬 Watch how to diagnose and solve these lean codes.
- Rough Idle: The engine may shake or run unevenly when stopped.
- Loss of Power: Your minivan may feel sluggish and hesitate during acceleration.
- Hissing or Whistling Noises: You might hear a distinct sucking or hissing sound from the engine bay as air is pulled through the broken gasket seal.
- Reduced Fuel Economy: The engine's computer tries to compensate for the lean condition by adding more fuel, causing you to visit the gas station more often.
No Major Recalls, But A Common Repair
While there are no specific recalls from Toyota or the NHTSA for the intake manifold gaskets on the 2011-2016 Sienna, gasket failure is a common maintenance item as the vehicle ages. The repair is often done at the same time as other services that require removing the intake manifold, such as replacing spark plugs or valve cover gaskets.
Choosing the Right Aftermarket Gasket Set
You don't always need to buy the expensive OEM part from the dealer. For a part like an intake manifold gasket, several reputable aftermarket brands offer excellent quality, often at a better price. Here’s a look at your options:
- Premium Aftermarket (Beck Arnley, Victor Gaskets/Victor Reinz): These brands are often considered top-tier. Beck Arnley is known for sourcing parts from the original equipment manufacturers and repackaging them. Victor Reinz is a well-respected OEM supplier itself. Choosing one of these brands gives you high confidence in fit and longevity, making them a smart choice for a critical seal.
- Standard Aftermarket (DNJ Engine Components, Apex): These brands provide a more budget-friendly option. They are a good choice for a reliable repair without the premium price tag. While they may not have the same OEM-supplier reputation as the premium brands, they are engineered to meet or exceed the requirements for your Sienna.
Pro Tip: Replace Gaskets Whenever the Manifold is Off
The intake manifold must be removed to access the rear spark plugs or the rear valve cover gasket on the 3.5L V6 engine. Since the gaskets cannot be reused, it is essential to have a new set on hand any time this work is being done. It saves you from having to do the same labor-intensive job twice.

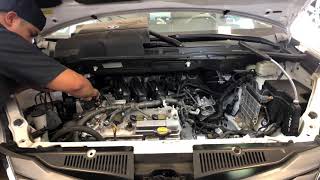

🎬 Watch: How to replace spark plugs and gaskets together.Cost to Replace the Intake Manifold Gasket Set
The cost can vary based on your location and whether you do the job yourself or hire a professional.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $21 - $80 |
| New OEM Gasket Set | $40 - $90 |
| Shop Labor | $336 - $650 |
| Total Professional Replacement | $360 - $730+ |
Frequently Asked Questions (FAQ)
Is this a difficult job to do myself?

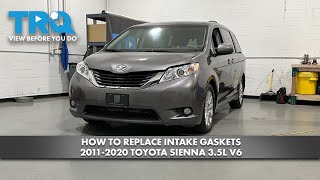

For a DIY mechanic with some experience, this is a manageable job. It requires removing the upper intake manifold (plenum), which involves disconnecting several hoses and electrical connectors. The estimated time is around 3-5 hours. 🎬 See this step-by-step walkthrough of the gasket replacement process. You will need basic hand tools, a torque wrench, and careful attention to detail.
What is the difference between the upper and lower intake gaskets?
The 3.5L V6 engine in your Sienna has a two-piece intake manifold. The upper part is often called the plenum or surge tank, and it has its own set of gaskets. The lower intake manifold bolts to the cylinder heads and also has gaskets. A full "intake manifold gasket set" will typically include all the necessary gaskets for both the upper and lower sections.
Can I reuse the old gaskets?
No. Intake manifold gaskets are designed for one-time use. They crush and conform to the metal surfaces to create a seal. Once removed, they will not seal properly again and will cause leaks.
What happens if I ignore a bad intake manifold gasket?
Ignoring a leaking gasket will lead to persistent engine problems like a rough idle, poor fuel mileage, and the check engine light staying on. While it typically won't cause catastrophic damage in the short term on this engine (as it's usually a vacuum leak, not a major coolant leak), it puts extra stress on other components and should be fixed to restore your engine's performance and efficiency.
Helpful Videos
Technical Specifications
OEM Part Numbers: 17176-0P020 17176-31090 17177-0P021 17177-31040 17178-0P020 17178-31030

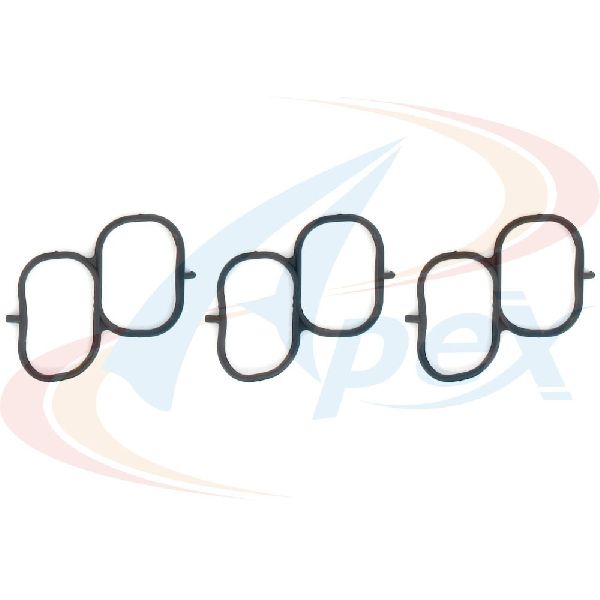

The 2011-2016 Toyota Sienna with the 3.5L V6 (2GR-FE) engine uses a multi-piece intake manifold. This requires a set of gaskets for the upper intake plenum (surge tank) and a set for the lower intake runners that mount to the cylinder heads.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
