A Guide to Replacing the Engine Valve Cover Gasket on a 2011-2017 Cadillac CTS
Leaking oil isn't just a mess; it's a warning sign for your Cadillac's engine.
- For V6 engines, oil in spark plug wells could indicate a serious cylinder head issue (TSB PIP5095G), not just a bad gasket.
- Choose a quality aftermarket brand like Fel-Pro or Victor Reinz for a reliable, cost-effective repair on a stock CTS.
- Ensure the replacement kit includes spark plug tube seals and bolt grommets, as these are common failure points.
- A burning oil smell is a primary symptom and indicates oil is leaking onto hot engine parts, which can be a fire risk.
Is Your Cadillac CTS Leaking Oil?
A failing valve cover gasket is one of the most common sources of oil leaks on any vehicle, including the 2011-2017 Cadillac CTS. Over time, the constant exposure to engine heat causes the gasket material to become hard, brittle, and crack. This allows oil to seep out, creating both a mess and potential performance issues. Addressing this leak is important for your engine's health and your own safety.
Special Warning for V6 CTS Owners
If you have a 3.0L or 3.6L V6 engine and find oil in the spark plug wells, be aware of GM Technical Service Bulletin (TSB) PIP5095G. 🎬 Watch this important warning about oil in spark plug tubes. This issue may not be a simple valve cover gasket leak. It could be caused by porosity in the cylinder head itself, which is a much more serious and expensive repair requiring cylinder head replacement. If you see misfire codes (P0300-P0306) along with oil in the plug tubes, it is critical to have a professional diagnose the problem correctly before buying parts.
Choosing the Right Aftermarket Gasket Set
When shopping for a new valve cover gasket set, you'll find several brands. Not all are created equal, but you don't necessarily need to buy the most expensive option for a reliable repair on a stock vehicle.
- Quality Aftermarket (Recommended for most owners): Brands like Fel-Pro and Victor Reinz are trusted names in the industry. They are known for making reliable gaskets that meet or exceed OEM specifications and are designed for the repair environment. Many professional mechanics use these brands for daily repairs. For a standard CTS, these brands offer the best combination of quality and value.
- Performance Tier: Cometic Gasket is a brand often associated with high-performance and racing applications. While their quality is high, their gaskets can be less forgiving on standard, imperfect sealing surfaces and sometimes have fitment issues with stock valve covers. For a modified or high-performance CTS, they might be a consideration, but for a daily driver, they are likely unnecessary.
- Value Tier: Brands like Mr. Gasket and other store-brands can be a budget-friendly option. While they may work, the quality of the materials might not be as robust as the top-tier aftermarket brands, potentially leading to a shorter lifespan. Given the significant labor involved in replacing these gaskets on a V6, saving a few dollars on the part itself is often not worth the risk of having to do the job again sooner.
Pro Tip: Before starting the job, ensure your new gasket set includes the spark plug tube seals and bolt grommets. These are common leak points and should always be replaced at the same time 🎬 Watch a full walkthrough of the gasket and plug replacement. as the main gasket. Also, check the PCV (Positive Crankcase Ventilation) system; a clogged PCV valve can increase pressure inside the engine and cause new gaskets to fail.
Estimated Replacement Costs
The cost can vary significantly based on your CTS engine (2.0L 4-cylinder vs. 3.0L/3.6L V6) because the V6 engines require much more labor to access the valve covers.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Gasket Set | $33 - $99 |
| New OEM Gasket Set | $57 - $77 |
| Shop Labor Cost | $400 - $700 |
| Total Professional Replacement | $450 - $800+ |
Frequently Asked Questions (FAQ)
Can I drive my CTS with a leaking valve cover gasket?
For a minor leak, you can drive the car, but you should check your oil level frequently. However, if oil is dripping onto the hot exhaust manifold, it creates a fire hazard and a strong burning smell, and you should get it repaired immediately. A significant leak can also lead to engine damage from low oil levels.
Is this a good DIY project?
For the 2.0L Turbo engine, it is a manageable job for a DIYer with some experience. For the V6 engines, the difficulty increases significantly as you may need to remove the upper intake manifold 🎬 See a step-by-step guide on removing the V6 intake manifold. to access the rear valve cover. This adds time and complexity. Given the TSB about porous cylinder heads, an incorrect diagnosis can be costly, so for V6 models, professional installation is often recommended.
What's the difference between an OEM and a quality aftermarket gasket?
Original Equipment (OEM) gaskets are what the car was built with. High-quality aftermarket brands like Fel-Pro and Victor Reinz are often engineered to be direct replacements and sometimes even improve on the original design for repair situations, such as by using materials better suited for aged sealing surfaces. For this specific part, a quality aftermarket gasket is a very reliable and cost-effective choice.
Will tightening the valve cover bolts fix the leak?
In some rare cases with very minor seepage, gently snugging the bolts might provide a temporary fix. However, the gaskets become brittle with age and lose their ability to seal. Overtightening the bolts can crack the valve cover or permanently damage the new gasket, leading to a worse leak. The proper solution is to replace the gasket.

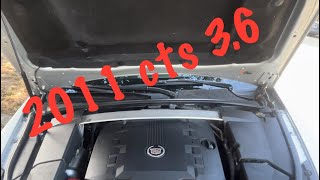

Helpful Videos
Technical Specifications
Relevant Technical Service Bulletins (TSBs): PIP5095G (Porous Cylinder Head), 12-06-01-009D (PCV System Service). Gasket material is typically molded rubber. Sets should include main gaskets, spark plug tube seals, and bolt grommets.
