Toyota Sienna Radiator Replacement Guide (2011-2017)
Is your 2011-2017 Toyota Sienna overheating or losing coolant? This guide covers everything you need to know about replacing your radiator.
- Radiator failure is not covered by a recall, but leaks are a common wear-and-tear issue.
- Denso is the OEM supplier and a top-tier aftermarket choice; CSF and Spectra are good value alternatives.
- Always replace hoses and the thermostat at the same time as the radiator for best results.
- Properly bleeding air from the cooling system after replacement is critical to prevent overheating.
Is Your Sienna's Radiator Failing?
The radiator in the 2011-2017 Toyota Sienna is a durable part, but it can fail over time. Leaks are the most common problem. These often happen where the plastic side tanks are joined to the aluminum center (the core) or from cracks in the plastic itself. The built-in transmission fluid cooler can also sometimes leak internally, causing major transmission problems. While there are no official recalls or service bulletins for widespread radiator failures on these vans, it's a part that will eventually wear out.
Key Symptoms of a Bad Radiator:
- Engine Overheating: The temperature gauge climbing into the red is the most obvious sign of a cooling problem.
- Visible Coolant Leaks: You might see puddles of bright pink or red fluid under the front of your van. A leak may also look like white or colored crusty residue on the radiator itself.
- Low Coolant Level: Frequently needing to top off the coolant in the overflow reservoir is a sure sign of a leak somewhere in the system.
- Sweet Smell: Antifreeze has a distinct sweet smell. If you notice this smell inside or outside your Sienna, it's likely due to a coolant leak.
- Transmission Issues: If the internal transmission cooler fails, coolant can mix with your transmission fluid. This can cause shifting problems and will quickly destroy the transmission if not fixed.
Warning: Do Not Use Stop Leak
Using "stop leak" additives is not recommended. These products can clog the small passages in your radiator, heater core, and engine, leading to more serious overheating problems down the road. The only correct fix for a leaking radiator is replacement.
Choosing the Right Aftermarket Radiator
When replacing your Sienna's radiator, you don't have to buy the expensive part from the Toyota dealer. Aftermarket parts offer good quality for a much lower price. Here’s a breakdown of the brands.
Tier 1: OEM-Equivalent

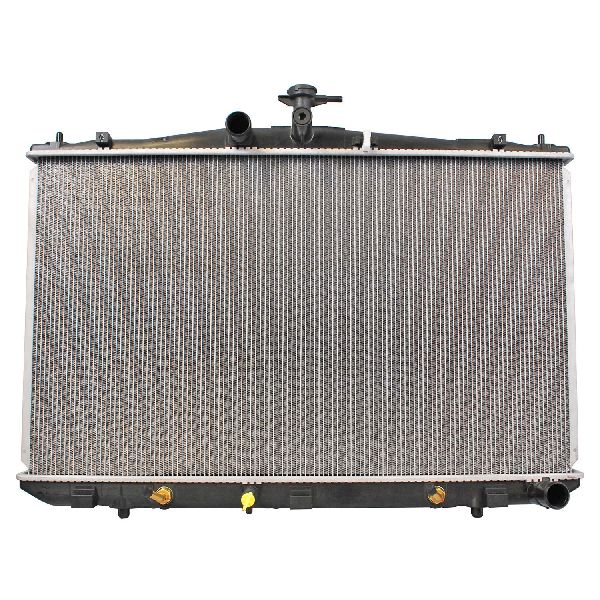

- Denso: Denso is a well-known original equipment manufacturer for Toyota. Choosing a Denso aftermarket radiator is the closest you can get to the original part without the dealer price tag. Many mechanics and Sienna owners trust Denso for its fit and quality, considering it a top choice.
Tier 2: Quality Aftermarket

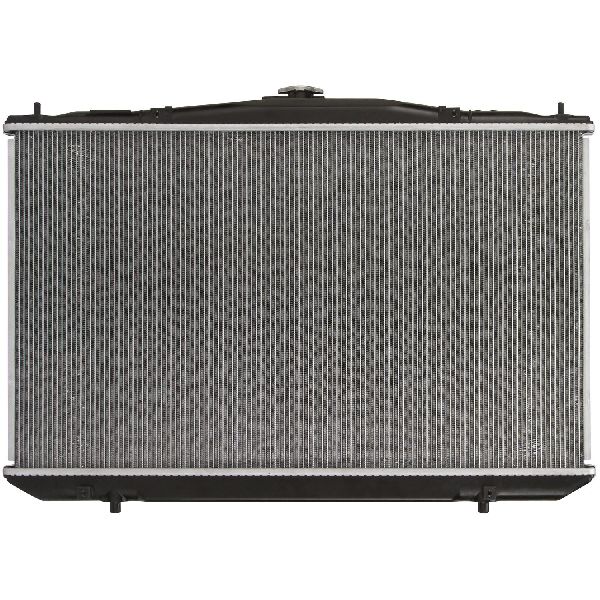

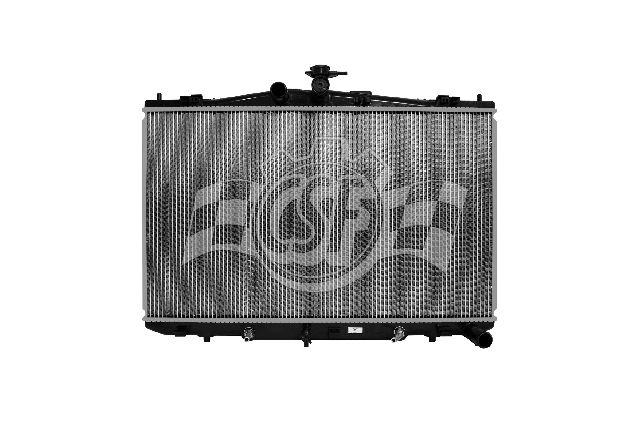

- CSF & Spectra Premium: Both CSF and Spectra are reputable brands that produce quality replacement radiators. They are built to match the original part's specifications and are tested for performance. While generally considered reliable, some users report they may not last as long as a Denso, but they offer a great balance of price and performance.
Tier 3: Budget Options

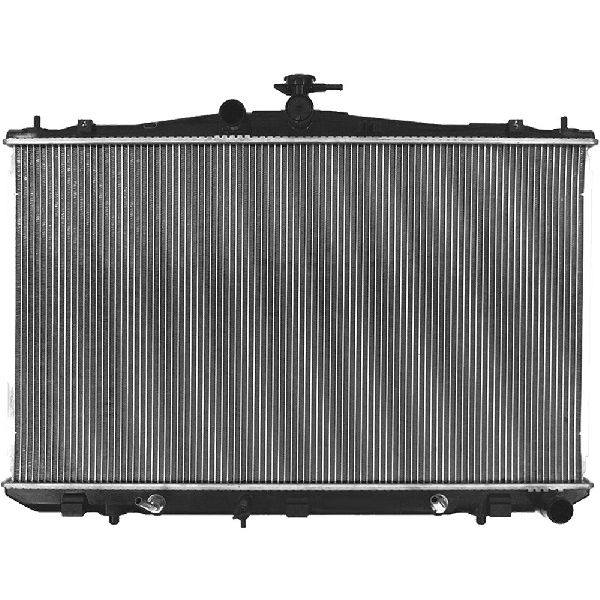

- Global Parts, Onix, One Stop Solutions, etc.: These brands offer the lowest prices. While they can be a good option if you're on a tight budget, their long-term durability may be less consistent than the more established brands. Many of these parts come from the same factories and are simply rebranded.
Pro Tip: Check the Tow Package
Some Sienna models are equipped with a factory tow package, which may use a different radiator. Always confirm whether your van has the tow package before ordering to ensure you get the correct part. Check your vehicle's specifications or look for a factory-installed trailer hitch.
Cost of Replacing a 2011-2017 Toyota Sienna Radiator
The cost can be broken down into parts and labor. You can save a lot of money by doing the job yourself, but it requires some tools and time.
| Item | Cost Range |
|---|---|
| New Aftermarket Radiator | $125 - $275 |
| New OEM Radiator | $295 - $500 |
| Shop Labor | $250 - $450 |
| Total Professional Replacement (Aftermarket Part) | $375 - $725 |
Frequently Asked Questions
Is replacing the radiator a DIY job?
Yes, if you have moderate mechanical skill and the right tools. The job involves draining the coolant, removing plastic shields, disconnecting several hoses (including transmission cooler lines), and removing the fan assembly. It can take a DIYer 2-4 hours. The most critical part of the job is properly bleeding the air out of the cooling system afterward to prevent overheating.
Should I replace the radiator hoses and thermostat at the same time?
Yes, it is highly recommended. The radiator hoses are made of rubber and get soft and weak over time. Replacing them while you already have the system drained is cheap insurance against a future failure. The thermostat is also a critical part that is much easier to access during a radiator replacement.
What type of coolant should I use in my Sienna?
Your 2011-2017 Toyota Sienna requires Toyota Super Long Life Coolant, which is a pink-colored fluid. It is important to use this specific type of coolant or a compatible equivalent. Do not mix it with other colors or types of antifreeze, as this can cause damage to the cooling system.
My van is losing coolant, but I don't see a leak. Is it the radiator?
It could be, but the 3.5L V6 engine in these vans is also known for a hidden coolant leak from an O-ring on a pipe at the back of the engine. If you are losing coolant but can't find any drips under the radiator, it's worth having a mechanic perform a cooling system pressure test to find the exact source of the leak before you replace parts.
Helpful Videos
Technical Specifications
OEM Part Numbers: 16041-0P270 16410-AZ028 16041-0P260 160410P210 1604131620 1604131630 1604131670
Core Material: Aluminum, Tank Material: Plastic, Core Height: ~17 11/16 in, Core Width: ~30 1/4 in, Inlet/Outlet Diameter: ~1 3/8 in. Includes internal transmission oil cooler.
