Toyota RAV4 Disc Brake Hardware Guide (2011-2019)
Don't let worn-out clips and springs ruin your RAV4's brake job and cause annoying noises.
- Always replace your disc brake hardware when changing brake pads to prevent noise and uneven wear.
- Check your RAV4's VIN to determine if it is Japan-built (starts with 'J') or North America-built before ordering parts.
- If you have a front-end brake groan, reference TSB T-SB-0025-19 with your mechanic, as you may need an updated pad kit.
- For vehicles in rust-prone areas, choosing an aftermarket kit with stainless steel components provides the best longevity.
Symptoms of Failing Brake Hardware on Your RAV4
Worn or rusted brake hardware can cause problems that are often mistaken for bad pads or rotors. Since the hardware is an inexpensive part, it's a common mistake to reuse it, leading to frustration when new brakes don't perform as expected. Watch for these signs:
- Brake Noise: A rattling or clunking sound when going over bumps can mean the clips aren't holding the pads tightly. A persistent squeal or scrape during braking can happen if the pads are tilted from weak or missing hardware.
- Uneven Brake Pad Wear: If you see one pad is much thinner than the other on the same wheel, it's a classic sign of binding. Corroded hardware prevents the pad from moving freely, causing it to drag against the rotor.
- Vibration or Pulsing: While often caused by warped rotors, binding hardware can lead to uneven material transfer on the rotor surface, causing a pulsing feeling in the pedal.
Vehicle-Specific Issues for 2011-2019 Toyota RAV4
Known Issue: Front Brake Grind or Groan (TSB T-SB-0025-19)
Many 2011-2018 RAV4 owners have reported a grinding or groaning noise from the front brakes. Toyota acknowledged this with Technical Service Bulletin T-SB-0025-19. 🎬 Watch Toyota's official explanation for the front brake groan fix. The official fix is to install an updated front brake pad kit, which includes newly designed pads and shims. If you have this specific noise, simply replacing the hardware might not be enough; you may need the updated pad set referenced in the TSB.
Pro Tip: Is It Really Your Brakes?
For 2013-2015 models, a grinding noise from the rear after the vehicle sits overnight might not be the brakes at all. TSB T-SB-0037-15 explains that certain rear body trim pieces can cause moisture to collect on the rotors, creating a temporary layer of rust that grinds off during the first few stops. The fix involves replacing the trim pieces, not the brake components.

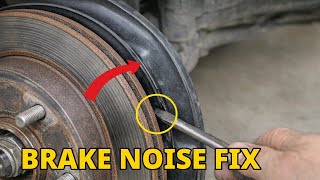

🎬 See how to identify flash rust versus trapped stones.Choosing the Right Aftermarket Hardware Kit
You should replace your brake hardware every time you replace your brake pads. It's a cheap part that ensures your more expensive pads and rotors last as long as they should. When shopping for your RAV4, here's what to consider.
OEM vs. Aftermarket Quality
Toyota OEM hardware is typically made from high-quality stainless steel to resist rust and heat. Many aftermarket brands offer similar quality, often at a much lower price. Good aftermarket kits from reputable brands are a smart choice. Avoid the absolute cheapest, unbranded kits, as they may use inferior plated steel that rusts quickly, especially in areas that use road salt.
Common Ordering Mistakes: Know Your RAV4
The 2013-2018 RAV4 was built in different locations, and some trims had different brake sizes. This is a major point of confusion when ordering parts.
- Japan-Built vs. North America-Built: Check your VIN. If it starts with a 'J', your RAV4 was built in Japan. If it starts with a number, it was built in North America. Some parts, including brakes, can be different.

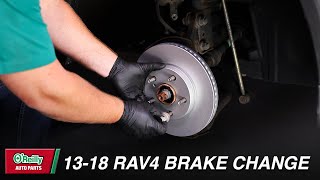

- Rotor Size on LE Trims: On some 4th generation (2013-2018) models, the base LE trim came with smaller front brake rotors than the XLE, SE, or Limited trims. This means the caliper and hardware are also different. Always confirm your specific trim and, if possible, your rotor diameter before ordering. 🎬 Watch: Step-by-step front brake pad and rotor replacement guide.
Aftermarket Brand Tiers
Based on owner feedback and mechanic consensus, here’s how the available brands generally stack up for your RAV4:
- Tier 1 (High Quality): Brands like Centric and Raybestos are well-regarded for quality and fit, often matching or exceeding OEM standards. Beck Arnley is also a strong choice, known for sourcing parts that match the original vehicle's specifications. Dynamic Friction is noted for using high-quality stainless steel components.
- Tier 2 (Reliable Value): Brands like Carlson and Dorman offer reliable, budget-friendly hardware that gets the job done. They are widely available and a good step up from no-name parts.
Cost to Replace RAV4 Disc Brake Hardware
| Item | Estimated Cost |
|---|---|
| New Aftermarket Hardware Kit (per axle) | $9.35 - $29.32 |
| New OEM Hardware Kit (per axle) | $40 - $75 (often included with OEM pad kits) |
| Shop Labor (as part of a brake job) | $100 - $350 (for the entire brake job, per axle) |
Note: Labor costs for hardware replacement are almost always bundled into the cost of a brake pad and rotor replacement, which typically takes 1-2 hours per axle.
Frequently Asked Questions
Do I really need to replace the hardware with my brake pads?
Yes. The old clips have been exposed to thousands of heat cycles and are likely fatigued. They lose their spring tension, and rust can build up in the channels. Reusing them is a common cause of noise and premature wear on a new set of brakes.
What's the difference between front and rear hardware kits?
Front and rear brake calipers on your RAV4 are different sizes and designs, so they require specific hardware kits. They are not interchangeable. Be sure to order the correct kit for the axle you are working on.
Will new hardware fix my squeaky brakes?
It can, especially if the noise is a rattle or scrape from loose or binding pads. However, if you have a high-pitched squeal or the specific "groan" mentioned in TSB T-SB-0025-19, the issue might be with the pad and shim design itself, requiring an updated pad kit.
What tools are needed to replace the hardware?
Replacing the hardware is part of a standard brake job. For a 2011-2019 RAV4, you will typically need a 14mm socket for the caliper slide pins and a 17mm socket for the caliper bracket bolts, along with a good wire brush to clean the bracket before installing the new clips.
Helpful Videos
Technical Specifications
OEM Part Numbers: 04465-42210 04465-42220
Key issue reference: Toyota Technical Service Bulletin T-SB-0025-19 addresses a front brake grind/groan noise for 2009-2018 RAV4 models. The fix involves updated pad kits (part numbers listed) which include new shims and hardware.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
