Ram 2500 A/C Receiver Drier and Desiccant Guide (2011-2024)
If your Ram's A/C isn't cutting it, the problem might be a small part you've never heard of.
- The receiver drier MUST be replaced any time the A/C system is opened for repairs, like a compressor replacement.
- This is not a DIY job. It requires specialized equipment to recover and recharge the refrigerant.
- Symptoms include weak cooling, musty smells, or rattling noises from the A/C system.
- Check for TSB 24-001-20 on 2019-2020 models if you have persistent poor A/C performance.
Is Your Ram's A/C Blowing Warm?
When your truck's air conditioning stops blowing cold, the A/C receiver drier is a common suspect, but usually not the root cause. This part typically fails because another component, like the A/C compressor, has broken apart and sent debris through the system, clogging the drier. It can also become saturated with moisture after years of service or if the A/C system is opened for repair.
Symptoms of a Bad A/C Receiver Drier
- Weak or Warm Air: The most common symptom. A clogged drier restricts the flow of refrigerant, so your A/C can't cool the cabin effectively. 🎬 Watch this video to diagnose and fix common A/C issues.
- Musty or Moldy Smell: When the desiccant material can no longer absorb moisture, mold can grow in the A/C system, causing a bad smell from your vents.
- Rattling Noises: If the desiccant bag inside the drier breaks, the small beads can make a rattling sound as they circulate through the A/C lines. This is a serious problem that can destroy your compressor.
- Frost on A/C Lines: A severe blockage in the drier can cause a rapid pressure drop, leading to frost or ice forming on A/C components.
Important: Replace, Don't Reuse
The receiver drier is a maintenance part. It must be replaced any time the A/C system is opened to the air, such as when replacing a compressor or a leaking hose. The desiccant material instantly starts absorbing moisture from the atmosphere, and a saturated drier is useless. Failing to replace the drier will void the warranty on a new A/C compressor.
Choosing the Right Aftermarket Drier for Your Ram 2500
For many 2011-2018 Ram 2500 models, the receiver drier is a desiccant bag or cartridge that is integrated into the A/C condenser. You may see parts listed as a "condenser and drier assembly" or as a separate "desiccant element kit." Be sure to identify which part you need. If your condenser is old or clogged, replacing the entire assembly is often the best choice.

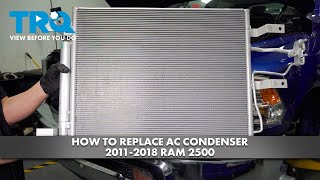

🎬 See this walkthrough on replacing the condenser and drier assembly.Aftermarket Brand Quality: Four Seasons vs. Global Parts
For a part like a receiver drier, aftermarket options are generally a cost-effective choice. Both Four Seasons and Global Parts are common aftermarket brands.
- Four Seasons: This brand has mixed reviews. Some mechanics and DIYers report good results with their new parts, while others consider them to be lower-quality. For a simple filter/drier, they are often considered an acceptable budget-friendly option.
- Global Parts (GPD): GPD positions itself as meeting or exceeding original equipment (OE) standards. There is less feedback available, but they are a common choice in aftermarket A/C kits. One user on a forum reported a GPD compressor clutch failing within a year.
The Bottom Line: Since the drier is a low-cost, mandatory replacement item during most A/C repairs, either brand is generally sufficient. The quality of the installation, especially ensuring the system is properly evacuated and recharged, is more important than the brand of the drier itself.
Ram 2500 A/C Receiver Drier Replacement Cost
Replacing the receiver drier is not a simple DIY job because it requires expensive equipment to handle the A/C system's refrigerant. The costs below reflect professional installation.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket Drier | $13 - $23 |
| New OEM (Mopar) Drier | $95 - $98 |
| Shop Labor (including system evacuation & recharge) | $110 - $161 |
| Total Estimated Cost | $123 - $184 |
Note: Costs are estimates and can vary by location and the specific repairs needed. Total cost is based on using an aftermarket part.
Known Issues for Ram 2500 A/C Systems
While there are no direct recalls for the receiver drier, Ram has issued Technical Service Bulletins (TSBs) for A/C performance issues on certain model years.
- TSB 24-001-20: Affects 2019-2020 Ram 2500/3500 trucks built before July 30, 2020. Owners may experience poor A/C performance, such as slow cool-down times or warmer air from the driver's side vents. The fix involves replacing the entire HVAC housing with a redesigned unit, which is a major, labor-intensive repair.
- TSB 24-001-22: For 2019-2021 models, this TSB addresses an issue where the blower motor may shut off, especially when a snow plow is in use.
Frequently Asked Questions
Can I drive with a bad A/C receiver drier?
Yes, but it's not recommended for long. While it won't stop the truck from running, a clogged drier puts a huge strain on the A/C compressor, which can lead to a much more expensive failure. If the drier has ruptured internally, it can send debris throughout the system, causing catastrophic damage.
Can I replace the A/C receiver drier myself?
This is not recommended for a DIY project. Legally and safely, the refrigerant in the system must be recovered by a certified technician with specialized equipment before the system is opened. After the part is replaced, the system must be put into a deep vacuum to remove all air and moisture before being recharged with the precise amount of refrigerant and oil. Failure to do this correctly will lead to poor performance and component damage.
🎬 Watch a professional service the A/C system and drier filter.Why do I have to replace the drier when I replace my A/C compressor?
There are two main reasons. First, when a compressor fails, it often sends metal debris into the system, which gets trapped by the drier. Leaving the old, clogged drier in place will starve the new compressor of oil and refrigerant, causing it to fail quickly. Second, the moment the system is opened, the old drier becomes saturated with moisture from the air, making it useless. Nearly all compressor warranties require the drier to be replaced at the same time.
My A/C is weak but my mechanic says the pressures are fine. What else could it be?
On some newer Ram HD trucks, owners report weak A/C performance even when the system seems to be working correctly. Some have found that a restrictive cabin air filter is to blame, and replacing it or even temporarily removing it dramatically improves airflow and cooling. For 2019-2020 models, this could also be a symptom related to TSB 24-001-20, which points to a design issue with the HVAC housing.
Helpful Videos
Technical Specifications
OEM Part Numbers: 68050137AB 68143039AB
The A/C Receiver Drier for the 2011-2024 Ram 2500 is often a desiccant element/cartridge integrated with the A/C condenser assembly, though standalone canister types also exist. It must be compatible with R-134a or R-1234yf refrigerant, depending on the vehicle model year.
