Chevrolet Sonic Fuel Injector Guide: Solving Misfires and Poor MPG (2012-2020)
Before you replace your Sonic's fuel injectors for a misfire, read this guide to diagnose the problem correctly.
- Misfire codes (P0300) on a Sonic are more often caused by a bad ignition coil pack or spark plugs than by fuel injectors.
- Injector-specific codes (P0201-P0204) are a much stronger indicator of a failed injector or wiring issue.
- Always replace fuel injectors as a complete set of four to ensure balanced engine performance.
- The 1.4L Turbo and 1.8L engines use different, non-interchangeable fuel injectors.
Is a Bad Fuel Injector Causing Your Sonic's Problems?
If your Chevrolet Sonic is running rough, hesitating, or the check engine light is on, a faulty fuel injector might be to blame. However, on the 2012-2020 Sonic, especially the 1.4L Turbo model, other parts often fail before the fuel injectors. It is very common to misdiagnose a bad ignition coil pack or worn spark plugs as an injector problem. Before spending money on new injectors, it's important to rule out these more frequent issues.

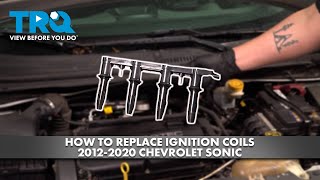

🎬 Watch: How to replace the ignition coil and spark plugsFirst, Check for Misfire Codes
Use an OBD-II scanner to read the trouble codes. A code like P0300 (Random Misfire) or P0301-P0304 (Cylinder-specific misfire) is common. While this can point to an injector, it is more often caused by a bad ignition coil or spark plugs on the Sonic. Codes like P0201, P0202, P0203, or P0204 specifically indicate an issue with the injector circuit itself and more strongly suggest an injector or wiring problem.
🎬 Learn how to replace a faulty fuel injector connectorCommon Symptoms of a Failing Fuel Injector
- Rough Idle and Engine Stalling: The engine shakes or vibrates when stopped, and may even shut off.
- Engine Hesitation and Misfires: The car sputters or jerks during acceleration because a cylinder isn't firing correctly.
- Flashing Check Engine Light: A flashing CEL indicates a serious misfire that can damage your catalytic converter. You should not drive the vehicle if this occurs.
- Poor Fuel Economy: If an injector is stuck open, it wastes fuel and you'll notice more frequent trips to the gas station.
- Gasoline Smell: A strong fuel odor from the engine bay could mean an injector is leaking externally, which is a serious fire hazard.
Choosing the Right Aftermarket Fuel Injector for Your Sonic
When you've confirmed an injector is faulty, you have several quality tiers to choose from. It is highly recommended to replace all four injectors at the same time to ensure they are balanced and flow at the same rate. Mixing old and new, or even different brands, can cause performance issues.
Tier 1: OEM & Premium Aftermarket

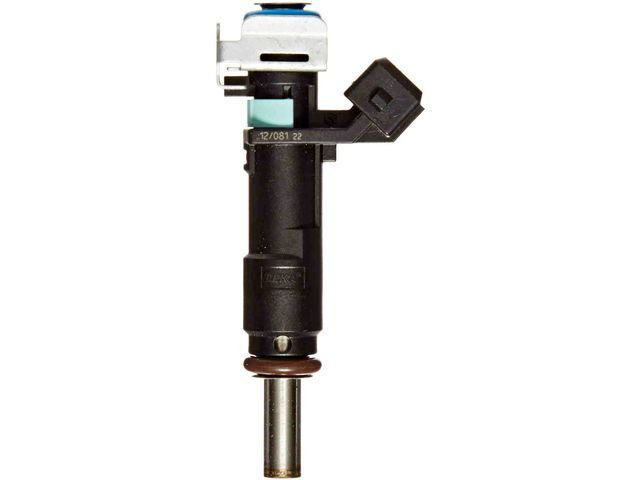

ACDelco and Bosch: ACDelco is the original GM parts supplier, so it is a direct replacement for the factory injector. Bosch is a world-renowned OEM supplier that often manufactures the original part; their quality and performance are considered equal to or better than factory originals. For reliability and peace of mind, these are the best choices.
Tier 2: Reputable Aftermarket
Standard Ignition (SMP): Standard Motor Products is a well-known and trusted aftermarket brand. They have a long history of producing reliable ignition and fuel system components with strict quality control. This is a solid, dependable choice that offers good value.
Tier 3: Budget & Remanufactured

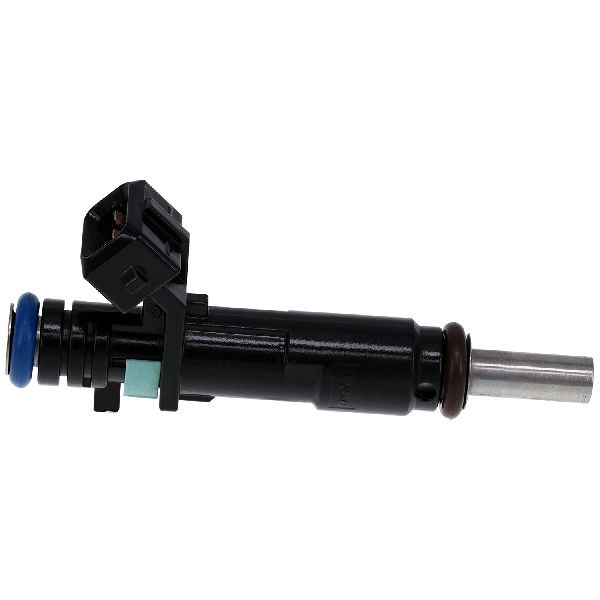

GBR Fuel Injection (GB Remanufacturing): This brand offers remanufactured injectors at a very low price. However, the quality can be inconsistent. While some users report success, others have experienced injectors that were faulty out of the box or failed prematurely by getting stuck open. This is a budget option that comes with a higher risk of failure, potentially leading to more repairs down the road.
Known Issues, Recalls, and Service Bulletins
There are no widespread recalls specifically for fuel injector failure on the 2012-2020 Chevrolet Sonic. However, GM has issued Technical Service Bulletins (TSBs) related to symptoms that can be confused with bad injectors:
- TSB #16NA383: This bulletin discusses using a specific fuel injection cleaner kit to decarbonize intake valves, which can resolve rough idle and misfire conditions. This suggests that cleaning is often a valid first step.
- Service Update #12027: For some 2012 Sonics with the 1.4L Turbo and manual transmission, GM issued an update to replace a fuel pipe quick connect that could fracture in a crash.
Cost to Replace Chevrolet Sonic Fuel Injectors
The cost can vary depending on who does the work and which parts you choose. Since the labor to access one injector is the same as accessing all four, it is most cost-effective to replace them as a set.
🎬 See this walkthrough on how to remove and replace injectors| Part / Service | Estimated Cost (Single Injector) | Estimated Cost (Set of 4) |
|---|---|---|
| New OEM (ACDelco) | $35 - $80 | $140 - $320 |
| New Aftermarket (Your Price Range) | $49.37 - $63.95 | $197 - $256 |
| Shop Labor | $125 - $200 | |
| Total Professional Replacement (Set of 4, Aftermarket) | $322 - $456 | |
Frequently Asked Questions
Do I need to replace all four fuel injectors at once?
Yes, it is highly recommended. Replacing all injectors ensures they all have the same flow rate and spray pattern, which is critical for a smooth-running engine. The labor cost is nearly the same whether you replace one or four.
What is the difference between the 1.4L and 1.8L fuel injectors?
They are different parts and are not interchangeable. The 1.4L Turbo engine uses a different injector (OEM Part 55565970) than the 1.8L engine (OEM Part 55570284). Always verify the correct part for your specific engine before ordering.
Can I just clean my fuel injectors?
Sometimes, yes. Using a quality in-tank fuel system cleaner or having a professional fuel system cleaning service performed can resolve issues caused by carbon buildup. If an injector has failed electrically or is mechanically stuck, it must be replaced.
Is a misfire (P0300 code) always a bad fuel injector?
No, especially on the Sonic. For the 1.4L Turbo engine, the most common cause of a misfire is a faulty ignition coil pack. Worn spark plugs are also a frequent cause. Always diagnose these parts before assuming the injectors are bad.
Helpful Videos
Technical Specifications
OEM Part Numbers: 55570284 (For 1.8L Engine) 217-3433 (For 1.8L Engine) 55565970 (For 1.4L Turbo Engine) 0280158205 (For 1.4L Turbo Engine) 217-3432 (For 1.4L Turbo Engine)
The Chevrolet Sonic uses multi-port fuel injection (MPI) for both the 1.4L and 1.8L engines. The injectors are electronically controlled solenoid valves that operate under pressure from the fuel rail. They are distinguished by engine type, flow rate, and electrical connector.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
