A/C Receiver Drier and Desiccant Element Guide for the 2013-2019 Cadillac XTS
If your Cadillac's A/C is blowing warm, the problem might be a small but vital part: the receiver drier.
- The receiver drier is a maintenance part that MUST be replaced every time the A/C system is opened for service.
- On the XTS, the desiccant element is located inside the condenser; it is not a separate canister.
- This is not a DIY repair. It requires specialized, expensive equipment to handle refrigerant safely and legally.
- Confirm your vehicle's refrigerant type (R-134a or R-1234yf) by checking the under-hood label before service.
Is Your XTS A/C Not Cold Anymore? Check the Drier.
When the air conditioning in your 2013-2019 Cadillac XTS isn't performing well, the issue might not be low refrigerant. A failing A/C receiver drier is a common problem, especially on older vehicles. This component is essential for protecting the entire A/C system. Ignoring it can lead to more expensive repairs down the road.
Important: Condenser-Integrated Desiccant

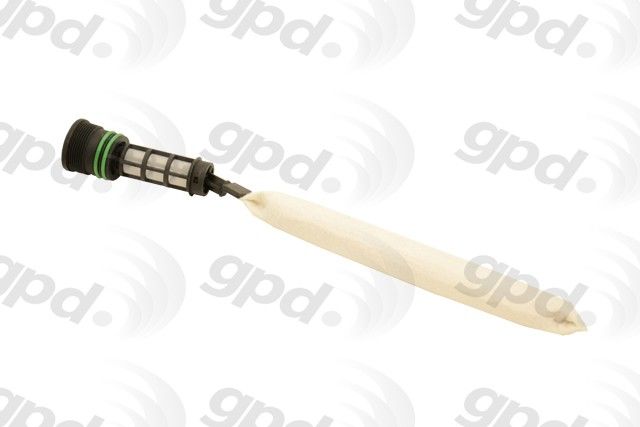

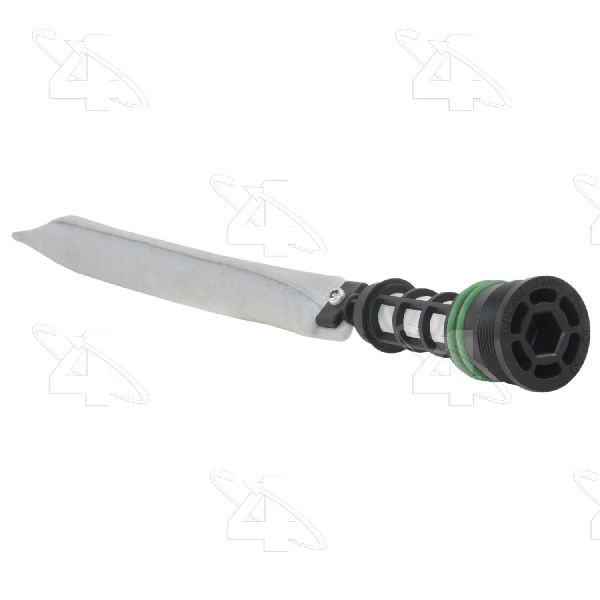

On the Cadillac XTS, the A/C desiccant element is typically not a separate, standalone canister. Instead, it is a serviceable bag located inside a chamber on the A/C condenser. This means that to replace it, you either service the desiccant bag itself 🎬 See this walkthrough on replacing a desiccant bag or replace the entire condenser and drier assembly. This is a key factor when ordering parts and estimating repair costs.
Symptoms of a Failing A/C Receiver Drier
A bad receiver drier can cause several noticeable issues. Look out for these common signs:
- Weak A/C Performance: The most common symptom is air from the vents that isn't as cold as it should be. 🎬 Watch: How to diagnose a Cadillac XTS A/C system This can happen if the drier is clogged and restricting refrigerant flow.
- Musty or Moldy Smell: If the desiccant material is saturated and can no longer absorb moisture, you might notice a moldy smell from your vents when the A/C is running.
- Rattling Noises: A rattling sound from the front of the engine bay with the A/C on can indicate that the drier's internal components or the desiccant bag have broken apart.
- Foggy Windows: An A/C system with excess moisture can't effectively dehumidify the cabin, which may cause your windows to fog up and be difficult to clear.
Choosing the Right Aftermarket Drier for Your XTS
For a maintenance part like a receiver drier, an aftermarket replacement is a smart and cost-effective choice. Brands like Four Seasons and Global Parts (often sold as GPD or UAC) offer reliable options that meet or exceed original specifications. Given that this part should be replaced whenever the system is serviced, using an affordable aftermarket brand makes regular maintenance more accessible. There is little practical difference in quality for this specific component between standard aftermarket and premium brands for the average driver.
Pro Tip: Always Replace, Never Reuse
The desiccant material inside the drier absorbs moisture from the air. The moment a new drier is unsealed or an old system is opened, the desiccant starts absorbing humidity from the atmosphere. It can become saturated in a very short time. For this reason, you must replace the drier or desiccant bag anytime the A/C system is opened for service, such as a compressor or condenser replacement. Most A/C compressor warranties require it.
Cost to Replace the A/C Receiver Drier on a 2013-2019 Cadillac XTS
| Part Type | Estimated Cost |
|---|---|
| New OEM (Condenser/Drier Assembly) | $196 - $199 |
| New Aftermarket (Desiccant Kit) | $31 - $41 |
| Shop Labor | $244 - $358 |
| Total Estimated Cost | $275 - $400 |
Cost estimates are for the desiccant element replacement and do not include a full condenser assembly. Prices can vary by location and repair shop.
Frequently Asked Questions
Can I replace the A/C receiver drier myself?
No, this is not a DIY job. Replacing any A/C component requires specialized equipment to safely recover refrigerant from the system, which is legally required. The system must also be put under a deep vacuum to remove all air and moisture before being recharged with a precise amount of refrigerant and oil. This work should only be done by a qualified mechanic.
When should the receiver drier be replaced?
The receiver drier or desiccant bag must be replaced any time the A/C system is opened for another repair (like replacing a hose, compressor, or condenser). It is a standard maintenance item. It should also be replaced if it is leaking, clogged, or has failed internally.
What kind of refrigerant does my 2013-2019 XTS use?
It depends on the year. Earlier models likely use R-134a, while later models may use the newer R-1234yf refrigerant. These two refrigerants are not interchangeable and require different service equipment. Always check the A/C system label under the hood of your vehicle to confirm which type you have 🎬 Watch: How to find the low pressure port for recharging before any service is performed.
Are there any recalls on the XTS A/C system?
No, as of late 2024, there are no specific NHTSA recalls for the A/C receiver drier or other major A/C components on the 2013-2019 Cadillac XTS. Recalls for this vehicle pertain to other systems like brakes and airbags.
Helpful Videos
Technical Specifications
OEM Part Numbers: 84497063 23170397
Contains desiccant bag; integrated with A/C condenser assembly.
