Ram ProMaster 3500 Engine Intake Manifold Gasket Guide (2014-2024)
Leaking intake gaskets can cause rough running and check engine lights on your ProMaster van; here’s how to choose the right replacement.
- You must verify if you have the 3.6L Gas or 3.0L Diesel engine before ordering, as the gaskets are different.
- For 3.6L V6 models, it is highly recommended to replace the intake gaskets when servicing the known-to-fail oil filter adapter housing, as the intake must be removed for that job.
- A bad intake gasket will most commonly cause a Check Engine Light with lean codes (P0171, P0174) and a rough idle.
- High-quality aftermarket brands like Fel-Pro and Victor Reinz are excellent alternatives to OEM and may offer more complete kits.
Is Your ProMaster's Intake Gasket Failing?
A bad intake manifold gasket is a common problem that can cause a variety of engine performance issues. Because the gasket is responsible for sealing air, fuel, and coolant, a leak can be tricky to diagnose. The most common failure is a vacuum leak, which allows extra air into the engine that the computer doesn't measure.
Key Symptoms of a Bad Intake Gasket:
- Rough or Unstable Idle: The engine may shake or idle erratically due to the incorrect air-fuel mixture.
- Check Engine Light: You will often see codes like P0171 (System Too Lean Bank 1) and P0174 (System Too Lean Bank 2), indicating too much oxygen in the exhaust.
- Loss of Power: The van may feel sluggish or hesitate during acceleration.
- Reduced Fuel Economy: The engine runs inefficiently as the computer tries to compensate for the extra air.
- Coolant Leaks or Overheating: In more serious cases, the gasket can fail between a coolant passage and an intake port, leading to coolant loss, white smoke from the exhaust, and potential engine damage.
Gas vs. Diesel: Know Your Engine
Before you buy, you must know which engine your ProMaster has. The gaskets are not interchangeable.

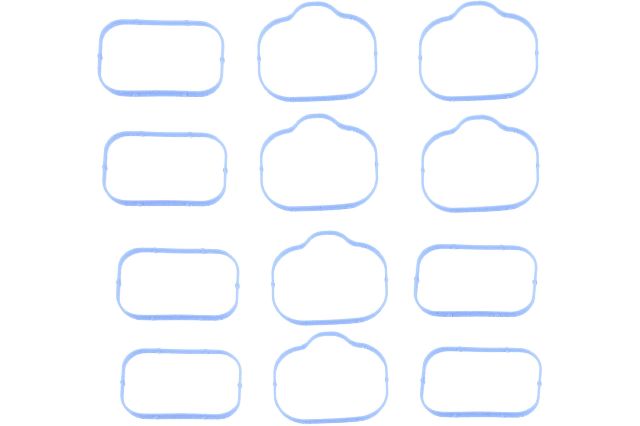

- 3.6L Pentastar V6 (Gas): This is the most common engine. It uses a two-piece intake manifold with separate upper (plenum) and lower gasket sets. Aftermarket kits usually include all 12 individual gaskets required for the job.
- 3.0L EcoDiesel I4 (Diesel): This engine was available in earlier models, typically from 2014-2017. It is known for carbon and soot buildup in the intake manifold, which can cause runners to stick and trigger codes like P200A or P200B. Cleaning the manifold is a common repair, and replacing the gasket during this service is highly recommended.
Pro Tip: "While You're In There" Repairs
On the 3.6L Pentastar V6, the oil filter adapter housing sits in the valley of the engine, directly underneath the intake manifold. This housing is a well-known failure point, often leaking oil or coolant. Replacing it requires removing the entire intake manifold. If you are replacing a leaking oil filter housing, you should always install a new set of intake manifold gaskets at the same time. A TSB was even issued regarding leaks from this adapter.
Choosing the Right Aftermarket Gasket Set
For a work vehicle like the ProMaster, reliability is key. While OEM Mopar gaskets are a safe choice, high-quality aftermarket brands often provide excellent performance and value. They may even offer design improvements over the original part.
Brand Quality Tiers
- Tier 1 (High Quality): Fel-Pro & Victor Gaskets (Victor Reinz). Both are highly respected brands often used by professional mechanics. Fel-Pro is known for engineering gaskets specifically for the repair environment, sometimes using upgraded materials like steel carriers instead of plastic and including all the small, necessary seals in their kits. Victor Reinz is an OE supplier known for using premium materials like FKM rubber that hold up well against modern coolants and high heat.
- Tier 2 (Standard Quality): Dorman & URO Parts. Dorman is a large aftermarket manufacturer providing a wide range of parts that meet OE specifications. URO Parts specializes in parts for European vehicles; since the ProMaster is based on the Fiat Ducato, this brand is a relevant option. These brands offer a good balance of quality and price for most repairs.
A Note on OEM vs. Aftermarket
For this specific repair, top-tier aftermarket brands like Fel-Pro and Victor Reinz are considered equal to or even an improvement over the stock Mopar gaskets, especially designs that replace plastic carriers with steel. The primary benefit of choosing a quality aftermarket kit is that they often come more complete, including all necessary seals for the job in one box.
Cost of Replacing the Intake Manifold Gasket Set
| Part Type | Price Range |
|---|---|
| New Aftermarket Set | $37.19 - $86.73 |
| New OEM (Mopar) Set | $41.00 - $59.00 |
| Shop Labor | $295 - $433 |
| Total Professional Repair | $332 - $520 (Estimate) |
Frequently Asked Questions
Can I replace just the leaking gasket?
No. The intake manifold gaskets for the 3.6L V6 come as a set of upper and lower seals. You must replace all of them at the same time to ensure a proper seal across the entire manifold. Aftermarket kits typically include all 12 pieces.
Is this a difficult DIY job?
Yes, this is considered an advanced repair. It requires careful removal of the fuel rail, various sensors, and the intake manifold itself. Mistakes can lead to fuel leaks, broken parts, or improper sealing, causing the same problems to return. It is recommended for experienced DIY mechanics only.
Are there any recalls for the ProMaster intake gasket?
No, there are no specific recalls for the intake manifold gaskets on the 2014-2024 Ram ProMaster 3500. However, there is a Technical Service Bulletin (TSB) related to a leaking oil filter adapter on the 3.6L engine, a repair that requires removing the intake manifold.
Do I need any special tools?
You will need a good set of metric sockets, extensions, and a torque wrench to properly tighten the manifold bolts in the correct sequence. You do not want to overtighten the bolts. You will also need tools to safely disconnect the fuel line.
Technical Specifications
OEM Part Numbers: 68535427AA (3.6L Gas, Full Kit) 5184331AC (3.6L Gas, Lower Set) 5184562AC (3.6L Gas, Upper Set) 68332474AA (3.0L Diesel, Lower)
For the 3.6L Pentastar V6, the gasket set consists of 6 upper (plenum) gaskets and 6 lower gaskets. For the 3.0L EcoDiesel, the primary replacement is the lower intake manifold gasket.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
