GMC Yukon 2015-2020 Engine Oil Pan: Leaks, Seals, and Replacement
Understanding the common oil leaks on your 2015-2020 GMC Yukon and how to choose the right replacement oil pan.
- The most common problem is a leak from the RTV sealant, not a cracked pan.
- Replacement on 4WD models is a major job requiring removal of the front differential, making it much more expensive.
- Before replacing the pan, confirm the leak isn't coming from a higher location like the oil cooler lines or valve covers.
- Quality aftermarket brands like Dorman and Spectra are a cost-effective alternative to OEM for this part.
Is Your Yukon's Oil Pan Really the Problem?
If you see oil spots on your driveway, the oil pan is a likely suspect. However, on the 2015-2020 GMC Yukon, the pan itself rarely cracks. The most common failure is a leak from the seal between the pan and the engine block. From the factory, these pans are often sealed with RTV (Room Temperature Vulcanizing) silicone instead of a traditional gasket. Over time, this sealant can get hard, brittle, and fail, allowing oil to seep out. This is a known issue, and GM even issued a preliminary service bulletin (PIE0321) to investigate leaks between the lower and upper pan sealing surfaces on 2015 models.
First, Check for Other Leaks

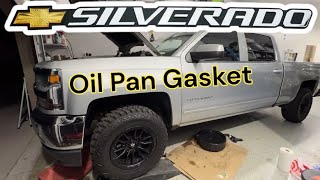

Before you blame the oil pan, clean the engine area and check for leaks higher up. 🎬 See how to identify if your gasket is leaking. Oil from a leaky valve cover, oil cooler line, or valley cover gasket can drip down onto the oil pan, making it look like the pan is the source. Also, check that the oil filter and drain plug are tight and that the drain plug O-ring is in good shape.
Choosing the Right Aftermarket Oil Pan

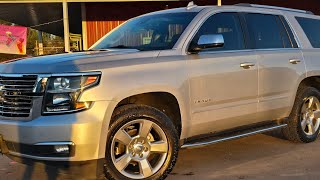

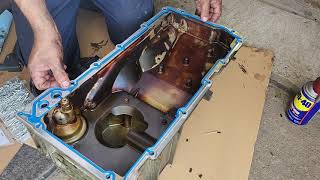

For the 2015-2020 Yukon, you will most likely be replacing the lower steel oil pan. The upper aluminum pan is less commonly replaced. 🎬 Watch this guide for replacing the upper oil pan gasket. Aftermarket quality for this part is generally considered good and a cost-effective alternative to OEM.

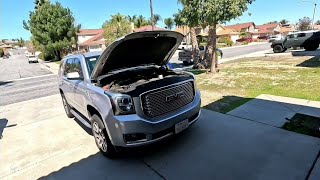

🎬 Watch this step-by-step lower oil pan replacement walkthrough.- Dorman: A widely available and well-known aftermarket brand. Their oil pans are a direct replacement and often include a new drain plug. They are a reliable, budget-friendly choice for this application. Some users note that Dorman sometimes uses a different size drain plug than the original, which is something to be aware of.
- Spectra: Another popular brand offering quality replacement parts. Spectra oil pans are known for their good fit and durability. In some cases, Dorman and Spectra parts can be nearly identical, sourced from the same manufacturer. Some aftermarket pans, including those from Spectra, may come with a gasket, which some mechanics prefer over using RTV sealant.
For a simple stamped steel lower oil pan, both Dorman and Spectra are solid choices that will perform like the original. The decision often comes down to price and availability. Since the main cost of this repair is often labor, especially on 4WD models, saving on the part with a quality aftermarket brand makes sense.
Pro Tip: Gasket vs. RTV Sealant
The factory seals the lower oil pan with RTV sealant. Some aftermarket pans come with a rubber gasket. A gasket can make installation quicker and cleaner for a DIYer. However, a proper application of high-quality, oil-resistant RTV sealant is just as effective and is the factory method.
Cost of Replacing a 2015-2020 GMC Yukon Oil Pan
The cost is heavily influenced by whether your Yukon is 2WD or 4WD.
| Item | Estimated Cost |
|---|---|
| New Aftermarket Lower Oil Pan | $65 - $115 |
| New OEM Lower Oil Pan | $50 - $120 |
| Shop Labor (2WD) | $200 - $350 |
| Shop Labor (4WD) | $450 - $700+ |
*Prices are estimates and can vary based on location, part brand, and shop rates. The significant labor increase for 4WD is due to the need to remove the front differential to access the oil pan.
Frequently Asked Questions
Why is the replacement so much more expensive for my 4WD Yukon?
On 4WD models, the front differential and a structural crossmember are located directly beneath the engine oil pan. To remove the pan, a mechanic must first remove the crossmember and lower or completely remove the front differential. This adds several hours of labor to the job compared to a 2WD model where access is unobstructed.
Can I just re-tighten the oil pan bolts to stop the leak?
It's unlikely to work, but it is worth a try. Sometimes bolts can loosen over time. However, the leak is usually caused by a failed RTV seal, and simply tightening the bolts won't fix a degraded seal. Do not overtighten the bolts, as this can damage the pan or the threads in the engine block.
Is there a recall for the oil pan leak on my Yukon?
No, there is no active recall for a leaking oil pan on the 2015-2020 GMC Yukon. General Motors did issue a Preliminary Information bulletin (PIE0321) for dealers in 2014 to gather information about lower oil pan leaks on 2015 models, which shows they were aware of the issue early on.
Should I use an aftermarket pan that comes with a gasket or use RTV sealant like the factory?
Either method is acceptable if done correctly. A gasket can be easier for a DIYer as it's less messy and doesn't require cure time. However, high-quality RTV sealant, when applied to a clean, dry surface and allowed to cure, provides a durable, long-lasting seal that is equivalent to the original factory seal.
Helpful Videos
Technical Specifications
OEM Part Numbers: 12623115 12659686 12669909
Fits 2015-2020 GMC Yukon with 5.3L or 6.2L engines. Material: Steel (Lower Pan). Capacity: 6 qt. The system consists of an upper aluminum pan and a lower steel pan. This article focuses on the lower pan, which is the part most commonly replaced due to leaks.
