A/C System O-Ring and Gasket Kit Guide for the 2016-2017 Lexus IS200t
Losing your cool? This guide covers the essential seals for restoring your Lexus IS200t's A/C performance.
- Before suspecting a leak, check for symptoms of the known HVAC servo motor TSB (L-SB-0001-21), such as one side blowing hot and the other cold.
- An A/C o-ring and gasket kit is not a standalone repair but a required set of parts for any A/C component replacement.
- Always use new, properly lubricated seals when reassembling A/C components to prevent leaks.
- Aftermarket kits from brands like Four Seasons or Global Parts are a cost-effective and reliable choice for your Lexus IS200t.
Is Your IS200t's A/C Blowing Warm Air?
When the air conditioning in your 2016-2017 Lexus IS200t stops blowing cold, the most common cause is a refrigerant leak. These leaks often happen because the small rubber o-rings and gaskets at the A/C component connections have aged and failed. Symptoms of a leak include air that starts cold but turns warm, weak airflow from the vents, or a complete failure to cool.
Important: Check This Before You Buy Parts
For the 2016-2017 IS200t, there is a known issue that can mimic A/C system failure. Lexus issued a Technical Service Bulletin (TSB L-SB-0001-21) for problems like uneven temperatures (hot air on one side, cold on the other), no air from certain vents, or incorrect vent modes. This is often caused by a software glitch affecting the HVAC servo motors, not a refrigerant leak. 🎬 Watch: How the blend door actuator functions on your IS200t Before assuming you have a leak, verify if your symptoms match the TSB. A dealership may need to reinitialize the system, which can be a much simpler fix than replacing A/C components.
Choosing the Right Aftermarket O-Ring Kit
If you've confirmed you have a leak and are planning an A/C repair, replacing all the seals at the connections you open is not optional—it's mandatory. Reusing old seals will almost certainly result in a failed repair. For a part like an o-ring kit, you don't need to pay the high price for an OEM-branded bag of seals. Aftermarket brands offer excellent value and reliability.
- Tier 1 (Good): Brands like Four Seasons and Global Parts are well-established names in the aftermarket A/C world. They specialize in these components, and their vehicle-specific kits are designed to provide the correct seals for your IS200t. For o-rings and gaskets, these brands provide reliable quality that meets the needs of most repairs without the high cost of OEM parts.
Pro Tip: Always lubricate new A/C o-rings with the correct type of refrigerant oil (PAG oil for your IS200t) before installation. This helps create a positive seal and prevents the o-ring from tearing during assembly.
🎬 See how to properly lubricate and install A/C o-ringsCost of A/C O-Ring Kits for 2016-2017 Lexus IS200t
| Part Type | Price Range |
|---|---|
| New Aftermarket Kit | $26.06 - $28.93 |
| New OEM Kit | $70 - $120+ (estimate) |
Note: Prices are estimates and may vary based on supplier and location. The primary cost of an A/C repair involving these seals will be labor and the refrigerant service.
Frequently Asked Questions
Do I need to replace the whole kit for one leak?
This kit is not a repair in itself, but a set of essential supplies for a larger repair. You use the specific o-rings from the kit for the component you are replacing (e.g., if you replace the A/C compressor, you use the new compressor seals from the kit). It is wise to buy the full kit to ensure you have the correct seal on hand for any A/C connection you need to open.
Is replacing A/C o-rings a DIY job?
Replacing an o-ring is easy, but accessing it can be very difficult. More importantly, federal law requires specialized equipment to safely evacuate refrigerant from the system before it's opened and to recharge it correctly afterward. For this reason, any A/C system repair, including one that uses this o-ring kit, is best left to a qualified shop.
Why is one side of my A/C blowing hot and the other cold?
This is a classic symptom of the servo motor issue described in TSB L-SB-0001-21 for the IS200t. It's likely a blend door control problem, not a refrigerant leak. You should have this diagnosed before attempting any repairs related to refrigerant levels or leaks.
🎬 Watch: A mechanic's guide to replacing Lexus HVAC servo motorsAre aftermarket o-rings as good as OEM for my Lexus?
Yes. For seals and gaskets, the key is using the correct material (HNBR for R-134a systems) and size. Reputable aftermarket brands like Four Seasons and Global Parts produce vehicle-specific kits that are designed to fit and seal correctly. There is no significant performance advantage to using OEM seals for this application, and the cost is substantially higher.

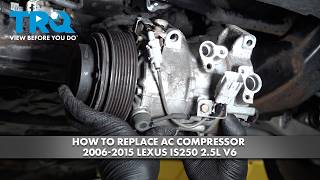

Helpful Videos
Technical Specifications
Kit contains multiple HNBR (Hydrogenated Nitrile Butadiene Rubber) o-rings and gaskets for R-134a and R-1234yf refrigerant systems.
