Guide to the 2016-2023 Mazda MX-5 Mass Air Flow Sensor
Experiencing rough idle or poor acceleration in your Miata? Your Mass Air Flow sensor might be the problem.
- The MAF sensor replacement on a 2016-2023 MX-5 is an extremely easy DIY job requiring only a screwdriver.
- Always try cleaning the sensor with dedicated MAF cleaner before buying a new one, as this often solves the problem.
- A bad MAF sensor can cause a P0101 code, but so can a simple vacuum leak; always check the intake hose for cracks first.
- While aftermarket sensors are cheaper, the genuine OEM Mazda part (PE01-13-215) is generally recommended for reliability and avoiding future issues.
Is Your MX-5's MAF Sensor Failing?
A dirty or failing Mass Air Flow (MAF) sensor can cause noticeable issues with your car's performance. Because the sensor is responsible for air measurement, a bad reading can make the engine run too rich (too much fuel) or too lean (not enough fuel). This can lead to a variety of symptoms.
🎬 Watch a detailed breakdown of common bad MAF sensor symptoms.Symptoms of a Bad MAF Sensor
- Check Engine Light: This is the most common sign. A scanner will often show codes like P0101, P0102, or P0103.
- Rough Idle: The engine may idle unevenly, surge, or even stall at stops.
- Hesitation and Power Loss: You might feel a delay or jerking when you accelerate. This can be dangerous when pulling into traffic.
- Poor Fuel Economy: If the sensor causes the engine to run rich, you'll notice a significant drop in gas mileage.
- Black Smoke from Exhaust: This is a clear sign of the engine running too rich, meaning unburned fuel is exiting through the exhaust.
Pro Tip: Try Cleaning it First
Before you buy a new sensor, it's always worth trying to clean the old one. Contamination from dirt or oil from some aftermarket air filters can cause incorrect readings. You must use a cleaner made specifically for MAF sensors. These products are designed to clean the delicate sensor wires without leaving a residue. Often, a simple cleaning is all it takes to fix the problem.
🎬 See how to properly clean your MX-5's air flow sensor.Choosing a Replacement: OEM vs. Aftermarket
When it's time to replace the sensor, you have a choice between Original Equipment Manufacturer (OEM) and aftermarket parts. For a critical engine component like the MAF sensor, many experienced mechanics and MX-5 owners prefer to use the OEM part, which is made by Denso for Mazda. While more expensive, OEM sensors are known for their reliability and perfect calibration to the vehicle's computer.
Aftermarket brands like Spectra and Walker Products offer a more budget-friendly option. These parts are designed to meet or exceed OE specifications. However, owner reviews for aftermarket sensors are often mixed. Some work perfectly, while others can be faulty out of the box or fail prematurely. If you choose an aftermarket sensor, it's best to buy from a reputable seller with a good warranty.
Cost Comparison for 2016-2023 Mazda MX-5 MAF Sensor
| Part Type | Estimated Cost |
|---|---|
| New OEM (Mazda PE01-13-215) | $198 - $291 |
| New Aftermarket (Spectra, Walker) | $105 - $247 |
| Shop Labor | $50 - $100 |
Known Issues, Recalls, and TSBs
As of late 2024, there are no active recalls or widespread Technical Service Bulletins (TSBs) specifically for Mass Air Flow sensor failure on the 2016-2023 Mazda MX-5. Searches on the NHTSA database show recalls for issues like airbag sensors, but not for the MAF sensor. A TSB from 2012 (01-009/12) for earlier Skyactiv engines mentioned potential MAF sensor contamination, but this does not apply directly to the ND Miata. Another TSB (01-015/18) addresses a different engine control issue and specifically states it does not apply if MAF sensor codes are present.
Frequently Asked Questions (FAQ)
Is this a difficult part to replace myself?
No, this is a very easy DIY job. The MAF sensor is located on the engine's air intake tube and is held in place by two screws. You only need a Phillips head screwdriver. The entire job takes about 10-15 minutes.
🎬 Follow this step-by-step guide to replace your ND Miata's sensor.Do I need to disconnect the battery or reset the computer?
Yes, it is highly recommended to disconnect the negative battery terminal before you begin. After replacing the sensor and reconnecting the battery, the check engine light should turn off and the ECU will relearn the new sensor's parameters. If you have a code scanner, you can also use it to clear the codes.
What happens if I don't replace a bad MAF sensor?
Driving for a long time with a bad MAF sensor is not recommended. The poor air-fuel mixture can lead to fouled spark plugs, engine knocking, and eventually, expensive damage to your catalytic converter.
Could something else cause a MAF sensor code (P0101)?
Yes. Before replacing the sensor, check for other common issues. A cracked or loose air intake hose (a vacuum leak) between the sensor and the engine is a very common cause. Also, make sure your engine air filter is clean and properly installed.
Helpful Videos

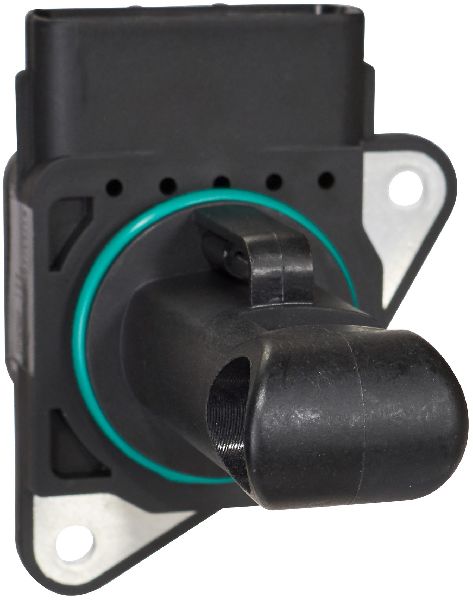

Technical Specifications
OEM Part Numbers: PE01-13-215
The Mass Air Flow sensor for the 2016-2023 Mazda MX-5 is a 'hot-wire' type sensor. It is installed in the air intake tube between the air filter housing and the throttle body. It uses a 5-pin electrical connector.
