BMW M2 Disc Brake Pad Wear Sensor Guide (2016-2025)
Understand the brake pad wear sensor on your F87 or G87 M2 and choose the right aftermarket replacement.
- The sensor is a one-time-use part; it must be replaced if the red brake warning light is on.
- Always reset the brake service interval in the iDrive system after replacing the sensor to clear the warning light.
- Your M2 has two sensors: one for the front axle and one for the rear.
- Quality aftermarket sensors from brands like Brembo, Pagid, and Centric are reliable and cost-effective alternatives to OEM.
Symptoms of a Failing Brake Pad Wear Sensor
The most common symptom is a red brake warning light on your instrument cluster. This light is different from the yellow warning, which is a mileage-based estimate from the car's computer. A red light means the sensor has physically worn through and your pads are low. Occasionally, the sensor wire can be damaged or fail prematurely, causing a false warning 🎬 Learn how to repair a damaged BMW brake pad sensor. even if the pads have plenty of life left. Once the warning light is triggered, the sensor is considered a single-use part and must be replaced to turn off the light. You cannot reset the warning light without installing a new, functioning sensor.
Choosing the Right Aftermarket Sensor
For a part like a brake pad wear sensor, aftermarket options provide excellent value. The technology is simple, and many aftermarket brands produce reliable sensors that function just like the original. The key differences are often in the quality of the plastic and wire sheathing, but for most M2 owners, a quality aftermarket sensor is a smart choice. Here’s a breakdown of available brands:
| Brand Tier | Brands | Notes |
|---|---|---|
| Premium Aftermarket | Brembo, Pagid | These brands are often Original Equipment Manufacturers (OEM) for BMW or produce parts to the same high standard. They are known for excellent fit, high-quality materials, and reliability that matches the genuine BMW part. |
| Quality Aftermarket | Beck Arnley, Centric, EBC Brakes, Raybestos | These are well-regarded brands in the aftermarket community. They offer a balance of quality and price, providing reliable performance for daily driving and spirited use. Fit and finish are generally very good. |
| Standard / Value | Carlson, Dorman, Dynamic Friction, Holstein, Powerstop, Vemo | These brands offer a cost-effective solution. While they are functional, some users in forums report occasional fitment issues or less robust materials compared to premium brands. They are a good option for budget-conscious repairs. |
Known Issues, Recalls, and Service Bulletins
My searches found no recalls or Technical Service Bulletins (TSBs) specifically for the disc brake pad wear sensor on the 2016-2025 BMW M2. However, there have been broader recalls for the integrated braking system on some 2023-2025 BMW models, but these do not involve the wear sensor itself. The most common issue reported by owners is a false warning light due to a damaged sensor wire, which can happen from road debris or during other maintenance.
Resetting the Service Light is Crucial
After replacing your brake pads and the wear sensor, the car's computer (known as Condition Based Service or CBS) must be reset. This can be done through a sequence of button presses on the instrument cluster 🎬 Watch how to reset your BMW brake light without tools. or with a diagnostic tool. If you don't perform the reset, the brake warning light will stay on even with the new parts installed.
Frequently Asked Questions (FAQ)
Do I have to replace the sensor with every brake pad change?
You only have to replace the sensor if the brake warning light is on. However, it is highly recommended to replace the sensor every time you change your pads. The old sensor can become brittle from heat and may break during removal, making it a smart and inexpensive part to replace proactively.
Can I reuse an old brake pad sensor?
No. Once a sensor has been triggered (worn down), it is a one-time-use part and cannot be reused. Even if it hasn't been triggered, they are prone to breaking upon removal, so replacement is the best practice.
Is there a sensor on all four brakes?
No, BMW M2 models typically have one sensor for the front axle (on the driver's side) and one for the rear axle (on the passenger's side).
Why is my brake light still on after replacing the pads and sensor?
This is almost always because the service interval was not reset in the vehicle's iDrive/CBS system. You must perform the reset procedure to tell the car it has new components.
🎬 See the specific M2 brake pad warning light reset process.Helpful Videos
Technical Specifications

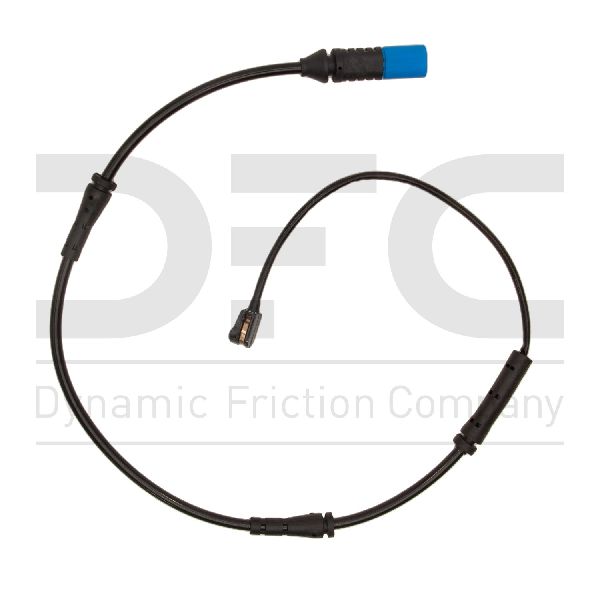

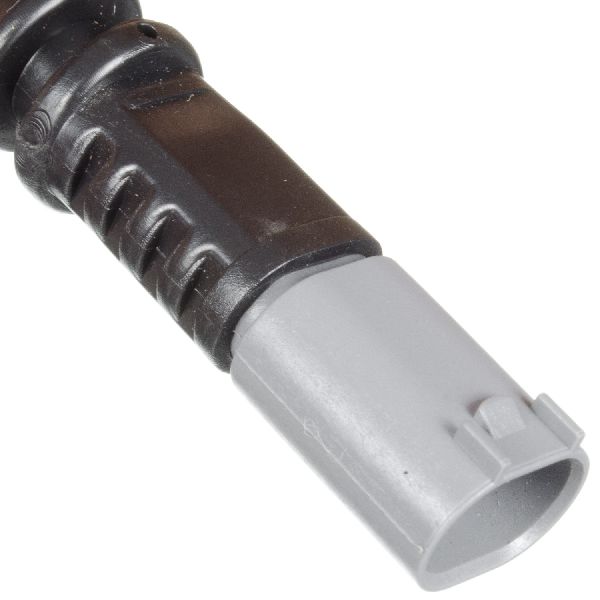

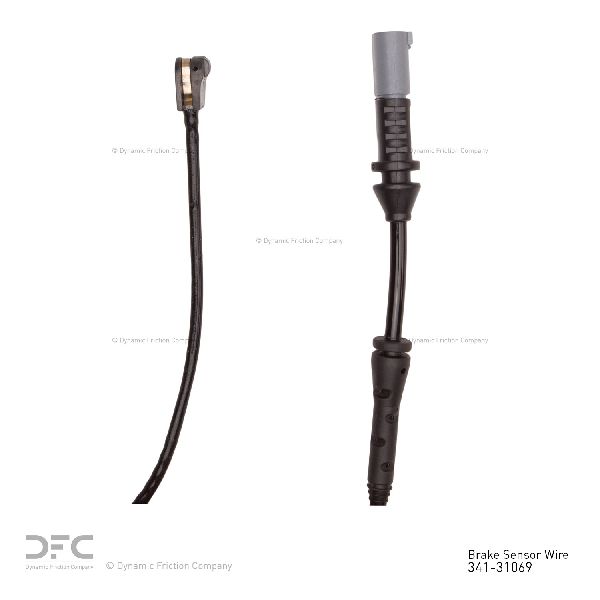

OEM Part Numbers: Front (F87 M2, 2016-2021): 34356792289 Rear (F87 M2, 2016-2021): 34356792292 Front (G87 M2, 2023+): 34356870349 Rear (G87 M2, 2023+): 34358095575

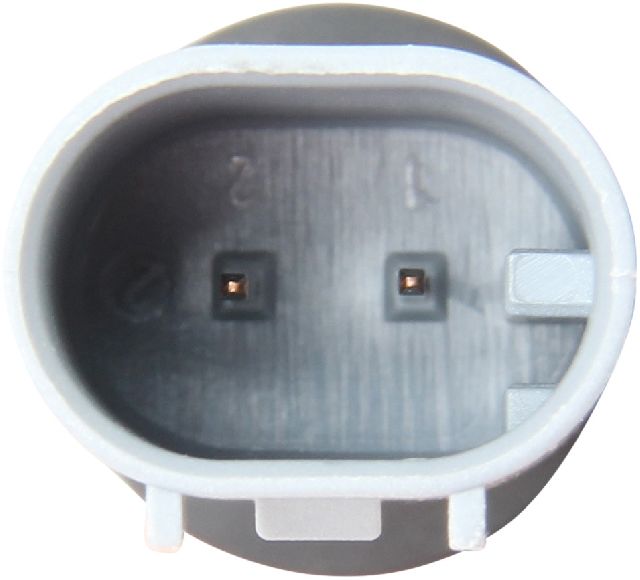

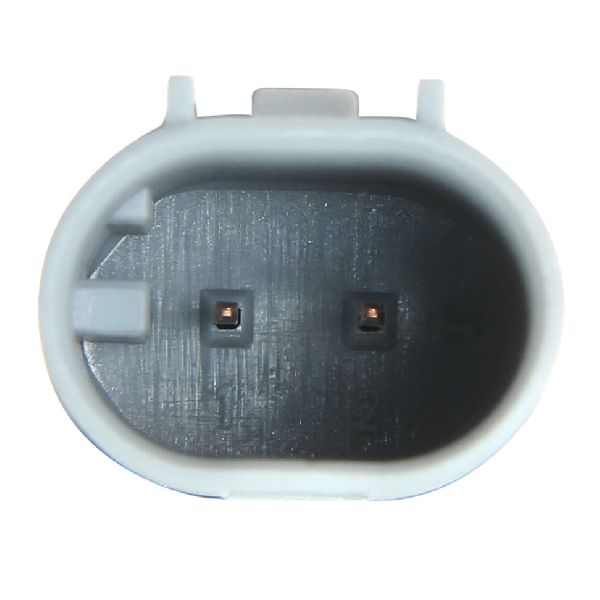

Two-wire, single-stage contact sensor. Typically located on the front-left and rear-right brake calipers.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
