2017 GMC Acadia Limited Door Window Switch Replacement and Information
Having trouble with your windows? Here is what you need to know before replacing the door window switch on your Acadia Limited.
- Failure is common and symptoms include intermittent operation or a window only working from one switch.
- Replacement is an easy DIY job that takes less than an hour with basic trim tools and Torx bits.
- No vehicle recalls exist for this part, but be aware of a past recall on some Dorman aftermarket switches for a faulty safety feature.
- For reliability, consider premium aftermarket brands like ACDelco or Standard Ignition, which offer a good balance of quality and price.
Is Your Acadia Limited's Window Switch Failing?
A bad window switch in your 2017 GMC Acadia Limited can be frustrating. Symptoms often start small and get worse. You might notice one window won't work from the master switch on the driver's door, but it works fine from its own door switch. Or, you might have the opposite problem. Sometimes a window will go down but won't go back up, or it works only sometimes. In some cases, the switch for a specific window might stop working entirely. These are all common signs that the switch itself has failed internally.
Known Issues, Recalls, and Service Bulletins
As of early 2026, there are no active GM safety recalls for the door window switch on the 2017 GMC Acadia Limited. While GM has recalled switches on other models like the Savana van for fire risk due to moisture, the Acadia Limited is not included in that recall. Searches for official Technical Service Bulletins (TSBs) also did not show any specific issues for this part on your vehicle.
However, there was a safety recall issued by the aftermarket brand Dorman (NHTSA Recall 17E-032) for some of their replacement window switches. The recall stated that the 'anti-pinch' safety feature, which stops the window if an object is detected, may not work correctly. This could increase the risk of injury.
Choosing the Right Aftermarket Switch
When you shop for a new window switch, you'll find several brands. They generally fall into different quality tiers. It's important to know that the 2017 Acadia Limited uses the same first-generation parts as the 2007-2016 Acadia models.
- Premium Aftermarket (ACDelco, Standard Ignition): ACDelco is the original parts supplier for GM. Their "Genuine GM" parts are identical to what was installed at the factory. Their "Professional" line is their high-quality aftermarket offering, designed to meet original specifications. Standard Ignition (also known as Standard Motor Products) is another well-respected brand known for reliable aftermarket electronics.
- Standard Aftermarket (Dorman): Dorman is one of the largest aftermarket brands and offers a wide range of parts. Their products are often affordable and widely available. However, owner feedback can be mixed, and the previously mentioned safety recall on some of their switches is a point to consider.
- Economy Aftermarket (URO Parts, Skyward, Rostra): These brands typically offer the most budget-friendly options. While they can provide a functional replacement at a low cost, they may not have the same long-term durability or feel as the original switch.
Pro Tip: Check Your Connectors
Before ordering a master window switch, it's a good idea to look at the existing part. Different trim levels and options (like power-folding mirrors) can change the number of pins and connectors on the switch. Matching your original part ensures you get a replacement that is truly plug-and-play.
Aftermarket Door Window Switch Cost for 2017 GMC Acadia Limited
| Part | Price Range |
|---|---|

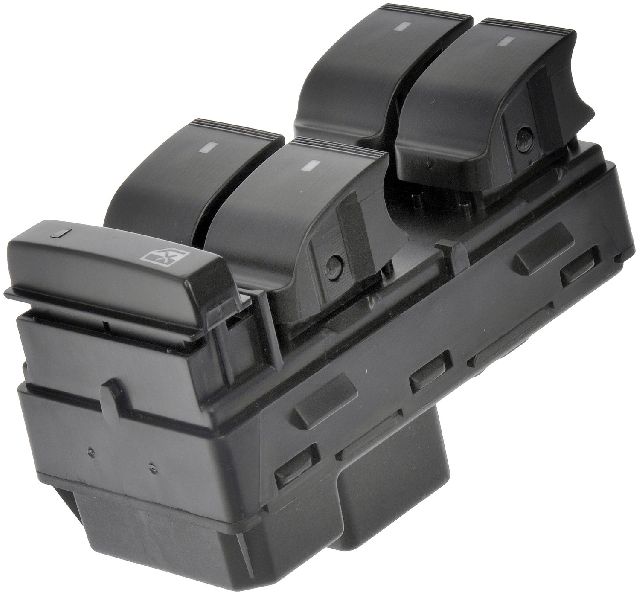

| New Aftermarket Master Window Switch (Driver's Door) | $35 - $85 |

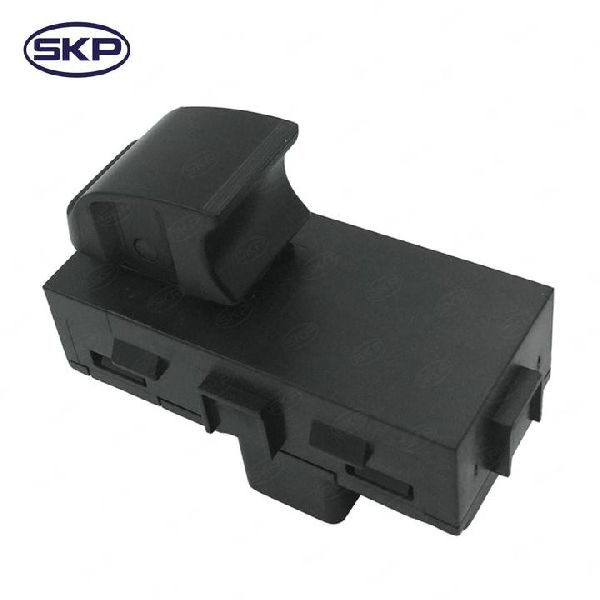

| New Aftermarket Single Window Switch (Passenger Doors) | $20 - $45 |
Frequently Asked Questions
Can I replace the window switch myself?
Yes, this is a very DIY-friendly job. You will need basic tools like a trim removal tool and Torx screwdrivers (T30 for the door panel and T15 for the master switch). The process involves carefully prying off trim covers, removing a few screws, and disconnecting the door panel to access and swap the switch. Many online videos show the exact steps for the first-generation Acadia.
My window stopped working after I changed the battery. Is the switch bad?
Not necessarily. After a battery disconnect, the 'auto-up/down' feature can lose its programming. You may need to reset it. A common procedure is to close all doors, turn the ignition on, roll the window all the way down while holding the switch, and then roll it all the way up, continuing to hold the switch for a few seconds after it closes.
Do I need to buy an expensive OEM switch?
Not always. A high-quality aftermarket switch from a brand like ACDelco Professional or Standard Ignition can offer similar performance and fit as the original part for less money. While the cheapest options might work, they may not last as long or have the same button feel as the original.
The driver's window works, but none of the others do from the master switch. What's wrong?
This is a classic symptom of a failed master window switch. The internal circuitry for the other windows has likely failed, even though the driver's window portion still works. Another possibility is that the window lock button is stuck or has failed in the 'on' position.
Technical Specifications
OEM Part Numbers: 23326295
The master switch controls all four windows, power mirrors, and window/door locks. Single switches control one window. The 2017 Acadia Limited uses the first-generation switch design.
