Chevrolet Camaro Engine Oil Pressure Switch: 2017-2023 Guide
Is it a bad sensor or a bigger problem? This guide for 2017-2023 Camaro owners helps you decide.
- A low oil pressure warning must be treated as a critical issue; it could be a simple sensor or a catastrophic oil pump failure.
- Before replacing the sensor, always verify the engine's actual oil pressure with a mechanical gauge to rule out a more serious problem.
- Replacement on V8 models is extremely difficult and labor-intensive due to the sensor's location behind the intake manifold.
- For V6 models, the sensor is much easier to access and replace, making it a feasible DIY project.
Symptoms of a Failing Oil Pressure Switch
When an oil pressure switch fails on your Camaro, it can cause some confusing and alarming symptoms. The most common sign is an erratic oil pressure gauge. You might see it drop to zero, shoot up to maximum, or fluctuate wildly while you're driving. You may also see the oil pressure warning light turn on, stay on, or flicker, even if your oil level is correct. In some cases, a faulty sensor can trigger the Check Engine Light, often with a P0521 trouble code. A less common symptom is an oil leak found on the sensor itself or its electrical connector.
Warning: Is It the Sensor or the Oil Pump?
For 6th generation Camaros, especially V8 models (SS, ZL1), a low oil pressure warning can be a sign of a more serious issue than just a bad sensor. There are known issues and Technical Service Bulletins (TSBs) related to the oil pump's pressure relief valve sticking or failing. This causes actual low oil pressure, which can quickly destroy your engine. Before replacing the sensor, it is critical to verify the engine's true oil pressure with a mechanical gauge. Ignoring a true low-pressure situation because you assume it's just a bad sensor can lead to a complete engine failure.
Choosing the Right Aftermarket Part
When replacing the oil pressure switch, you have options outside of the dealership. Aftermarket brands can offer a good balance of quality and price. For the 2017-2023 Camaro, several reputable aftermarket manufacturers produce direct-fit replacements.
- Standard Ignition (Standard Motor Products): A well-known brand in the aftermarket, Standard Ignition offers sensors that are designed to meet or exceed original equipment (OE) specifications. They often feature durable materials like high-temperature ceramic sensors to ensure accuracy and a long service life.
- Walker Products: Walker is another established brand that produces a wide range of engine sensors. Their oil pressure switches are engineered to match OE standards for fit and function, ensuring they communicate correctly with your Camaro's computer.
While OEM parts from ACDelco are always a safe bet, quality aftermarket parts from established brands like these are a reliable alternative and can save you money. Given the extreme difficulty of replacement on V8 models, it is wise to choose a quality part, whether OEM or a top-tier aftermarket brand, to avoid having to do the job twice.
Installation: A Tale of Two Engines
The difficulty of replacing this sensor depends entirely on which engine your Camaro has.
- V6 Engine (LGX): On the 3.6L V6, the sensor is much more accessible, typically located near the oil filter housing. A DIY mechanic with basic tools can usually complete this job in under an hour.
- V8 Engines (LT1/LT4): On the 6.2L V8s, the sensor is in a very difficult-to-reach spot at the back of the engine, underneath the intake manifold. Replacement is a significant job that often requires removing the intake manifold (or supercharger on ZL1 models) for access. This is a time-consuming and complex task that may be best left to a professional mechanic unless you are a very experienced DIYer. Labor time can be 4 hours or more.
| Part Type | Estimated Cost |
|---|---|
| New OEM (ACDelco) | $55 - $90 |
| New Aftermarket | $46 - $62 |
| Shop Labor | $100 (V6) - $600+ (V8) |
Frequently Asked Questions
Can I drive my Camaro with a bad oil pressure switch?
No, it is not recommended. You cannot be certain if the warning is from a faulty sensor or from actual, engine-destroying low oil pressure. It is safest to stop the vehicle immediately and have it checked.
Why is the replacement so much more expensive for the V8 Camaro?
The cost difference is almost entirely due to labor. The sensor's location on the V8 engine is at the very back of the engine valley, blocked by the intake manifold. Accessing it requires hours of work to remove components, whereas the V6 location is relatively open.
My oil level is full, but the low pressure light is on. Is it the sensor?
It could be the sensor, but it could also be a failing oil pump, which is a known issue. A full oil level does not guarantee correct oil pressure. You must have the actual pressure tested with a mechanical gauge to be sure.
What is a P0521 code?
P0521 is a generic diagnostic trouble code (DTC) that means the "Engine Oil Pressure Sensor/Switch Range/Performance." It means the signal the computer is receiving from the sensor is not what it expects to see based on engine speed and other factors, indicating a potential problem with the sensor or the oil pressure itself.

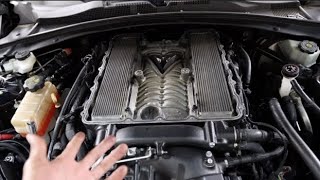

Helpful Videos

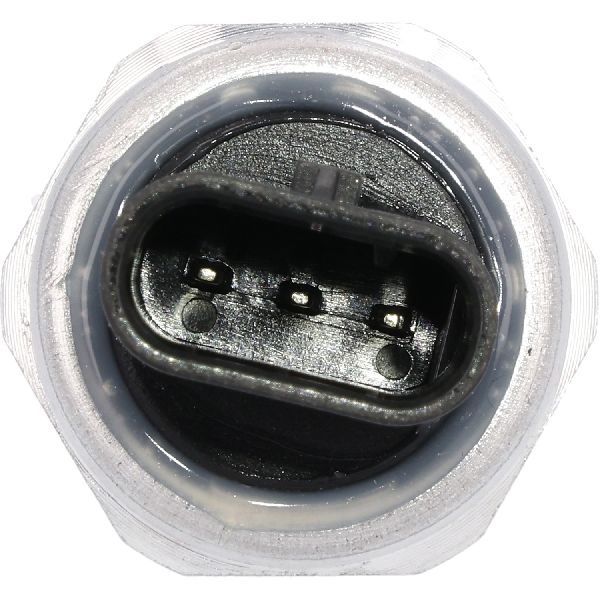

Technical Specifications
OEM Part Numbers: 12673134 12621234 12596951
The oil pressure switch for the 2017-2023 Camaro is a sensor that reads pressure and sends an electrical signal. The same part number is often used for both V6 and V8 engines.
We Have This Part in Stock
The information in this article is provided for general reference and educational purposes only. Vehicle specifications, procedures, and part compatibility can vary by production date, trim level, and region. Always consult your vehicle's factory service manual and verify part numbers before purchasing or performing repairs. Safety-critical components such as airbags, seat belts, and braking systems should be installed by a qualified professional.
