Ford Ranger (2018-2023) Universal Joint: A Complete Replacement Guide
If you're hearing a clunk or feeling a vibration in your truck, your U-joints could be the culprit.
- A clunk or vibration in a 2018-2023 Ranger may not be the U-joint; investigate the known TSB for pinion angle shudder and the common slip yoke lubrication issue first.
- Aftermarket U-joints from brands like Moog are often greasable, offering a potential longevity advantage over non-serviceable OEM parts.
- If one U-joint has failed, it is best practice to replace all U-joints on the driveshaft at the same time to prevent future issues.
- When replacing a U-joint, you must mark the driveshaft's position before removal and reinstall it in the exact same orientation to avoid creating new vibrations.
Is Your Ranger's U-Joint Failing?
A bad U-joint isn't just noisy; it's a safety issue. If a U-joint fails completely, the driveshaft can detach from the vehicle, causing a loss of power and potentially leading to significant damage or an accident. Listening to your truck and catching the symptoms early is key.
Common Failure Symptoms
- Vibration: You might feel a vibration throughout the truck, especially at highway speeds. This is often one of the first signs.
- Clunking Noise: A loud "clunk" or "bang" when you shift from Park into Drive or Reverse is a classic symptom of a worn U-joint with too much play.
- Squeaking Noise: A rhythmic, high-pitched squeak that gets faster as you speed up often points to a U-joint that has lost its grease and is now running dry.
Known Issue: Is It Really Your U-Joint?
For 2019-2023 Ford Rangers, some common U-joint symptoms can be misleading.

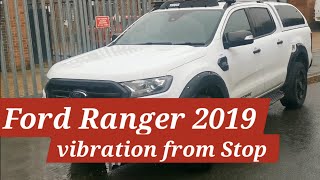

- Shudder on Acceleration: Ford issued Technical Service Bulletin (TSB) 20-2277 for a shudder or vibration when accelerating from a stop. This is often caused by an incorrect rear axle pinion angle, not a bad U-joint. The fix involves a dealer installing special shims to correct the angle. 🎬 Watch: How to identify and fix this acceleration shudder issue.

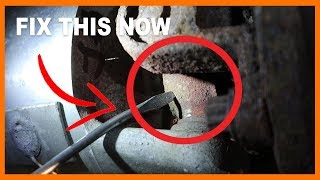

- Driveshaft "Clunk": Many Ranger owners report a clunking sound that is actually the driveshaft's slip yoke sticking due to a lack of lubrication. Greasing the slip yoke often resolves this specific noise. 🎬 See how to properly grease and repair a sticking slip yoke. Before replacing U-joints, it's wise to rule out these other common issues.
Choosing an Aftermarket U-Joint
When replacing a U-joint, you have a choice between OEM (Original Equipment Manufacturer) and aftermarket parts. For the 2018-2023 Ranger, the aftermarket offers some distinct advantages.
OEM vs. Aftermarket (Moog)
Original Ford U-joints are designed to last but are often non-serviceable, meaning they cannot be greased. Once the factory grease wears out, the joint's life is limited.
Aftermarket brands like Moog are a popular choice for truck owners. Moog U-joints are known for being well-built and often feature a grease fitting (zerk). This allows you to periodically add new grease, which pushes out old grease, moisture, and dirt, potentially extending the life of the part beyond the original. While Moog has a strong reputation, some online forum users have noted inconsistent quality in recent years, with some preferring other brands like Spicer. However, for most owners, a greasable Moog U-joint is a solid and reliable upgrade over a non-serviceable original.
Pro Tip: Replace in Pairs
Your driveshaft has at least two U-joints. If one has failed due to age and mileage, the other is likely not far behind. It is good practice to replace all the U-joints on the driveshaft at the same time to ensure a balanced, vibration-free repair.
Replacement Cost
The cost to replace a U-joint depends on whether you do the work yourself or take it to a shop. The part itself is relatively inexpensive.
| Part/Service | Estimated Cost |
|---|---|
| New Aftermarket U-Joint (Moog) | $56.26 |
| New OEM U-Joint Kit | $60 - $155 |
| Shop Labor | $232 - $340 |
| Total Professional Installation | $339 - $447 |
Frequently Asked Questions (FAQ)
Can I replace a Ford Ranger U-joint myself?
Yes, if you have moderate mechanical skill and the right tools. The job requires safely lifting the vehicle, removing the driveshaft, and using a hammer and sockets or a dedicated U-joint press to swap the parts. 🎬 Watch this step-by-step walkthrough of a Ranger U-joint replacement. It's crucial to mark the driveshaft's orientation before removal to ensure it is reinstalled in the same position to prevent vibrations.
Are there any recalls for the 2018-2023 Ranger U-joints?
As of early 2026, there are no specific recalls for the universal joints on the 2018-2023 Ford Ranger. However, there have been recalls for other rear driveline components, such as the rear axle pinion bearing and axle shafts, which can cause similar symptoms like noise or vibration. Always check for open recalls on your specific vehicle.
What tools are needed to replace a U-joint?
You will need a basic socket set to remove the driveshaft bolts, snap ring pliers, a heavy hammer, and two sockets (one slightly smaller than the U-joint cap, one larger). A bench vise is extremely helpful for holding the driveshaft. A U-joint press or ball joint press can make the job easier and safer than using a hammer.
Does a new U-joint need to be greased?
Yes. Even if the U-joint comes pre-greased, it is best practice to add grease with a grease gun until you see fresh grease coming out of all four seals. This ensures all the needle bearings are fully lubricated from the start.
Helpful Videos

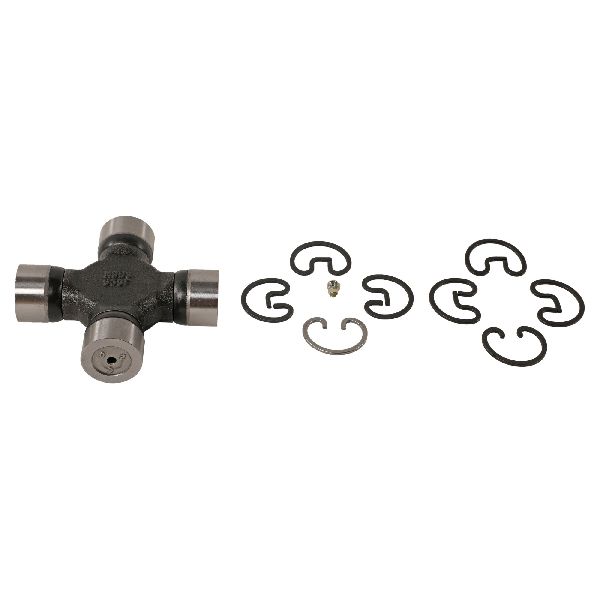

Technical Specifications
OEM Part Numbers: OEM part numbers are typically sold as part of a 'Universal Joint Repair Kit' and can vary. Check with a dealer using your VIN for the exact part.
The 2018-2023 Ford Ranger uses U-joints on its rear driveshaft for both RWD and 4WD models. Aftermarket options are available in both greasable and non-greasable styles.
