A Mechanic's Guide to the 2018-2024 Chevrolet Express 2500 Engine Oil Pan
Learn how to identify oil pan problems and choose the right replacement for your work van's engine.
- First, confirm your engine size (4.3L V6 or 6.6L V8) as they use different, non-interchangeable oil pans.
- The most common cause of leaks is a failed gasket, not a cracked pan. A proper diagnosis can save you money.
- There are no recalls for the oil pan on these vans; failure is typically due to age, corrosion, or damage.
- Aftermarket brands like Dorman and Spectra are cost-effective, but always inspect the new part for quality before installation.
Is Your Express 2500 Leaking Oil?
The most common sign of a bad oil pan or gasket is seeing puddles or drips of brown or black fluid under the front of your van where you park. You might also get a low engine oil warning light on your dashboard or notice a burning oil smell if it drips onto the hot exhaust pipes. While a cracked pan from hitting road debris can happen, the problem is usually a worn-out oil pan gasket that has started to leak.
Check for Other Leaks First
On GM V8 engines, a leak from the rear main seal cover gasket is common and can look exactly like an oil pan gasket leak. A mechanic can use a dye test to find the true source of the leak 🎬 Watch: How to avoid misdiagnosing multiple engine oil leaks. before you buy parts. This can save you from replacing a pan that isn't broken.
Choosing the Right Aftermarket Oil Pan
When shopping for a new oil pan, the most important step is to match the part to your van's specific engine. The 2018-2024 Express 2500 was available with different engines, primarily the 4.3L V6 and the 6.6L V8, which use different oil pans.
- 4.3L V6 Engines typically use a stamped steel oil pan. These are less expensive.
- 6.0L and 6.6L V8 Engines typically use a cast aluminum oil pan. These are more expensive and rigid but can crack on impact.
OEM vs. Aftermarket Quality
An original equipment (OEM) pan from GM (ACDelco) will fit perfectly but costs the most. Aftermarket parts from brands like Dorman and Spectra offer a more affordable solution that is often just as good.

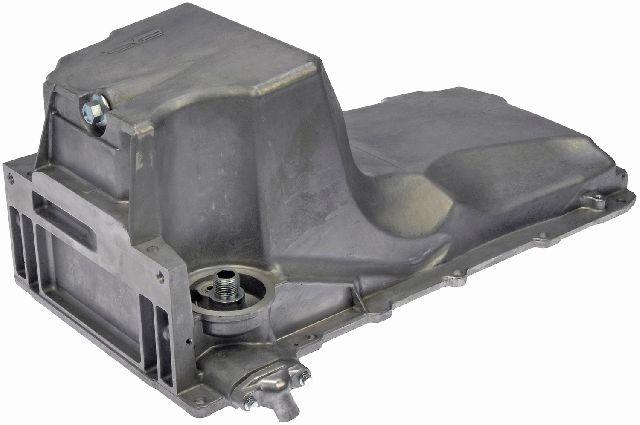

- Dorman: This is a well-known brand that often makes quality replacement parts. They are a popular choice for many shops and DIYers. However, some users in forums have noted occasional quality control issues, so it's wise to inspect the part upon arrival.

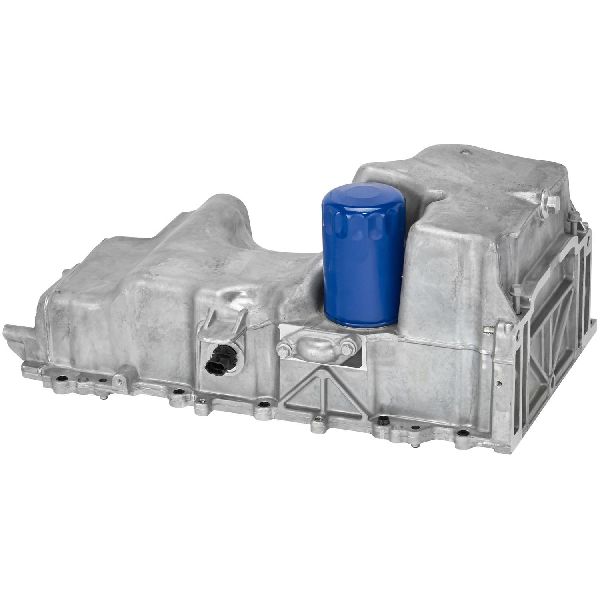

- Spectra: This brand is another solid choice, and some mechanics find their steel pans to be a thicker gauge than competitors. In some cases, Dorman and Spectra parts may even be identical products from the same factory.
For a simple stamped steel pan on a V6, both Dorman and Spectra are reliable choices. For the more complex cast aluminum V8 pans, fit is critical. Many mechanics still prefer to use an OEM ACDelco gasket even when installing an aftermarket pan to ensure the best possible seal.
Cost of Replacing Your Oil Pan
The cost varies significantly based on your engine type. The prices below are estimates for the part and professional installation.
| Part Type | Estimated Part Cost | Estimated Labor Cost | Estimated Total Cost |
|---|---|---|---|
| New Aftermarket | $128.60 - $923.99 | $304 - $446 | $432.60 - $1370.99 |
| New OEM (ACDelco) | ~$479 | $304 - $446 | $783 - $925 |
Frequently Asked Questions
Are there any recalls for the 2018-2024 Express 2500 oil pan?
No, there are no active recalls or specific Technical Service Bulletins (TSBs) from GM for engine oil pan failure on the 2018-2024 Chevrolet Express 2500. Recalls for these vans relate to other issues like tires or transmission software.
Is the oil pan or just the gasket bad?
In most cases, the gasket fails before the pan itself. The pan only needs to be replaced if it is cracked, rusted through, or if the drain plug threads are stripped. A thorough inspection is needed to be sure.
What are the rivets on the original oil pan?
If your van has its original factory oil pan, the gasket may be attached to the pan with a few small rivets. These rivets were used during engine assembly at the factory. You must drill them out to remove the old gasket before cleaning the pan and installing a new gasket. 🎬 See how to properly drill out factory oil pan rivets. New aftermarket pans and gaskets do not use rivets.
Can I replace the oil pan myself?
This job is possible for an experienced DIY mechanic. It requires safely lifting the vehicle, draining the oil, and removing many bolts. You may also need to move oil cooler lines or wiring harnesses out of the way. It is a messy job that can take 2-4 hours.

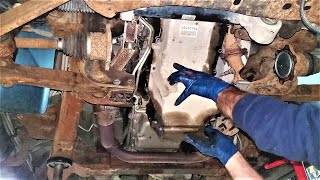

🎬 Watch this step-by-step Chevy Express oil pan gasket replacement.Helpful Videos
Technical Specifications
OEM Part Numbers: 12612350 (Gasket for V8)
Material: Stamped Steel (typically for 4.3L V6) or Cast Aluminum (typically for 6.0L/6.6L V8). Gasket is a one-piece design, often made of rubber with a metal carrier. Original factory gaskets may be riveted to the pan.
