1986-1997 Ford Aerostar Door Jamb Switch: Solving Interior Light & 'Door Ajar' Problems

Symptoms of a Failing Door Jamb Switch

A bad door jamb switch on a Ford Aerostar typically causes issues with the interior lighting and warning systems. Because the switch controls a ground circuit, failure can result in the lights being always on, always off, or behaving erratically.

• Interior lights won't turn off: This is the most common and frustrating symptom. The switch fails in the 'on' position, making the vehicle think a door is always open. This will drain the battery if not addressed.
• Interior lights won't turn on: The switch fails in the 'off' position, so the courtesy lights never illuminate when you open a door.
• Flickering interior lights or 'Door Ajar' warning: The switch may be worn or corroded, causing it to make intermittent contact. Lights and warnings may flicker when driving, especially over bumps or during turns, as the chassis flexes and the door shifts slightly.
• 'Door Ajar' light stays on: Similar to the interior lights staying on, the dashboard warning light may remain illuminated, indicating a door is perceived as open.
• Door chime/buzzer sounds randomly: A faulty switch can trigger the warning chime while driving, creating a significant annoyance.

Diagnosing the Problem

Before buying a replacement, you can easily test the switch. The front door switches are typically plunger-style switches located in the A-pillar.

1. Locate the Switch: Open the door and find the small, black, spring-loaded plunger switch in the door jamb.
2. Manual Test: With the door open and the interior lights on, press the switch plunger all the way in with your finger. The interior lights should turn off. If they do, the switch is likely working, and the problem might be that the door itself isn't fully depressing the switch when closed. If the lights stay on, the switch is likely bad.
3. Isolating the Faulty Switch: If you're not sure which door is causing the problem, go around the vehicle and press each switch manually. The one that doesn't turn the lights off is the culprit. For the sliding door, 🎬 Watch: How to test and replace a faulty door jamb switch. you will need to inspect the flat metal contacts on the door and jamb.

Buying a Used 1986-1997 Aerostar Door Jamb Switch

For a simple part like this, a used OEM switch is often a reliable and cost-effective choice. Aftermarket versions are available, but a genuine Ford part from a low-mileage vehicle can provide excellent longevity.

What to Inspect on a Used Switch:

• Plunger Action: The spring-loaded plunger should move smoothly without sticking or binding. It should have a firm, springy feel.
• Physical Condition: Check the plastic housing for any cracks or damage. Ensure the mounting points are intact.
• Electrical Connector: Look at the connector pins. They should be clean, straight, and free of any green or white corrosion.
• Part Number Verification: Whenever possible, match the part number to your original switch or the known compatible numbers to ensure a perfect fit.

Replacement Difficulty: 1/5 (Very Easy)

Replacing the door jamb switch on a Ford Aerostar is a beginner-friendly job that requires basic hand tools and about 15-30 minutes.

Estimated Time: 0.25 - 0.5 hours

Tools Needed:

• Socket set or screwdriver (depending on the fastener)
• Pliers or a clamp (optional, but helpful)

Step-by-Step Replacement Guide (Front Doors):

1. Disconnect the Battery: While not strictly necessary for this low-voltage part, it's always a good safety practice.
2. Remove the Old Switch: The switch is typically held in by a single screw or a retaining nut. Unscrew it and gently pull the switch out from the door jamb.
3. Secure the Wiring: The wiring harness may have very little slack. It's a good idea to use a pair of locking pliers or a clamp to gently hold the harness so it doesn't fall back inside the body pillar.
4. Disconnect the Switch: Unplug the electrical connector from the back of the old switch.
5. Install the New Switch: Connect the wiring harness to the new switch, push it back into the opening, and secure it with the original screw or nut.

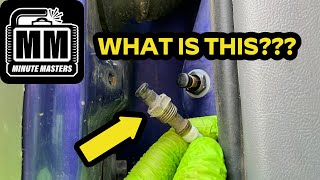

🎬 See this walkthrough for replacing a Ford door pressure switch.
6. Test the Function: Reconnect the battery if you disconnected it. Open and close the door to ensure the interior lights turn on and off correctly. Some new switches are self-adjusting; the first time you close the door, it may push the plunger to the correct depth.

Known Issues, Recalls, and TSBs

For the 1986-1997 Ford Aerostar, there are no specific recalls or Technical Service Bulletins (TSBs) directly related to the door jamb switch for the courtesy lights. However, owner forums frequently discuss problems with the 'door ajar' light and interior lights, often tracing the fault back to a worn-out plunger switch or, more commonly, the contacts for the sliding door. Corrosion and wear on these contacts are the most cited vehicle-specific issues related to this system.

Cost Comparison

Pricing for this part is generally low, making it an inexpensive repair whether you do it yourself or have a shop handle it.
