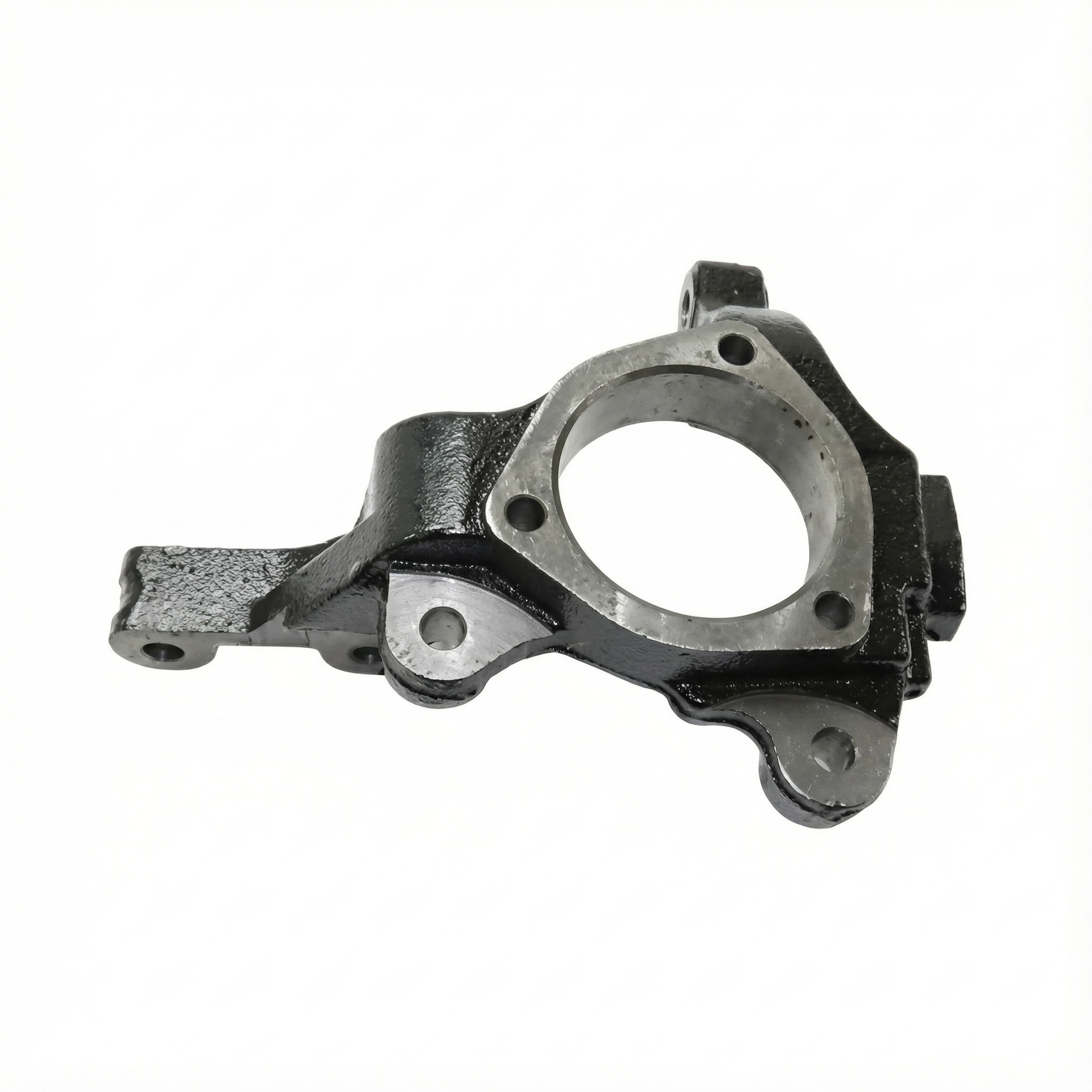

2013-2016 Mini Countryman & Paceman Steering Knuckle: Decoding Noises, Failures, and Replacement

Symptoms of a Failing Steering Knuckle

A steering knuckle is a very durable component, and failures are almost always caused by an impact, such as hitting a curb, a deep pothole, or being in a collision. The knuckle itself doesn't have moving parts, but it houses the wheel bearing and provides mounting points for the ball joint and tie rod. Symptoms are often caused by the knuckle being bent or by wear in the components attached to it.

• Vehicle Pulling to One Side: If the knuckle is even slightly bent, it will alter the suspension geometry (camber and caster angles). This can cause the vehicle to persistently pull to one side, a problem that a standard wheel alignment cannot correct.
• Uneven or Rapid Tire Wear: A bent knuckle is a common cause of accelerated wear on the inside or outside edge of a single tire. Because the wheel is no longer perfectly vertical, it scrubs the tire tread as you drive.
• Clunking or Popping Noises: While often a sign of a worn ball joint or control arm bushing, a damaged knuckle can cause these parts to fail prematurely. A clunking sound when going over bumps can indicate that the ball joint's seat within the knuckle has been damaged or worn.
• Steering Wheel Vibration: A damaged knuckle can disrupt the smooth rotation of the wheel and hub, leading to vibrations felt in the steering wheel, especially at higher speeds.
• Grinding or Humming Noises: These sounds are typically associated with a failing wheel bearing. However, if the knuckle's bore that holds the bearing is damaged or warped, it can cause a new wheel bearing to fail quickly.

Known Issues, TSBs, and Recalls

As of early 2026, there are no specific recalls or widespread Technical Service Bulletins (TSBs) from MINI or the NHTSA that directly address the steering knuckle for the 2013-2016 Countryman and Paceman models. Most issues with this part are related to external factors like road impacts rather than a manufacturing defect. Always check 🎬 Watch: Common reliability issues and symptoms for the MINI Countryman for the latest recall information with your VIN, as new campaigns can be issued.

Buying a Used Steering Knuckle: What to Inspect

Because a steering knuckle is a solid, non-wear item, a used OEM part from an undamaged vehicle is an excellent, cost-effective alternative to a new part. The original factory part is made to precise specifications for geometry and strength, which is not always guaranteed with cheaper aftermarket options.

1. Check for Impact Damage: This is the most critical inspection. Look for any cracks, especially around the mounting points for the strut, ball joint, and brake caliper. Check for any signs of bending or twisting. A straight edge can help reveal warping that isn't obvious to the naked eye.
2. Inspect Mounting Holes: The holes for the ball joint, tie rod, and strut pinch bolt should be perfectly round. If a hole appears elongated or distorted, it's a sign of extreme stress or wear, and the knuckle should be rejected.
3. Examine the Wheel Bearing Bore: Look inside the large opening where the wheel bearing presses in. The surface should be smooth and free of deep scoring, rust pitting, or galling. A damaged bore will not hold the new bearing correctly, leading to premature failure.
4. Verify Part Numbers: The primary OEM part number for the front right knuckle on these models is 31219808400. This number superseded an earlier part, 31219804424. Both parts fit, but if you are using the older 31219804424 knuckle on a vehicle originally equipped with the newer style, you may also need to replace the tie rod end for proper fitment.
5. Source Vehicle History: Whenever possible, choose a part from a vehicle with no front-end collision damage. Mileage is less of a concern than the history of impacts. A part from a higher-mileage car that was not in an accident is preferable to a low-mileage part from a vehicle with a history of hitting curbs or being in a front-end collision.

Replacement Costs and Considerations

Replacing a steering knuckle is a labor-intensive job. The total cost will depend on the price of the part and local shop labor rates. A wheel alignment is mandatory after the replacement.

Related Parts to Replace at the Same Time

To save on future labor costs and ensure a complete repair, it is highly recommended to replace several related components when you replace the steering knuckle.

• Wheel Hub and Bearing: The old bearing must be pressed out of the old knuckle and a new one pressed into the replacement. It is considered best practice to always install a new wheel bearing and hub assembly with a replacement knuckle.
• Lower Ball Joint: The ball joint connects the knuckle to the lower control arm. It often becomes seized in the knuckle and can be damaged during removal. Replacing it at the same time is wise.
• Axle Nut: The large nut holding the CV axle in the hub is a one-time-use, torque-to-yield bolt and must be replaced.
• Hardware: It's good practice to replace the strut-to-knuckle pinch bolt and nut, as well as the brake caliper bracket bolts, especially if they show signs of corrosion.

Key Installation Procedures and Torque Specs

This is a job for an experienced DIYer or a professional technician. A hydraulic press is required to install the new wheel bearing into the knuckle. Always consult a factory service manual for the most accurate and detailed procedures.

After installation, a full four-wheel alignment is not optional—it is a required final step to ensure the vehicle drives straight and does not destroy the tires.
