2018-2024 Lexus LS500 & LS500h Transfer Case: Diagnosing Whining Noises and Failures

Compatibility Warning: AWD Models Only

Symptoms of a Failing Transfer Case

Failure of the transfer case in the LS500 and LS500h is uncommon, but when it occurs, it typically presents with distinct noises. Because these vehicles are so quiet, new noises from the drivetrain are often immediately noticeable.

1. Whining or Whirring Noise on Deceleration

The most commonly reported symptom is a faint but clear whining or whirring sound coming from underneath the center of the car. This noise is most apparent when you let off the accelerator while driving between 20 and 50 MPH. Some owners have initially mistaken this for a front differential problem, but dealerships have identified it as a transfer case issue caused by internal wear and metal debris contaminating the fluid.

2. Grinding or Clunking When Shifting

While less common for this specific model, general transfer case failure can manifest as grinding noises or a noticeable 'clunk' when the transmission shifts, particularly from a stop or when shifting between Drive and Reverse. This can indicate excessive play or damaged gears inside the unit.

3. Fluid Leaks

Any sign of oil dripping from the center of the vehicle should be investigated immediately. The transfer case is sealed and should not leak. The fluid is a very specific and expensive gear oil (Lexus LL 80), and losing even a small amount can lead to insufficient lubrication and rapid internal damage. Leaks often originate from the output shaft seals where the driveshafts connect.

Known Issues and Failure Points

Based on owner experiences, the primary known issue for the 2018-2024 LS500 and LS500h transfer case is premature failure due to internal component wear. In one documented case, a 2018 LS500 AWD with 80,000 miles required a complete transfer case replacement under warranty. The dealer service department noted they had seen another vehicle of the same year and similar mileage with the exact same failure.

The root cause was identified as metal debris in the transfer case fluid, indicating internal gears or bearings were breaking down. The first attempted fix was to drain and replace the fluid, but this did not resolve the noise, leading to a full replacement of the assembly.

At this time, there are no official recalls or widespread Technical Service Bulletins (TSBs) from Lexus specifically for the transfer case on these models.

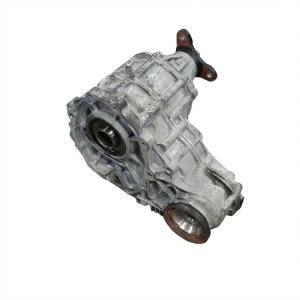

Buying a Used Transfer Case Assembly

Given that a new OEM transfer case can cost over $2,200 for the part alone, a quality used OEM unit is an excellent value. Since no aftermarket assemblies are available, a used original part is the only alternative to a new one from the dealer.

What to Inspect

• Check the Mileage: Since known failures have occurred around the 80,000-mile mark, opt for the lowest-mileage unit available. A part from a vehicle with 30,000-50,000 miles offers a significantly better lifespan for your money.
• Inspect for Leaks: Look for any signs of fluid residue around the seals, especially where the driveshafts connect. A clean, dry case is a good sign.
• Drain the Fluid (If Possible): Before installation, drain the fluid from the used unit into a clean pan. Look for excessive metallic shimmer or large metal particles. A fine, glitter-like dust is normal wear, but larger flakes or chunks are a major red flag.
• Verify the Part Number: Ensure the part is stamped with or matches the OEM number 36100-50030.

Rebuild vs. Replace

For this specific transfer case, replacement is the standard repair method. While Lexus offers an overhaul gasket kit (part number 04362-50010), rebuilding the unit is labor-intensive and requires specialized knowledge. Most shops, including dealerships, will opt to replace the entire assembly with a new or used unit to guarantee the repair and save on labor time. For most owners, replacing the assembly is the more practical and reliable solution.

Cost Comparison for Transfer Case Replacement

The total cost can vary significantly based on the price of the part and local labor rates. A Lexus owner reported an out-of-warranty dealer quote of $5,000 for a complete replacement.

Installation and Fluid Information

Fluid Requirements

This transfer case requires a very specific fluid to function correctly: Lexus Transfer Gear Oil LL 80, part number 08885-81085. The fluid capacity is 0.7 liters, so one 1-liter bottle is sufficient for a drain and fill. Using any other fluid can cause damage to the internal clutch packs and lead to failure. Do not substitute this fluid.

Torque Specifications

While official LS500 service manual specs are not publicly available, the standard torque for drain and fill plugs on many modern Toyota and Lexus transfer cases is 27 ft-lbs. Always use new crush washers on both plugs to prevent leaks.
