2010-2017 Equinox & Terrain Window Regulator Failure: Symptoms, Costs, and Replacement
This guide covers the common failure points, replacement costs, and what to look for when buying a used window regulator for the 2010-2017 Chevrolet Equinox and GMC Terrain.
- Failure is common and symptoms include noise, slow operation, or a tilted window.
- A used OEM regulator is often a better value than a cheap new aftermarket part due to superior material quality and fit.
- The issue is almost always the regulator assembly (cables/guides) and not just the motor; they should be replaced as a single unit.
- Replacement is a feasible DIY job for those with basic tools, with a difficulty of 3 out of 5.
Symptoms of a Failing Window Regulator
A failing window regulator in your Chevrolet Equinox or GMC Terrain will usually provide several warning signs. Ignoring them can lead to a window that's stuck open or, worse, one that drops down inside the door. Here are the most common symptoms:
- Grinding or Clicking Noises: When you operate the window, you might hear grinding, clicking, or chattering sounds. This often points to a problem with the regulator's cables or the motor's gears.
- Slow or Erratic Window Speed: If the window moves noticeably slower than it used to, or if it speeds up and slows down as it moves, the motor could be straining due to a failing regulator.
- Window Tilts or is Crooked: A window that appears crooked in its track or tilts to one side as it moves is a clear sign of a regulator problem. This can happen if a cable has stretched or one of the plastic guide clips has broken.
- Window Drops Inside the Door: In a complete failure, the cables can snap or the glass can detach from the regulator, causing the window to fall completely inside the door panel.
- Window Won't Stay Up: You might be able to raise the window, but it slowly slides back down on its own. This indicates the regulator can no longer hold the weight of the glass.
- Switch Works Intermittently: If you have to press the window switch multiple times to get the window to move, it could be an issue with the switch, wiring, or the regulator motor itself.
Pro Tip: If a single window isn't working, the problem is likely the regulator, motor, or switch for that specific door. If multiple windows stop working at once, check for a blown fuse first. For the 2010-2017 Equinox and Terrain, fuse #15 (30A) in the under-hood fuse box powers the left (driver) side windows, and fuse #4 (30A) powers the right (passenger) side windows.
🎬 Watch: How to find and check your power window fuses.Buying a Used Window Regulator
When your window regulator fails, you have a few replacement options. While new aftermarket parts are cheap, their quality can be questionable, with some failing in less than a year. A new OEM part from a dealer offers the best quality but at a high price. For many owners, a used OEM regulator from a recycled vehicle is the best balance of quality and value. Here’s what to check before buying:
- Verify Compatibility: Ensure the part is from a 2010-2017 Chevrolet Equinox or GMC Terrain. Also, confirm the door position (e.g., front driver side, rear passenger side) is correct for your needs.
- Inspect the Cables: Look for any signs of fraying, kinking, or rust on the cables. The cables should be taut and properly seated in their pulleys and guides.
- Check Plastic Components: The clips that hold the window glass are often made of plastic and can become brittle. Inspect them for any cracks or signs of stress.
- Examine the Motor and Connector: Check the electrical connector pins on the motor for any corrosion or damage. Ensure the motor housing isn't cracked or showing signs of water intrusion.
- Mileage Consideration: Ask for the mileage of the vehicle the part came from. A lower-mileage part is generally preferable, as it has experienced less wear and tear.
Warning: Some aftermarket regulators are designed to fix original flaws. For example, Dorman's OE FIX version for these vehicles includes cable tension springs to resist binding, which they claim is a common failure point on the original design. However, the overall quality of metal and plastic on a used OEM part is often superior to a cheap new aftermarket alternative.
Known Issues, TSBs, and Recalls
While there are no specific recalls for the window regulators on the 2010-2017 Chevrolet Equinox and GMC Terrain, these vehicles were subject to other recalls. Notably, a recall (NHTSA Campaign Number: 09V489000) was issued for 2010 models for a software issue in the center instrument panel that could cause the defrost and HVAC controls to fail. There was also a significant investigation into faulty windshield wiper modules for 2010-2016 models. These issues are not directly related to the window regulators but are important for owners to be aware of.
The most common issue with the window regulators themselves is failure due to wear and tear of the cables and plastic components, which is typical for this type of part across many vehicles. One of the primary causes of premature failure is increased strain on the motor from dry or dirty window tracks.
Cost Comparison
The cost to replace a window regulator can vary significantly based on the parts you choose and whether you do the work yourself.
| Part/Service | Estimated Cost |
|---|---|
| New OEM (Dealer) | $260 - $475 (Part Only) |
| New Aftermarket | $40 - $110 (Part Only) |
| Used OEM (Recycled) | $50 - $125 (Part Only) |
| Shop Labor | $131 - $210 |
| Total (Professional Installation) | $350 - $620 |
Replacement Overview
Replacing the window regulator is a moderately difficult job that a skilled DIYer can accomplish in a couple of hours. The basic steps involve removing the interior door panel, peeling back the weather barrier, supporting the window glass, and then unbolting the regulator assembly.
Tools Required:
- Trim panel removal tool
- Socket set (7mm, 8mm, 10mm sockets are common)
- Pick tool or small flathead screwdriver
- Painter's tape (to hold the window up) 🎬 See this step-by-step guide for replacing the front window regulator.
The process involves disconnecting the door handle cable and several electrical connectors. After the old regulator is removed, the new one is installed, and the window is carefully lowered and clamped into the new regulator's clips. It's crucial to tighten the bolts that hold the glass securely. Many video guides are available online that walk through the entire process for the Equinox and Terrain.
🎬 Watch: A complete walkthrough of the regulator and motor replacement.Frequently Asked Questions (FAQ)
Can I replace just the motor or just the regulator?
The window regulator and motor are typically sold as a single assembly for the Equinox and Terrain. While it is sometimes possible to separate them, it is almost always easier and more reliable to replace the entire unit. Most failures involve the regulator's cables or plastic parts, not just the motor.
My window works, but it's very slow. What's the problem?
A slow-moving window is a primary symptom of a failing regulator motor or excessive friction in the window tracks. The motor is working harder than it should. You can try cleaning and lubricating the window tracks with a silicone-based spray to see if it helps. If it doesn't, the regulator and motor assembly will likely need replacement soon.
Is there a difference between the front and rear regulators?
Yes, the regulators are specific to each door. The front door regulators are different from the rear door regulators, and the driver's side parts are different from the passenger's side parts. You must purchase the correct part for the specific door you are repairing.
The window switch for the driver's door doesn't work, but the other switches do. Is it the regulator?
If only one switch fails to operate a window, the problem is most likely the switch itself, not the window regulator or motor. The master switch on the driver's door is a complex electronic component that can fail independently of the other parts. However, if you hear grinding or clicking when using the switch, the regulator is the likely culprit.
Helpful Videos
Technical Specifications
OEM Part Numbers: 22803635 22803636 22803637 20916129 22823480 15930292 20838927 20906111 20916130

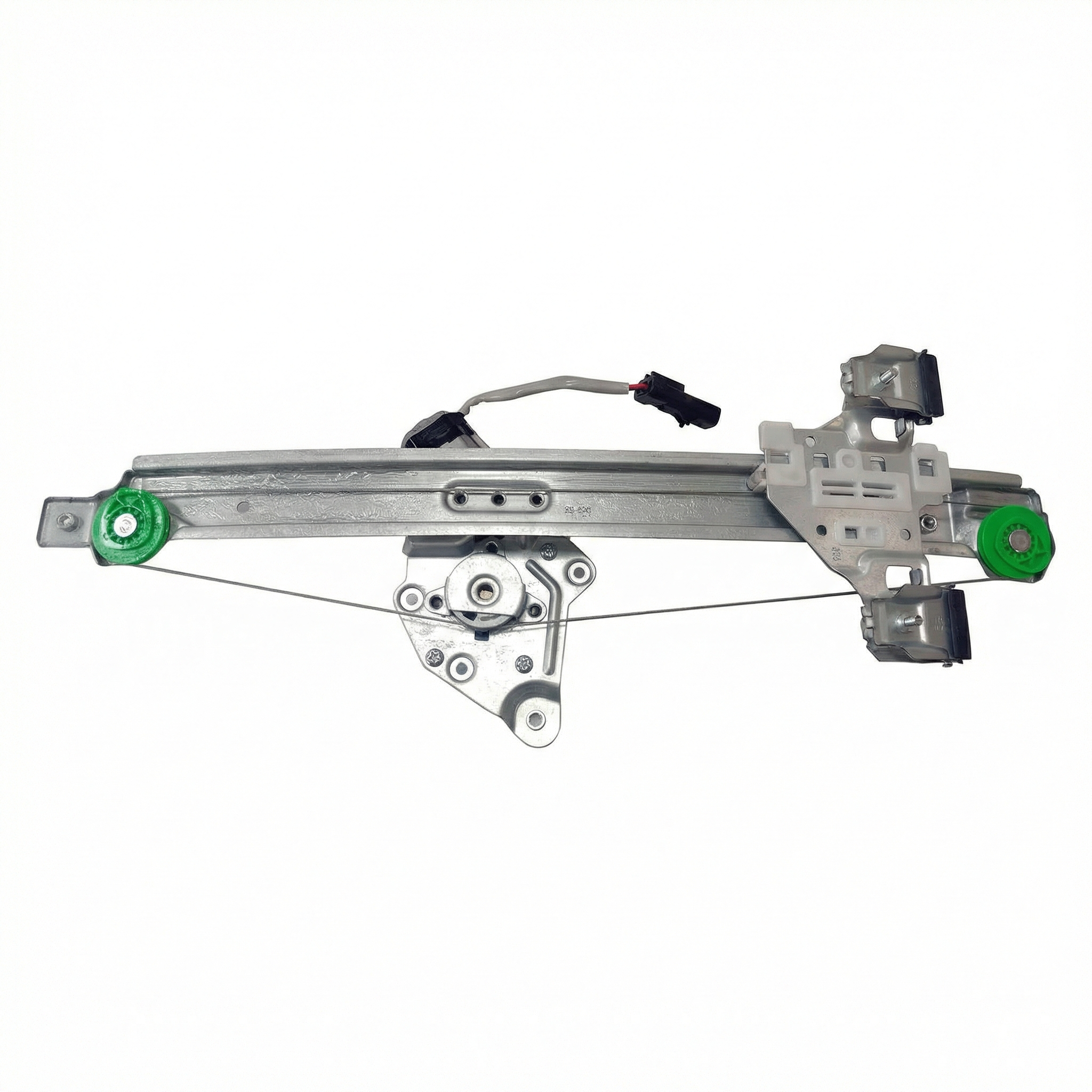

This part is a complete assembly including the regulator, cables, guides, and electric motor. It is designed for 4-door models with power windows. Each part number is specific to a door location (e.g., Front Left, Rear Right).
