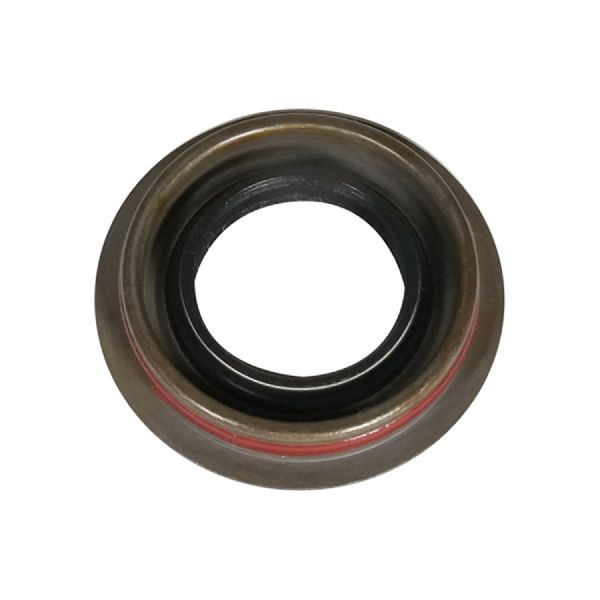

Ford Ranger Drive Axle Shaft Seal Replacement

For Use w/[5707/1563] Bearing Ford 7.5 in.; For Use w/[5707/1563] Bearing

1.375 Shaft Diameter 2.162 Bore Diameter 2.166 Outside Diameter Seal 0.578 Width ; 3.45, 4.10 Ratios

3.45,4.10 Axle Ratios FAG Global Number 413 2421 100

Dana/Spicer 28IFS Axle

1.438 Shaft Diameter 2.250 Bore Diameter 2.254 Outside Diameter Seal 0.313 Width ; w/o 3.45, 4.10 Ratios

1.301 Shaft Diameter 2.621 Bore Diameter 2.625 Outside Diameter Seal 1.331 Width ; w/o 3.45, 4.10 Ratios

with 7.59 (in) Ring Gear with Spicer 35 Axle Independent Front Suspension

Replaces OE Part Number(s) E4TZ-3254-A, E4TZ-3254-B with Dana 35 Axle with Reverse Rotation

1.750 Shaft Diameter 2.620 Bore Diameter 2.625 Outside Diameter Seal 0.354 Width

1.380 Shaft Diameter 2.282 Bore Diameter 2.287 Outside Diameter Seal 0.354 Width

w/3.73 Ratio FAG Global Number 413 2495 100

Dana/Spicer 35IFS Axle

3.45,4.10 Axle Ratios FAG Global Number 413 2290 100

Dana/Spicer 28IFS Axle

w/3.73 Ratio FAG Global Number 413 2359 100

FAG Global Number 413 2807 100

with 7.59 (in) Ring Gear with Spicer 35 Axle Independent Front Suspension

with 7.59 (in) Ring Gear with Spicer 35-SLA Axle

FAG Global Number 413 2422 100

with 7.59 (in) Ring Gear with Spicer 35-SLA Axle

Intermediate Shaft

Dana/Spicer 35IFS Axle

(Dana/Spicer 35 Axle)

(Dana/Spicer 35 Axle) Intermediate Shaft Right Hand

8.8 in. 10 Bolt; Dana 28/30; AMC 35/Reverse Left Inner; Replacement; Stub Axle Side Sea Dana 28 IFS; Replacement; Stub Axle Side Sea

Intermediate Shaft

559 Or 6408 Bearing; Not Coarse Spline Ford 8.8 in.; 559 Or 6408 Bearing; Not Coarse Spline

FAG Global Number 413 2861 100

with Ford 8.8 Axle

Replaces OE Part Number(s) 04856336 with Dana 35 Axle with Reverse Rotation

FAG Global Number 413 2850 100

Dana 190/210mm

Dana 28 Dana 28 IFS; Front
