| Attribute | Value |
|---|---|
| Abutment Clips Included | Yes |
| Adhesive Backed Pad Shim | Yes |
| Assy/Disassy By Qualified Personnel Required! | . |
| Brake Lubricant Included | No |
| Brake System | Trw |
| California Proposition 65 Required | No |
| Chamfered Edges | Yes |
| ECE R90 Certified | Yes |
| Friction Material Composition | Low-metallic |
| Grade Type | Standard Replacement |

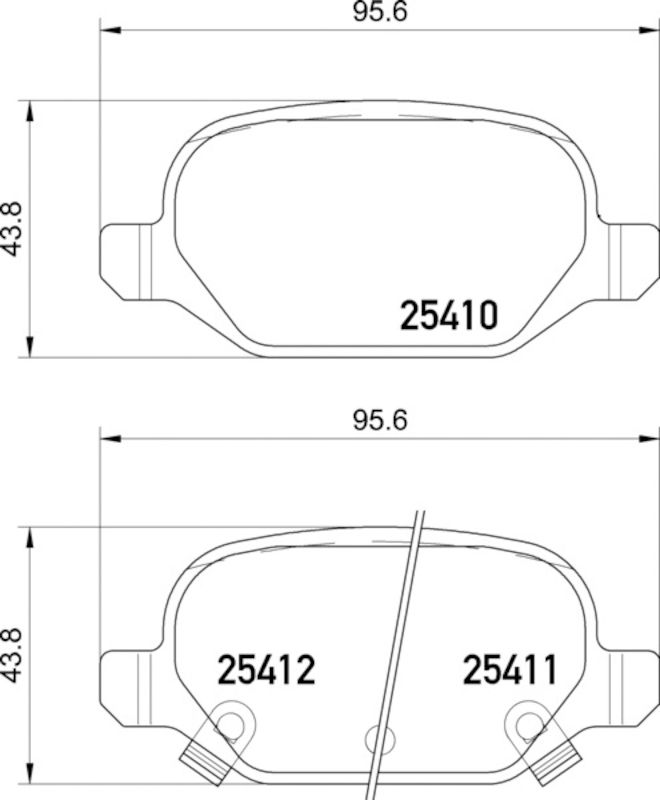

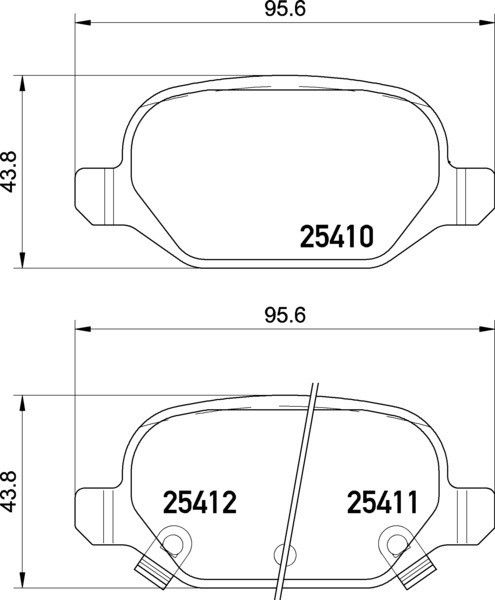

| Inner Pad Friction Material Thickness | 14.4 |
| Inner Pad Height | 43.8 |
| Inner Pad Width | 95.6 |
| Mounting Hardware Included | Yes |
| Number Of Wear Indicators [per Axle] | 2 |
| Outer Pad Friction Material Thickness | 14.4 |
| Outer Pad Height | 43.8 |
| Outer Pad Width | 95.6 |
| Pad Quantity | 4 |
| Pad Shims Included | Yes |
| Pad Wear Sensor Included | Yes |
| Pad Wear Sensor Type | Mechanical |
| Prepared For Pad Wear Sensor | Yes |
| Slotted | No |
| Technical Information Number | T2233 |
| WVA Number | 25651 |
| Wear Warning Contact | With Acoustic Wear Warning |
| Weight [kg] | 0.85 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Abarth | Convertible | 2014 | L4 1.4L Turbo | FWD Manual |
| Abarth | Hatchback | 2012 - 2014 | L4 1.4L Turbo | FWD Manual |
| Abarth Cabrio | Convertible | 2013 - 2014 | L4 1.4L Turbo | FWD Manual |
| E | Hatchback | 2013 - 2014 | -- -L BATTERY EV (EV/BEV) | FWD Automatic |
| GQ | Convertible | 2014 | L4 1.4L Turbo | FWD Manual |
| Gucci | Convertible | 2013 | L4 1.4L | FWD Automatic |
| Gucci | Hatchback | 2012 - 2013 | L4 1.4L | FWD Automatic |
| Lounge | Convertible | 2012 - 2014 | L4 1.4L | FWD Automatic |
| Lounge | Hatchback | 2013 | L4 1.4L | FWD Manual |
| Lounge | Hatchback | 2012 - 2014 | L4 1.4L | FWD Automatic |
| Pop | Hatchback | 2012 - 2014 | L4 1.4L | FWD Automatic & Manual |
| Prima Edizione | Hatchback | 2012 | L4 1.4L | FWD Manual |
| Sport | Hatchback | 2013 - 2014 | L4 1.4L Turbo | FWD Automatic & Manual |
| Sport | Hatchback | 2012 - 2014 | L4 1.4L | FWD Automatic & Manual |
| Turbo | Hatchback | 2013 - 2014 | L4 1.4L Turbo | FWD Manual |
| c Gucci | Convertible | 2012 | L4 1.4L | FWD Automatic |
| c Lounge | Convertible | 2012 - 2014 | L4 1.4L | FWD Automatic |
| c Pop | Convertible | 2012 - 2014 | L4 1.4L | FWD Automatic & Manual |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| AISIN | BPFC7004 |
| Akebono | EUR1569 |
| AMC | 8778D1569 |
| AMC | 9382D2142 |
| AMC | D1569 |
| AMC | D2142 |
| ATE | 13046027832 |
| Blue Print | ADBP420054 |
| Bosch | F03B050290 |
| Bosch | F03B075853 |
| Brake Engineering | PA2474 |
| Brembo | P23151 |
| Brembo | P23151N |
| Cifam | 8223245 |
| Delphi | LP2761 |
| DON | PCP2143 |
| EBC Brakes | DP22202 |
| EBC Brakes | DPX2202 |
| Febi-Bilstein | 175268 |
| Ferodo | FDB4464 |
| Ferrari | 773 6638 8 |
| Ferrari | 773 6645 3 |
| Ferrari | 773 6751 4 |
| FMSI Automotive Hardware | D2142-9382 |
| FREMAX BRAKE ROTORS AND DRUMS | FBP1894 |
| FTE | 9005529 |
| FTE | 9010974 |
| FTE | BL2767A1 |
| Girling | 6119501 |
| Hella Pagid | 8DB355020751 |
| Hella Pagid | T2233 |
| Japan Parts | PP0214AF |
| Jurid | 573427J |
| LPR | 05P1724 |
| Magneti Marelli | 363700202233 |
| Magneti Marelli | 363916060689 |
| MaXgear | 193180 |
| METELLI | 2203245 |
| MEYLE | 0252541014 |
| Mintex | MDB3332 |
| NK Autoparts | 222399 |
| Optimal | 12639 |
| Optimal | BP12639 |
| Remsa | 072732 |
| Roadhouse | 272732 |
| Textar | 2565101 |
| Tridon | 811015069 |
| TRW | GDB1950 |
| Valeo | 601327 |
| Valeo | 670327 |
| Wagner | OEX1569 |
| Wagner | QC1569 |
| Wagner | ZD1569 |
| Zimmermann | 254101451 |
| Zimmermann | 254101452 |
Fits Years: 2012 2013 2014
Fits Models: 500
