| Attribute | Value |
|---|---|
| 111.50 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

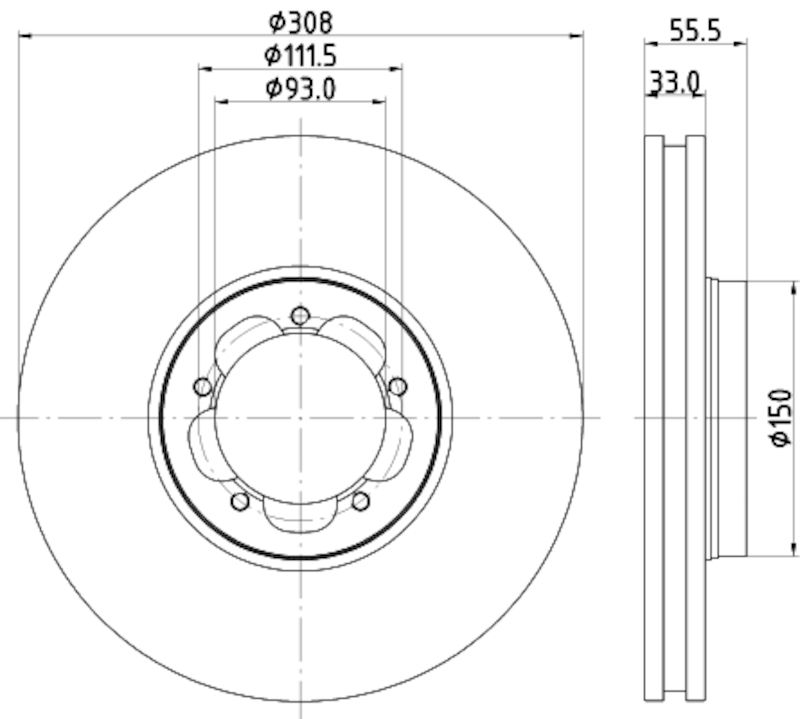

| Bolt Hole Circle Ø [mm] | 111,5, 111.5 |
| Bolt Hole Quantity | 5 |
| Brake Disc Thickness [in] | 1.30 |
| Brake Disc Thickness [mm] | 33 |
| Brake Disc Type | Internally Vented |
| California Proposition 65 Required | No |
| Center Hole Diameter | 112.0 |
| Centering Diameter [in] | 3.66 |
| Construction | Full Cast |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 30.00 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/05 |
| Hole Arrangement/Number | 05/05 |
| Inner Diameter [in] | 5.35 |
| Inside Diameter | 93.0 |
| Material | Gray Cast Iron |
| Minimum Thickness [in] | 1.18 |
| Minimum Thickness [mm] | 30 |
| Mounting Bolt Hole Circle Diameter | 111.50 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 33.00 |
| Outer Diameter [in] | 12.13 |
| Overall Height | 55.50 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 55730pro |
| Weight [kg] | 11,5, 11.5 |
| Wheel Bolt Bore Diameter [mm] | 8.5 |
| Wheel Bolt Bore Ø [mm] | 8.5 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Cab & Chassis | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Cab & Chassis | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Cab & Chassis | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Cab & Chassis | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Cab & Chassis | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| Base | Cutaway Van | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Cutaway Van | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Cutaway Van | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Cutaway Van | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Cutaway Van | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| Base | Extended Cargo Van | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.5L Turbo | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L CNG | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L FLEX | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| Base | Standard Cargo Van | 2015 - 2016 | V6 3.7L LPG | RWD Automatic |
| PTV | Extended Cargo Van | 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| PTV | Extended Cargo Van | 2016 | V6 3.5L Turbo | RWD Automatic |
| PTV | Extended Cargo Van | 2016 | V6 3.7L CNG | RWD Automatic |
| PTV | Extended Cargo Van | 2016 | V6 3.7L FLEX | RWD Automatic |
| PTV | Extended Cargo Van | 2016 | V6 3.7L LPG | RWD Automatic |
| PTV | Standard Cargo Van | 2016 | L5 3.2L DIESEL Turbo | RWD Automatic |
| PTV | Standard Cargo Van | 2016 | V6 3.5L Turbo | RWD Automatic |
| PTV | Standard Cargo Van | 2016 | V6 3.7L CNG | RWD Automatic |
| PTV | Standard Cargo Van | 2016 | V6 3.7L FLEX | RWD Automatic |
| PTV | Standard Cargo Van | 2016 | V6 3.7L LPG | RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| Akebono | BN1349 |
| Akebono | BN1349E |
| Ashuki | P330269 |
| Bendix | 521717 |
| Blue Print | ADF124347 |
| Borg & Beck | BBD6071S |
| Bosch | 0986479D40 |
| Bosch | 0986479F46 |
| Brake Engineering | DI957074 |
| Brembo | 09C24310 |
| Cifam | 8001752C |
| Delphi | BG9176C |
| Delphi | BG9191 |
| DON | PCD19581 |
| EBC Brakes | D1991 |
| Febi-Bilstein | 104497 |
| Ferodo | DDF24701 |
| FREMAX BRAKE ROTORS AND DRUMS | BD6539 |
| FTE | 9071222 |
| FTE | 9081001 |
| FTE | BS7833 |
| FTE | BS7833B |
| Girling | 6067525 |
| Hella Pagid | 55730PRO |
| Hella Pagid | 8DD355123131 |
| Japan Parts | DI0334 |
| Japan Parts | DI0334C |
| JP Group A/S | 1563106000 |
| Jurid | 563124J1 |
| LPR | F1055V |
| Magneti Marelli | 360406183500 |
| Magneti Marelli | 360704035100 |
| METELLI | 231752C |
| MEYLE | 7155210038PD |
| Mintex | MDC2719 |
| Motaquip | LVBD1742 |
| NK Autoparts | 202593 |
| NK Autoparts | 312593 |
| Optimal | BS9272 |
| Optimal | BS9272C |
| Optimal | BS9272HC |
| PAGID Racing | 55730 |
| Remsa | 6156510 |
| SBS | 1815202593 |
| SBS | 1815312593 |
| Textar | 92273003 |
| Textar | 98200273001 |
| TRW | DF6752S |
| VAICO | V2580030 |
| Valeo | 185810 |
| Werner Metzger GmbH | 6110978 |
| Zimmermann | 250136920 |
| Zimmermann | 250570220 |
Fits Years: 2015 2016
Fits Models: Transit-250
