| Attribute | Value |
|---|---|
| Center Electrode Core Material | Copper |
| Center Electrode Design | Standard |
| Center Electrode Insulator Tip Projection | 0.04, 1.0 |
| Center Electrode Projection | Non-projected |
| Center Electrode Tip Material | Nickel |
| Electrical Terminal Type | Removable Nut |
| Grade Type | Standard Replacement |

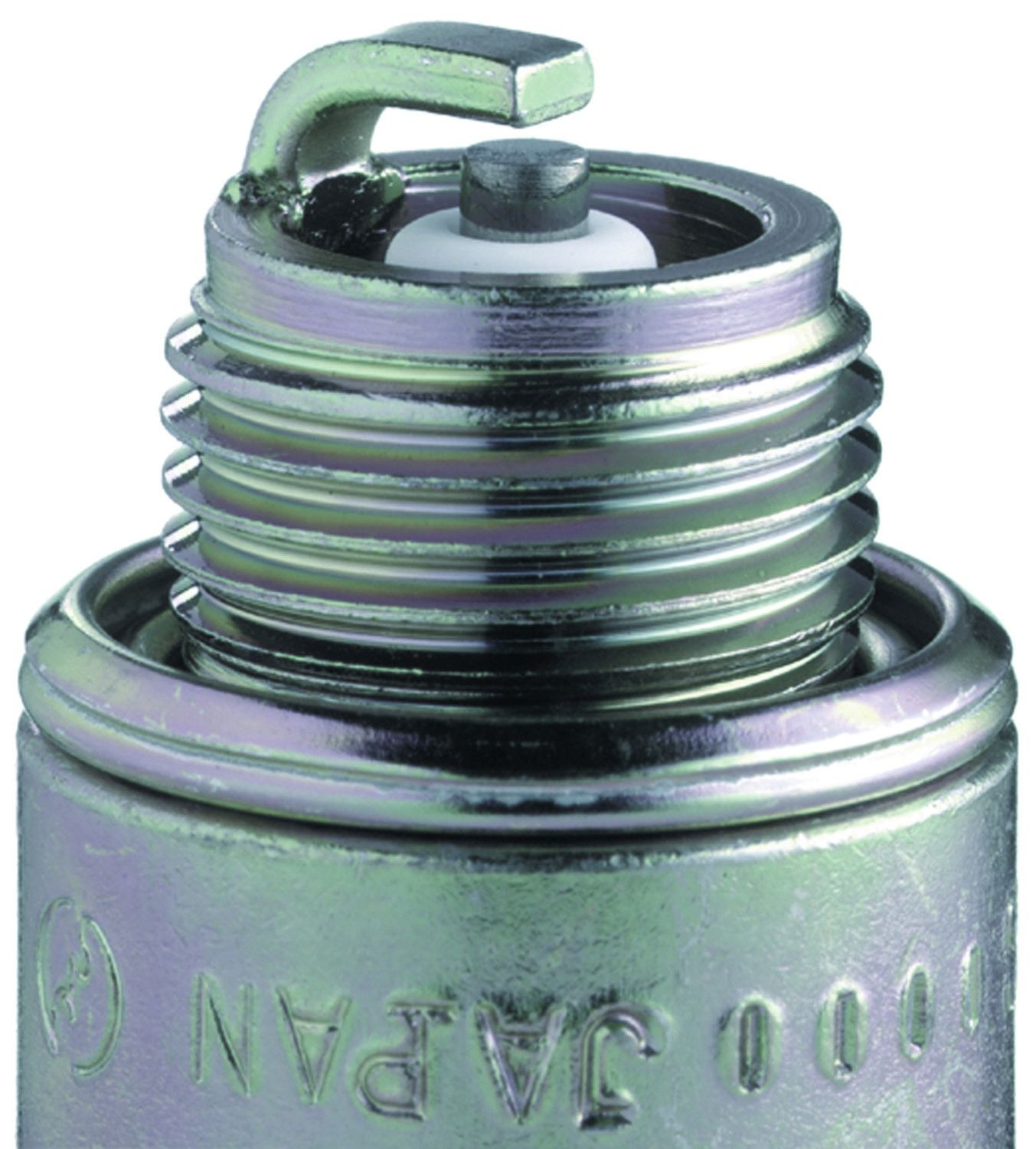

| Ground Configuration | J-gap |
| Ground Electrode Core Material | Nickel |
| Ground Electrode Quantity | 1 |
| Ground Electrode Tip Design | Standard |
| Ground Electrode Tip Material | Nickel |
| Hex Size | 13/16" |
| Insulator Height | 2.15, 54.5 |
| Insulator Material | Ceramic |
| Manufacturer Heat Range | 6 |
| Material Grade | Nickel/copper |

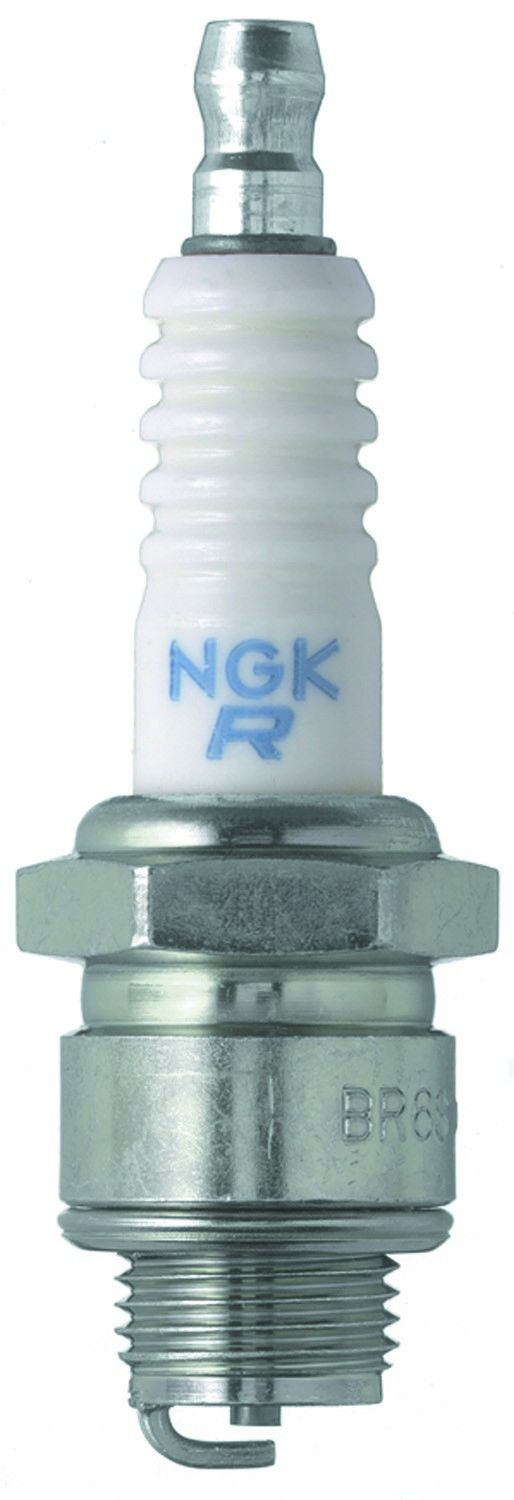

| Part Number | Br6s |
| Pre Gap Size | .028, 0.7 |
| Reach | 0.375, 9.5 |
| Resistance | 5000.0 |
| Resistor Type | Yes |
| Seat Type | Flat |
| Service Number | Br6s |
| Short Style Spark Plug | No |
| Skirt | No |
| Skirt Length | 0.0 |
| Stock Number | 3522 |
| Thread Diameter | 0.551, 14.0 |
| Washer Included | Yes |
| Washer Type | Crush |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | SUV | 1970 | L6 4.1L | RWD/4WD Automatic & Manual & U/K |
| Base | SUV | 1970 | L6 4.8L | RWD/4WD Automatic & Manual & U/K |
| Base | SUV | 1970 | V8 5.0L | RWD/4WD Automatic & Manual & U/K |
| Base | SUV | 1970 | V8 5.7L | RWD/4WD Automatic & Manual & U/K |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| ACCEL | 124 |
| ACDelco | 44 |
| ACDelco | B4021 |
| ACDelco | B43 |
| ACDelco | C42-1 |
| ACDelco | C421 |
| ACDelco | C43 |
| ACDelco | C44 |
| ACDelco | M44B |
| ACDelco | M44C |
| ACDelco | MB42K |
| ACDelco | S44 |
| ACDelco | TC45 |
| Autolite | 294 |
| Autolite | 3014 |
| Autolite | 314 |
| Autolite | 315 |
| Autolite | 316 |
| Autolite | 354 |
| Autolite | 355 |
| Bosch | 7535 |
| Bosch | 7809 |
| Bosch | W7E |
| Bosch | W7EC |
| Bosch | W8E |
| Bosch | W8EC |
| Briggs & Stratton | 29693 |
| Brisk | K17C |
| Champion Spark Plug | 823 |
| Champion Spark Plug | 823-1 |
| Champion Spark Plug | 823S |
| Champion Spark Plug | 841 |
| Champion Spark Plug | 841-1 |
| Champion Spark Plug | 841S |
| Champion Spark Plug | H03 |
| Champion Spark Plug | J11C |
| Champion Spark Plug | J11J |
| Champion Spark Plug | J6 |
| Champion Spark Plug | J6C |
| Champion Spark Plug | J6J |
| Champion Spark Plug | J7 |
| Champion Spark Plug | J7J |
| Champion Spark Plug | J8 |
| Champion Spark Plug | J8C |
| Champion Spark Plug | J8J |
| Champion Spark Plug | UJ6 |
| Champion Spark Plug | UJ8 |
| DENSO Auto Parts | 3075 |
| DENSO Auto Parts | W20S |
| DENSO Auto Parts | W20S-U |
| E3 | E3.10 |
| Kawasaki | 92070-2092 |
| Kawasaki | 92070-2096 |
| Kubota | 13401-6771-6 |
| Magneti Marelli | CW6C |
| Magneti Marelli | CW6CJ |
| Magneti Marelli | CW7C |
| Mitsubishi | 0801021 |
| Mitsubishi | 801021 |
| Mitsubishi | FN15989 |
| Mitsubishi | MS851113 |
| Motorcraft | A3 |
| Motorcraft | A3C |
| Motorcraft | A3CU |
| Motorcraft | A3X |
| Motorcraft | A4 |
| Motorcraft | A5 |
| Motorcraft | A5C |
| Motorcraft | A5CU |
| Motorcraft | A5X |
| Motorcraft | AT3 |
| Motorcraft | AT4 |
| Motorcraft | AT4A |
| Motorcraft | AT6 |
| Motorcraft | AZ3 |
| Oregon | 77-317 |
| Subaru | 890573400 |
| Suzuki | 09482-00051 |
| Torch | G6 |
| Torch | G6C |
| Torch | H5 |
Fits Years: 1970
Fits Models: Jimmy
