2024, 2023, 2022, 2021, 2020, 2019, 2018 Jeep Wrangler Suspension Shock Absorber
View 1
View 2
View 3
View 4
View 5
View 6

2018 - 2024 Jeep Wrangler Suspension Shock Absorber - Front (Rancho) NEW

Out of Stock
$ 114 .64

Product Notes

Position: Front
⚠️ Most jobs typically require 2 of this item.
with Front Raised Height 0 (in)
RS7MT
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.
Brand: Rancho
Condition: New
See Other Jeep Wrangler Suspension Shock Absorbers
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Active Or Passive Suspension Passive
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height No
Air Adjustable No
Air Ride Suspension No
Bearing Plate Included No
Bladder Heavy Duty Crimping Rings Included No
Bladder Sleeve(s) Included No
Bladder(s) Included No
Body Color Black
Body Diameter 1.97
Body Material Steel
Boot Included No
Coil Over Springs Included No
Coil Spring Insulator(s) Included No
Compressed Length 16.02, 406.9
Cylinder Color Black
Cylinder Finish Painted
Cylinder Material Steel
Cylinder Outside Diameter 1.97
Dust Shield Included No
Extended Length 23.46, 595.9
Gas Charged Yes
Grade Type Performance
Hydraulic Lockout No
Includes Bump Stop No

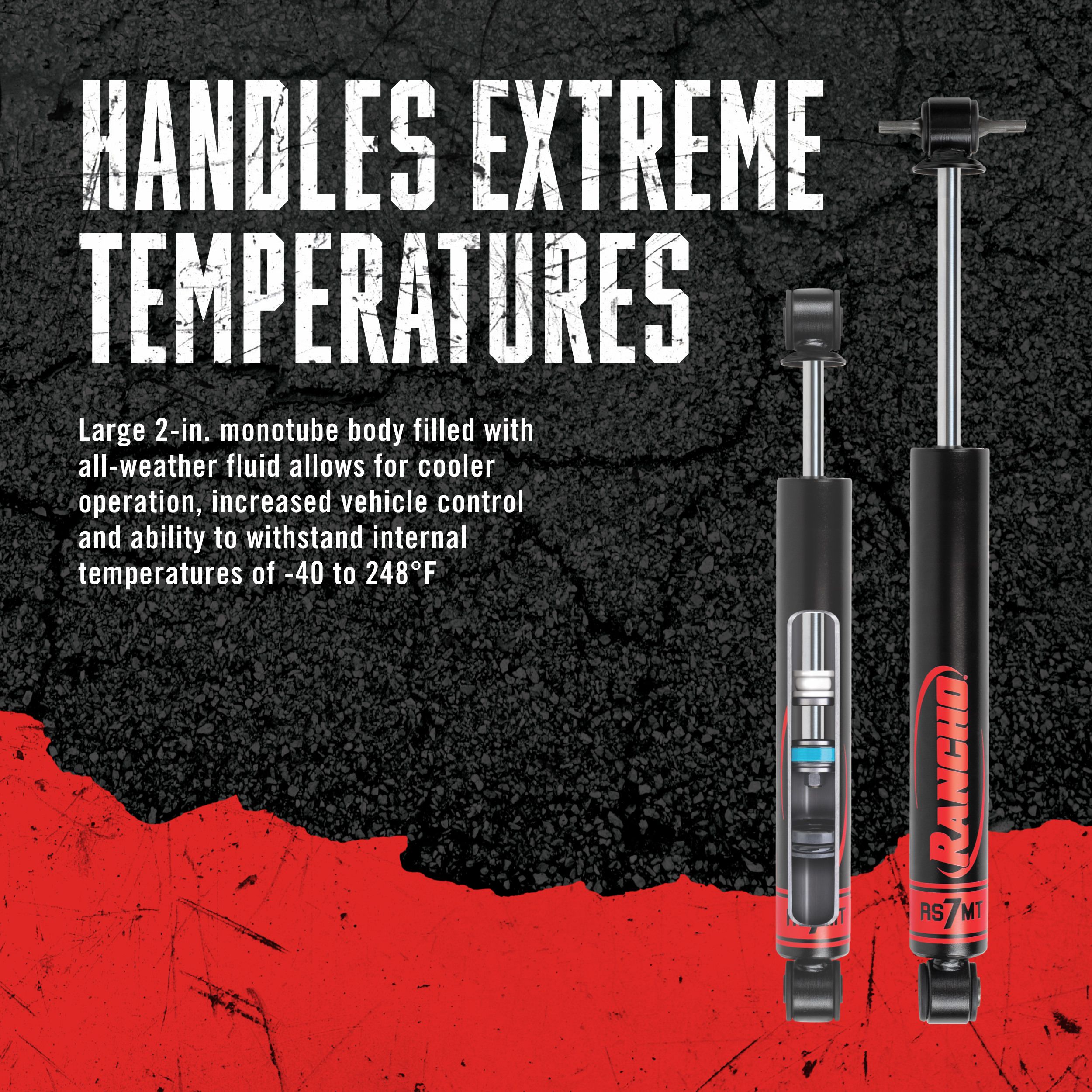

Internal Construction Type Single Tube

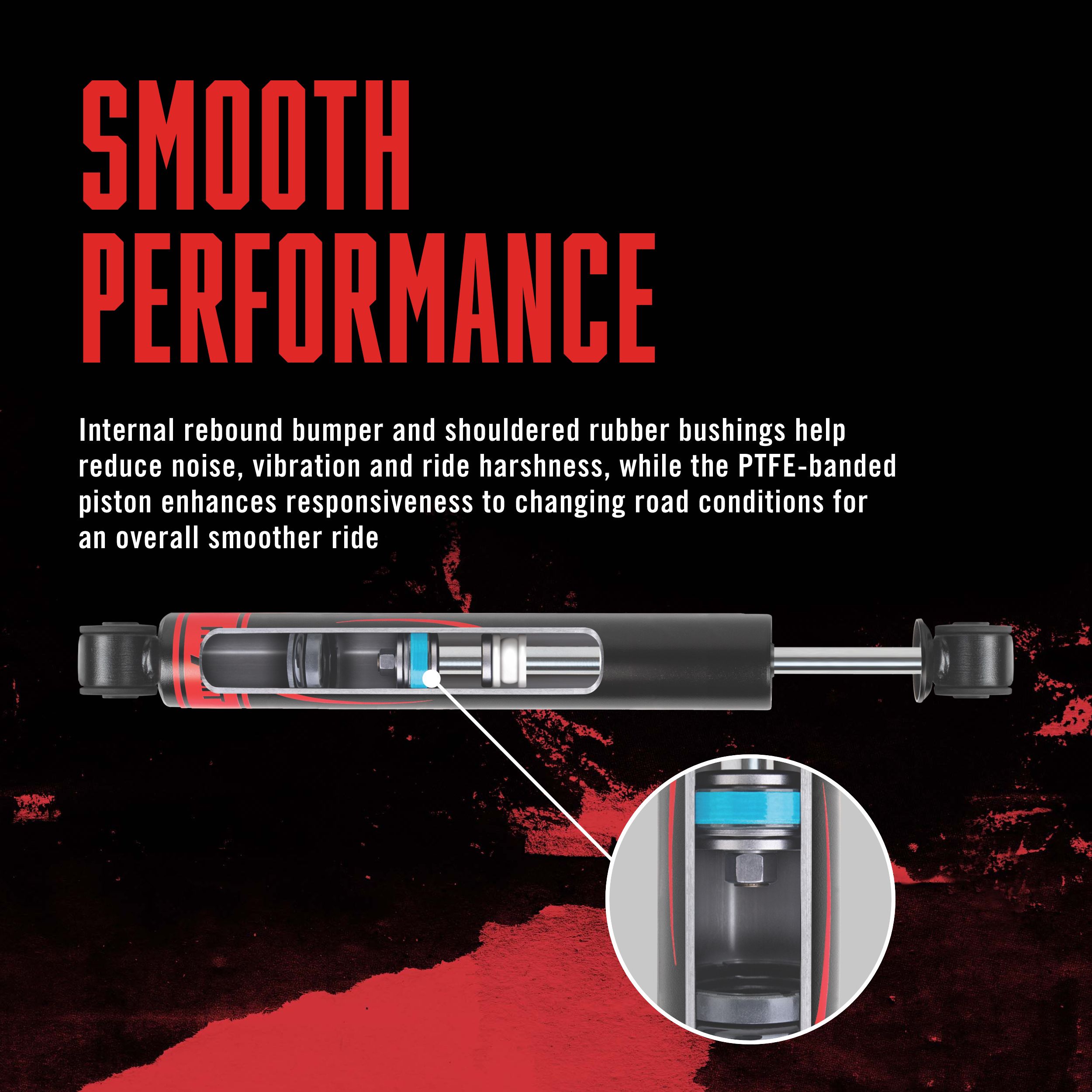

Internal Rebound Bumper Yes
Internal Rebound Spring No
Lower Mount Code Ls38
Lower Mount Type Loop Bushing And Sleeve Mount - 1/2" Sleeve Id X 1.1/2" Sleeve Oal
Maximum Ride Height Lowering Distance 0
Maximum Ride Height Raising Distance 0
Mounting Hardware Included No
Parts Pack(s) None
Remote Reservoir No
Rod Diameter 0.5511811023622047, 14
Self Leveling No
Shaft Material Chromed
Shock Absorber Body End Measuring Point Center Of Loop
Shock Absorber Bore Size 1.8110236220472442, 46
Shock Absorber Rod End Measuring Point Center Of Loop
Shock Stroke 189, 7.44
Spring Included No
Spring Isolators Included No
Spring Seat Included No
Strut Mount Insulator(s) Included No
Travel Length 189, 7.44
Upper Mount Code Ls97
Upper Mount Type Loop Bushing And Sleeve Mount - 1/2" Sleeve Id X 2.3/4" Sleeve Oal

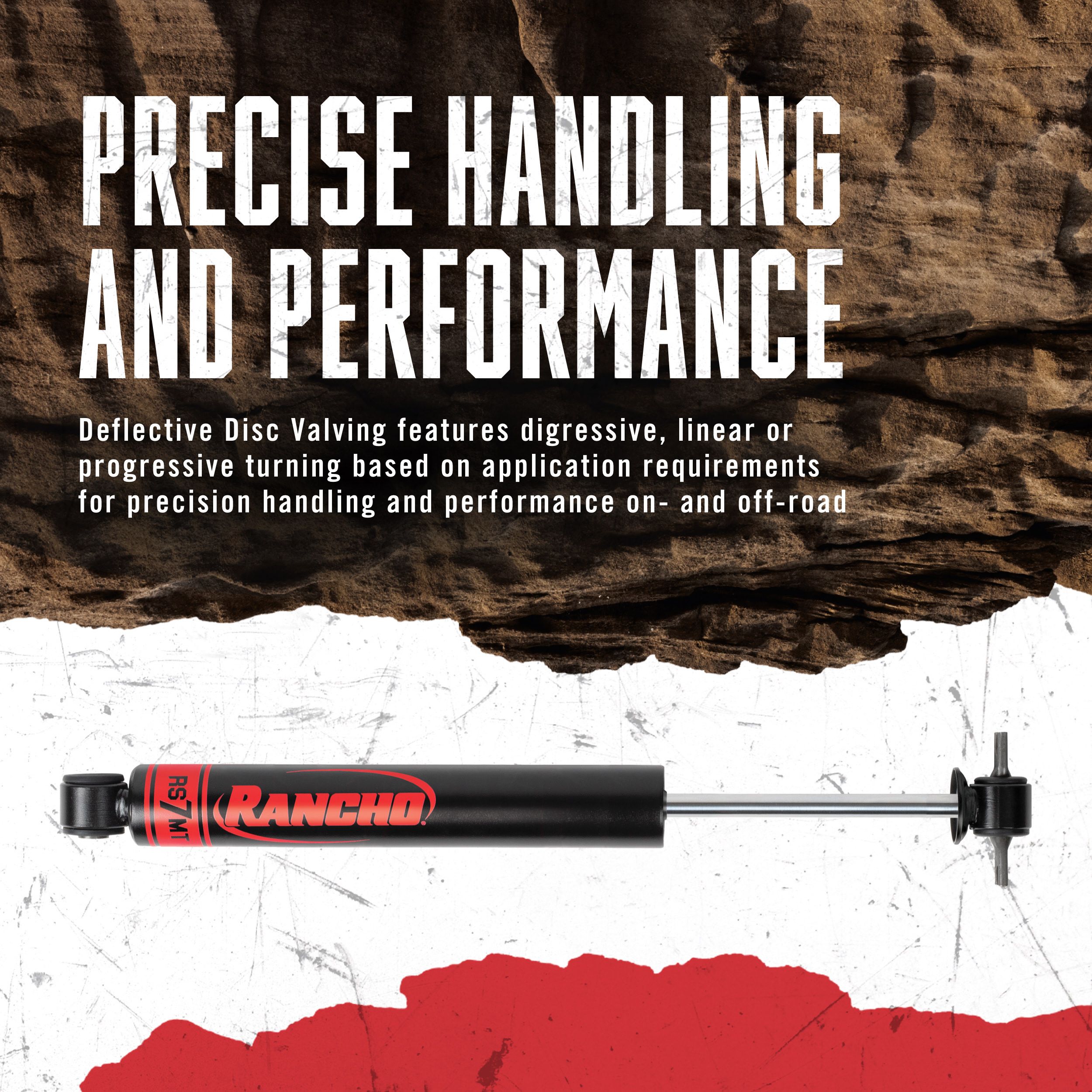

Valving Type Progressive

Vehicle Fitment Guide

This part fits the following vehicles:

Jeep 1 model (tapclick to expand)(tapclick to hide)
Wrangler 2018-2024 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
80th Anniversary SUV 2021 L4 2.0L Turbo 4WD Automatic
80th Anniversary SUV 2021 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Freedom SUV 2023 L4 2.0L Turbo 4WD Automatic & Manual
Freedom SUV 2023 V6 3.6L 4WD Automatic & Manual
Freedom SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Freedom SUV 2021, 2023 L4 2.0L Turbo 4WD Automatic & Manual
Freedom SUV 2021, 2023 V6 3.6L 4WD Automatic & Manual
Freedom SUV 2021, 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
High Altitude SUV 2023 L4 2.0L Turbo 4WD Automatic
High Altitude SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic
High Altitude SUV 2023 V6 3.6L 4WD Automatic
High Altitude SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
High Altitude 4xe SUV 2023 - 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
High Tide SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Islander SUV 2021 L4 2.0L Turbo 4WD Automatic & Manual
Islander SUV 2021 V6 3.6L 4WD Automatic & Manual
Islander SUV 2021 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Rubicon SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Rubicon SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Rubicon SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Rubicon SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Rubicon SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Rubicon SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Rubicon SUV 2020 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Rubicon SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic & Manual
Rubicon SUV 2018 - 2024 V6 3.6L 4WD Automatic & Manual
Rubicon 392 SUV 2023 - 2024 V8 6.4L 4WD Automatic
Rubicon 392 Final Edition SUV 2024 V8 6.4L 4WD Automatic
Rubicon 4xe SUV 2023 - 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Rubicon Deluxe SUV 2019 - 2020 V6 3.6L 4WD Automatic
Rubicon X SUV 2024 L4 2.0L Turbo 4WD Automatic & Manual
Rubicon X SUV 2024 L4 2.0L Turbo 4WD Automatic & Manual
Rubicon X SUV 2024 V6 3.6L 4WD Automatic & Manual
Rubicon X SUV 2024 V6 3.6L 4WD Automatic & Manual
Rubicon X 4xe SUV 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Sahara SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Sahara SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sahara SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Sahara SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sahara 4xe SUV 2023 - 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Sahara Altitude SUV 2023 L4 2.0L Turbo 4WD Automatic & Manual
Sahara Altitude SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sahara Altitude SUV 2023 V6 3.6L 4WD Automatic & Manual
Sahara Altitude SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sahara High Altitude SUV 2023 L4 2.0L Turbo 4WD Automatic & Manual
Sahara High Altitude SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sahara High Altitude SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Sport SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sport SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sport SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Sport SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport SUV 2020 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Sport SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic & Manual
Sport SUV 2018 - 2024 V6 3.6L 4WD Automatic & Manual
Sport Altitude SUV 2023 L4 2.0L Turbo 4WD Automatic & Manual
Sport Altitude SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sport Altitude SUV 2023 V6 3.6L 4WD Automatic & Manual
Sport Altitude SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport S SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Sport S SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sport S SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Sport S SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Sport S SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport S SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Sport S SUV 2020 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Sport S SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic
Sport S SUV 2018 - 2019 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Manual
Sport S SUV 2018 - 2024 V6 3.6L 4WD Automatic & Manual
Sport S 4xe SUV 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Unlimited 80th Anniversary SUV 2021 L4 2.0L Turbo 4WD Automatic
Unlimited 80th Anniversary SUV 2021 V6 3.0L DIESEL Turbo 4WD Automatic
Unlimited 80th Anniversary SUV 2021 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Freedom SUV 2021 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Freedom SUV 2021 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Freedom SUV 2021 V6 3.6L 4WD Automatic & Manual
Unlimited Freedom SUV 2021 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited High Altitude SUV 2022 V6 3.6L 4WD Automatic
Unlimited High Altitude SUV 2021 - 2022 L4 2.0L Turbo 4WD Automatic
Unlimited High Altitude SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic
Unlimited High Altitude SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited High Altitude 4xe SUV 2021 - 2022 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Unlimited High Tide SUV 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Islander SUV 2021 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Islander SUV 2021 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Islander SUV 2021 V6 3.6L 4WD Automatic & Manual
Unlimited Islander SUV 2021 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Moab SUV 2018 - 2019 V6 3.6L 4WD Automatic
Unlimited Rubicon SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Rubicon SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Manual
Unlimited Rubicon SUV 2020 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Rubicon SUV 2020 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Rubicon SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic & Manual
Unlimited Rubicon SUV 2018 - 2022, 2024 V6 3.6L 4WD Automatic
Unlimited Rubicon SUV 2018 - 2022 V6 3.6L 4WD Manual
Unlimited Rubicon 392 SUV 2021 - 2022 V8 6.4L 4WD Automatic
Unlimited Rubicon 4xe SUV 2021 - 2022 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Unlimited Rubicon Deluxe SUV 2020 V6 3.6L 4WD Automatic
Unlimited Rubicon Tuscadero SUV 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Rubicon Xtreme SUV 2020 V6 3.6L 4WD Automatic
Unlimited Rubicon Xtreme Sunrider SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Sahara SUV 2020 - 2022, 2024 L4 2.0L Turbo 4WD Automatic
Unlimited Sahara SUV 2020 - 2022 L4 2.0L Turbo 4WD Manual
Unlimited Sahara SUV 2020 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sahara SUV 2020 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic
Unlimited Sahara SUV 2020 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Manual
Unlimited Sahara SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic & Manual
Unlimited Sahara SUV 2018 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Sahara 4xe SUV 2021 - 2022 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Unlimited Sahara Altitude SUV 2021 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Sahara Altitude SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sahara Altitude SUV 2021 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Sahara Altitude SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Sahara High Altitude SUV 2021 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Sahara High Altitude SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sahara High Altitude SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Sport SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Sport SUV 2020 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Sport SUV 2020 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sport SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic & Manual
Unlimited Sport SUV 2018 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Sport Altitude SUV 2021 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Sport Altitude SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sport Altitude SUV 2021 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Sport Altitude SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Sport S SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Sport S SUV 2020 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Sport S SUV 2020 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Sport S SUV 2018 - 2020 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Automatic
Unlimited Sport S SUV 2018 - 2019 L4 2.0L MILD HYBRID EV-GAS (MHEV) Turbo 4WD Manual
Unlimited Sport S SUV 2018 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Willys SUV 2021 - 2022, 2024 L4 2.0L Turbo 4WD Automatic
Unlimited Willys SUV 2021 - 2022 L4 2.0L Turbo 4WD Manual
Unlimited Willys SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Willys SUV 2021 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Willys SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Unlimited Willys Sport SUV 2021 - 2022 L4 2.0L Turbo 4WD Automatic & Manual
Unlimited Willys Sport SUV 2021 - 2022 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Unlimited Willys Sport SUV 2021 - 2022 V6 3.6L 4WD Automatic & Manual
Unlimited Willys Sport SUV 2021 - 2022 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Willys SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Willys SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Willys SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Willys SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Willys SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Willys SUV 2021 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Willys SUV 2021 - 2024 V6 3.6L 4WD Automatic & Manual
Willys SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Willys 4xe SUV 2023 - 2024 L4 2.0L PLUG-IN HYBRID EV-GAS (PHEV) Turbo 4WD Automatic
Willys Sport SUV 2023 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Willys Sport SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Willys Sport SUV 2023 V6 3.0L DIESEL Turbo 4WD Automatic & Manual
Willys Sport SUV 2023 - 2024 V6 3.6L 4WD Automatic & Manual
Willys Sport SUV 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Willys Sport SUV 2021 - 2024 L4 2.0L Turbo 4WD Automatic & Manual
Willys Sport SUV 2021 - 2024 V6 3.6L 4WD Automatic & Manual
Willys Sport SUV 2021 - 2023 V6 3.6L MILD HYBRID EV-GAS (MHEV) 4WD Automatic & Manual
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Application tuned for precision on-road and off-road handling, Rancho® RS7MT® monotube shocks are highly effective in the dissipation of heat, making them ideal for extreme off-road use and larger wheel and tire packages. RS7MT shocks feature an integrated dirt wiper sealing system that keeps dirt and debris out, hardened piston rod that resists scuffs and corrosion plus an internal rebound bumper to smooth out your ride on any terrain.

Interchange Parts

Brand Part Number
Bilstein 24286350
Bilstein 33304847
FOX Offroad Shocks 98524171
Pro Comp Suspension PR2138
Skyjacker M9384

Fits Years: 2018 2019 2020 2021 2022 2023 2024

Fits Models: Wrangler

Go-Parts Garage · Featured Guide

A Guide to Suspension Shock Absorbers for the 2019-2024 Jeep Wrangler JL

Your factory shocks are likely worn out; here’s how to choose the right aftermarket upgrade.

Read Full Guide →
Why Millions Choose Go-Parts

Your Go-To Place
for auto parts.

In operation since 2007. Trusted by over a million DIYers, mechanics, and body shops across all 50 states.

100%
Money-Back Guarantee

Shop With Total Confidence

If it doesn't fit, we make it right. No gimmicks, no fine print.

120
Day Return Window

4× the Industry Standard

Most retailers stop at 30 days. We give you a full four months to install, test, and return for a 100% refund — return shipping on us.

NEW
Direct-Fit Replacement

Engineered To OEM Specs

Brand-new aftermarket parts from trusted suppliers — built to original-equipment specifications so they fit and function like the factory unit, at a fraction of the price.

What buyers are saying.

★★★★★ 4.9 1,451 verified reviews

Racing Partner Videos

Racing partner video
Racing partner video
Racing partner video
Racing partner video
×

Search by Vehicle

1
2
3
Added to cart · Part
