| Attribute | Value |
|---|---|
| Install Difficulty | 3 |
| Installation Difficulty | 3 |
| Prop 65 (C, R Or CR) | Cr |

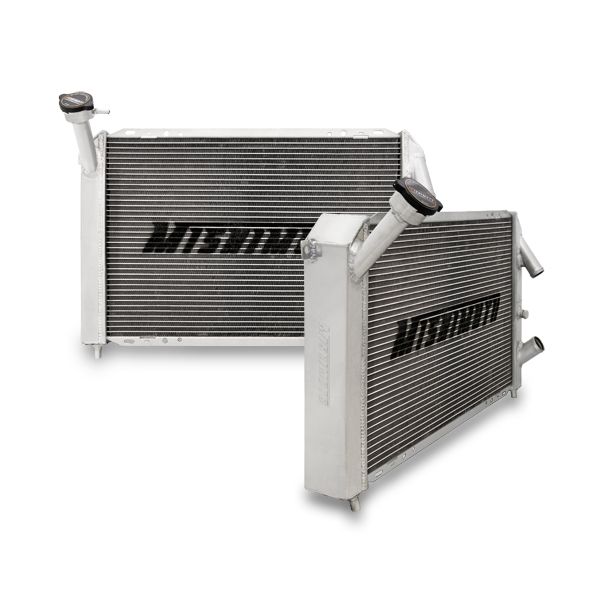

| SellingPoint01 | Direct Fit For The 1993-1995 Fd Mazda Rx7 With Lsx Engine Swap |
| SellingPoint02 | Provides A Bolt-in Cooling Solution Which Simplifies The Engine-swap Process |
| SellingPoint03 | Full Aluminum Construction Including Durable, Tig-welded End Tanks |
| SellingPoint04 | Features A Two-row, 2.17-in Thick, Efficient Brazed Aluminum Core |
| SellingPoint05 | Increased Fluid Capacity And Optimal Heat Dissipation |
| SellingPoint06 | Provides Efficient Temperature Reduction For Street And/or Track Use |
| SellingPoint07 | Efficient Temperature Regulation For Both Stock And Forced Induction Vehicles |
| SellingPoint08 | Includes 1.3 Bar High-pressure Radiator Cap Which Effectively Raises The Boiling Point Of Engine Coolant, Providing A Safer And More Efficient System |
| SellingPoint09 | Includes Magnetic Drain Plug To Capture Any Metallic Debris/fragments In Your Cooling System |
| SellingPoint10 | Mishimoto Lifetime Warranty |
| SellingPoint11 | N/a |
| SellingPoint12 | N/a |
| SellingPoint13 | N/a |
| SellingPoint14 | N/a |
| SellingPoint15 | N/a |
| TechSpec Applications | N/a |
| TechSpec Chassis Codes | Fd |
| TechSpec Core Height (in) | 15.75 |
| TechSpec Core Length (in) | 22.2 |
| TechSpec Core Thickness (in) | 2.17 |
| TechSpec DPI | 2067 |
| TechSpec Drain Plug Thread Size | N/a |
| TechSpec Engine Codes | Ls |
| TechSpec Fluid Capacity (gal) | N/a |
| TechSpec Includes | Mishimoto Radiator--mishimoto Radiator Cap--mishimoto Lifetime Warranty |
| TechSpec Inlet (in) | 1.38 |
| TechSpec Material | Aluminum |
| TechSpec Note | Some Modification May Be Necessary Due To Differences In Chassis Construction And Vehicle Manufacturing Tolerances----this Item Is For Manual Transmission Vehicles. For Automatic Applications, Please Purchase Optional Mishimoto Universal Transmission Cool |
| TechSpec Outlet (in) | 1.5 |
| TechSpec Overall Height (in) | 27.34 |
| TechSpec Overall Length (in) | 19.5 |
| TechSpec Overall Width (ins) | 2.67 |
| TechSpec Rows | 2 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Coupe | 1993 - 1995 | R2 1.3L Turbo | RWD Automatic & Manual |
| R1 | Coupe | 1993 | R2 1.3L Turbo | RWD Manual |
| R2 | Coupe | 1994 - 1995 | R2 1.3L Turbo | RWD Manual |
| Touring | Coupe | 1993 - 1995 | R2 1.3L Turbo | RWD Automatic & Manual |
