2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008, 2007, 2006, 2005, 2004, 2003 Porsche Cayenne Disc Brake Rotor
View 1
View 2
View 3
View 4
View 5
View 6

2003 - 2018 Porsche Cayenne Disc Brake Rotor - Rear (Centric) NEW

$ 231 .42

Product Notes

Position: Rear
⚠️ Most jobs typically require 2 of this item.
18 Inch; Brake Caliper Painted Red
Centric Premium High Carbon Alloy Disc Brake Rotors
Centric 125 Series High Carbon Alloy Brake Rotors contain an advanced metallurgy that greatly reduces the possibility of pad squeal especially with higher friction; European style brake pad compounds. Proprietary Molybdenum and Chromium alloys resist rotor cracking during high performance use or repeat stop situations. This alloy also increases the friction couple improving brake performance and stopping power. Increased Chromium and Carbon content is also more resistant to oxidation.
Brand: Centric
Condition: New
See Other Porsche Cayenne Disc Brake Rotors
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

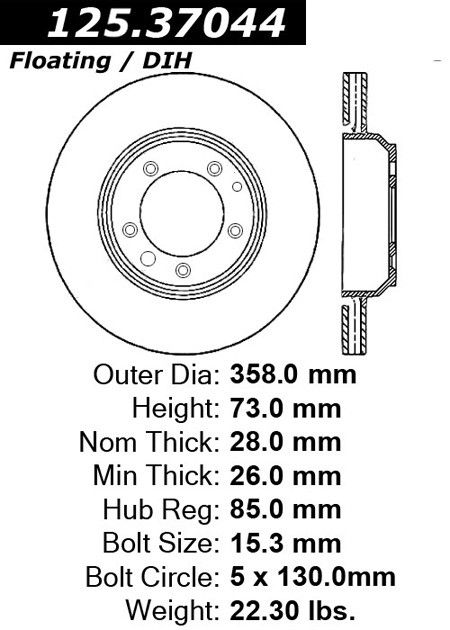

Specifications & Info


Attribute Value
130
ABS Tone Ring Included No
Attribute ID (Type) California Proposition 65
Bearings Included No
Bolt Hole Quantity 5
California Proposition 65 Site [basic] Https://www.p65warnings.ca.gov/
California Proposition 65 Text [basic] Warning: Cancer And Reproductive Harm
California Proposition 65 Text [cntrc] Warning: Cancer And Reproductive Harm
Center Hole Diameter 3.346, 85.000
Disc Mounting [cntrc] Floating / Dih
Discard Thickness 1.024, 26, 26.000
Hat Finish Coated
Hat ID [cntrc] In 6.154
Hat ID [cntrc] Mm 156.300
Hub Hole/Whl Reg Mm 85
Misc Holes [cntrc] 2
Mounting Bolt Hole Circle Diameter 130.000, 5.118
Mounting Type Floating / Dih
Nominal Drum Diameter 210.000, 8.268
Nominal Thickness 1.102, 28, 28.000
Overall Height 2.874, 73.000
Product Grade [cntrc] Premium
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Diameter 0.602, 15.300
Stud/Lug Hole Quantity 5
Surface Type Smooth
Vane Style Straight
Vane Style [cntrc] Straight
Weight [cntrc] Kgs 10.140
Weight [cntrc] Lbs 22.300

Vehicle Fitment Guide

This part fits the following vehicles:

Porsche 1 model (tapclick to expand)(tapclick to hide)
Cayenne 2003-2018 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2011 - 2016 V6 3.0L DIESEL Turbo AWD Automatic
Base SUV 2011 - 2014 V6 3.0L DIESEL Turbo AWD Manual
Base SUV 2008 - 2014, 2016 - 2018 V6 3.6L AWD Automatic
Base SUV 2008 - 2014 V6 3.6L AWD Manual
Base SUV 2004 - 2006 V6 3.2L AWD Automatic & Manual
Diesel SUV 2013 - 2018 V6 3.0L DIESEL Turbo AWD Automatic
Diesel Platinum Edition SUV 2014 V6 3.0L DIESEL Turbo AWD Automatic
GTS SUV 2015 - 2018 V6 3.6L Turbo AWD Automatic
GTS SUV 2008 - 2010, 2013 - 2014 V8 4.8L AWD Automatic
GTS SUV 2008 - 2010 V8 4.8L AWD Manual
Platinum Edition SUV 2014, 2017 - 2018 V6 3.6L AWD Automatic
Platinum Edition SUV 2014 V6 3.6L AWD Manual
S SUV 2016 V8 4.2L DIESEL Turbo AWD Automatic
S SUV 2015 - 2016 V6 3.0L PLUG-IN HYBRID EV-GAS (PHEV) Supercharged AWD Automatic
S SUV 2015 - 2018 V6 3.6L Turbo AWD Automatic
S SUV 2011 - 2014 V6 3.0L FULL HYBRID EV-GAS (FHEV) Supercharged AWD Automatic
S SUV 2008 - 2016 V8 4.8L AWD Automatic
S SUV 2004 - 2006 V8 4.5L AWD Manual
S SUV 2003 - 2006 V8 4.5L AWD Automatic
S E-Hybrid SUV 2015 - 2018 V6 3.0L PLUG-IN HYBRID EV-GAS (PHEV) Supercharged AWD Automatic
S E-Hybrid Platinum Edition SUV 2017 - 2018 V6 3.0L PLUG-IN HYBRID EV-GAS (PHEV) Supercharged AWD Automatic
S Hybrid SUV 2011 - 2014 V6 3.0L FULL HYBRID EV-GAS (FHEV) Supercharged AWD Automatic
S Platinum Edition SUV 2017 - 2018 V6 3.6L Turbo AWD Automatic
S Transsyberia SUV 2010 V8 4.8L AWD Automatic
Turbo SUV 2008 - 2018 V8 4.8L Turbo AWD Automatic
Turbo SUV 2003 - 2006 V8 4.5L Turbo AWD Automatic
Turbo S SUV 2009 - 2010, 2013 - 2014, 2016 - 2018 V8 4.8L Turbo AWD Automatic
Turbo S SUV 2006 V8 4.5L Turbo AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Centric 125 Series High Carbon Alloy Brake Rotors contain an advanced metallurgy that greatly reduces the possibility of pad squeal especially with higher friction; European style brake pad compounds. Proprietary Molybdenum and Chromium alloys resist rotor cracking during high performance use or repeat stop situations. This alloy also increases the friction couple improving brake performance and stopping power. Increased Chromium and Carbon content is also more resistant to oxidation.

Interchange Parts

Brand Part Number
Aimco 34387
Canadian Tire 45587
Casting Numbers 7L5615601F
Ferodo DDF1855C
Formula Blue Hydraulic Brake Parts E125-42-049
Formula Blue Hydraulic Brake Parts E12542049
Formula Blue Hydraulic Brake Parts E130-42-049
OEM Part Number 7L8615601A
OEM Part Number 7L8615601D
OEM Part Number 7L8615601E
OEM Part Number 95535240150
OEM Part Number 95535240151
OEM Part Number 95535240300
OEM Part Number 95835240150
Raybestos Brakes 980651
Raybestos Brakes 980651P
TRW DF4759S
Wagner Brake BD180243
Wagner Brake BD180245

Fits Years: 2003 2004 2005 2006 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018

Fits Models: Cayenne
