| Attribute | Value |
|---|---|
| Abutment Clips Included | No |
| Adhesive Backed Pad Shim | Yes |
| Assy/Disassy By Qualified Personnel Required! | . |
| Brake Lubricant Included | No |
| Brake System | Teves |
| California Proposition 65 Required | No |
| Chamfered Edges | Yes |
| ECE R90 Certified | Yes |
| Friction Material Composition | Low-metallic |
| Grade Type | Standard Replacement |

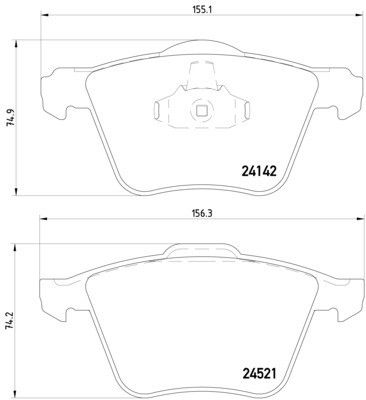

| Height 1 [mm] | 74,9, 74.9 |
| Height 2 [mm] | 74,2, 74.2 |
| Inner Pad Friction Material Thickness | 19.8 |
| Inner Pad Height | 74.9 |
| Inner Pad Width | 156.3 |
| Mounting Hardware Included | No |
| Outer Pad Friction Material Thickness | 18.5 |
| Outer Pad Height | 74.9 |
| Outer Pad Width | 156.3 |
| Pad Quantity | 4 |
| Pad Shims Included | Yes |
| Pad Wear Sensor Included | No |
| Prepared For Pad Wear Sensor | No |
| Slotted | No |
| Technical Information Number | T1664 |
| Thickness 1 [mm] | 19,8, 19.8 |
| Thickness 2 [mm] | 18,5, 18.5 |
| WVA Number | 24142 |
| Wear Warning Contact | Not Prepared For Wear Indicator |
| Weight [kg] | 2.1 |
| Width 1 [mm] | 155,1, 155.1 |
| Width 2 [mm] | 156,3, 156.3 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 3.2 | Sedan | 2007 - 2014 | L6 3.2L | FWD Automatic |
| Addition | Sedan | 2011 | L6 3.0L Turbo | AWD Automatic |
| Base | Sedan | 2012 - 2013 | L4 2.0L Turbo | FWD Manual |
| Base | Sedan | 2010 | L6 3.0L Turbo | AWD Automatic |
| Base | Sedan | 2010 | V8 4.4L | AWD Automatic |
| Evolution | Sedan | 2013 | L4 2.0L Turbo | FWD Manual |
| Kinetic | Sedan | 2011 | L6 3.0L Turbo | AWD Automatic |
| Luxury | Sedan | 2014 - 2015 | L6 3.0L Turbo | AWD Automatic |
| T5 | Sedan | 2015 - 2016 | L4 2.0L Turbo | FWD Automatic |
| T5 Platinum | Sedan | 2016 | L4 2.0L Turbo | FWD Automatic |
| T6 | Sedan | 2008 - 2015 | L6 3.0L Turbo | AWD Automatic |
| T6 | Sedan | 2008 - 2009 | L6 3.2L | FWD Automatic |
| V8 | Sedan | 2007 - 2010 | V8 4.4L | AWD Automatic |
| V8 | Sedan | 2007 - 2009 | V8 4.4L | FWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| AISIN | BPVO1005 |
| Akebono | AN4457K |
| Akebono | AN4457KE |
| Akebono | EUR1305 |
| AMC | FO846481 |
| Ashuki | P11148 |
| ATE | 13046072432 |
| ATE | 13047072432 |
| ATE | 607243 |
| ATE | LD7243 |
| Bendix | 510525 |
| Bendix | 511072 |
| Bendix | 573179B |
| Bendix | DB2236GCT |
| Bendix | DB2236HD |
| BENDIX PREMIUM | 573179S |
| Blue Print | ADF124206 |
| Borg & Beck | BBP2022 |
| Bosch | 0 986 494 245 |
| Bosch | 0 986 AB2 579 |
| Brake Engineering | PA1789 |
| Brake Engineering | PA1790 |
| Brembo | P24077 |
| Brembo | P24077E |
| Brembo | P24077N |
| Brembo | P24077X |
| Cifam | 8225991 |
| Delphi | LP1968 |
| Delphi | LP1968N18B1 |
| Delphi | LP1968ND19B1 |
| Delphi | LP2575C |
| DON | PCP1377 |
| Dynamic Friction Company | 1310-1240-00 |
| Dynamic Friction Company | 1311-1240-00 |
| Dynamic Friction Company | 1551-1240-00 |
| Dynamic Friction Company | 1600-1240-00 |
| EBC Brakes | DP1914 |
| EBC Brakes | DP21914 |
| EBC Brakes | DP31914C |
| EBC Brakes | DP41914R |
| EBC Brakes | PLK1893 |
| Febi-Bilstein | 116214 |
| Febi-Bilstein | 16772 |
| Ferodo | FDB1898 |
| Ferodo | FDB5236 |
| Ferodo | FSL1898 |
| Ferodo | HQF4094C |
| FMSI Automotive Hardware | D1305 |
| FMSI Automotive Hardware | D1305-8357 |
| FREMAX BRAKE ROTORS AND DRUMS | FBP1811 |
| FTE | 9001587 |
| FTE | 9010633 |
| FTE | BL2047A1 |
| Girling | 6116842 |
| Hella Pagid | 8DB355013001 |
| Japan Parts | PA0349AF |
| JapKo | 500349 |
| JP Group A/S | 1563602610 |
| Jurid | 573179J |
| Jurid | 573179JAS |
| Jurid | 573179JC |
| Jurid | 573972J |
| Key Parts | KBP2022 |
| LPR | 05P1507 |
| Magneti Marelli | 363700201664 |
| Magneti Marelli | 363916060797 |
| Magneti Marelli | T1664MM |
| Mapco | 6975 |
| Mapco | 6975HPS |
| MaXgear | 191092 |
| METELLI | 2205991 |
| MEYLE | 0252414218 |
| MEYLE | 0252414218PD |
| Mintex | MDB2849 |
| Mintex | MDB82849 |
| Mintex | MDK0235 |
| NK Autoparts | 222570 |
| Optimal | 12511 |
| Optimal | BP12511 |
| Quinton Hazell | BP1559 |
| Remsa | 121700 |
| Remsa | 121702 |
| Roadhouse | 2121700 |
| Roadhouse | 2121702 |
| Textar | 2414203 |
| Textar | TX0744 |
| Triscan | 811010565 |
| TRW | GDB1684 |
| TRW | GDB81684 |
| TRW Steering and Suspension Parts | TRH1305 |
| VAICO | V250163 |
| VAICO | V2501631 |
| Valeo | 302106 |
| Valeo | 302739 |
| Valeo | 601007 |
| Valeo | 671007 |
| Volvo | 30736322 |
| Volvo | 30736322-0 |
| Volvo | 30793857 |
| Volvo | 30793857-0 |
| Volvo | 31200229 |
| Volvo | 31200229-0 |
| Volvo | 31200299 |
| Volvo | 31200299-0 |
| Volvo | 31323601 |
| Volvo | 31323601-0 |
| Wagner | MX1305 |
| Wagner | OEX1305 |
| Wagner | WBP24142A |
| Werner Metzger GmbH | 1170864 |
| Zimmermann | 241421901 |
Fits Years: 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016
Fits Models: S80
