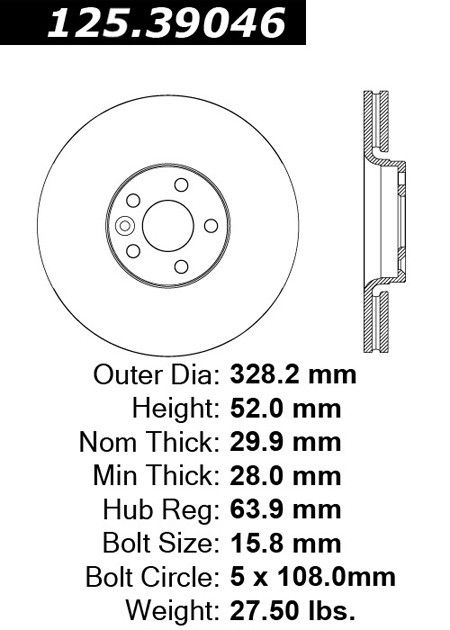

| Attribute | Value |
|---|---|
| 108 | |
| ABS Tone Ring Included | No |
| Attribute ID (Type) | California Proposition 65 |
| Bearings Included | No |
| Bolt Hole Quantity | 5 |
| California Proposition 65 Site [basic] | Https://www.p65warnings.ca.gov/ |
| California Proposition 65 Text [basic] | Warning: Cancer And Reproductive Harm |
| California Proposition 65 Text [cntrc] | Warning: Cancer And Reproductive Harm |
| Center Hole Diameter | 2.504, 63.600 |
| Disc Mounting [cntrc] | Floating |
| Discard Thickness | 1.102, 28, 28.000 |
| Hat Finish | Coated |
| Hat ID [cntrc] In | 5.508 |
| Hat ID [cntrc] Mm | 139.900 |
| Hub Hole/Whl Reg Mm | 63.6 |
| Misc Holes [cntrc] | 1 |
| Mounting Bolt Hole Circle Diameter | 108.000, 4.252 |
| Mounting Type | Floating |
| Nominal Thickness | 1.181, 29.9, 30.000 |
| Overall Height | 2.047, 52.000 |
| Product Grade [cntrc] | Premium |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Diameter | 0.622, 15.800 |
| Stud/Lug Hole Quantity | 5 |
| Surface Type | Smooth |
| Vane Style | Straight |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Kgs | 12.500 |
| Weight [cntrc] Lbs | 27.500 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| 3.2 | SUV | 2010 - 2015 | L6 3.2L | AWD Automatic |
| 3.2 | SUV | 2010 - 2014 | L6 3.2L | FWD Automatic |
| 3.2 R-Design | SUV | 2011 | L6 3.2L | AWD/FWD Automatic |
| Addition | SUV | 2012 - 2014 | L4 2.0L Turbo | FWD Manual |
| Addition Plus | SUV | 2014 - 2016 | L4 2.0L Turbo | FWD Automatic |
| Base | SUV | 2012 | L6 3.0L Turbo | AWD Manual |
| Base | SUV | 2010 | L6 3.0L Turbo | AWD Automatic |
| Base | SUV | 2010 | L6 3.2L | AWD Automatic |
| Basic | SUV | 2010 | L6 3.2L | AWD Automatic |
| Evolution | SUV | 2012 | L4 2.0L Turbo | FWD Manual |
| Inspiration | SUV | 2014 - 2016 | L4 2.0L Turbo | FWD Automatic |
| Inspiration | SUV | 2011 | L6 3.0L Turbo | AWD Automatic |
| Kinetic | SUV | 2013 - 2014 | L4 2.0L Turbo | FWD Manual |
| Kinetic | SUV | 2011 | L6 3.2L | AWD Automatic |
| Momentum RD | SUV | 2014 - 2016 | L4 2.0L Turbo | FWD Automatic |
| Ocean Race | SUV | 2016 | L5 2.5L Turbo | AWD Automatic |
| R-Design | SUV | 2016 | L4 2.0L Turbo/Supercharged | AWD Automatic |
| R-Design | SUV | 2014 - 2015 | L6 3.0L Turbo | AWD Manual |
| T5 | SUV | 2015 - 2017 | L4 2.0L Turbo | FWD Automatic |
| T5 | SUV | 2015 - 2016 | L4 2.0L Turbo | AWD Automatic |
| T5 | SUV | 2015 - 2016 | L5 2.5L Turbo | AWD/FWD Automatic |
| T5 Addition | SUV | 2017 | L4 2.0L Turbo | FWD Automatic |
| T5 Dynamic | SUV | 2017 | L4 2.0L Turbo | AWD/FWD Automatic |
| T5 Inscription | SUV | 2017 | L4 2.0L Turbo | AWD/FWD Automatic |
| T5 Inspiration | SUV | 2017 | L4 2.0L Turbo | AWD Automatic |
| T5 Platinum | SUV | 2016 | L4 2.0L Turbo | AWD/FWD Automatic |
| T5 Platinum | SUV | 2016 | L5 2.5L Turbo | AWD/FWD Automatic |
| T5 Premier | SUV | 2016 - 2017 | L4 2.0L Turbo | FWD Automatic |
| T5 Premier | SUV | 2016 | L4 2.0L Turbo | AWD Automatic |
| T5 Premier | SUV | 2016 | L5 2.5L Turbo | AWD/FWD Automatic |
| T5 R-Design | SUV | 2017 | L4 2.0L Turbo | AWD Automatic |
| T5 Special Edition | SUV | 2017 | L4 2.0L Turbo | AWD Automatic |
| T5 Special Edition | SUV | 2016 | L5 2.5L Turbo | AWD Automatic |
| T6 | SUV | 2015 - 2017 | L4 2.0L Turbo/Supercharged | AWD Automatic |
| T6 | SUV | 2015 - 2016 | L4 2.0L Turbo/Supercharged | FWD Automatic |
| T6 | SUV | 2015 - 2016 | L6 3.0L Turbo | FWD Automatic |
| T6 | SUV | 2010 - 2016 | L6 3.0L Turbo | AWD Automatic |
| T6 Addition | SUV | 2011 | L6 3.0L Turbo | AWD Automatic |
| T6 Dynamic | SUV | 2017 | L4 2.0L Turbo/Supercharged | AWD Automatic |
| T6 Inscription | SUV | 2017 | L4 2.0L Turbo/Supercharged | AWD Automatic |
| T6 Ocean Race | SUV | 2015 | L4 2.0L Turbo/Supercharged | AWD/FWD Automatic |
| T6 Ocean Race | SUV | 2015 | L6 3.0L Turbo | AWD/FWD Automatic |
| T6 Platinum | SUV | 2016 | L4 2.0L Turbo/Supercharged | AWD/FWD Automatic |
| T6 Platinum | SUV | 2016 | L6 3.0L Turbo | AWD/FWD Automatic |
| T6 Premier | SUV | 2016 | L4 2.0L Turbo/Supercharged | AWD/FWD Automatic |
| T6 Premier | SUV | 2016 | L6 3.0L Turbo | AWD/FWD Automatic |
| T6 R-Design | SUV | 2017 | L4 2.0L Turbo/Supercharged | AWD Automatic |
| T6 R-Design | SUV | 2013 | L6 3.0L Turbo | AWD Manual |
| T6 R-Design | SUV | 2010 - 2016 | L6 3.0L Turbo | AWD Automatic |
| T6 R-Design Platinum | SUV | 2016 | L6 3.0L Turbo | AWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| AutoZone | 79903 |
| Ferodo | DDF1801C |
| IAP/Kuhltek Motorwerks | BR900992 |
| Mighty Distributing System | 850192 |
| OEM Part Number | 31277342 |
| OEM Part Number | 312773420 |
| OEM Part Number | 31471034 |
| Pep Boys | 45466G |
| Qualis | 45466 |
| Raybestos Brakes | 980779 |
| Raybestos Brakes | 980779P |
Fits Years: 2010 2011 2012 2013 2014 2015 2016 2017
Fits Models: XC60
