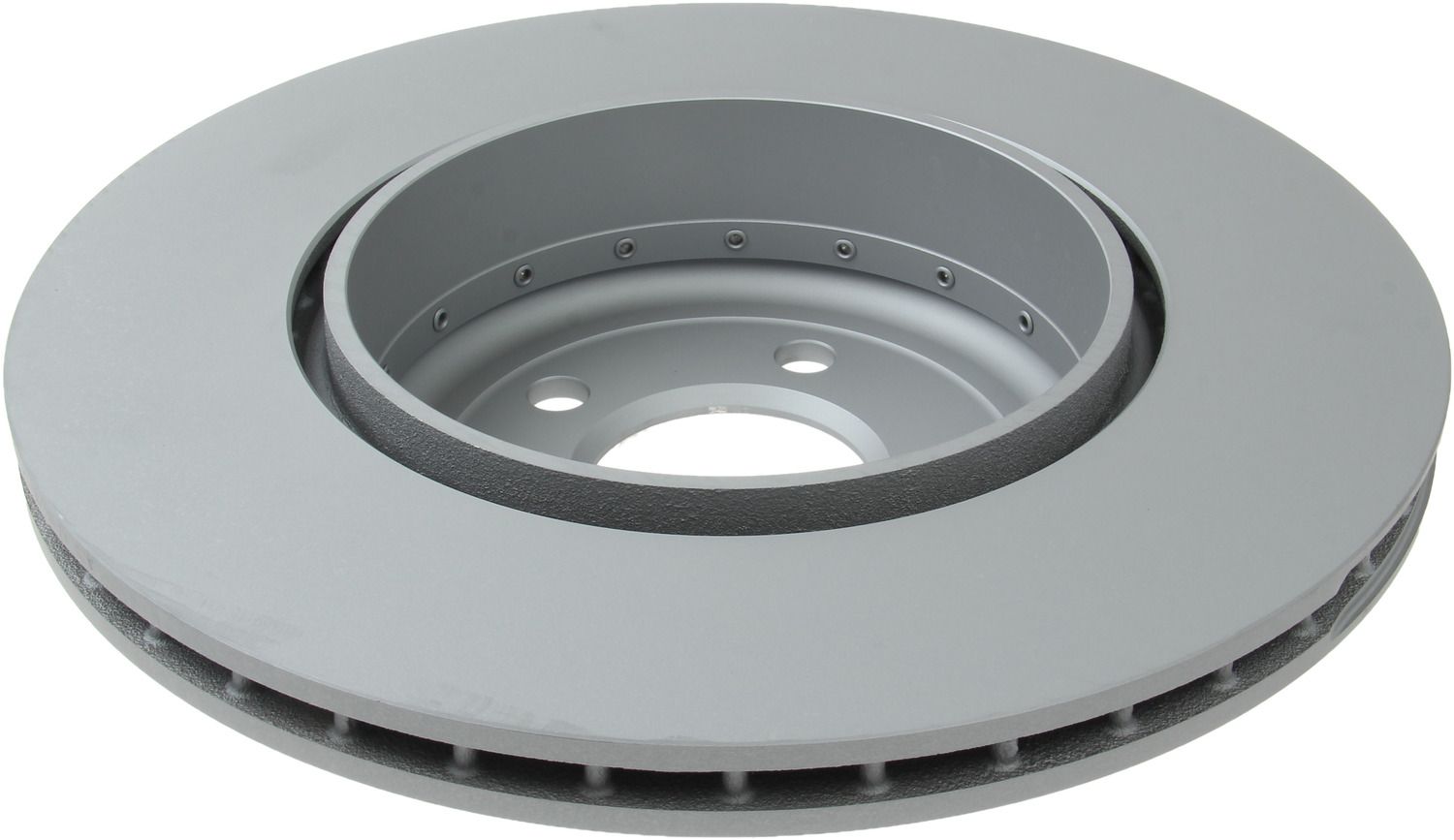

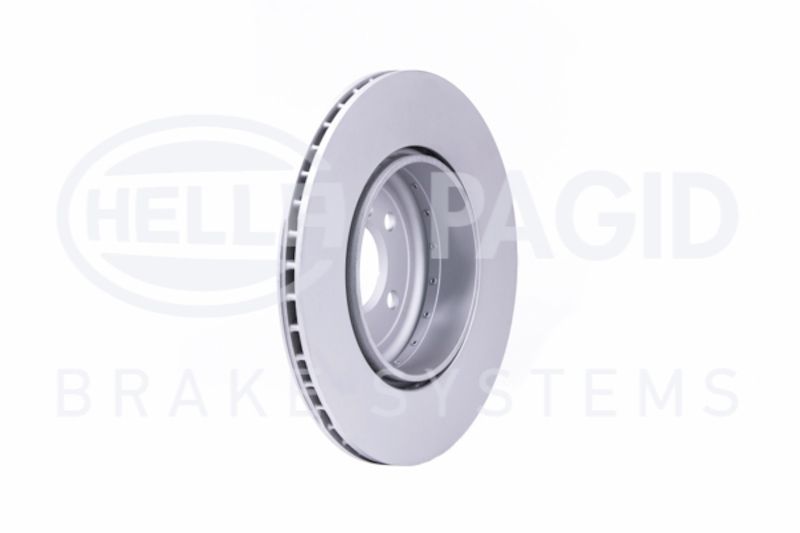

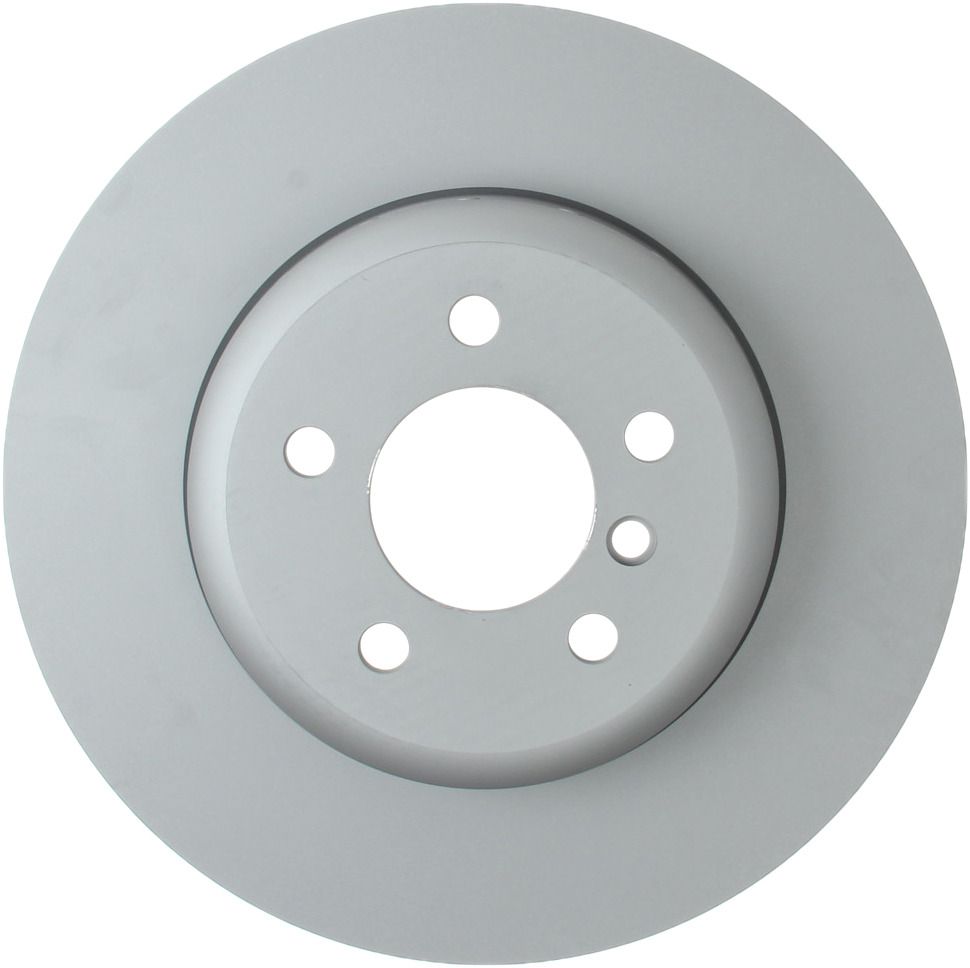

Disc Brake Rotor - Rear (Pagid) for 2010-2019 BMW NEW

$ 444 .82

Set of 2

Product Notes

Position: Rear
Aluminum Hat, High Carbon Friction Ring, Fully Coated Made in Europe
OE Composite Two-Piece Design
HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.
Brand: Pagid
Condition: New

See All Other Disc Brake Rotors

LIFE
TIME

Lifetime Warranty Included

This part is backed by our industry-leading lifetime warranty. Shop with total confidence.

Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info

Attribute	Value
	120.00
ABS Tone Ring Included	No
Assy/Disassy By Qualified Personnel Required!	.
Balancing Type	Mill Balancing
Bearings Included	No

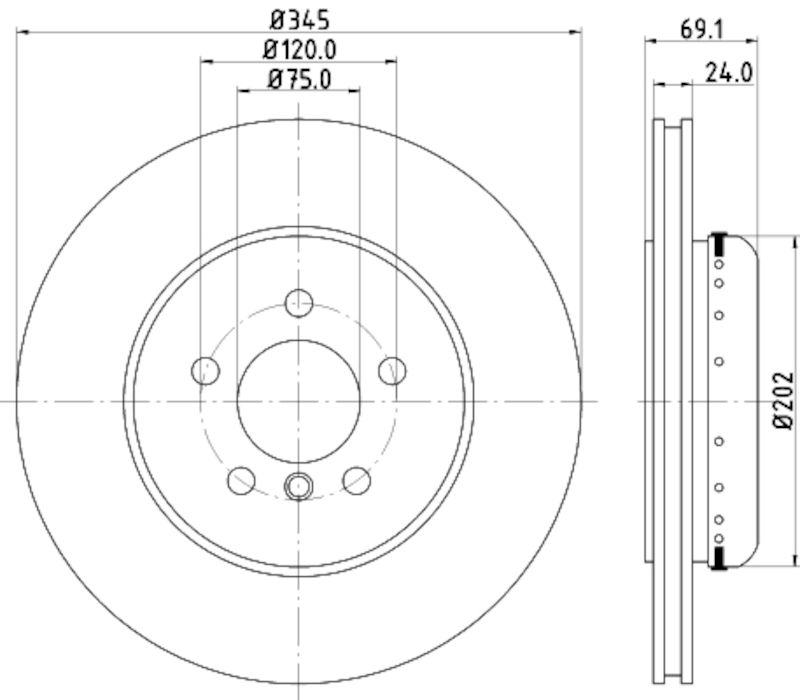

Bolt Hole Circle Ø [in]	4.72
Bolt Hole Circle Ø [mm]	120
Bolt Hole Quantity	6
Brake Disc Thickness [in]	0.94
Brake Disc Thickness [mm]	24
Brake Disc Type	Internally Vented, Two-piece Brake Disc
California Proposition 65 Required	No
Center Hole Diameter	120.0
Centering Diameter [in]	2.95
Construction	Composite
Directional Or Non Directional Brake Surface	Non-directional
Disc Finish	Coated
Discard Thickness	22.40
Grade Type	Standard Replacement
Hat Finish	Coated
Hole Arrangement / Number	05/06
Hole Arrangement/Number	05/06
Inner Diameter [in]	7.28
Inside Diameter	75.0
Machining	High-carbon
Material	Gray Cast Iron & Alum Hat, Gray Cast Iron & Aluminium Hat
Minimum Thickness [mm]	22,4, 22.4
Mounting Bolt Hole Circle Diameter	120.00
Mounting Bolt Hole Quantity	6
Nominal Thickness	24.00
Number Of Bolts/screws	1
Outer Diameter [in]	13.58
Overall Height	69.10
Rust Resistant Coating	Yes
Solid Or Vented Type Rotor	Vented
Surface	Coated
Surface Type	Smooth
Technical Information Number	65150pro_hc
Weight [kg]	9,7, 9.7
Wheel Bolt Bore Diameter [mm]	16.5
Wheel Bolt Bore Ø [mm]	16.5

Vehicle Fitment Guide

This part fits the following vehicles:

BMW 18 models (tapclick to expand)(tapclick to hide)

535i GT 2010-2017 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Hatchback	2010 - 2017	L6 3.0L Turbo	RWD Automatic
M Sport	Hatchback	2013	L6 3.0L Turbo	RWD Automatic
Top	Hatchback	2013	L6 3.0L Turbo	RWD Automatic

535i GT xDrive 2011-2017 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Hatchback	2011 - 2017	L6 3.0L Turbo	AWD Automatic

550i 2011-2016 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2011 - 2016	V8 4.4L Turbo	RWD Automatic
Base	Sedan	2011 - 2013	V8 4.4L Turbo	RWD Manual
Luxury	Sedan	2014 - 2016	V8 4.4L Turbo	RWD Automatic
M Sport	Sedan	2013 - 2016	V8 4.4L Turbo	RWD Automatic
Top	Sedan	2013	V8 4.4L Turbo	RWD Automatic

550i xDrive 2011-2016 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2011 - 2016	V8 4.4L Turbo	AWD Automatic

640i 2012-2018 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Convertible	2012 - 2018	L6 3.0L Turbo	RWD Automatic
Base	Coupe	2012 - 2018	L6 3.0L Turbo	RWD Automatic

640i Gran Coupe 2013-2019 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2013 - 2019	L6 3.0L Turbo	RWD Automatic

640i xDrive 2014-2018 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Convertible	2014 - 2018	L6 3.0L Turbo	AWD Automatic
Base	Coupe	2014 - 2018	L6 3.0L Turbo	AWD Automatic

640i xDrive Gran Coupe 2014-2019 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2014 - 2019	L6 3.0L Turbo	AWD Automatic

650i 2012-2018 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Convertible	2012 - 2018	V8 4.4L Turbo	RWD Automatic
Base	Convertible	2012 - 2014	V8 4.4L Turbo	RWD Manual
Base	Coupe	2012 - 2018	V8 4.4L Turbo	RWD Automatic
Base	Coupe	2012 - 2014	V8 4.4L Turbo	RWD Manual
Base	Sedan	2014	V8 4.4L Turbo	RWD Automatic
Gran Coupe	Sedan	2017	V8 4.4L Turbo	RWD Automatic
M Sport	Convertible	2012 - 2015	V8 4.4L Turbo	RWD Automatic
M Sport	Coupe	2012 - 2018	V8 4.4L Turbo	RWD Automatic

650i Gran Coupe 2013-2019 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Hatchback	2018	V8 4.4L Turbo	RWD Automatic
Base	Sedan	2013 - 2019	V8 4.4L Turbo	RWD Automatic

650i xDrive 2012-2018 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Convertible	2012 - 2018	V8 4.4L Turbo	AWD Automatic
Base	Coupe	2012 - 2018	V8 4.4L Turbo	AWD Automatic

650i xDrive Gran Coupe 2013-2019 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2013 - 2019	V8 4.4L Turbo	AWD Automatic

740Ld xDrive 2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2015	L6 3.0L DIESEL Turbo	AWD Automatic

740Li 2011-2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2011 - 2015	L6 3.0L Turbo	RWD Automatic

740Li xDrive 2013-2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2013 - 2015	L6 3.0L Turbo	AWD Automatic

740i 2011-2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2011 - 2015	L6 3.0L Turbo	RWD Automatic
M Sport	Sedan	2012 - 2013	L6 3.0L Turbo	RWD Automatic

ActiveHybrid 7 2013-2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2013 - 2015	L6 3.0L FULL HYBRID EV-GAS (FHEV) Turbo	RWD Automatic

Alpina B6 xDrive Gran Coupe 2015 (tapclick to expand)(tapclick to hide)

Swipe left/right to see more info

SubmodelSUB- MODEL	Body Style	Years	Engine	Attributes
Base	Sedan	2015	V8 4.4L Turbo	AWD Automatic

Years	Make	Model	Submodel	Body Style	Engine	Attributes
2010 - 2017	BMW	535i GT	Base	Hatchback	L6 3.0L Turbo	RWD Automatic
2013	BMW	535i GT	M Sport	Hatchback	L6 3.0L Turbo	RWD Automatic
2013	BMW	535i GT	Top	Hatchback	L6 3.0L Turbo	RWD Automatic
2011 - 2017	BMW	535i GT xDrive	Base	Hatchback	L6 3.0L Turbo	AWD Automatic
2014 - 2016	BMW	550i	Luxury	Sedan	V8 4.4L Turbo	RWD Automatic
2013 - 2016	BMW	550i	M Sport	Sedan	V8 4.4L Turbo	RWD Automatic
2011 - 2016	BMW	550i	Base	Sedan	V8 4.4L Turbo	RWD Automatic
2013	BMW	550i	Top	Sedan	V8 4.4L Turbo	RWD Automatic
2011 - 2013	BMW	550i	Base	Sedan	V8 4.4L Turbo	RWD Manual
2011 - 2016	BMW	550i xDrive	Base	Sedan	V8 4.4L Turbo	AWD Automatic
2012 - 2018	BMW	640i	Base	Convertible	L6 3.0L Turbo	RWD Automatic
2012 - 2018	BMW	640i	Base	Coupe	L6 3.0L Turbo	RWD Automatic
2013 - 2019	BMW	640i Gran Coupe	Base	Sedan	L6 3.0L Turbo	RWD Automatic
2014 - 2018	BMW	640i xDrive	Base	Convertible	L6 3.0L Turbo	AWD Automatic
2014 - 2018	BMW	640i xDrive	Base	Coupe	L6 3.0L Turbo	AWD Automatic
2014 - 2019	BMW	640i xDrive Gran Coupe	Base	Sedan	L6 3.0L Turbo	AWD Automatic
2012 - 2018	BMW	650i	Base	Convertible	V8 4.4L Turbo	RWD Automatic
2012 - 2018	BMW	650i	Base	Coupe	V8 4.4L Turbo	RWD Automatic
2012 - 2018	BMW	650i	M Sport	Coupe	V8 4.4L Turbo	RWD Automatic
2017	BMW	650i	Gran Coupe	Sedan	V8 4.4L Turbo	RWD Automatic
2012 - 2015	BMW	650i	M Sport	Convertible	V8 4.4L Turbo	RWD Automatic
2014	BMW	650i	Base	Sedan	V8 4.4L Turbo	RWD Automatic
2012 - 2014	BMW	650i	Base	Convertible	V8 4.4L Turbo	RWD Manual
2012 - 2014	BMW	650i	Base	Coupe	V8 4.4L Turbo	RWD Manual
2013 - 2019	BMW	650i Gran Coupe	Base	Sedan	V8 4.4L Turbo	RWD Automatic
2018	BMW	650i Gran Coupe	Base	Hatchback	V8 4.4L Turbo	RWD Automatic
2012 - 2018	BMW	650i xDrive	Base	Convertible	V8 4.4L Turbo	AWD Automatic
2012 - 2018	BMW	650i xDrive	Base	Coupe	V8 4.4L Turbo	AWD Automatic
2013 - 2019	BMW	650i xDrive Gran Coupe	Base	Sedan	V8 4.4L Turbo	AWD Automatic
2011 - 2015	BMW	740i	Base	Sedan	L6 3.0L Turbo	RWD Automatic
2012 - 2013	BMW	740i	M Sport	Sedan	L6 3.0L Turbo	RWD Automatic
2015	BMW	740Ld xDrive	Base	Sedan	L6 3.0L DIESEL Turbo	AWD Automatic
2011 - 2015	BMW	740Li	Base	Sedan	L6 3.0L Turbo	RWD Automatic
2013 - 2015	BMW	740Li xDrive	Base	Sedan	L6 3.0L Turbo	AWD Automatic
2013 - 2015	BMW	ActiveHybrid 7	Base	Sedan	L6 3.0L FULL HYBRID EV-GAS (FHEV) Turbo	RWD Automatic
2015	BMW	Alpina B6 xDrive Gran Coupe	Base	Sedan	V8 4.4L Turbo	AWD Automatic

Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

Ships to all countries via US Postal Service Priority Mail.
Most orders ship within 1 business day.
Delivery time: 1-4 business days after shipment.
International shipping available, including APO/FPO addresses.
Tracking information provided for all shipments.
Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

120-Day Returns - Return any part within 120 days from date of receipt.
Must obtain RMA (Return Merchandise Authorization) number before returning.
Parts must be in original condition, uninstalled, unaltered, and in original packaging.
Important: Electrical parts are not returnable if unsealed.
Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

Shipping costs or labor expenses.
Installation errors.
Parts used for racing.
Commercial vehicle parts.

HELLA PAGID Brake Discs are designed to precisely reflect the requirements of various vehicle types, brake systems, engine outputs, driving loads, and braking characteristics.

Interchange Parts

Brand	Part Number
ATE	24012402332
Bendix	BR9667EURO
Blue Print	ADB114367
BMW	34 42 6 528 289
BMW	34206894381
BMW	6775289
BMW	6894381
Borg & Beck	BBD6042S
Bosch	0986479D59
Bosch	0986479E08
Brake Engineering	DI956899
Brembo	09C40413
Brembo	59E11474
Delphi	BG9130C
Dynamic Friction Company	600-31106
Dynamic Friction Company	604-31106
Dynamic Friction Company	900-31106
Dynamic Friction Company	900-31106A
Febi-Bilstein	104805
Ferodo	DDF2037DCD
Ferodo	DDF2037VC
Ferodo	DDF2037VC1
FREMAX BRAKE ROTORS AND DRUMS	BD3562
FTE	9081209
FTE	BS7846HB
Girling	6066105
Hella Pagid	65150PROHC
Hella Pagid	8DD355120871
Japan Parts	DP0124
Japan Parts	DP0124C
Jurid	563149JVC
Jurid	563149JVC1
LPR	B2082V
LPR	B2082VBR
LPR	B2082VR
MEYLE	3835231003PD
Mintex	MDCB2583
NK Autoparts	3415117
NK Autoparts	341594
Optimal	BS9360
Optimal	BS9360HC
PAGID Racing	55539
PAGID Racing	55539PRO
PAGID Racing	65150
PAGID Racing	65150HC
Remsa	6155110
SBS	18153415117
SBS	1815341594
Textar	92253903
Textar	92253925
Textar	98200253901
Topran	502241
TRW	DF6610S
VAICO	V2080098
Zimmermann	150348020
Zimmermann	150348032
Zimmermann	150348052
Zimmermann	150348054
Zimmermann	150348055

Fits Years: 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019

Fits Models: 535i GT, 535i GT xDrive, 550i, 550i xDrive, 640i, 640i Gran Coupe, 640i xDrive, 640i xDrive Gran Coupe, 650i, 650i Gran Coupe, 650i xDrive, 650i xDrive Gran Coupe, 740i, 740Ld xDrive, 740Li, 740Li xDrive, ActiveHybrid 7, Alpina B6 xDrive Gran Coupe

Go-Parts Garage · Featured Guide

Choosing the Right Disc Brake Rotors for Your 2010-2017 BMW 535i GT

Stop brake vibration and restore performance by picking the best aftermarket rotors for your F07 Gran Turismo.

Read Full Guide →

Why Millions Choose Go-Parts

Your Go-To Place
for auto parts.

In operation since 2007. Trusted by over a million DIYers, mechanics, and body shops across all 50 states.

100%

Money-Back Guarantee

Shop With Total Confidence

If it doesn't fit, we make it right. No gimmicks, no fine print.

120

Day Return Window

4× the Industry Standard

Most retailers stop at 30 days. We give you a full four months to install, test, and return for a 100% refund — return shipping on us.

NEW

Direct-Fit Replacement

Engineered To OEM Specs

Brand-new aftermarket parts from trusted suppliers — built to original-equipment specifications so they fit and function like the factory unit, at a fraction of the price.

What buyers are saying.

★★★★★ 4.9 1,451 verified reviews

Racing Partner Videos

Search by Vehicle

Added to cart · Part
