A/C Expansion Valve
View 1
View 2
View 3
View 4
View 5
View 6
View 7

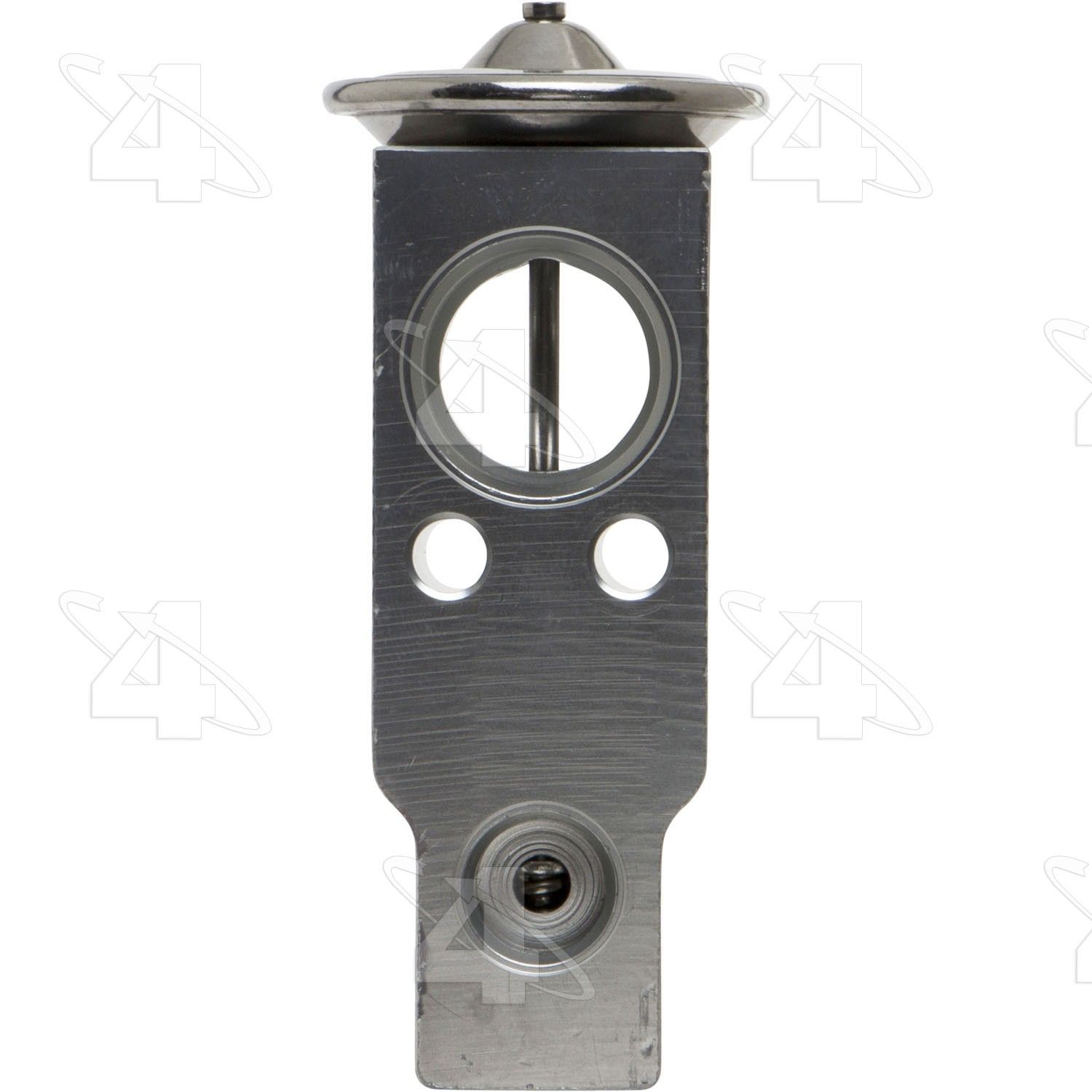

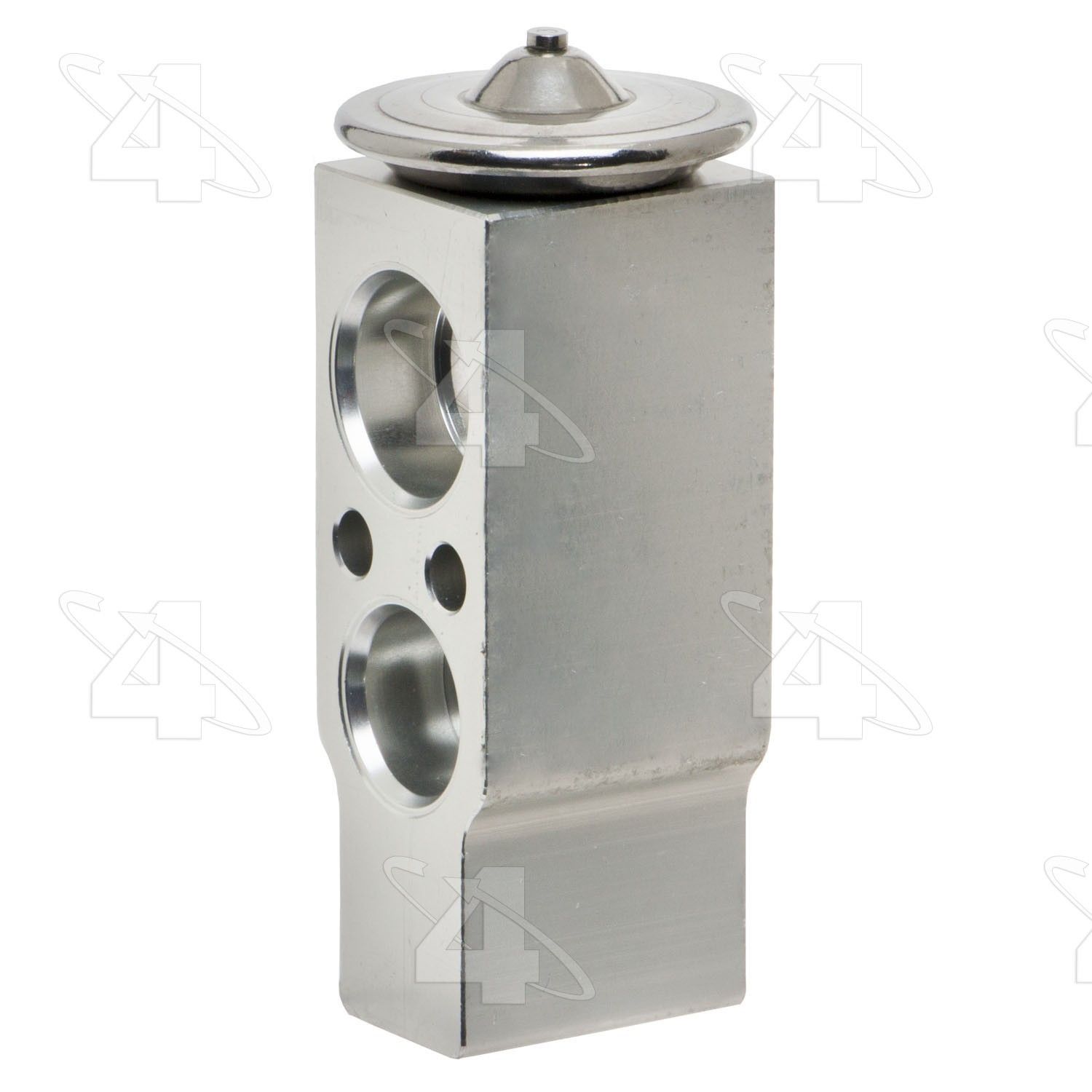

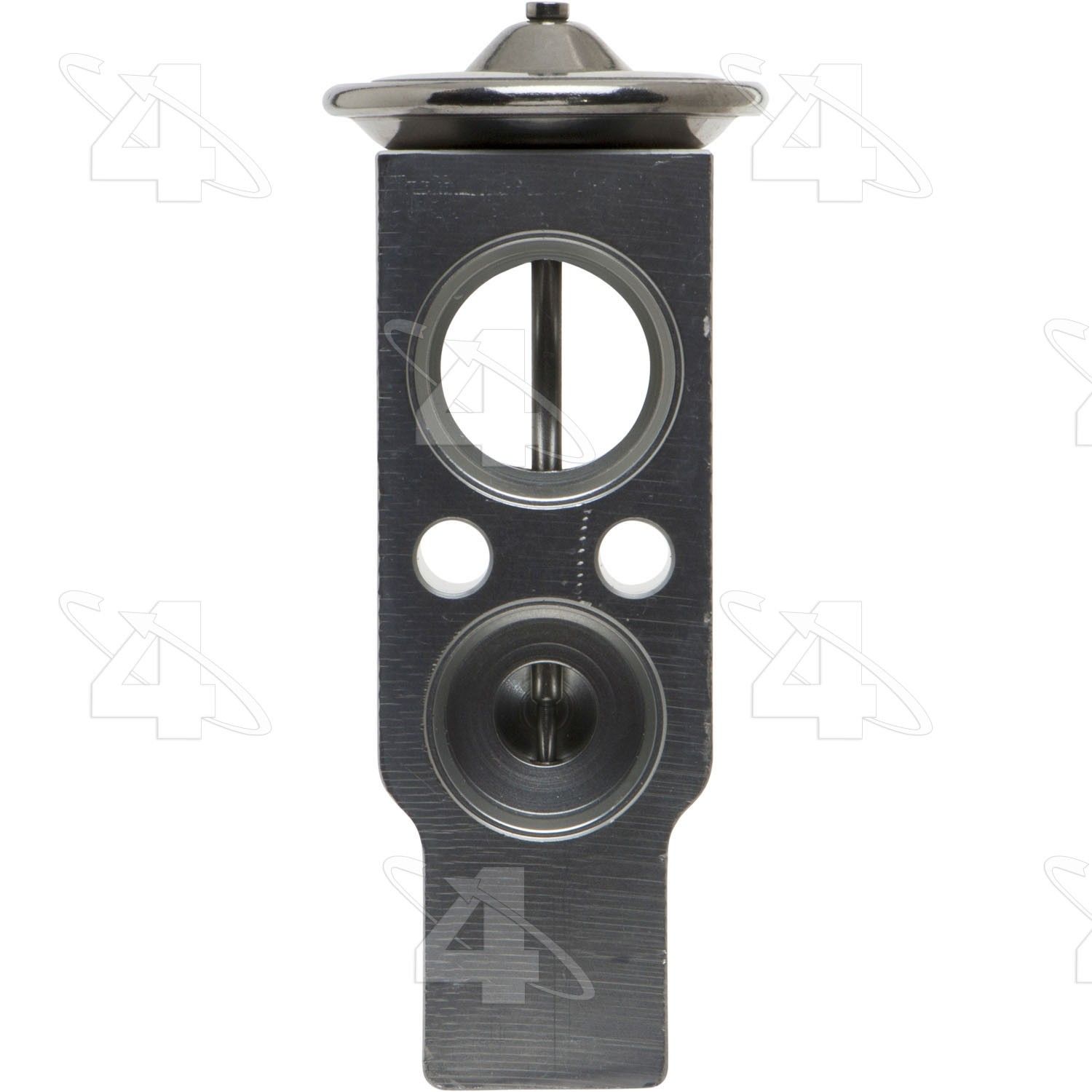

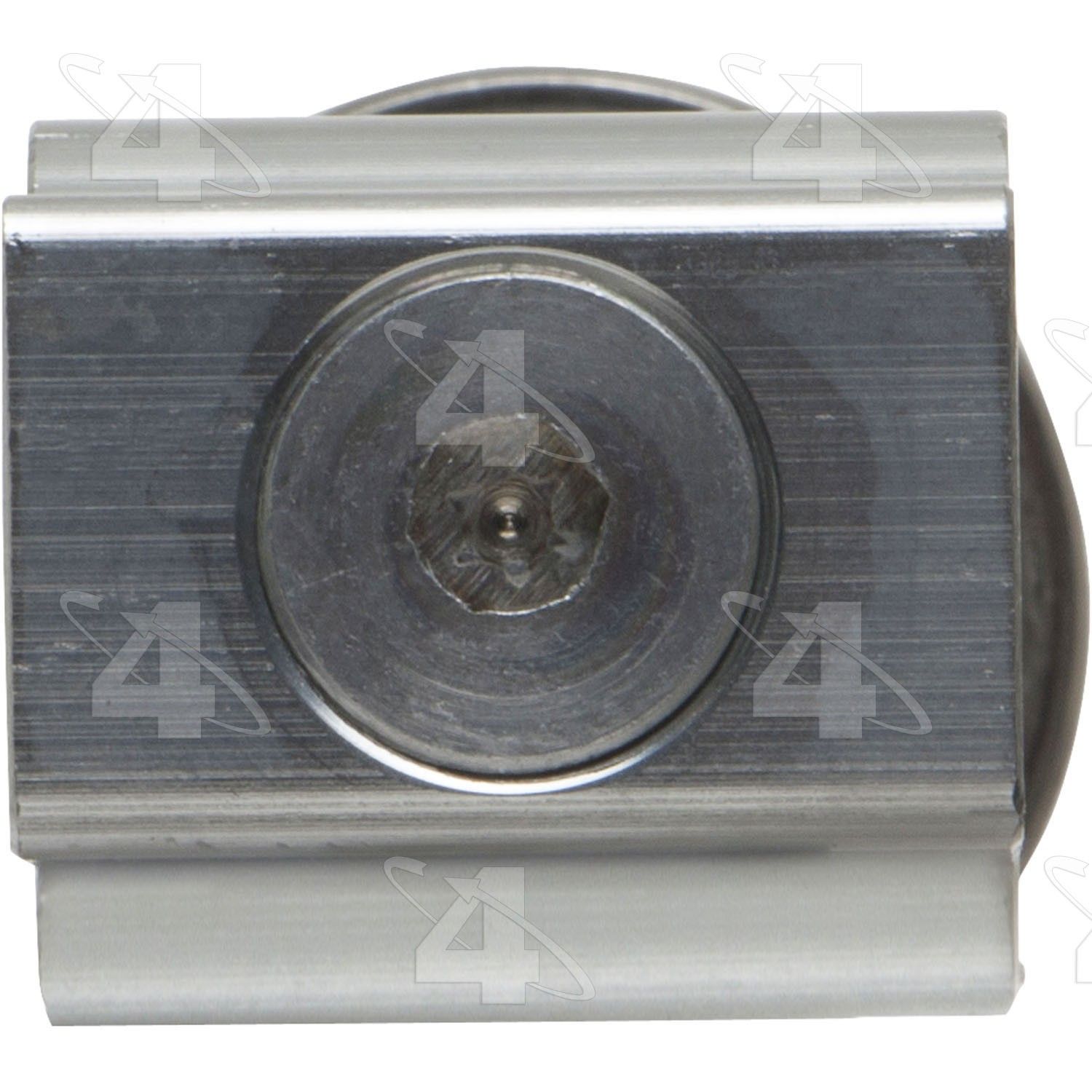

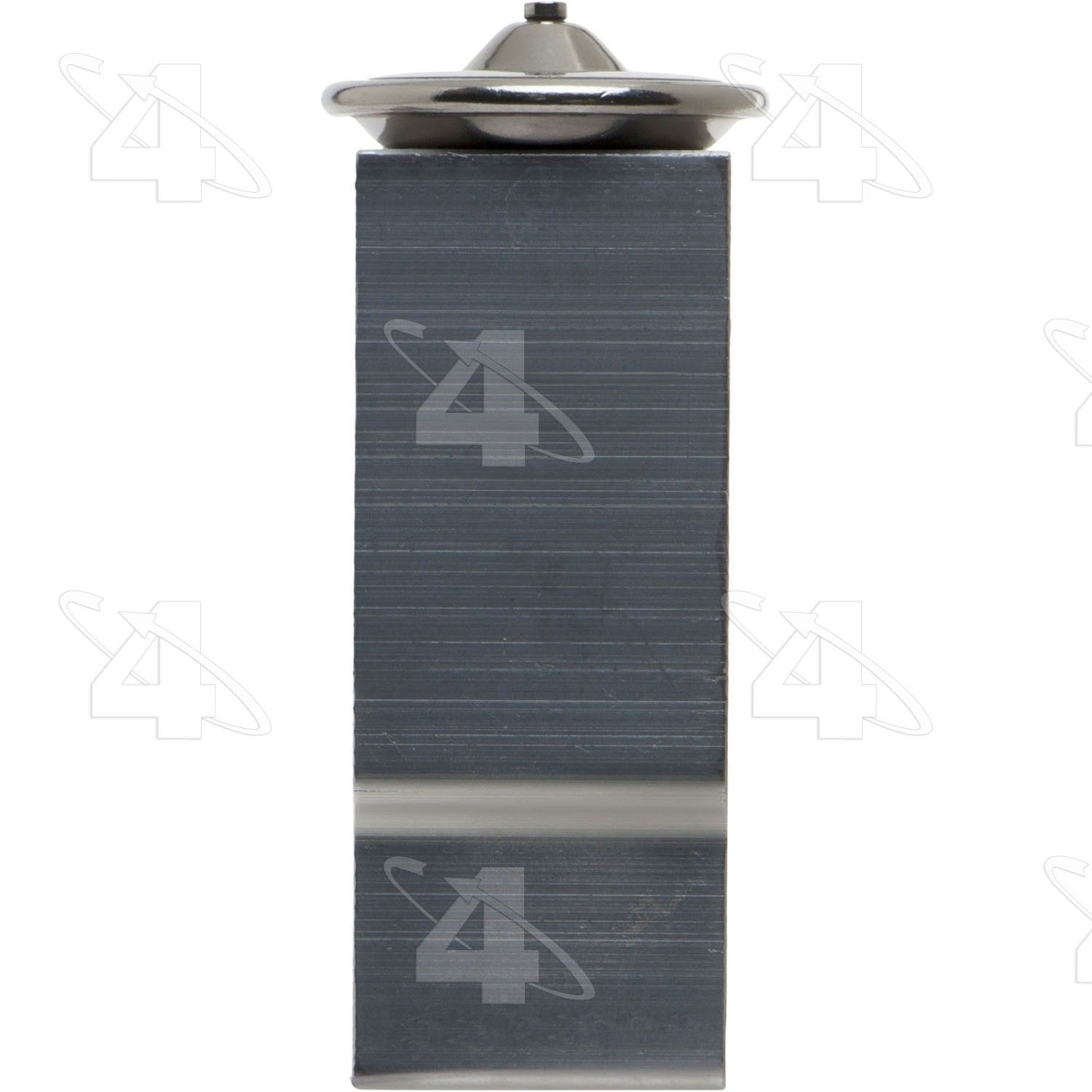

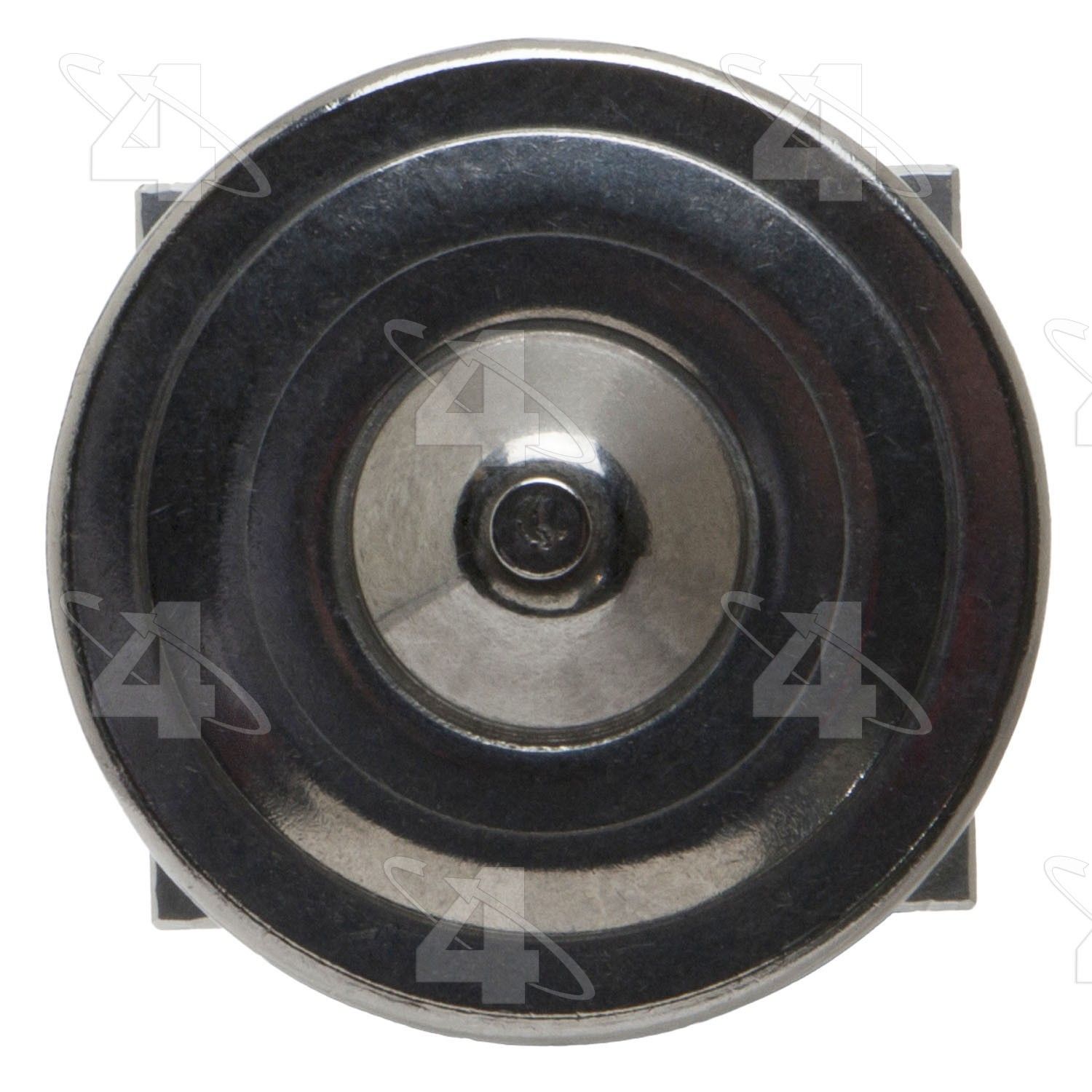

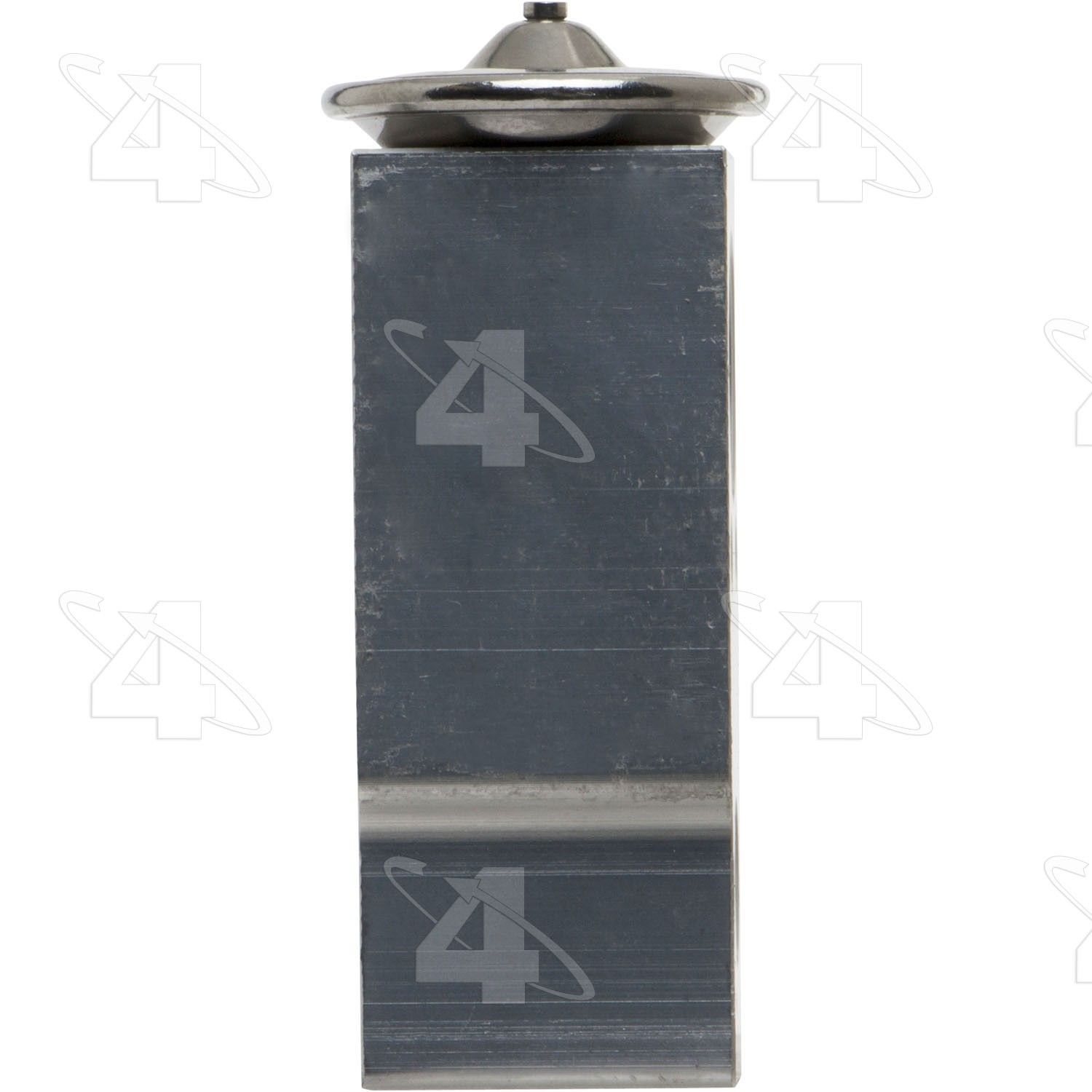

A/C Expansion Valve - Front (Four Seasons) for 2005-2016 Land Rover NEW

$ 29 .38

Product Notes

Position: Front
Expansion Valve
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.
Brand: Four Seasons
Condition: New
See All Other A/C Expansion Valves
LIFE
TIME
Lifetime Warranty Included
This part is backed by our industry-leading lifetime warranty. Shop with total confidence.
100%money-back 120-dayreturns OE-gradequality
Wrenchy the Robot

Meet Wrenchy - The Amazing Parts Assistant!

Voice or type your vehicle details and Wrenchy will confirm fitment in seconds.

Specifications & Info


Attribute Value
Color Aluminum
Description Expansion Valves
Liquid Inlet Gender Female
Liquid Inlet Size No. 6
Liquid Inlet Size IN 0.4
Liquid Inlet Size MM 10.15
Liquid Inlet Style Captured O-ring
Liquid Inlet Thread Not Threaded
Liquid Inlet Type O-ring
Liquid Outlet Gender Female
Liquid Outlet Size No. 10
Liquid Outlet Style Captured O-ring
Liquid Outlet Thread Not Threaded
Liquid Outlet Type O-ring
Lqd Out Size IN 0.61
Material Aluminum
Meets / Exceeds OEM? Yes
Mount Hole Qty 2
O Ring A Number/Desc 24611 / Green O-ring
O Ring A Quantity 1
O Ring B Number/Desc 24661 / Green O-ring
O Ring B Quantity 1
O Ring C Number/Desc 24681 / Green O-ring
O Ring C Quantity 2
Suc In Size IN 0.72
Suc In Size MM 18.3
Suc Out Gender Female
Suc Out Size IN 0.72
Suc Out Size MM 18.3
Suc Out Trd Not Threaded
Suction Inlet Gender Female
Suction Inlet Size No. 12
Suction Inlet Style Captured O-ring
Suction Inlet Thread Not Threaded
Suction Inlet Type O-ring
Suction Outlet Size No. 12
Suction Outlet Style Captured O-ring
Suction Outlet Type O-ring
Super Heat -6.000
Switch Included? Not Included
Tonnage 1.500
Type Block Type

Vehicle Fitment Guide

This part fits the following vehicles:

Land Rover 4 models (tapclick to expand)(tapclick to hide)
LR3 2005-2009 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2006 V6 4.0L 4WD Automatic
HSE SUV 2005 - 2009 V8 4.4L 4WD Automatic
HSE SUV 2005 - 2008 V8 4.4L AWD Automatic
HSE Lux SUV 2009 V8 4.4L 4WD Automatic
SE SUV 2005 - 2009 V6 4.0L 4WD Automatic
SE SUV 2005 - 2009 V8 4.4L 4WD Automatic
SE SUV 2005 - 2008 V8 4.4L AWD Automatic
LR4 2010-2016 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Base SUV 2014 - 2016 V6 3.0L Supercharged AWD Automatic
Base SUV 2011 - 2013 V8 5.0L 4WD Automatic
HSE SUV 2014 - 2016 V6 3.0L Supercharged AWD Automatic
HSE SUV 2011 - 2013 V8 5.0L AWD Automatic
HSE SUV 2010 - 2013 V8 5.0L 4WD Automatic
HSE Lux SUV 2014 - 2016 V6 3.0L Supercharged AWD Automatic
HSE Lux SUV 2012 - 2013 V8 5.0L 4WD Automatic
SE SUV 2011 - 2013 V8 5.0L AWD Automatic
SE SUV 2010 V8 5.0L 4WD Automatic
V8 SUV 2010 V8 5.0L 4WD Automatic
Range Rover 2013 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Autobiography SUV 2013 V8 5.0L AWD Automatic
Autobiography SUV 2013 V8 5.0L Supercharged AWD Automatic
Base SUV 2013 V8 5.0L AWD Automatic
HSE SUV 2013 V8 5.0L AWD Automatic
HSE SUV 2013 V8 5.0L Supercharged AWD Automatic
Supercharged SUV 2013 V8 5.0L Supercharged AWD Automatic
Vogue SE SUV 2013 V8 5.0L AWD Automatic
Vogue SE SUV 2013 V8 5.0L Supercharged AWD Automatic
Range Rover Sport 2008-2013 (tapclick to expand)(tapclick to hide)
Swipe left/right to see more info
SubmodelSUB-
MODEL		 Body Style Years Engine Attributes
Autobiography SUV 2011 - 2013 V8 5.0L Supercharged 4WD Automatic
Base SUV 2011 - 2013 V8 5.0L Supercharged AWD Automatic
Base SUV 2010 V8 5.0L Supercharged 4WD Automatic
GT Limited Edition SUV 2011, 2013 V8 5.0L 4WD Automatic
GT Limited Edition 3 SUV 2012 V8 5.0L 4WD Automatic
HSE SUV 2012 - 2013 V8 5.0L AWD Automatic
HSE SUV 2011 V8 5.0L Supercharged AWD Automatic
HSE SUV 2010 - 2013 V8 5.0L 4WD Automatic
HSE SUV 2008 - 2009 V8 4.4L 4WD Automatic
HSE SUV 2008 V8 4.4L AWD Automatic
HSE Lux SUV 2012 - 2013 V8 5.0L 4WD Automatic
LE SUV 2008 V8 4.2L Supercharged 4WD Automatic
Supercharged SUV 2010 - 2013 V8 5.0L Supercharged 4WD Automatic
Supercharged SUV 2008 - 2009 V8 4.2L Supercharged 4WD Automatic
Supercharged SUV 2008 V8 4.2L Supercharged AWD Automatic
Verify before ordering — please confirm your vehicle's year, make, model and sub-model specifications before placing your order. If anything is unclear, our customer service team is available to help.

Policies

Shipping Information

We offer fast, reliable shipping on all orders:

  • Ships to all countries via US Postal Service Priority Mail.
  • Most orders ship within 1 business day.
  • Delivery time: 1-4 business days after shipment.
  • International shipping available, including APO/FPO addresses.
  • Tracking information provided for all shipments.
  • Additional handling fees may apply for oversized/overweight packages.

Return Policy

We want you to be 100% satisfied with your purchase. That's why we offer:

  • 120-Day Returns - Return any part within 120 days from date of receipt.
  • Must obtain RMA (Return Merchandise Authorization) number before returning.
  • Parts must be in original condition, uninstalled, unaltered, and in original packaging.
  • Important: Electrical parts are not returnable if unsealed.
  • Please inspect parts upon arrival and notify us within 5 days of receiving incorrect or damaged parts.
  • Refunds processed after warehouse receives return and credited to original payment method.

Warranty

This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.

Warranty does NOT cover:

  • Shipping costs or labor expenses.
  • Installation errors.
  • Parts used for racing.
  • Commercial vehicle parts.
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Interchange Parts

Brand Part Number
Nissens 999388

Fits Years: 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016

Fits Models: LR3, LR4, Range Rover, Range Rover Sport
