| Attribute | Value |
|---|---|
| 120.00 | |
| ABS Tone Ring Included | No |
| Assy/Disassy By Qualified Personnel Required! | . |
| Balancing Type | Mill Balancing |
| Bearings Included | No |

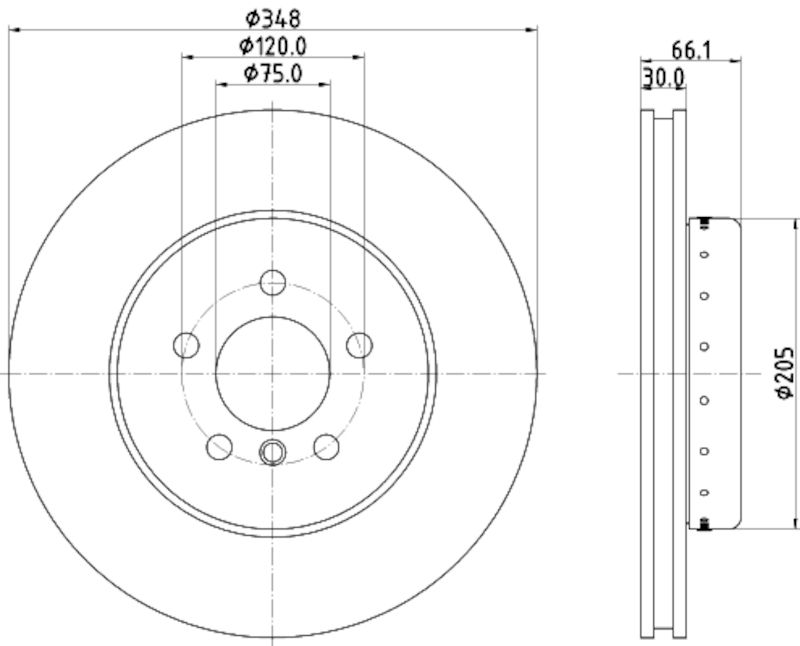

| Bolt Hole Circle Ø [in] | 4.72 |
| Bolt Hole Circle Ø [mm] | 120 |
| Bolt Hole Quantity | 6 |
| Brake Disc Thickness [in] | 1.18 |
| Brake Disc Thickness [mm] | 30 |
| Brake Disc Type | Internally Vented, Two-piece Brake Disc |
| California Proposition 65 Required | No |
| Center Hole Diameter | 114.3 |
| Centering Diameter [in] | 2.95 |
| Construction | Composite |
| Directional Or Non Directional Brake Surface | Non-directional |
| Disc Finish | Coated |
| Discard Thickness | 28.40 |
| Grade Type | Standard Replacement |
| Hat Finish | Coated |
| Hole Arrangement / Number | 05/06 |
| Hole Arrangement/Number | 05/06 |
| Inside Diameter | 75.0 |
| Machining | High-carbon |
| Material | Gray Cast Iron & Alum Hat, Gray Cast Iron & Aluminium Hat |
| Minimum Thickness [mm] | 28,4, 28.4 |
| Mounting Bolt Hole Circle Diameter | 120.00 |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 30.00 |
| Number Of Bolts/screws | 1 |
| Outer Diameter [in] | 13.70 |
| Overall Height | 66.10 |
| Rust Resistant Coating | Yes |
| Solid Or Vented Type Rotor | Vented |
| Surface | Coated |
| Surface Type | Smooth |
| Technical Information Number | 65128pro_hc |
| Weight [kg] | 10,6, 10.6 |
| Wheel Bolt Bore Diameter [mm] | 16.5 |
| Wheel Bolt Bore Ø [mm] | 16.5 |
This part fits the following vehicles:
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2014 - 2016 | L6 3.0L DIESEL Turbo | RWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2014 - 2016 | L6 3.0L DIESEL Turbo | AWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2011 - 2016 | L6 3.0L Turbo | RWD Automatic & Manual |
| Gran Turismo | Hatchback | 2011 - 2016 | L6 3.0L Turbo | RWD Automatic |
| Lujo | Sedan | 2013 | L6 3.0L Turbo | RWD Automatic |
| Luxury | Sedan | 2014 - 2016 | L6 3.0L Turbo | RWD Automatic |
| M Sport | Sedan | 2013 - 2016 | L6 3.0L Turbo | RWD Automatic |
| Top | Sedan | 2013 | L6 3.0L Turbo | RWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2011 - 2016 | L6 3.0L Turbo | AWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Convertible | 2012 - 2018 | L6 3.0L Turbo | RWD Automatic |
| Base | Coupe | 2012 - 2018 | L6 3.0L Turbo | RWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2013 - 2019 | L6 3.0L Turbo | RWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Convertible | 2014 - 2018 | L6 3.0L Turbo | AWD Automatic |
| Base | Coupe | 2014 - 2018 | L6 3.0L Turbo | AWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2014 - 2019 | L6 3.0L Turbo | AWD Automatic |
| SubmodelSUB- MODEL |
Body Style | Years | Engine | Attributes |
|---|---|---|---|---|
| Base | Sedan | 2012 - 2016 | L6 3.0L FULL HYBRID EV-GAS (FHEV) Turbo | RWD Automatic |
| M Sport | Sedan | 2014 - 2015 | L6 3.0L FULL HYBRID EV-GAS (FHEV) Turbo | RWD Automatic |
We offer fast, reliable shipping on all orders:
We want you to be 100% satisfied with your purchase. That's why we offer:
This part comes with a limited lifetime warranty. Warranty begins on the original purchase date.
Warranty does NOT cover:
| Brand | Part Number |
|---|---|
| AP | 25519Z |
| ATE | 24013002182 |
| Bendix | 521712 |
| Bendix | BR9662EURO |
| Blue Print | ADB114384 |
| BMW | 34 41 6 430 301 |
| BMW | 34 41 6 527 277 |
| BMW | 34116793125 |
| BMW | 34116884301 |
| BMW | 6 775 277 |
| BMW | 6 793 125 |
| BMW | 6 884 301 |
| Borg & Beck | BBD6041S |
| Bosch | 0986479772 |
| Bosch | 0986479E16 |
| Brake Engineering | DI956896S |
| Brembo | 09C40913 |
| Cifam | 8001268C |
| Delphi | BG9154BC |
| Delphi | BG9154C |
| Dynamic Friction Company | 600-31097 |
| Dynamic Friction Company | 604-31097 |
| Dynamic Friction Company | 900-31097 |
| Dynamic Friction Company | 900-31097A |
| Febi-Bilstein | 105723 |
| Ferodo | DDF2047C1 |
| FREMAX BRAKE ROTORS AND DRUMS | BD3554 |
| FTE | BS7845HB |
| Girling | 6066155 |
| Hella Pagid | 65128PROHC |
| Hella Pagid | 8DD355120651 |
| Japan Parts | DI0131C |
| Jurid | 562679JC |
| Jurid | 562679JC1 |
| LPR | B2070V |
| LPR | B2070VBR |
| METELLI | 231268C |
| Mintex | MDCB2582 |
| NK Autoparts | 3415122 |
| NK Autoparts | 341593 |
| Optimal | BS9318 |
| Optimal | BS9318HC |
| PAGID Racing | 65128 |
| PAGID Racing | 65128HC |
| Pilenga | V475B1 |
| Remsa | 6184210 |
| SBS | 1815341593 |
| Textar | 92265725 |
| Textar | 98200265701 |
| TRW | DF6615S |
| VAICO | V2080088 |
| Zimmermann | 150348320 |
| Zimmermann | 150348332 |
| Zimmermann | 150348352 |
Fits Years: 2011 2012 2013 2014 2015 2016 2017 2018 2019
Fits Models: 535d, 535d xDrive, 535i, 535i xDrive, 640i, 640i Gran Coupe, 640i xDrive, 640i xDrive Gran Coupe, ActiveHybrid 5
