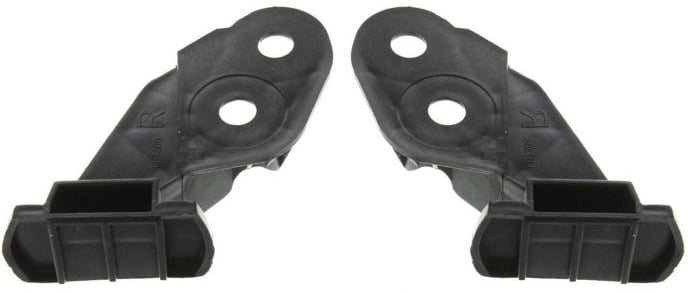

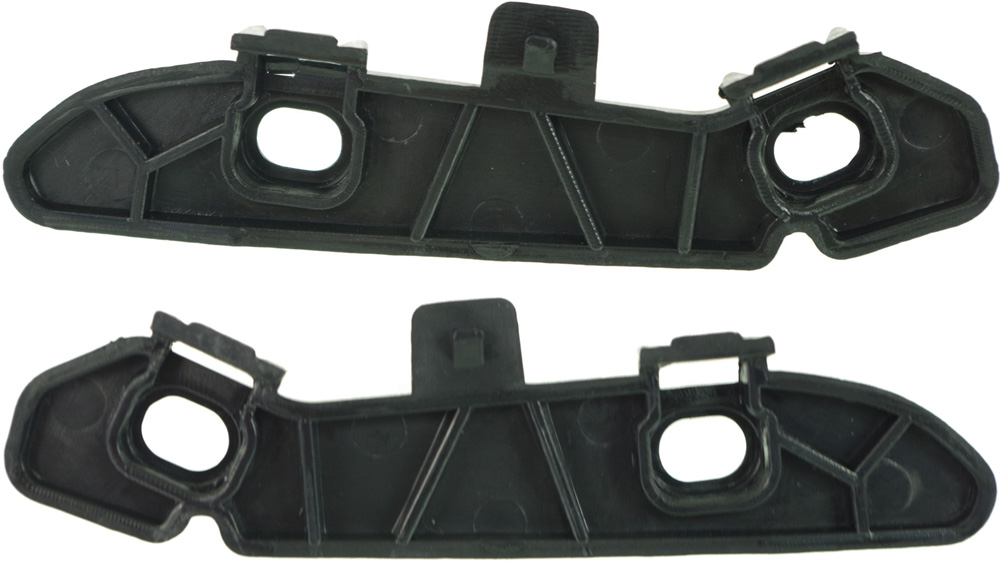

The BMW 328i bumper bracket-also called a bumper mounting bracket, support brace, guide rail, or bumper retainer-is the small but sturdy piece that anchors the plastic bumper cover to the body shell so it lines up straight, absorbs low-speed bumps, and keeps safety gear like crash sensors working as designed. This long guide dives deep into what it does, the materials it's made from, how to spot trouble, and how to swap it out safely.

Overview

Modern 3-Series cars (E90/E92/E93 2006-2013 and F30/F31 2012-2018) use two front and two rear brackets that slip into "guides" molded into the bumper cover; bolts or Torx screws pull the bracket tight at about 30 Nm plus a 90° turn on most years (Bimmerpost). A snug bracket keeps the bumper cover from flapping at highway speed and transfers light impacts to the crash boxes behind the bumper beam, cutting repair bills.

Compatibility

BMW lists different bracket part numbers by chassis, but the job is identical:

← scroll table horizontally →

*(Verify with a VIN lookup at RealOEM before ordering.) (realoem.com)

Function

A bumper bracket's three main jobs are:

1. Positioning - guides the painted cover into the perfect gap so headlights, fenders, and trunk lines look even. (E90Post)
2. Energy Path - directs fender-bender forces into steel crash boxes and the bumper beam, protecting expensive sheet-metal. (I-CAR RTS)
3. Sensor Support - keeps parking sensors and pedestrian impact triggers at the right angle for accurate readings. (newTIS)

Construction

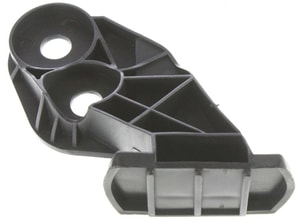

Most BMW brackets are glass-fiber-reinforced plastic; a few older models used stamped steel. Plastic saves weight and is easier to shape for tight panel gaps, while still flexing to absorb hits. Modern plastics also resist corrosion far better than steel brackets. (Bumper Buddies, PubMed Central)

Materials Science

Car makers keep improving bumper systems:

• Advanced High-Strength Steel (AHSS) beams behind the bracket can hit 1,200-2,000 MPa tensile strength, trimming weight 10-15 % without losing crash performance. (American Iron and Steel Institute)
• Composite Energy Absorbers crush once and are replaced after impact to maintain crash timing. (I-CAR RTS)
• Future Designs mix aluminum, carbon fiber, and smart polymers for even higher energy absorption. (PubMed Central)
• Steel maker SSAB notes AHSS is now the go-to choice for bumper reinforcement beams worldwide. (SSAB)

Safety Rules

U.S. law (49 CFR §581) sets bumper impact standards aimed at damage-reduction in low-speed crashes. (Crash Stats) An upcoming NHTSA star-rating update will add pedestrian protection to crash tests starting with the 2026 model year. (AP News)

When to Inspect

Look for these red flags every oil change or after a fender-bender:

• Bumper sits uneven or gaps change day-to-day
• Rattling or squeaks over bumps
• Visible cracks, missing clips, or white stress marks on the bracket
• Parking sensors pointing off-angle

Even minor parking-lot scrapes can snap the guide rails hidden behind the cover. (E90Post)

DIY Removal

BMW's service manual shows bumper cover removal in under 30 minutes with a trim tool, T25 Torx, 8 mm and 10 mm sockets: (newTIS, E90Post)

1. Unclip wheel-arch liners and under-tray screws.
2. Pop cover away from the brackets with gentle outward pressure.
3. Slide the cover forward; unplug fog-light or PDC harness.
4. Remove three bracket bolts; transfer bracket to new cover if needed.
5. Re-install, tightening bracket bolts to 30 Nm + 90°.

A video walk-through for a 328i shows each step clearly. (Watch on YouTube)

Care Tips

• Wash winter salt off wheel wells to prevent clip corrosion.
• Check bolt torque after any bodywork.
• Replace brackets-not straighten them-if cracked; plastic loses strength once deformed. (I-CAR RTS)

Related Parts

Replacing a bracket is a smart time to inspect:

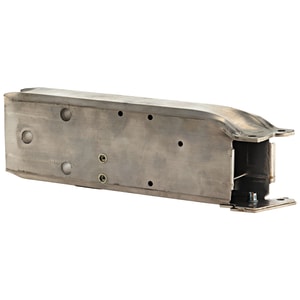

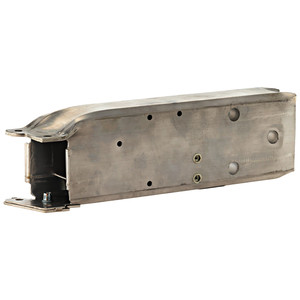

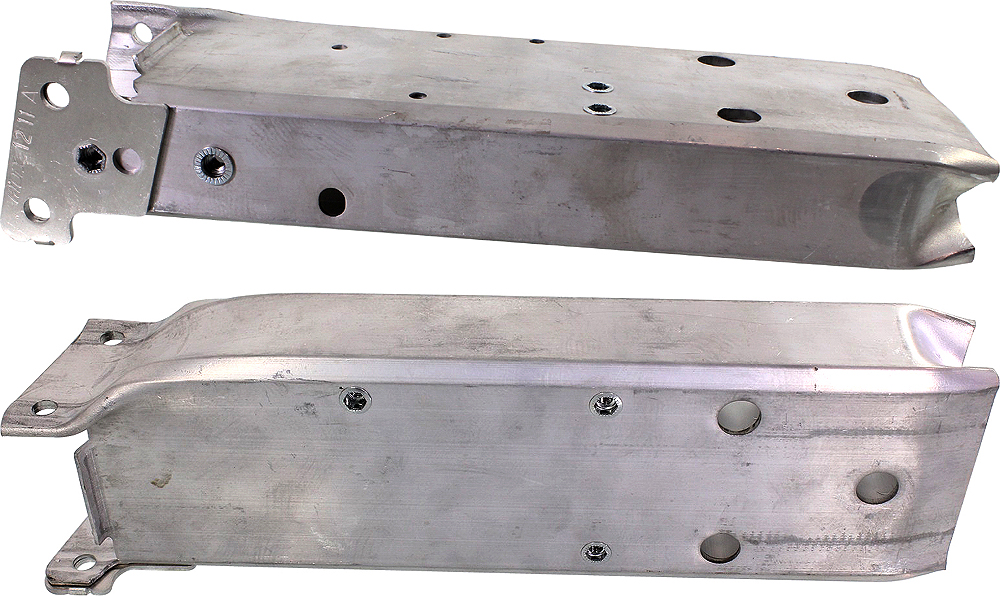

• Crash boxes (also called crush cans)
• Impact beam (bumper reinforcement)
• Wheel-arch liners
• Under-tray fasteners
• Parking sensors & wiring

Damaged supporting parts can shorten bracket life or skew alignment.

Frequently Asked Questions

Q: What exactly is a bumper bracket?
A: It's a small mounting brace that locks the bumper cover to the car's body so it stays straight and can absorb little bumps.

Q: Does a loose bumper always mean the bracket is broken?
A: Not always, but uneven gaps or rattles usually point to a cracked bracket or missing clip.

Q: Can I drive if the bracket is cracked?
A: You can, but the bumper may sag or detach at speed; fix it soon to avoid bigger bills.

Q: What tools do I need to swap it?
A: A plastic trim tool, 8 mm & 10 mm sockets, a Torx T25 bit, a ratchet, and a torque wrench.

Q: Are brackets side-specific?
A: Yes-left and right pieces mirror each other; check part numbers.

Q: Steel vs. plastic-what's better?
A: Plastic resists rust and flexes to absorb energy; steel is tougher but heavier.

Q: How tight should the bolts be?
A: BMW service data lists 30 Nm plus a quarter-turn on most F30/E90 brackets.

Q: Will aftermarket bumpers fit OEM brackets?
A: If molded to OEM specs they should, but cheap kits may need sanding or extra shims.

Q: Do brackets affect crash sensors?
A: Yes, crooked brackets can mis-aim parking sensors and alter crash-box timing.

Q: Should I replace both brackets together?
A: If one cracked due to impact, the opposite side likely took stress-replacing both is cheap insurance.

Helpful Links

• BMW Technical Information System (TIS) - front bumper support procedure
• NHTSA bumper standard PDF
• I-CAR article on bumper energy absorbers
• SSAB Advanced High-Strength Steel for bumpers

These resources let you dig deeper into specs, safety guidelines, and the latest material tech.
