Overview

BMW 535i headlights-also called headlamps, front lamps, or light assemblies-vary by model year but all share one job: giving you a bright, safe beam while keeping on-coming drivers comfortable. Earlier 535i sedans used basic halogen bulbs, later cars switched to high-intensity-discharge (HID xenon) projectors, and the newest versions add full LEDs or even BMW's laser-boosted system. These lights can swivel with the steering, dim themselves for traffic, and throw light hundreds of feet down the road. Knowing how they work, how to care for them, and what the rules say helps you pick the right replacement and keep your car legal and bright. (bmw.com)

New Section:

Fitment Years

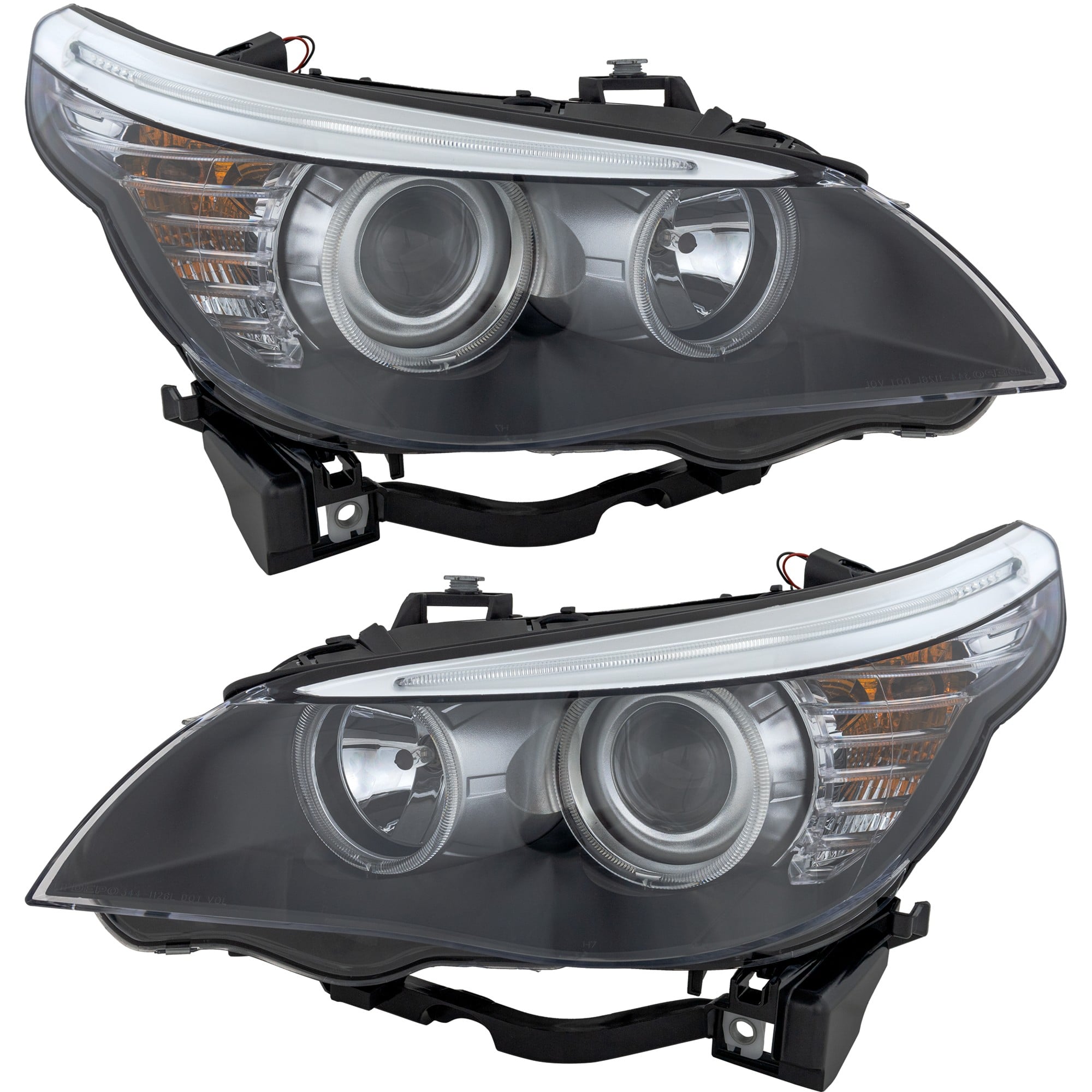

• E60 (2004-2010) - Halogen H7 or optional bi-xenon D2S projectors with adaptive swivel on later cars. (Bimmerfest)

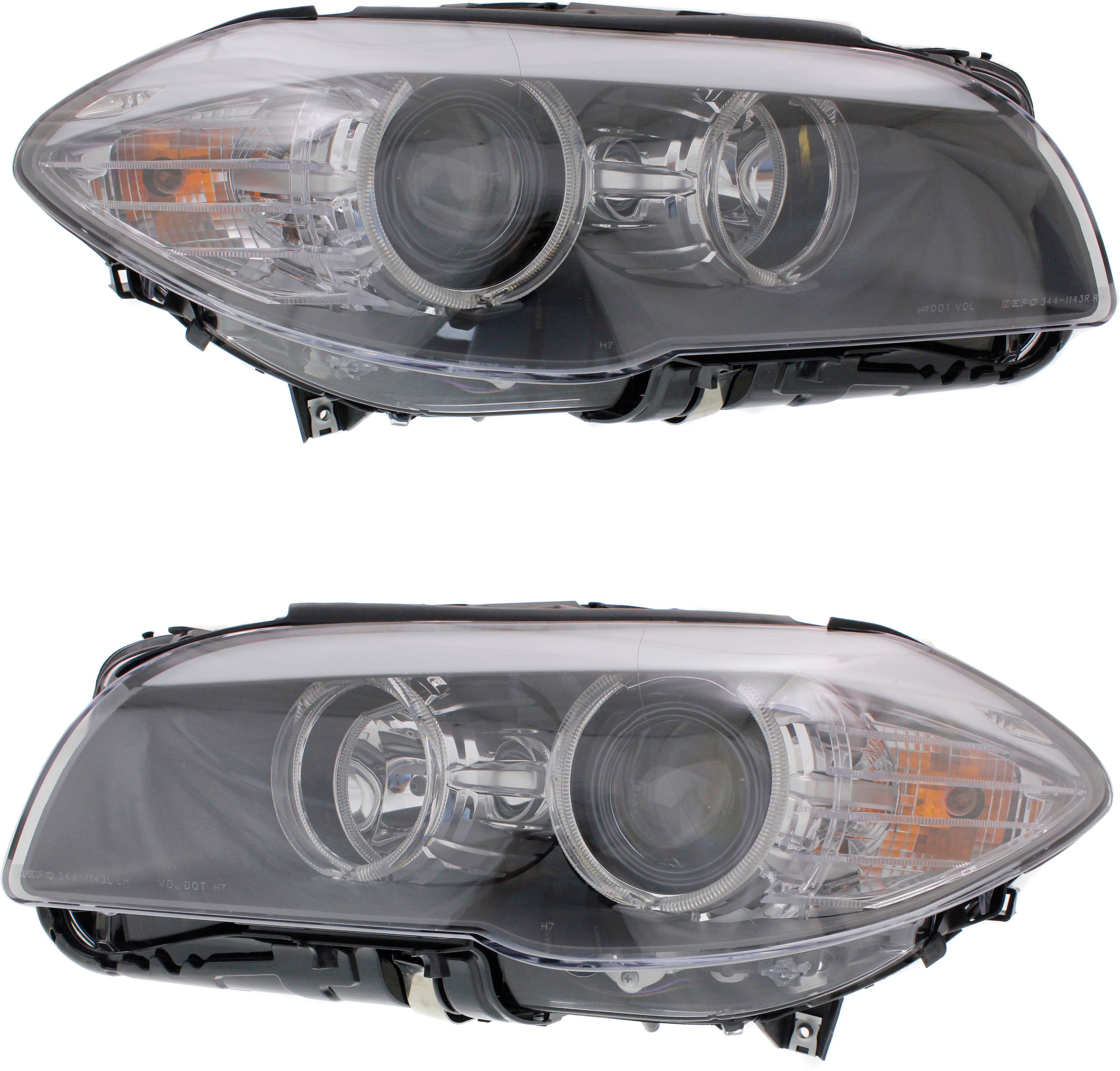

• F10/F11 (2011-2016) - Standard HID D1S bi-xenon; many cars add adaptive cornering and LED daytime running lights. (bmw.com)
• G30 (2017-on, replaces 535i with 540i) - All-LED headlights or BMW Laserlight pack (650 m high-beam reach). (bmw.com)

New Section:

Light Sources

← scroll table horizontally →

New Section:

Smart Features

• Adaptive Headlights (AHL) - Motors pivot the projector up to 15° into a curve. (Bimmerfest)
• Cornering Lamps - Extra H7 bulb lights tight turns at low speed.
• High-Beam Assistant - Camera sees traffic up to 700 m and dips the beam automatically. (bmw.com)
• Selective Beam / Anti-Glare - LED modules block portions of the beam to spare other drivers.

New Section:

Bulb & Socket Guide

• 2004-2010 low beam - H7 halogen or D2S xenon. (Bimmerfest)
• 2011-2013 low/high beam - D1S bi-xenon.
• Fog lamps (F10) - H8 halogen.
  Tip: Always match the exact bulb code stamped on your lamp cap to avoid overheating or warning lights.

New Section:

Care & Cleaning

• Keep lenses clear. UV, road grit, and salt cloud the plastic. Wet-sand or use a headlight-restoration kit to recover clarity.
• Prevent condensation. Remove the lamp, blow warm air inside, grease the rubber caps, check vents. (Reddit)
• Aim correctly. Park 25 ft from a wall, mark the cutoff, and turn the 6 mm adjuster screws slowly. (Popular Mechanics, Bimmerfest)

New Section:

Common Problems

← scroll table horizontally →

New Section:

Upgrade Paths

• Halogen → OEM Xenon - Requires projector housings, ballasts, and coding; halogen reflectors scatter HID glare. (Bimmerfest)
• Xenon → LED retrofit - LED kits run cooler and last longer but must fit D-shaped sockets and stay within FMVSS 108 rules. (Car and Driver, NHTSA)
• Anti-glare tips - Choose bulbs with 4300-5000 K color to cut blue glare and eye strain at night. (Vox, Popular Mechanics)

New Section:

Rules & Safety

U.S. Federal Motor Vehicle Safety Standard 108 sets photometric limits and requires vertical-aim adjusters but bans user-adjustable horizontal screws. (NHTSA, NHTSA) Drivers should re-aim after every lamp change; even a ½-degree error can blind on-coming traffic. (Popular Mechanics)

New Section:

Installation Steps

1. Disconnect battery. HID systems hold high voltage.
2. Remove bumper screws to slide the lamp out on E60 and F10 models.
3. Swap bulb or full lamp. Do not touch glass; wear gloves. (Popular Mechanics)
4. Code module if you replaced the whole assembly so the car knows the new lamp's type. (Bimmerfest)
5. Aim beam against a wall, then road-test in the dark. (Popular Mechanics)

New Section:

Q: What's the difference between xenon and LED in a 535i?
A: Xenon HID bulbs make more light with less power than halogen, but LEDs last even longer and switch on instantly while using even less energy. (Car and Driver, Car and Driver)

Q: How long do xenon bulbs last?
A: About 2,000 hours-roughly twice a halogen bulb's life. When one fades pink or flickers, replace both sides.

Q: Can I upgrade my halogen 2007 535i to HID?
A: Yes, but you must install projector housings and ballasts and have the car coded; plugging an HID bulb into a halogen reflector is unsafe and illegal. (NHTSA)

Q: What causes moisture inside the lamp?
A: A loose rear cap or blocked vent lets humid air in. Dry it with warm air, reseal, and test for leaks with soapy water. (Reddit)

Q: How do I aim my lights?
A: Park 25 ft (7.6 m) from a wall on level ground, mark bulb center height, then turn the 6 mm adjuster until the cutoff lines sit just below the tape. (Popular Mechanics, Bimmerfest)

Q: Why do some 5-Series lights look blue?
A: Higher-kelvin HID or LED bulbs shift toward blue-white, which can seem brighter but may create more glare. (Vox)

Q: Do I need to code after replacing a full lamp?
A: Yes. New adaptive, LED, or xenon units need the car's control module to learn the serial number so all features work and errors disappear. (Bimmerfest)

Q: How often should I polish the lens?
A: Apply a UV-blocking sealant two or three times a year to stop yellowing.

Q: Is laser light available on my 535i?
A: Laser high-beam arrived on the later G30 5-Series, not on E60 or F10 535i models. (bmw.com)

Q: Which fuse controls the headlamp?
A: On an F10 it's fuse F20 (left) and F21 (right) in the rear power-distribution box; check your cover diagram. (YouTube)

New Section:

Key Takeaways

• Match bulb codes exactly to avoid error lights.
• Clean, aim, and seal lenses regularly for best vision.
• Follow FMVSS 108 rules when upgrading to HID or LED.
• Replace lights in pairs-brightness drops with age.
• Adaptive and high-beam assist systems improve night safety when calibrated.

A well-maintained BMW 535i headlight-or headlamp, beam, or front lamp-keeps you safer, helps others see you, and lets your 5-Series shine the way its engineers intended.
