Key Points

BMW 540i headlights-also called headlamps, front lights, or lamp assemblies-vary by model year. Early E39 cars (1997-2003) use easy-to-replace halogen or xenon bulbs, while modern G30 sedans (2017-present) come with sealed LED units and optional Laserlight that can illuminate up to roughly half a mile ahead. Daily care, correct aim, and moisture control keep any 5 Series lighting system bright and legal.

Part Basics

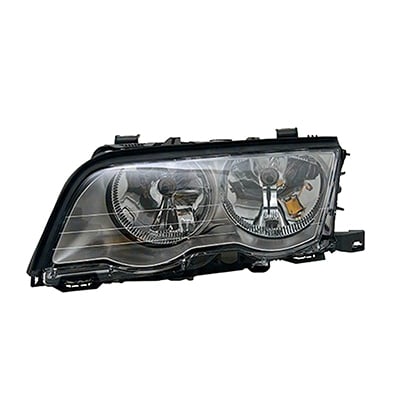

A headlight is the primary forward-facing light on a vehicle. It lets you see the road at night and helps other drivers spot you. The BMW 540i uses twin headlamp housings-one on each side-containing:

• Low beam for normal driving
• High beam for extra reach
• Daytime running lamps (DRL) for visibility in daylight
• Turn-signal and position lights integrated into the same housing on later models

When any element fails, replace or service the entire assembly or the specific bulb/module to restore safe light output.

Generation Overview

← scroll table horizontally →

Fitment & Compatibility

• E39 chassis (1997-2003) headlights interchange across 525i, 528i, 530i, and 540i if the bumper matches. Halogen cars can accept OEM xenon housings after recoding the light module.
• G30 chassis (2017-present) uses three trim levels: base LED, Adaptive LED with cornering and matrix high beam, and optional BMW Laserlight. Housing shape is identical, but internal coding ties each lamp to the car's VIN, so replacements must be programmed after installation.

Bulbs & Tech

Halogen

Early 540i lights use 55-watt H7 halogen capsules for both low and high beams. These are affordable and easy to swap.

Xenon HID

Facelift E39 models upgraded to D2S 35-watt xenon burners with separate ballasts. HID produces about twice the light of halogen while drawing less power.

LED & Matrix

G30 LED headlights bundle many light-emitting diodes behind a single projector lens. Adaptive control steers the beam into corners and blocks glare for on-coming traffic. (Kbb.com)

BMW Laserlight

An extra laser module focuses blue laser beams onto a phosphor plate, creating very bright white light that travels up to 600 m yet uses 30 % less energy than LED alone.

Common Problems

1. Moisture / condensation inside the lens reduces brightness and can corrode electronics.
2. Burned-out halogen bulbs every 400-600 hours; carry spares.
3. HID ballast failure causing flicker or color shift.
4. LED module overheating, often due to blocked cooling fins.
5. Aiming motors in adaptive units sticking after minor impacts.

Replacement Steps

Always disconnect the battery before working on lighting.

Halogen or HID Bulb (E39 example)

1. Remove rear headlamp cap.
2. Twist the retaining ring and pull the bulb straight out.
3. Insert the new H7 or D2S capsule without touching the glass.
4. Refit ring and cap. Total time ≈15 min per side.

LED Module (G30)

1. Turn wheels outward for access behind the fender liner.
2. Remove Torx screws and pull the liner back.
3. Unplug the LED driver, then slide out the module.
4. Transfer the gasket, install the new unit, and clear bulb-fault codes with a scan tool.

Safety & Law

• U.S. Federal law (FMVSS 108) limits vertical aim to within ±3 inches over 25 ft-roughly ±1.2°.
• Horizontal aim may not be user-adjustable unless a certified device (VHAD) is present.
• Adaptive Driving Beam systems must still pass table-based photometry rules added in 2024.
• Check the NHTSA recall lookup before buying or installing any lamp.

Headlight adjustment is a DIY job: park 25 ft from a wall, measure center height, and turn the white gear screws until the cutoff sits 2 inches below that line.

Upgrades & Mods

• Clear-lens projectors improve halogen beam sharpness on E39 models.

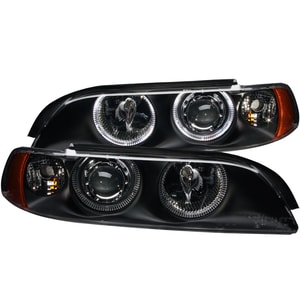

• Plug-and-play LED angel-eye boards add color-change DRLs.
• Coding tools (e.g., BimmerCode) unlock adaptive cornering on G30 base LED lamps.
• Laserlight retrofit is technically possible but costly because housings, control units, and windshield-mounted cameras must all match.

For detailed specs and wiring diagrams see the official BMW Technical Information System or the 5 Series Owner's Manuals.

Care Tips

• Wash lenses weekly with pH-balanced soap to prevent haze.
• Apply UV-resistant sealant twice a year to polycarbonate covers.
• Inspect rubber caps for cracks that let moisture in.
• Run the Automatic High-Beam Assistant only after headlights are aimed correctly to avoid dazzling others.

Frequently Asked Questions

Q: What bulb fits a 1999 BMW 540i low beam?
A: An H7 55-watt halogen bulb fits the stock housing; facelift cars with xenon use a D2S HID capsule instead.

Q: Do new 540i sedans use LED headlights?
A: Yes. All G30 540i models have full LED headlights, and Adaptive LED became standard for 2021. (Kbb.com, Kbb.com)

Q: What is BMW Laserlight and can I get it on a 540i?
A: Laserlight adds a laser module for high beam, doubling effective range to about 600 m; it is an optional package on many 2021-present 540i models.

Q: How often should halogen bulbs be replaced?
A: Expect 400-600 hours of use-roughly every 2-3 years for most drivers.

Q: My headlamp fogs up. Is it bad?
A: Light mist is normal, but heavy condensation means a seal leak; dry it with gentle heat and reseal the cap.

Q: Are aftermarket LED bulbs legal in halogen housings?
A: In the U.S., replacements must meet FMVSS 108 photometry rules; many drop-in LEDs do not, so check for DOT compliance marks.

Q: How do I aim my headlights after lowering the car?
A: Park 25 ft from a wall and turn the adjusters until the low-beam cutoff sits 2 inches below headlamp center height.

Q: Does moisture inside cause bulb failure?
A: Yes; water can short HID ballasts or corrode LED boards, so fix leaks quickly.

Q: Can I retrofit adaptive cornering to my base LED 540i?
A: Software coding enables the motors, but you'll need lamps with the stepper hardware already installed.

Q: What tools do I need to change a G30 LED module?
A: Torx T20 driver, plastic pry tool, and a scan tool to clear faults.

Q: Is there a recall on 540i headlights?
A: None active as of May 2025, but always confirm with the VIN at the NHTSA recall site.

Q: Will a Laserlight upgrade void warranty?
A: Factory-installed Laserlight is covered; aftermarket retrofits are not and could affect warranty claims.

For deeper technical material, consult the free FMVSS 108 text in the U.S. Code of Federal Regulations or BMW's official repair manuals. Keeping your BMW 540i headlights clean, correctly aimed, and up to date ensures safe night driving and legal compliance.
