Buy BMW ActiveHybrid 5 Headlight Assembly

Quick Summary

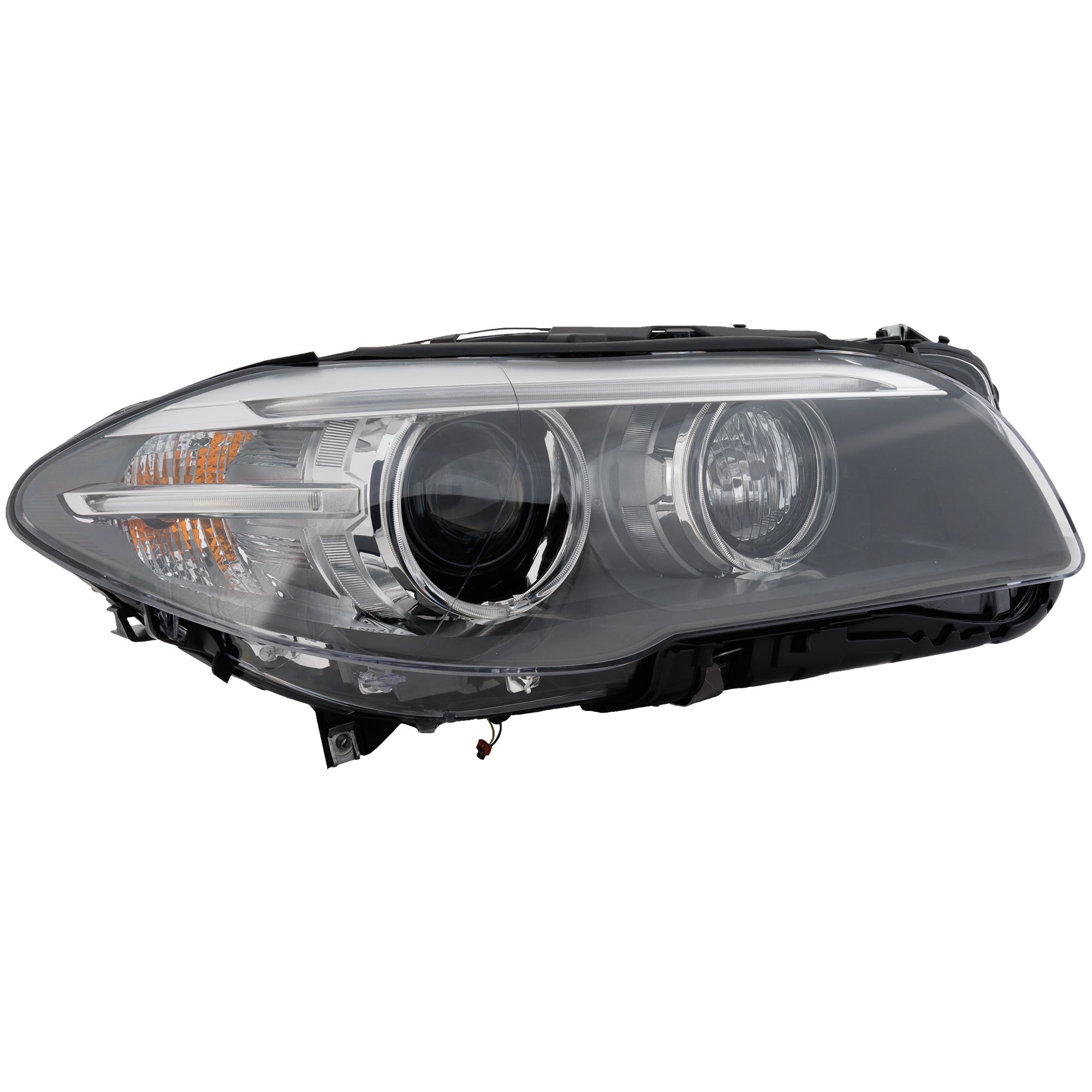

The BMW ActiveHybrid 5 headlight-also called the headlamp, front light, or projector lamp-uses a factory D1S high-intensity-discharge (HID) bulb in a self-leveling, adaptive housing on most 2012-2016 cars. It can swivel with the steering, auto-level under load, and dims itself for oncoming traffic. Because the lamp is part of the hybrid sedan's complex electrical network, common tasks such as bulb swaps, moisture control, or module resets must follow BMW and Federal Motor Vehicle Safety Standard (FMVSS) rules.

Key Features

• Adaptive xenon system pivots the low-beam up to 15° into a bend and levels itself for braking or cargo weight. (BMW Group PressClub)
• Optional automatic high-beam assistant toggles between high and low beams when sensors "see" traffic.
• Signature "angel-eye" LED corona rings double as daytime running lights and position lights.
• A washer jet pops out of the bumper every seventh windshield-wash cycle to clear road grime from the lens. (NHTSA Static)

See the official BMW press kit for an overview of hybrid technology.

Bulb & Module Specs

← scroll table horizontally →

The owner's manual VIN lookup lists exact bulb codes for each build month. Check yours here.

For a quick reference list of every interior and exterior lamp on the ActiveHybrid 5, StartMyCar maintains a handy chart. (StartMyCar)

Adaptive Lighting Tech

BMW's adaptive system bends light with a small electric motor. A short demo video shows the beam sweeping as the steering wheel turns. (YouTube)

• Why it matters: Studies by the U.S. Department of Transportation found 90 % of driver reaction time is spent simply detecting hazards; corner-tracking light shortens that delay at night.
• Regulation: FMVSS 108 demands distinct upper and lower beams and limits glare; current rule-making is adding language for adaptive-driving-beam (ADB) systems. (Federal Register)

Common Problems

1. Condensation or fog inside the lens - Often caused by a damaged rear cap or worn butyl seal. Dry with a hair dryer, then re-seal. (YouTube)
2. "Adaptive headlight failure" warning - Usually a burned-out angel-eye LED or a failed TMS module; swapping left/right units can confirm. (PistonHeads)
3. Intermittent flicker - Indicates an aging xenon capsule or a ballast losing voltage regulation. (Bimmerfest)
4. Exterior-lighting recall (rear reflectors) - 2013 models were recalled because the rear reflex reflectors did not meet FMVSS photometry. (The Center for Auto Safety)

Owners can view open campaigns on the NHTSA vehicle page.

Maintenance Tips

• Bulb swap without removing the bumper: turn the front wheels in, pull the fender liner back, twist off the hatch, and release the spring clip. A short DIY video walks through each step. (YouTube)
• Level-sensor check: If both beams aim too high or low, inspect the ride-height link rods on the control arms-broken plastic ends are common after pothole hits.
• Battery safety: Disconnect the 12 V negative post in the trunk; the hybrid's high-voltage system is isolated from the headlamp circuit.

Safety Rules

• FMVSS 108 sets beam intensity points and places headlamps 22-54 inches off the ground and symmetrically wide. (Federal Register)
• The IIHS rates headlights for real-world visibility; 2019 5-Series LED projectors scored "M" (moderate) mainly for short low-beam reach on right curves. (IIHS)
• Always aim lights on level ground 25 ft from a wall; the top of the cutoff should sit just below headlight height to avoid glare.

Eco & Efficiency

Because xenon bulbs draw only 35 W versus 55 W for halogen, the hybrid's electric motor needs less alternator load, saving roughly 15 W of engine drag at night. The car can also drive in "coasting" mode with the gas engine off up to 100 km/h, so efficient lighting helps stretch battery range. (BMW Group PressClub)

Upgrade Paths

• LED retrofit capsules that keep the factory projector and ballast (legal only if they meet FMVSS intensity).
• Clear-lens projectors for sharper cutoff; requires opening the housing in an oven and resealing.
• Coding tweaks with BMW ISTA or third-party apps to enable welcome-light fades or increase angel-eye brightness.

Note: Any change that alters beam pattern must still satisfy FMVSS 108 photometry. (Federal Register)

Related Components

• Light switch/LCM: Sends CAN-bus commands to the adaptive module.
• Rain/light sensor: Triggers auto headlights; gel leaks can cause false head-up-display dimming. (The Center for Auto Safety)

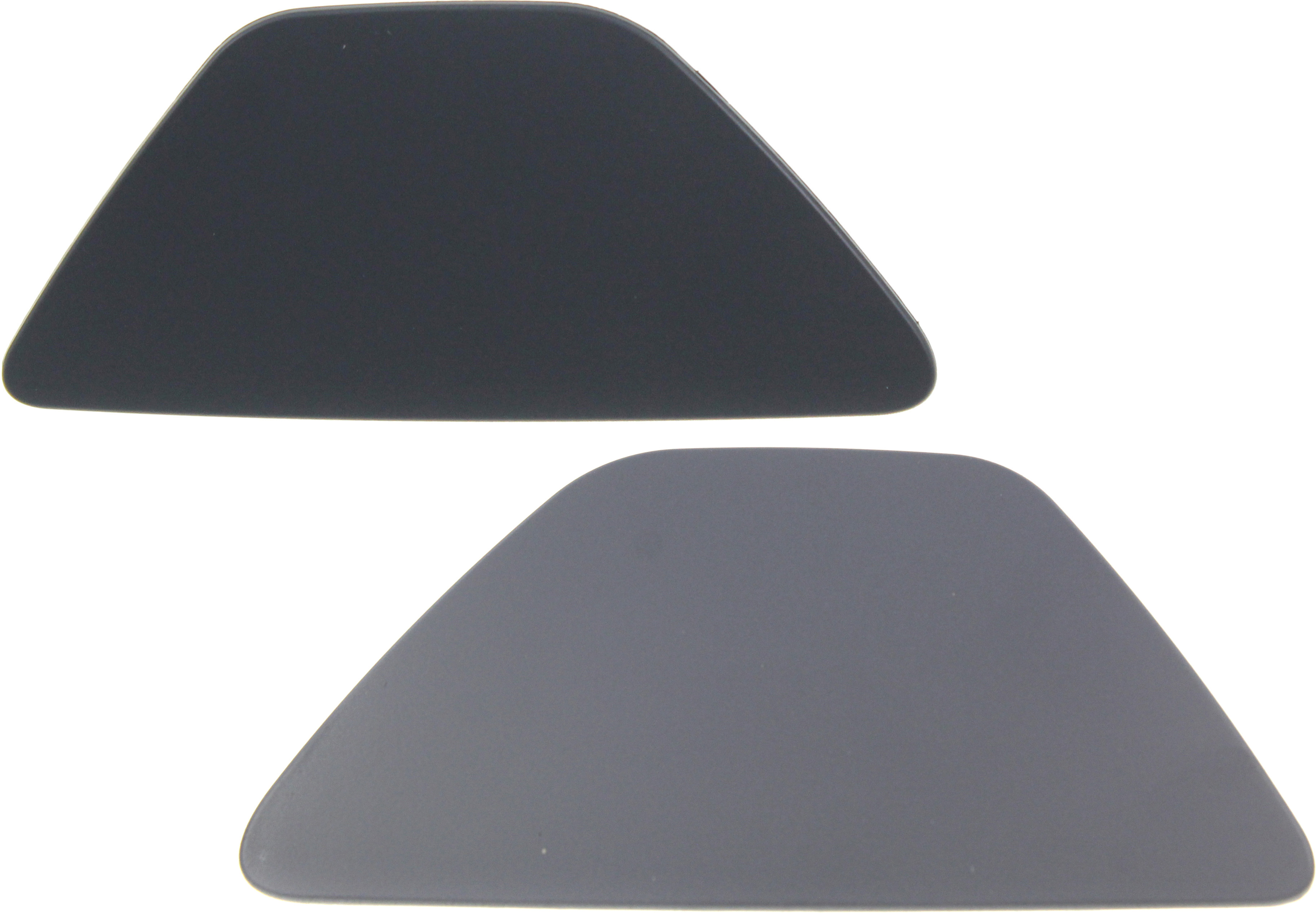

• Washer covers & jets: Keep the lens clear; sticking covers have a simple warranty fix. (NHTSA Static)

Frequently Asked Questions

Q: What bulb does the ActiveHybrid 5 use for the main beam?
A: A D1S 35-watt xenon (HID) capsule sits in each projector. (Bimmerforums.com)

Q: Can I swap to LED or laser headlights?
A: Only if the retrofit meets FMVSS 108 beam rules and local inspection laws. Always aim and test after any swap. (Federal Register)

Q: Why do I see a yellow "adaptive headlight" warning?
A: The system detected a stuck leveling motor, failed TMS LED driver, or alignment fault; a scan tool will show the exact code. (PistonHeads)

Q: My headlamp is foggy-will it damage electronics?
A: Light mist usually clears when the lamp heats; heavy water can short the ballast. Dry it soon and reseal the housing. (YouTube)

Q: How hard is a DIY bulb change?
A: Moderate; you remove a fender-liner hatch, release a spring, and unplug the bulb-about 15 minutes per side. Watch this step-by-step clip. (YouTube)

Q: Do adaptive lights help safety?
A: Yes-moving beams light the path sooner, and IIHS studies show lower crash risk when headlight visibility scores improve. (IIHS)

Q: Is there a recall for these headlights?
A: BMW issued a recall for rear reflectors, not the headlamp itself, on 2013 models; still check your VIN for any open actions. (The Center for Auto Safety)

Q: What is the washer nozzle for?
A: High-pressure jets clear dirt so the projector stays bright; cloudy lenses cut HID output by up to 30 %. (NHTSA Static)

Q: Can a weak 12 V battery cause flicker?
A: Yes-the ballast needs a steady 9-16 V. Low system voltage makes xenon arcs unstable.

Q: How do I reset the adaptive module after repair?
A: Use the "Headlight Vertical Aim" function in ISTA or a compatible scan tool and follow on-screen prompts while parked 25 ft from a wall.
