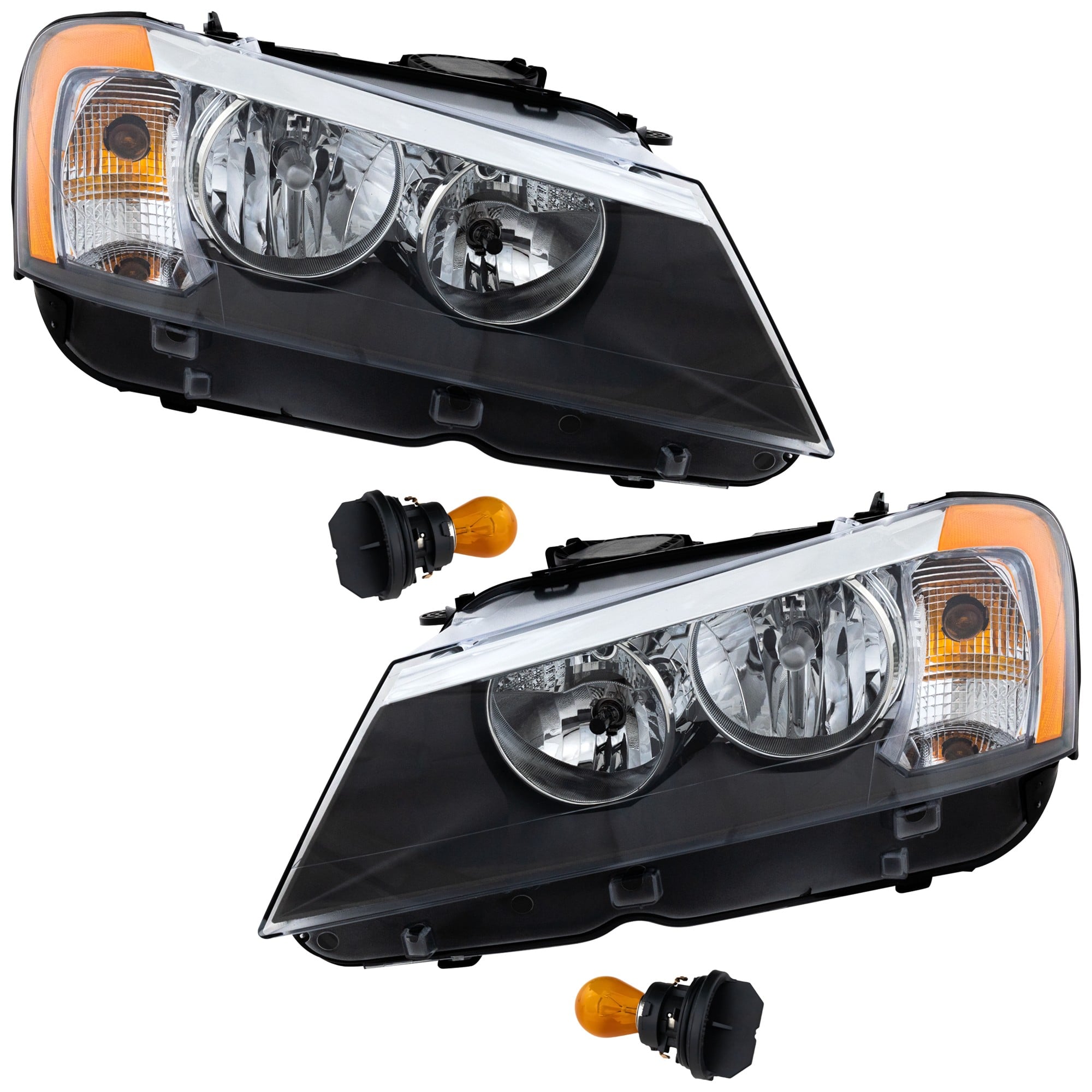

Buy BMW X3 Headlight Assembly

BMW X3 headlights-also called headlamps, front lamps, or light assemblies-help drivers see the road and be seen at night and in bad weather. For different model years, BMW offered halogen, xenon (HID), and, on newer G01-generation SUVs, adaptive LED projector units that swivel with the steering wheel for better corner lighting. Good lighting boosts safety (the Insurance Institute for Highway Safety rates the 2023 X3's adaptive LEDs "Good") and must follow federal rules such as FMVSS 108 that set brightness, color, and aiming limits. Keeping lenses clear, bulbs intact, and the aim correct prevents glare and costly tickets.

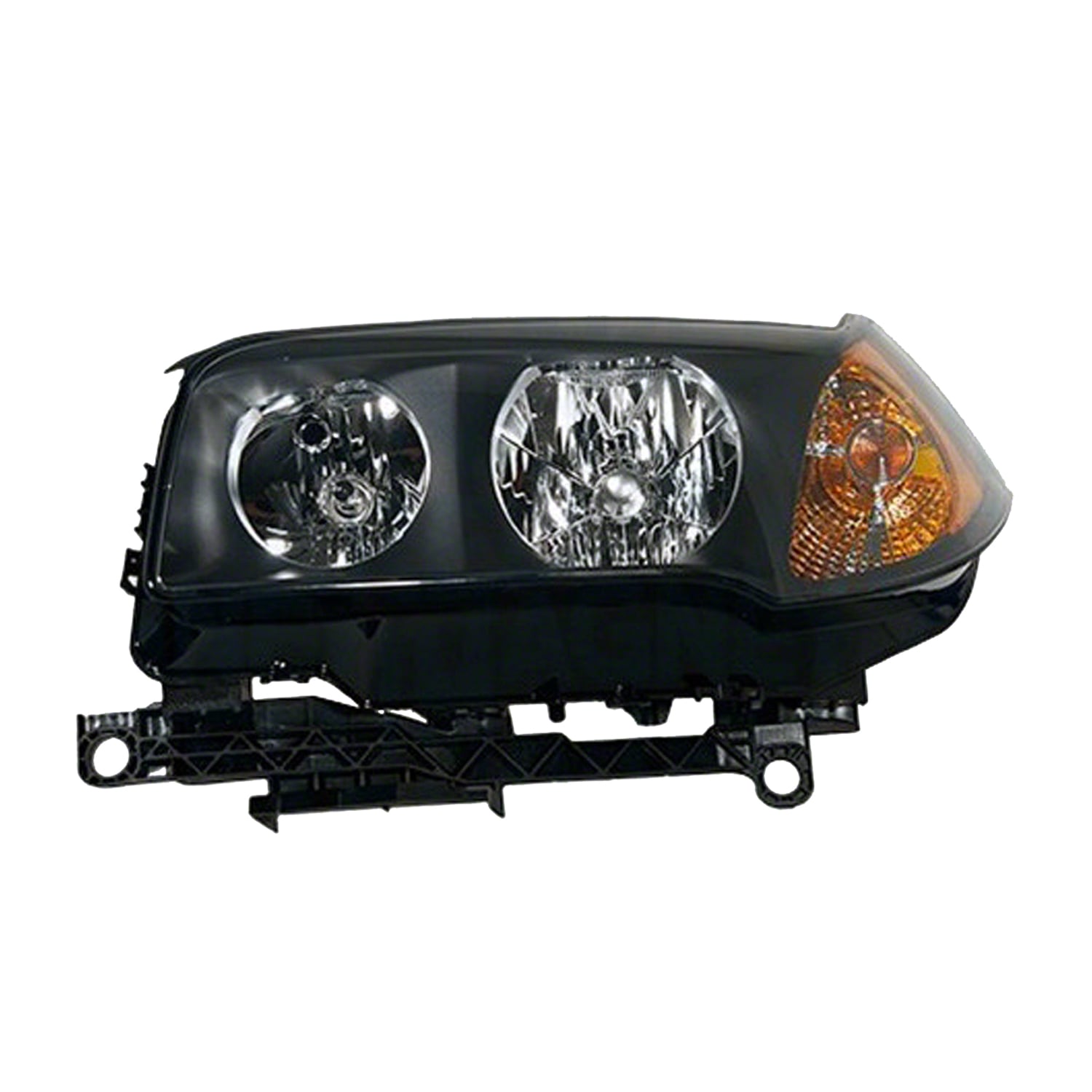

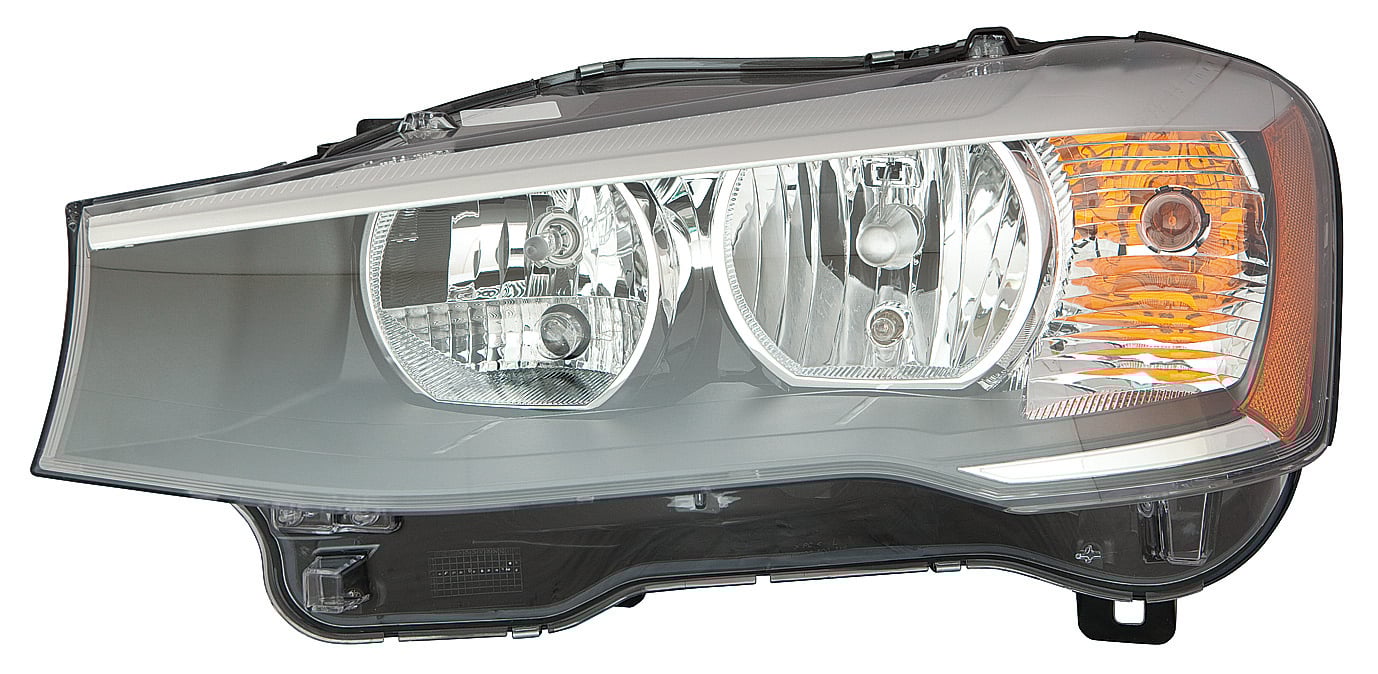

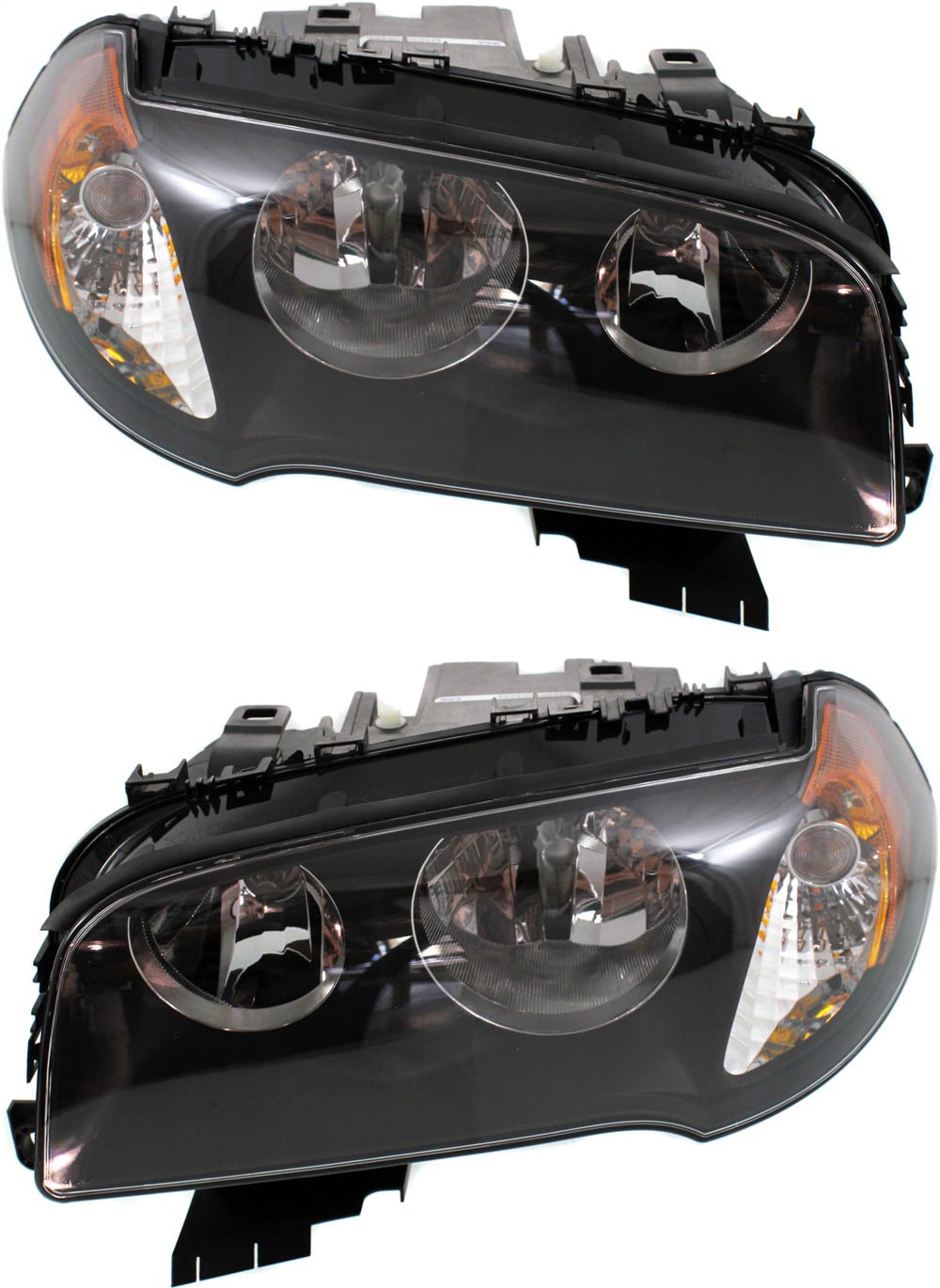

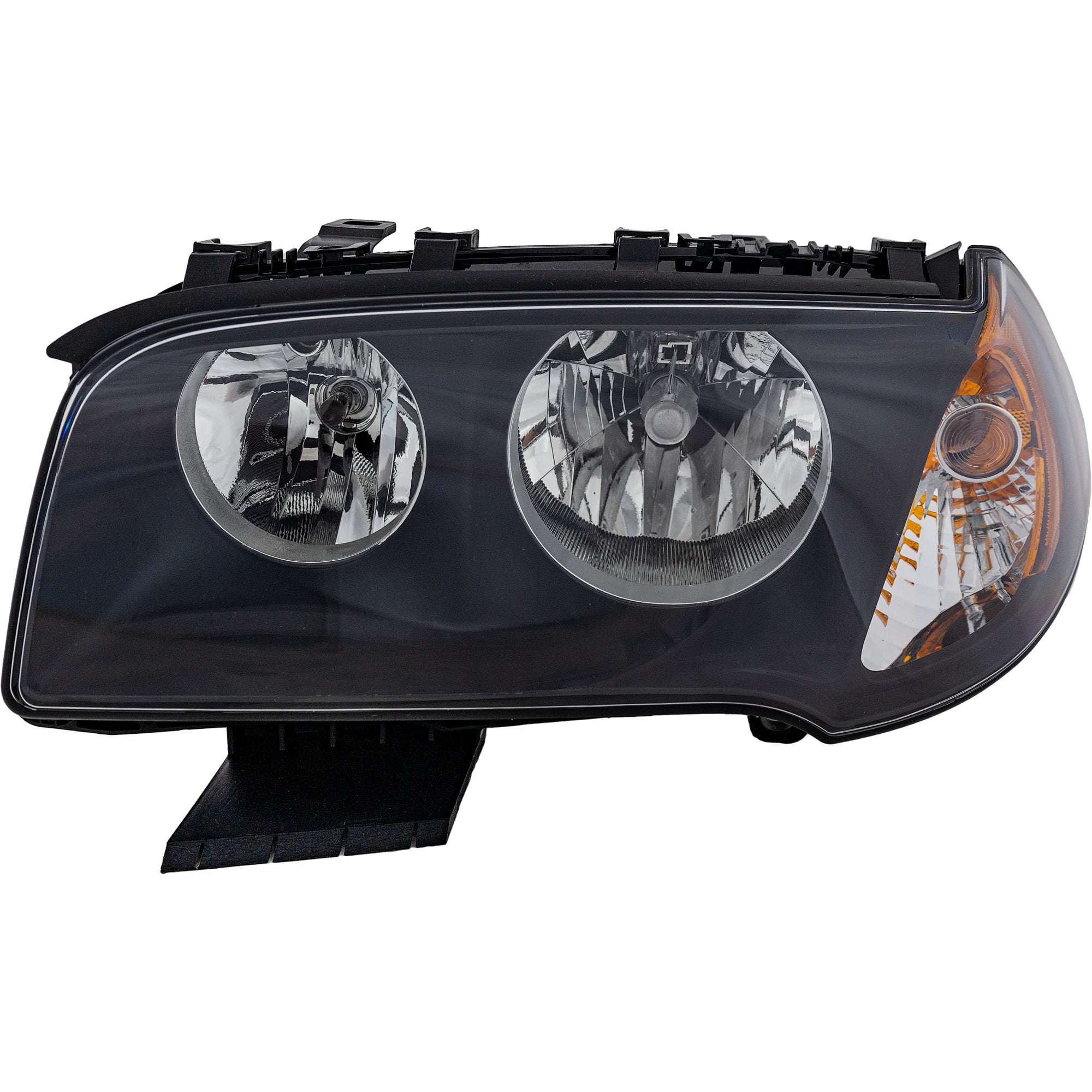

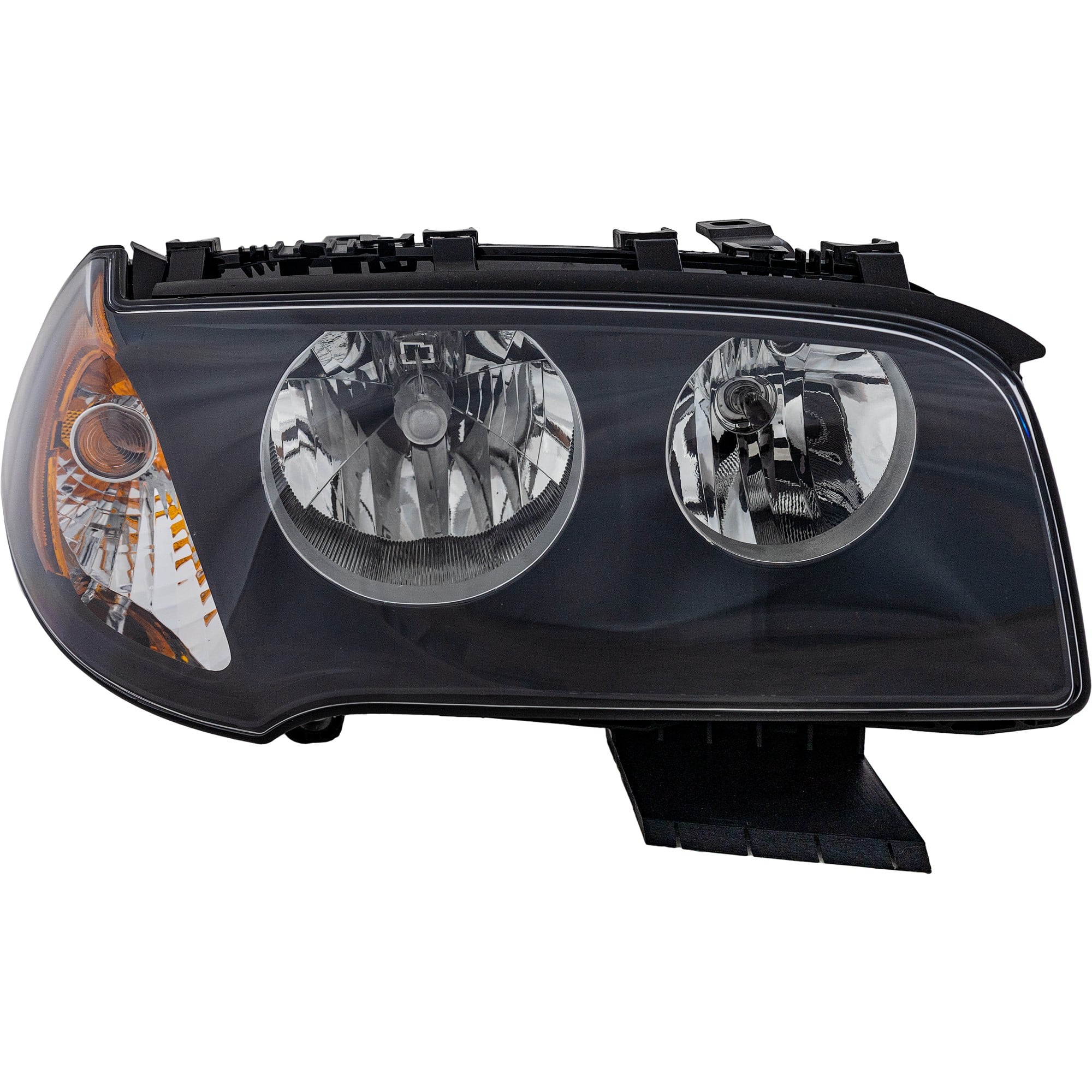

• Halogen reflector lamps (2004-2017, E83/F25)-cost-effective but dimmer. (Xbimmers)

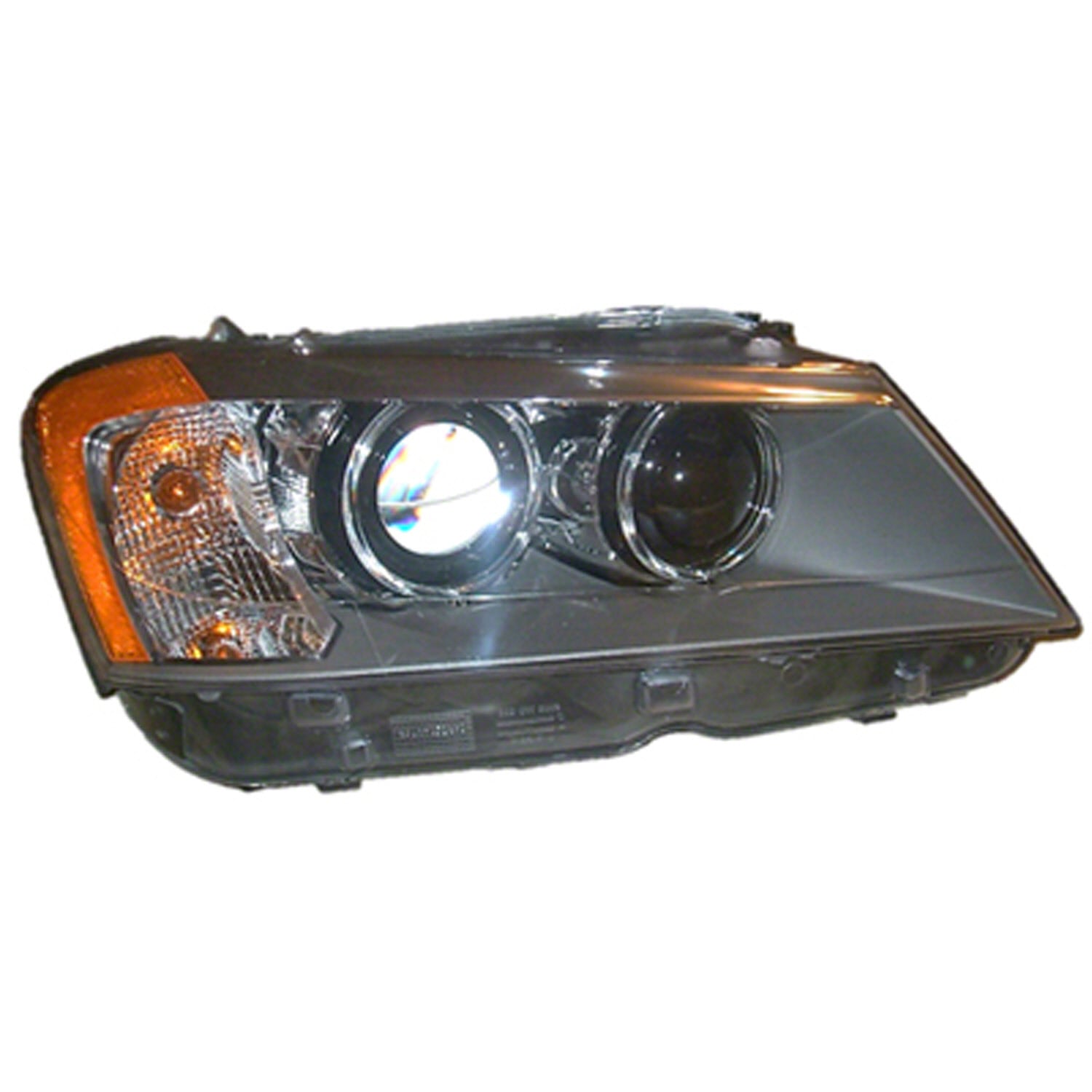

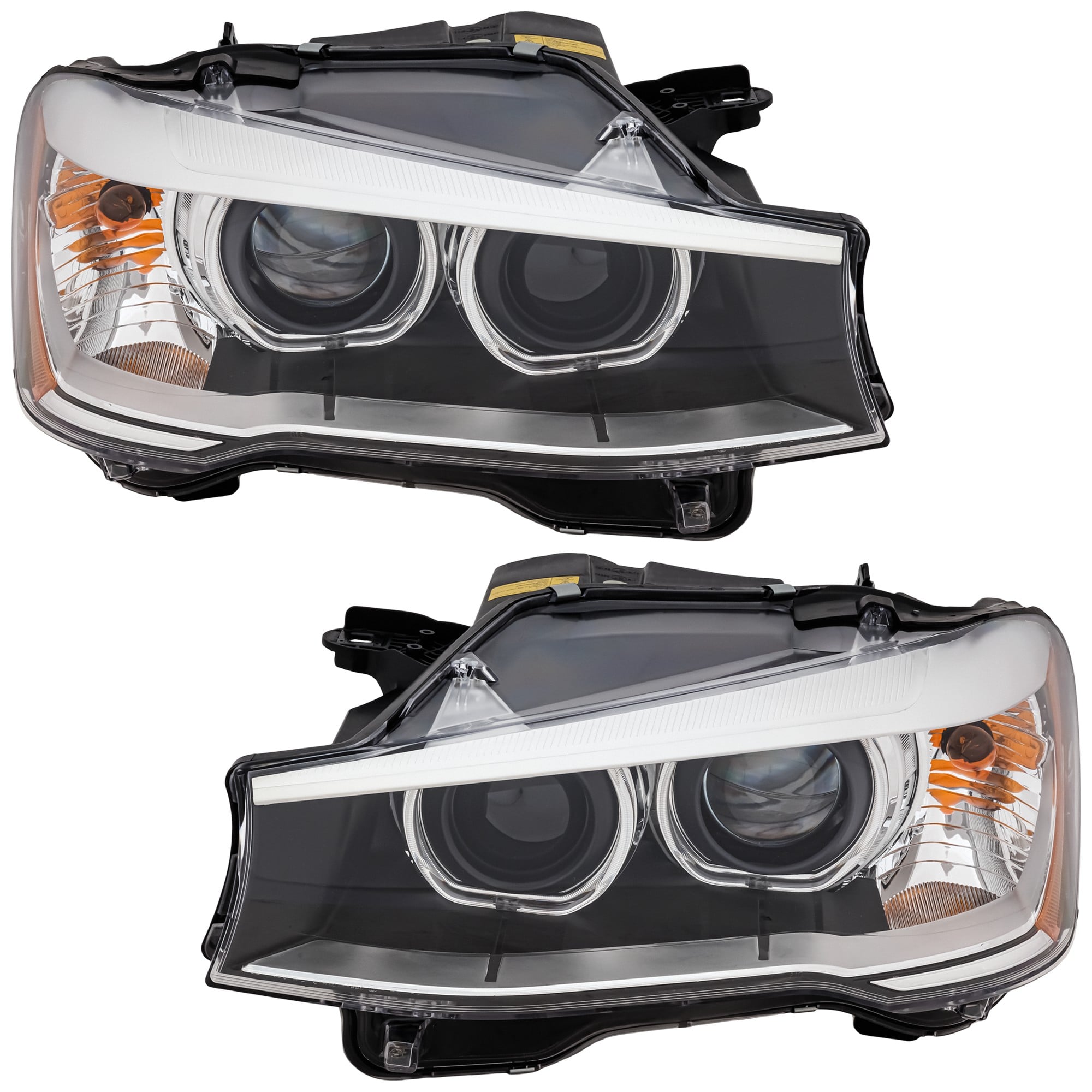

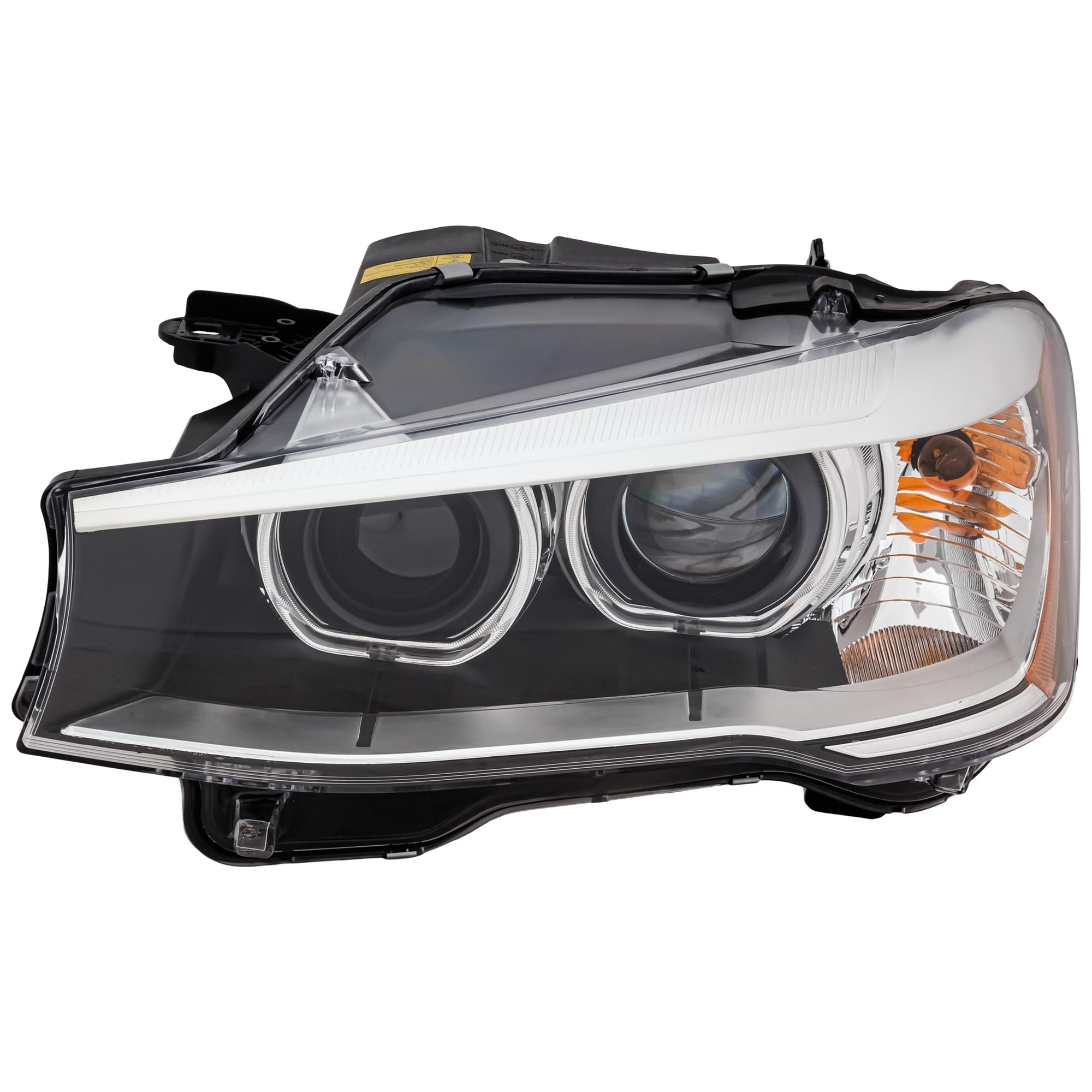

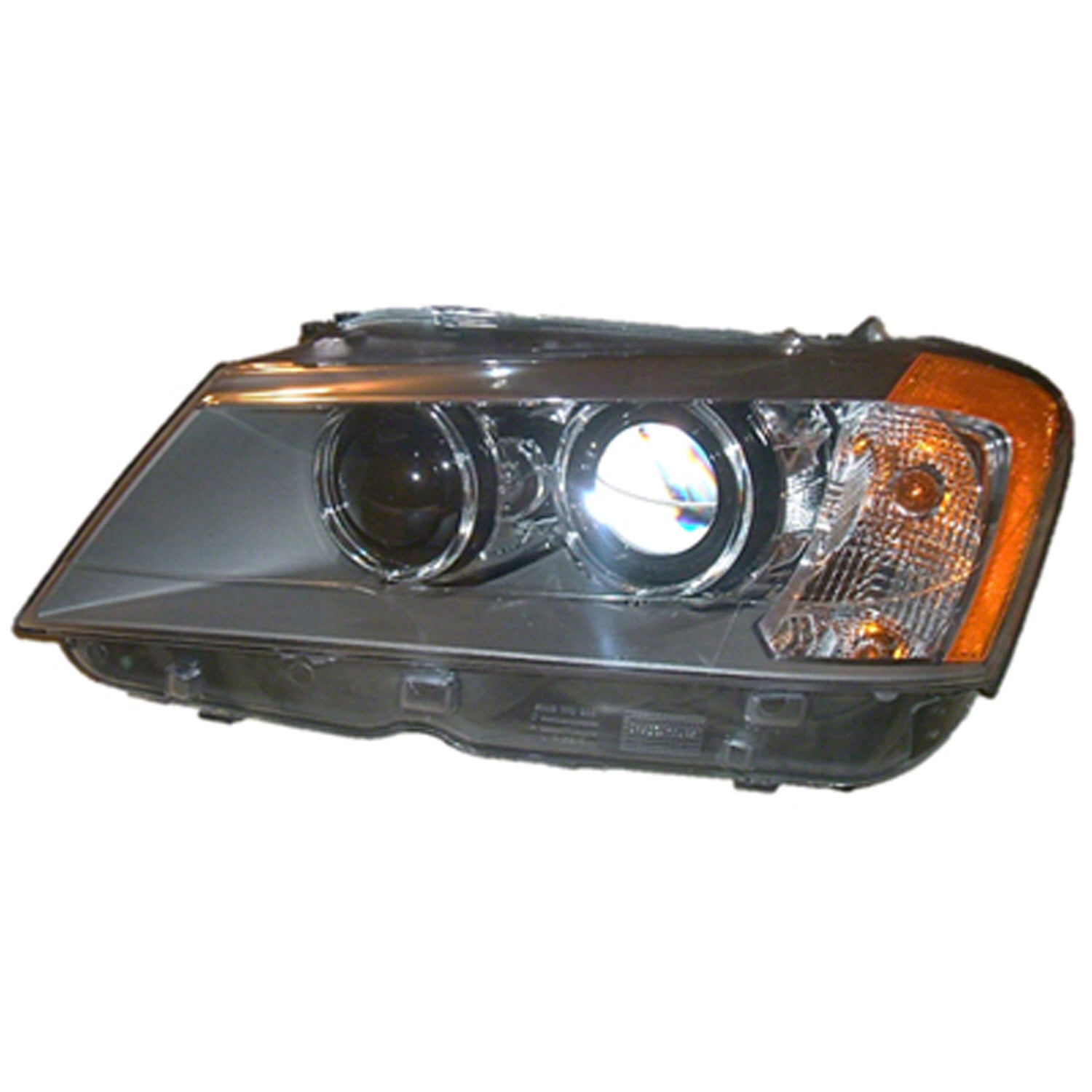

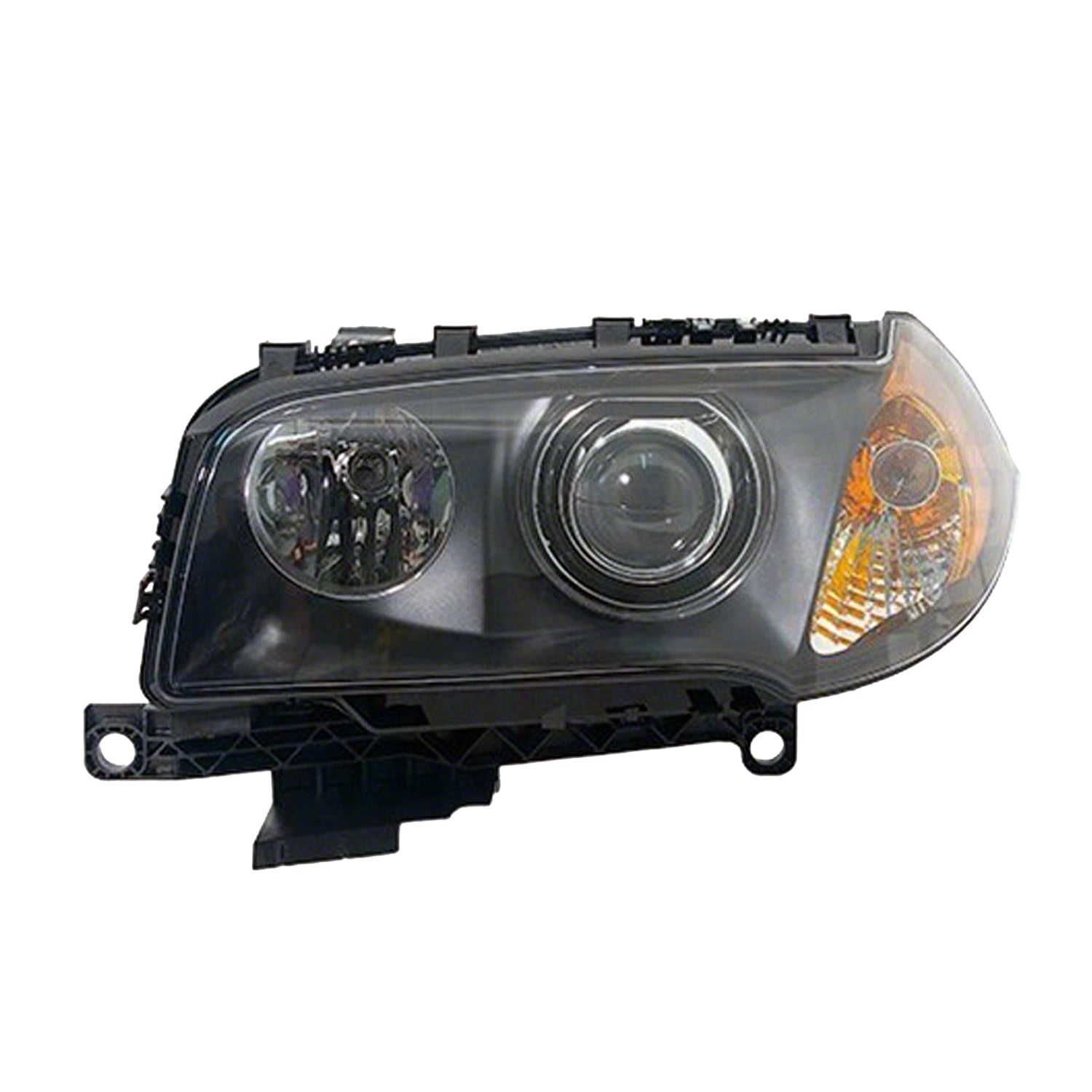

• Xenon/HID projectors (select 2007-2017 trims)-brighter arc-light, uses D1S bulbs. (AUXITO)

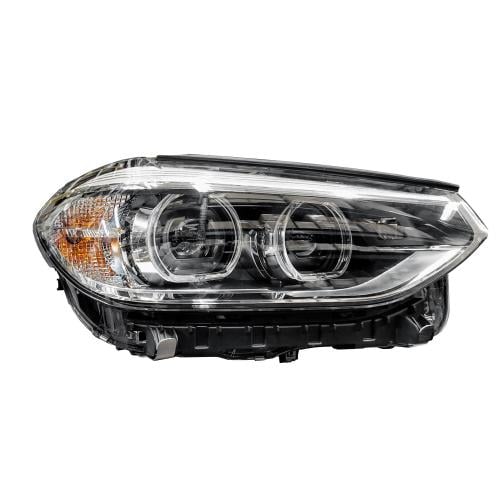

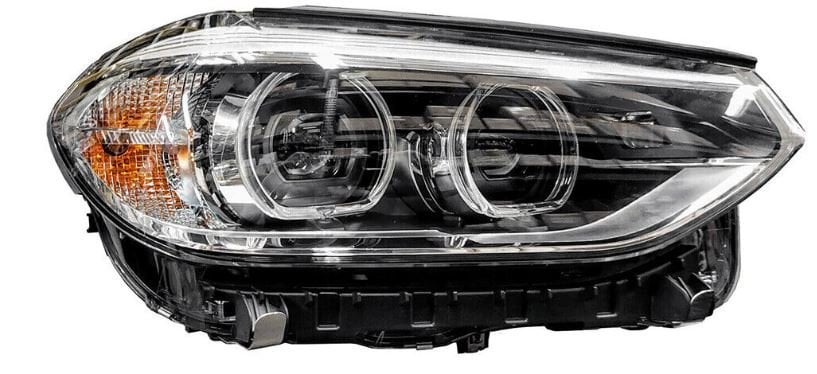

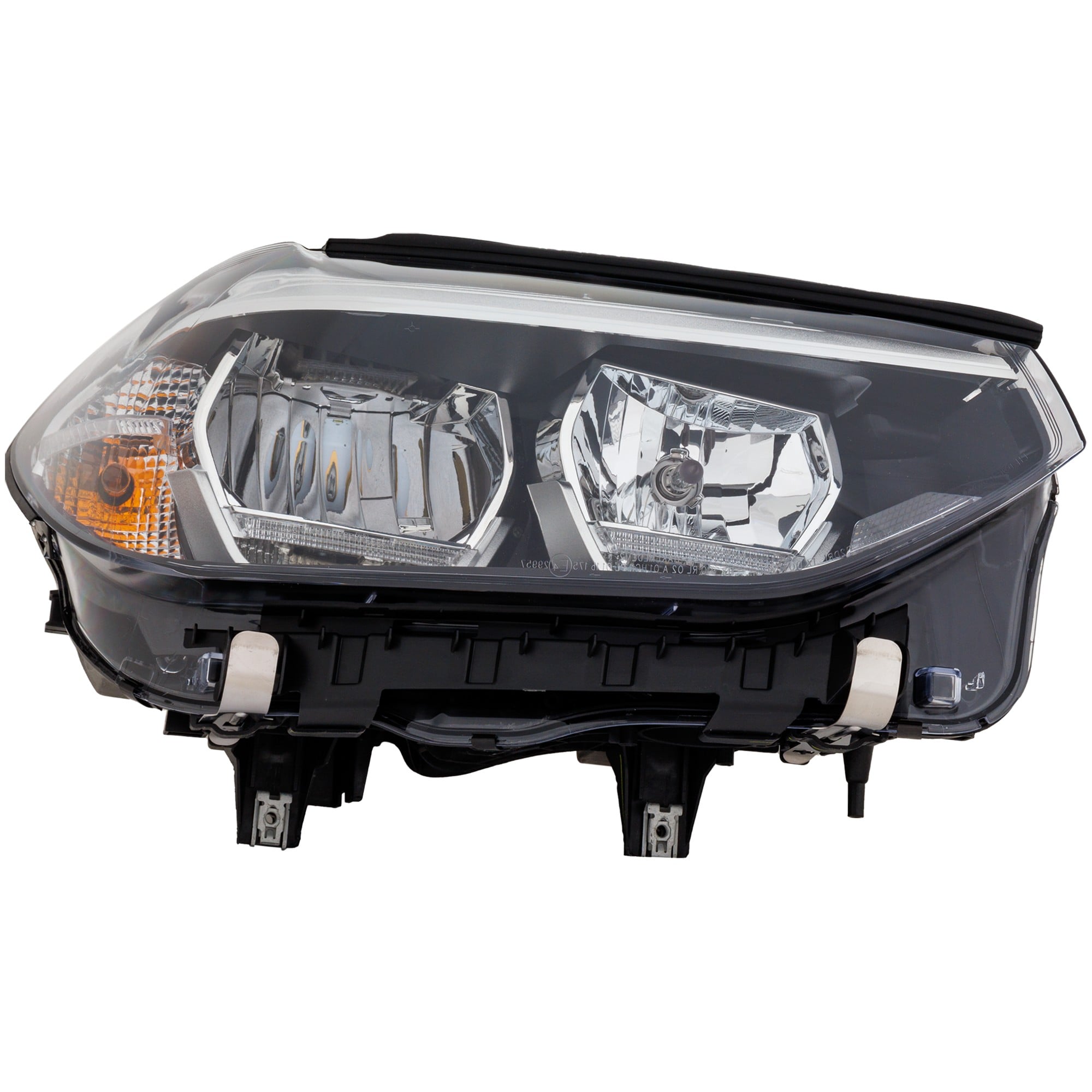

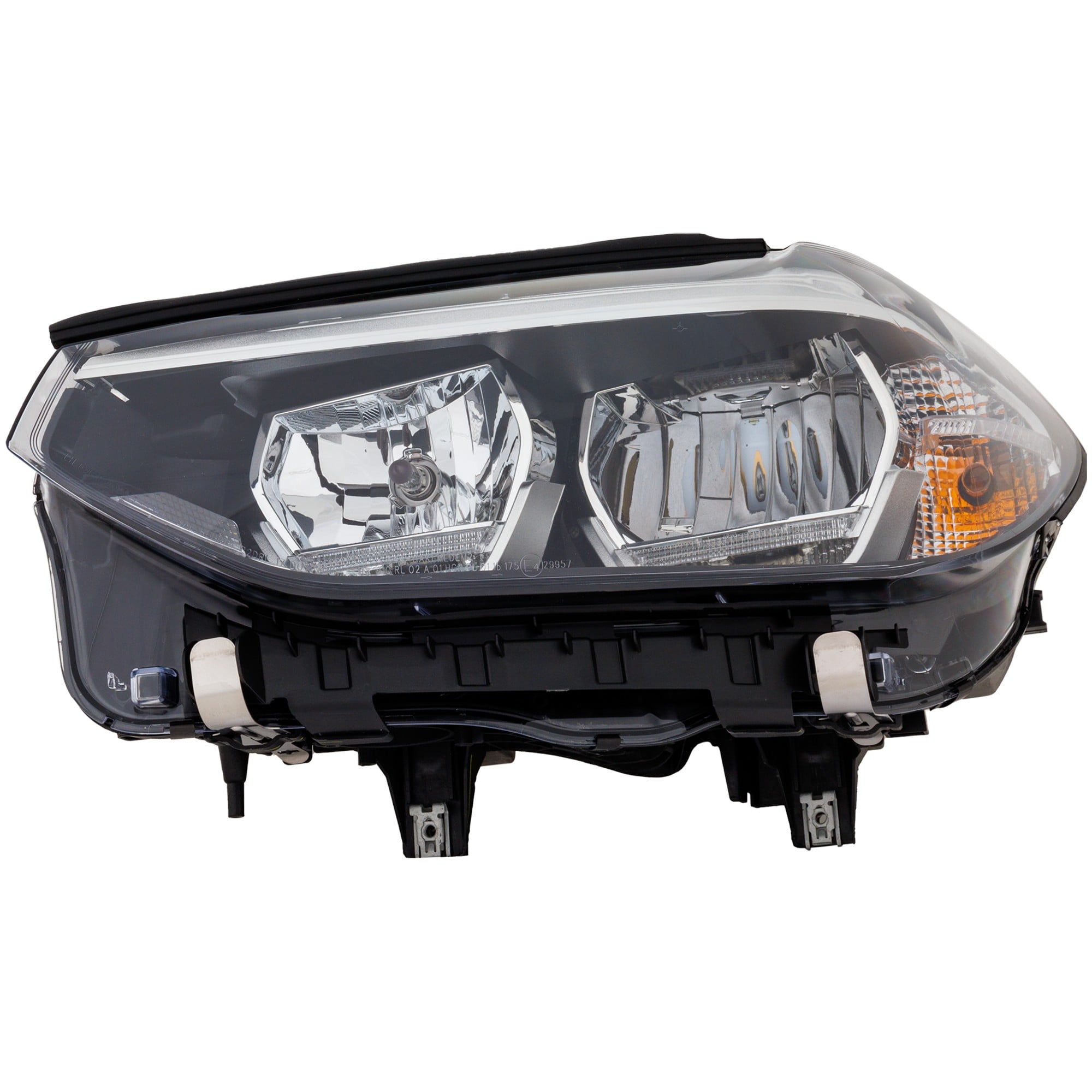

• Full LED projectors (2018-present, G01)-quick on/off, longer life, lower power draw. (IIHS, XenonPro)
• Adaptive LED ("Icon" or "Laserlight" in some markets)-steers the beam into curves and auto-levels. (Xbimmers)

Key Specs (common years)

← scroll table horizontally →

• Regulations. U.S. headlights must meet FMVSS 108 requirements on brightness, aiming, and color.
• Color limits. Legal headlight color temperatures run ~3 000 K-6 000 K; white or selective-yellow only. (CarParts, Carifex)
• Glare concerns. Brighter LED lights can dazzle oncoming drivers, prompting calls for stricter rules. (Vox)
• Crash safety. The IIHS gives 2023 X3 adaptive LEDs a top "G" rating for curve lighting and high-beam assist. (IIHS)

• Cloudy polycarbonate lenses lose clarity from UV damage; a UV-cured hard-coat can restore them. (uvebtech.com)
• Condensation is normal in small amounts; BMW's bulletin says replace vent caps if water pools. (Xbimmers, Bimmerpost)
• Flicker or outage may point to a blown fuse (glove-box panel) or a failed leveling sensor on the control arm. (YouTube, YouTube)

DIY Care

• Cleaning hack: Rub a paste of baking soda or toothpaste over the lens, rinse, and buff. (Bridgestone Tires, The Sun)
• Aiming the beam: Insert a long Philips screwdriver into the white adjuster behind each lamp and turn ¼-turn at a time while facing a wall 25 ft away. (Xbimmers)
• Average cost: Owners report $800-$1 400 per full LED assembly, plus coding time at the shop (prices vary by region). (eBay)

• Swapping halogen for LED/HID units needs wiring, modules, and dealer coding-plug-and-play kits often trigger dashboard errors. (Xbimmers)
• LED conversions draw up to 30 % less power and turn on instantly, while HIDs offer 20 %-30 % more light than halogen but take seconds to warm up. (XenonPro)
• Always realign headlights after any bulb or assembly change to prevent glare tickets and ensure you meet legal limits. (Federal Register)

Q: What headlight types has the BMW X3 used since 2004?
A: Early models had halogen, mid-years added xenon (HID), and 2018-onward SUVs switched to LED, with adaptive LEDs on higher trims. (Xbimmers, Xbimmers, IIHS)

Q: How do I know if my X3 has adaptive headlights?
A: Look for a small "Adaptive" symbol on the light switch and watch the beam swivel on start-up; the IIHS page also lists it as "curve-adaptive." (Xbimmers, IIHS)

Q: Which bulb size fits a 2016 X3 with halogens?
A: It uses H7 bulbs for both high- and low-beam lamps. (AUXITO)

Q: Are LED headlamps legal everywhere?
A: Yes, if they emit white or selective yellow light and fall between roughly 3 000 K and 6 000 K color temperature. (CarParts, Carifex)

Q: Why do my headlights look foggy?
A: Ultraviolet light roughens the clear polycarbonate lens; a sanding and UV-cure coating can restore clarity. (uvebtech.com)

Q: Is a little moisture inside the lamp normal?
A: A light mist that clears within minutes is considered normal by BMW; standing water means the vent needs service. (Xbimmers, Bimmerpost)

Q: How much does a new LED assembly cost?
A: Owners report roughly $800-$1 400 per side, not counting labor or coding. (eBay)

Q: Can I upgrade my halogen X3 to LED?
A: It's possible but involves new wiring, control modules, and software coding; otherwise warning lights appear. (Xbimmers)

Q: How can I adjust the beam height?
A: Use the white screw atop each headlamp and aim the cutoff line to fall ~2 inches lower at 25 ft. (Xbimmers)

Q: What fuse controls the headlamps?
A: Check the panel behind the glove box and refer to the legend for the correct fuse slot. (YouTube)

Q: What does a headlight leveling sensor do?
A: It tells adaptive systems to dip the beam when the car is loaded, keeping glare away from other drivers. (YouTube)

Q: When were X3 headlights recalled?
A: A limited recall addressed passenger-side moisture issues on certain 2021-2022 SUVs. (Xbimmers)

Q: Why are modern headlights so bright?
A: LEDs put out more blue-white light that appears brighter, and safety ratings reward better illumination. (Vox)

Q: How long do LED modules last?
A: LEDs are rated for up to 15 000 hours-several times the life of halogen bulbs. (XenonPro)

Q: What's the quickest way to clean cloudy lamps?
A: Rub a baking-soda paste on the lens, rinse, and buff dry for a fast improvement. (Bridgestone Tires)
