Buy BMW X5 Bumper Covers

The bumper cover is the outer plastic panel you see at the front or rear of an X5. It hides the metal beam and energy absorber underneath, smooths airflow, mounts lights and sensors, and gives the SUV its athletic "X" look. Federal and European rules make sure the cover and the parts it protects can take light taps in parking lots without big repair bills, while special foams inside soak up harder hits.

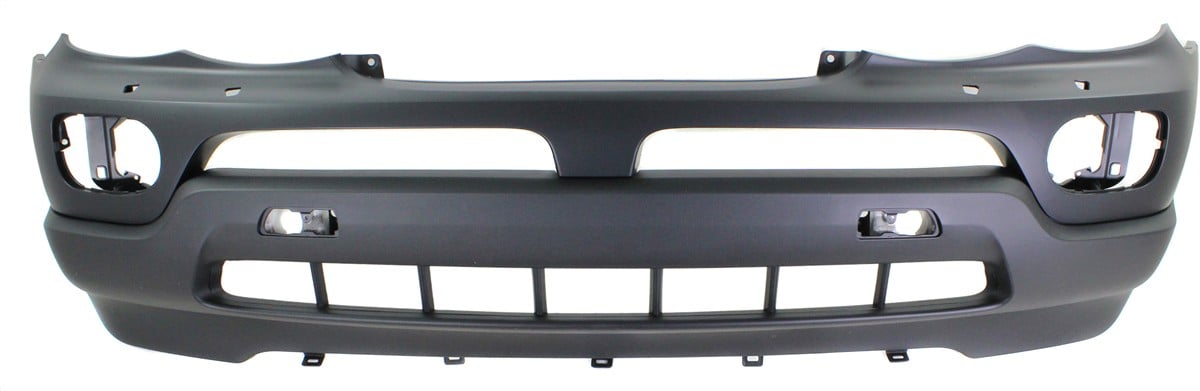

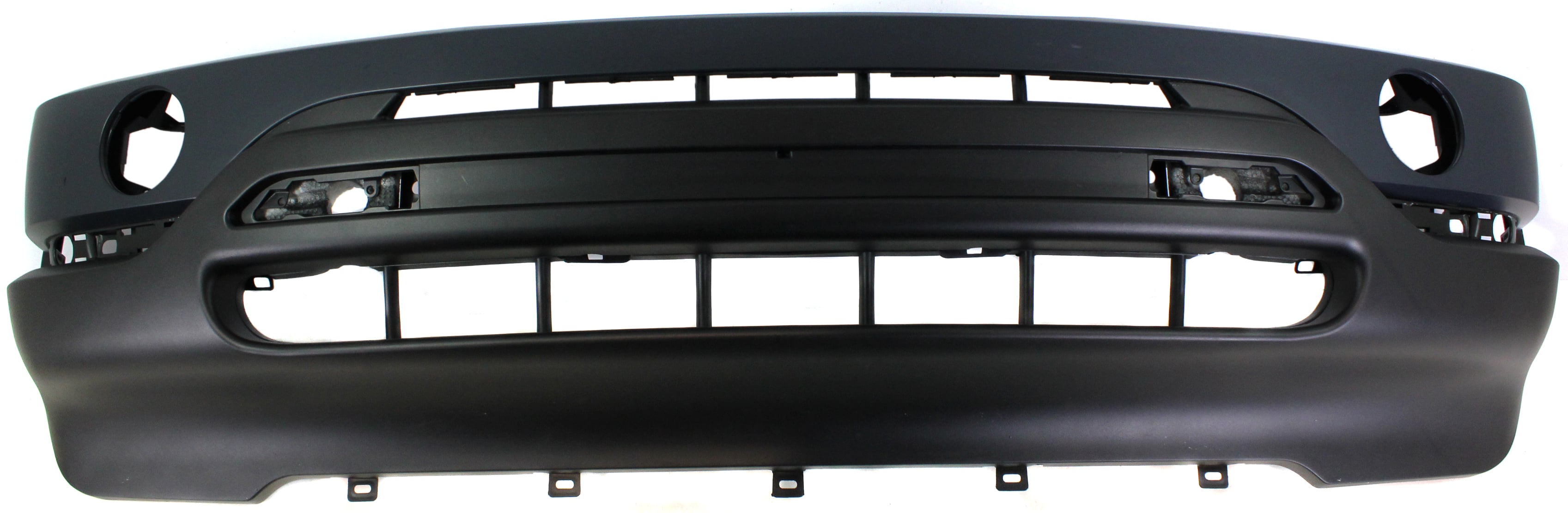

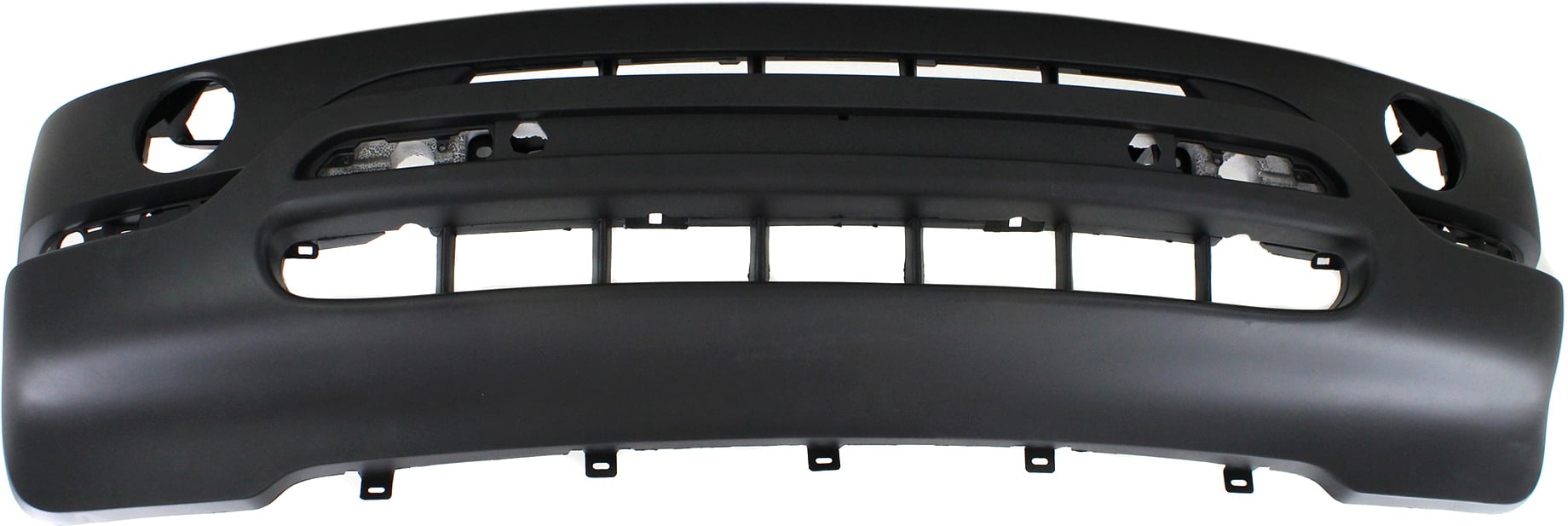

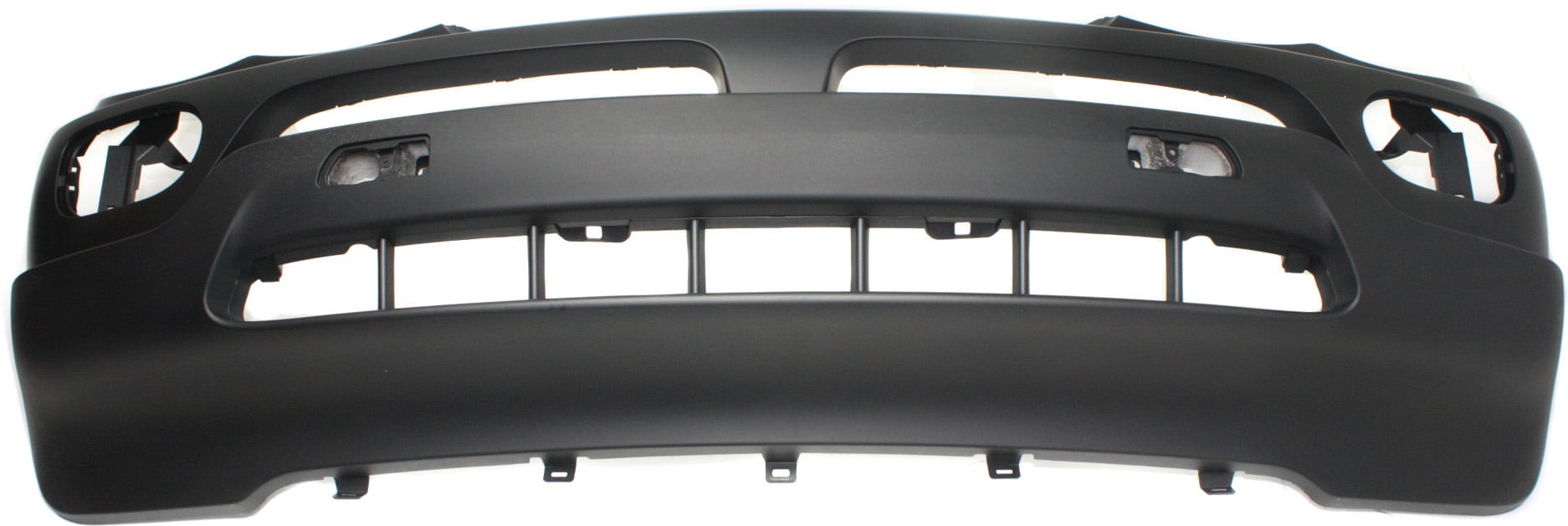

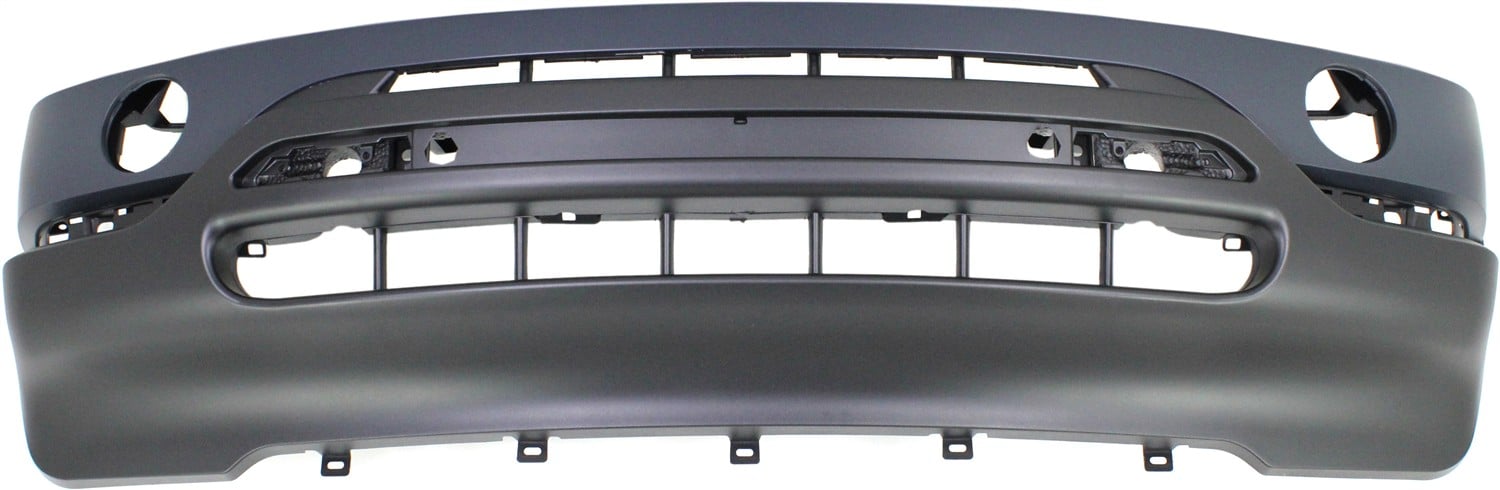

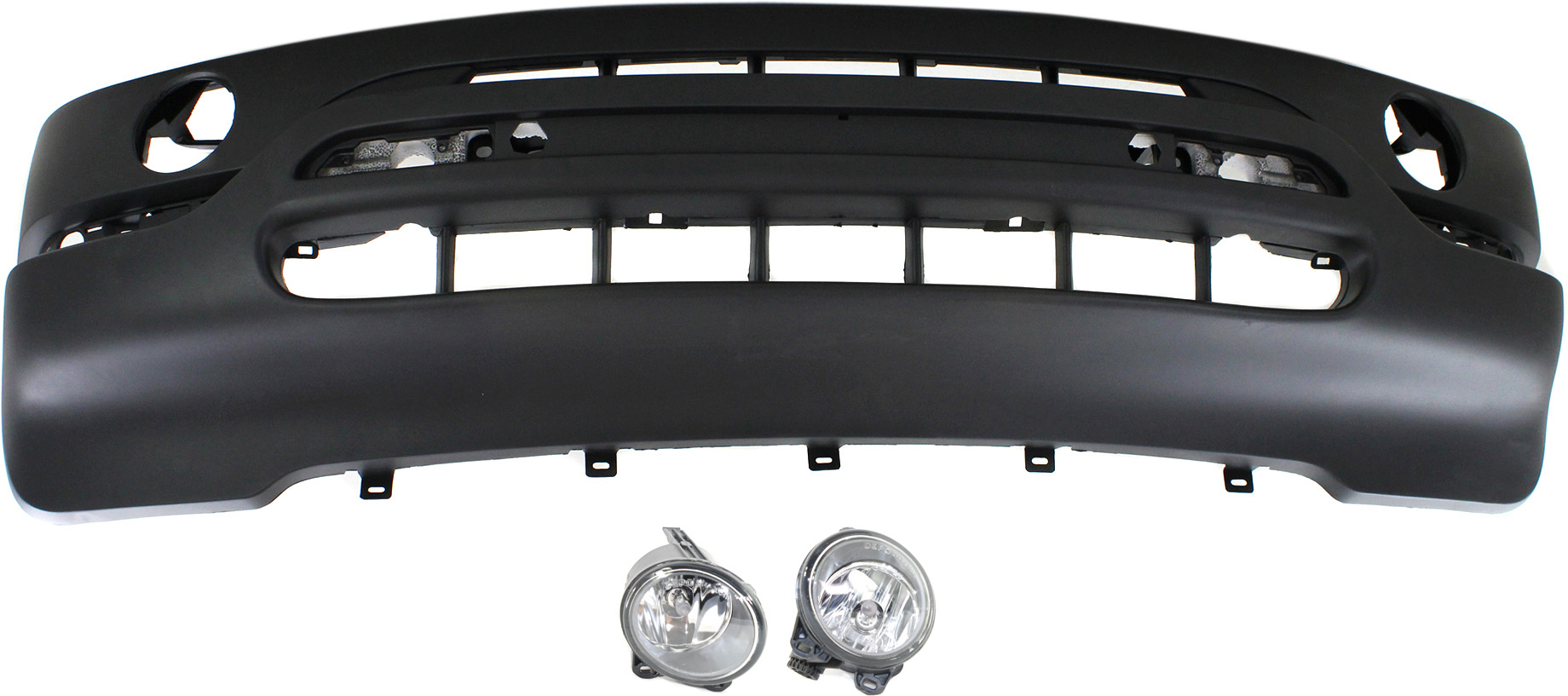

• E53 (1999-2006) - first X5; bumper skins are smooth with small fog-light openings.
• E70 (2007-2013) - larger intakes and "air curtain" slots begin.

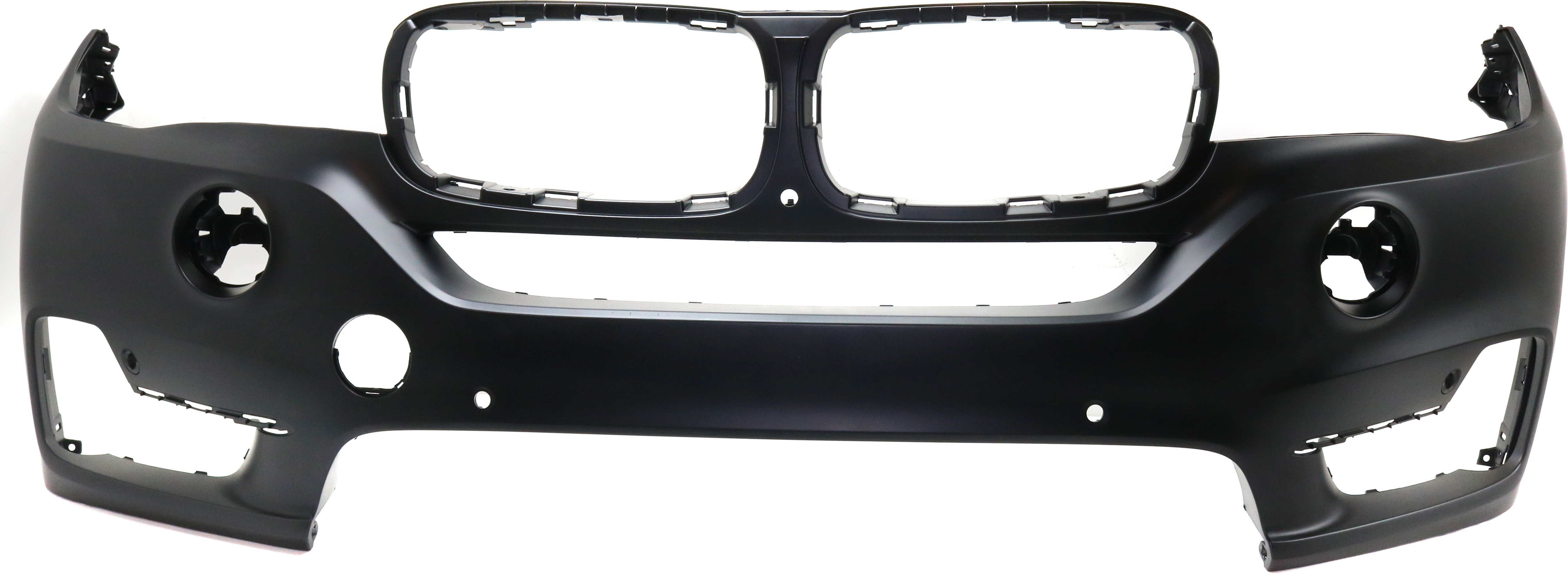

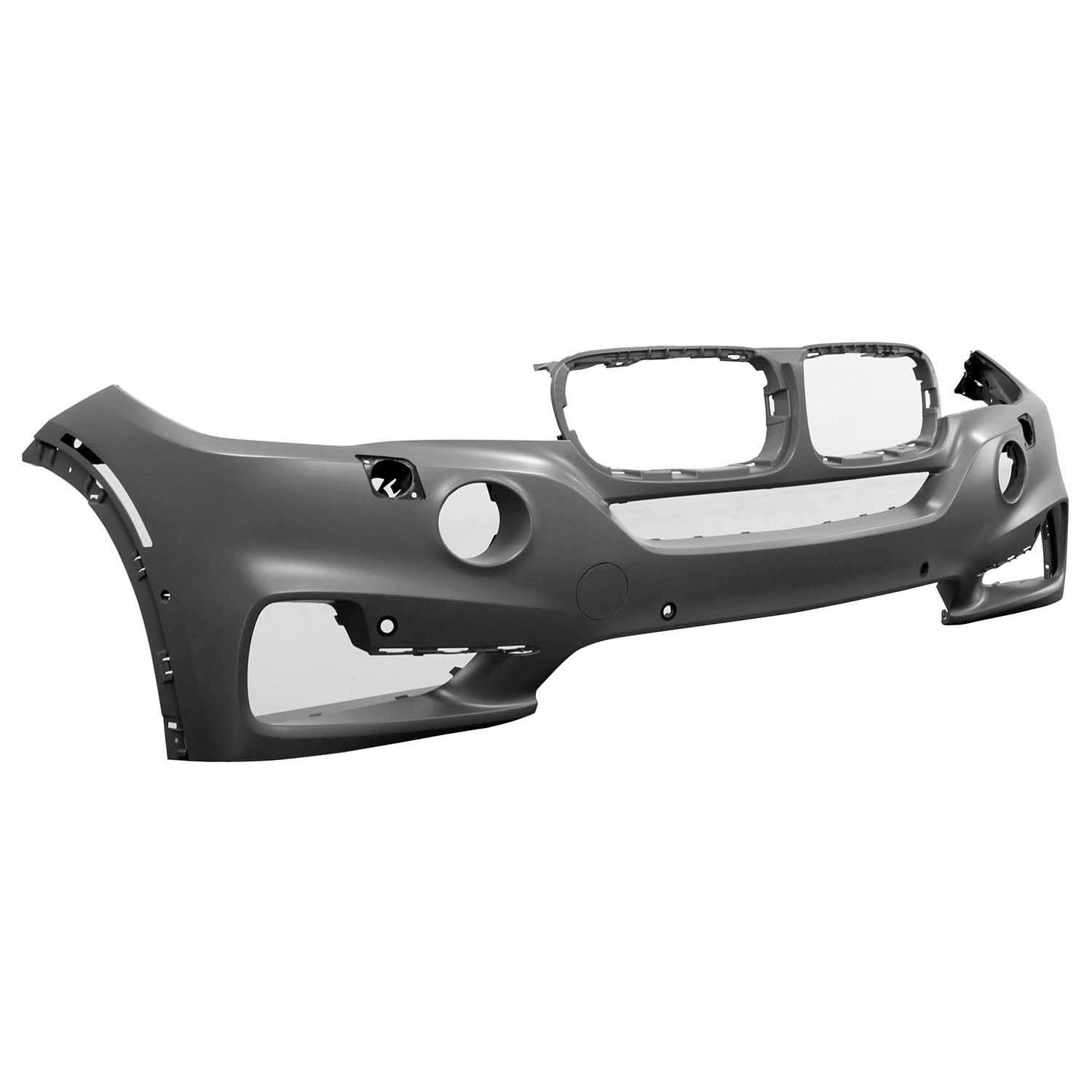

• F15 (2014-2018) - airflow-shaping Air Curtains become standard; parking radar rings added. (ManualsLib)
• G05 (2019-present) - wide grille merges with a sculpted fascia; some trims hide the cruise-control radar in a black disk low in the center.

Because each generation is sized differently, always match the cover to the exact model year and option package (M Sport, xLine, Off-Road, etc.) so the sensor holes and grille inserts line up.

U.S. rule 49 CFR Part 581 says the bumper system has to resist damage in low-speed 2.5 mph barrier and 1.5 mph pendulum tests. Engineers add crushable foam to keep repair costs down and help protect pedestrians' knees. BMW's own tech manuals note that the cover guides impact energy into deformation elements so the frame stays straight.

Most X5 covers are molded from paint-grade polypropylene (PP) blended with elastomers so the skin flexes without cracking. Carbon-fiber-reinforced plastic appears on some M-Performance diffusers for stiffness and weight savings.

Raw PP is slippery, so paint shops first spray a polyolefin adhesion promoter, then primer, color, and clear.

BMW uses crisp "X-shaped" lines in the bumper surface to visually widen the SUV. Vertical Air Curtains at the outer intakes cut drag by blowing air across the wheel openings.

• Parking sensors (PDC): Four ultrasonic buttons sit in round recesses; the outer sensors "see" about 60 cm (2 ft) ahead or behind. (ManualsLib)
• Front radar: Adaptive Cruise Control radar lives low in the center of the front fascia-keep this spot free of dirt or thick paint film. (ManualsLib)
• Side radar & cameras: Newer G05 bumpers hide short-range blind-spot radar in the corners; optional front cameras snap into removable grille blanks.

DIY owners unbolt wheel-liner screws, slide out plastic clips, unplug lighting and sensor looms, then pull the cover forward. Online guides show the exact clip map for G05 models. Factory repair steps caution to tighten small hex screws to only 3 Nm so the thin PP tabs do not strip.

• Sand lightly with a gray scuff pad, wash with plastic cleaner, blow dry.
• Apply adhesion promoter in one tack coat and one light coat.
• Prime and color-coat within the re-coat window to lock in adhesion.
  A bumper skin often ships in primer so the body shop can spray any BMW color code.

Keep radar and sensor spots clean; road film can mute their signal. Small scratches polish out; deeper gouges can be plastic-welded and refinished. When damage reaches the inner beam or cracks the mounts, replacement is safer than filler alone.

Repairing cosmetic scrapes might cost under $300, but replacing and repainting a full fascia can run $900-$2,000 depending on paint type and sensor count. Insurance pays under collision or comprehensive coverage after the deductible.

Europe follows UNECE Regulation 42, which sets similar low-speed impact goals and adds pedestrian-leg clearance checks. Both U.S. and EU tests look at the whole bumper system, not the skin alone, so using a cover with the right crush-pad thickness is critical.

The EPA notes that bumper fascias are among the largest plastic car parts regularly recycled; clean PP can be shredded and turned into under-body guards or battery trays.

BMW offers M Sport diffusers, gloss-black trim, and skid-plate style valances that swap directly onto the standard shell. Third-party tuners add carbon lips and mesh grilles-just verify they keep radar and tow-hook caps clear for legal road use.

Q: What does a bumper cover actually do?
A: It hides the metal bumper bar, smooths airflow, mounts lights and sensors, and soaks up little bumps with flexing plastic.

Q: Is the cover a safety device?
A: Yes. It is part of the bumper system that must pass low-speed impact rules to cut repair costs and protect pedestrians.

Q: Are front and rear covers interchangeable?
A: No. They are shaped differently and hold different brackets. Always match front-to-front and rear-to-rear.

Q: Will a G05 bumper fit my older F15 X5?
A: No. Mounting tabs, grille size, and sensor layouts changed between generations.

Q: What plastic is the skin made of?
A: Paint-grade polypropylene mixed with elastomer for flexibility.

Q: Do I need special paint supplies?
A: Use a plastic adhesion promoter before primer so the coating sticks.

Q: Can I reuse my old parking sensors?
A: Yes, if they are undamaged. Pop them from the old shell and snap them into the new one. Check that rubber gaskets seal tight. (ManualsLib)

Q: How far can PDC "see"?
A: About 2 ft (60 cm) for the outer sensors; a beep grows faster as you get closer.

Q: Where is the radar sensor?
A: In the lower center of the front bumper behind a smooth black circle. Keep it clean for cruise control to work. (ManualsLib)

Q: Do I have to remove the wheels to take off the bumper cover?
A: No, but turning the front wheels outward gives room to reach the fender-liner screws.

Q: What torque do the small bumper screws need?
A: Factory manuals list roughly 3 Nm-snug by hand, not tight like engine bolts.

Q: Will insurance pay for aftermarket parts?
A: Many insurers allow aftermarket covers; OEM-only coverage costs extra.

Q: How do I recycle a cracked cover?
A: Ask local body shops or plastic recyclers; clean PP bumper skins are widely accepted.

Q: Does carbon fiber make the bumper stronger?
A: It makes add-on lips lighter and stiffer, but the main impact bar still carries most crash loads.

Q: Can a scratched cover be repaired without repainting?
A: Minor scuffs buff out; deeper scratches need sanding and spot paint to prevent fading.

Q: Do bumper "bull bars" void safety rules?
A: Large metal add-ons can block sensors or alter crash performance, so check local regulations before installing.

Q: What's the best way to keep the cover looking new?
A: Wash road salt off quickly and apply a polymer sealant; avoid harsh solvents that dry the plastic.

bumper cover, fascia, skin, and valance.
